2.8 topics #1783
Comments
|
i might not be available to do any of this. |
|
why? |
|
external pressures :/ |
|
what does mean |
|
not sure from what I understand
( not a massive issue... but if we don't follow the new convention it will be lifeless ) Not sure if or how Node subclasses will be treated. Lukily we already prefix most of those anyway :) |
|
we can definitely already migrate menus/operators and panel to be consistent with the regex Blender will use: pattern = `[A-Z][A-Z0-9_]*_MT_[A-Za-z0-9_]+` |
|
If Sverchok does not work with Blender 2.8, I will stick with 2.79 for a
while.
|
|
2.8 doesn't draw the nodeview properly on my crappy Lenovo laptop. I've been told to wait about 6 months before taking 2.8 serious enough to work on GL code. |
|
if we keep up to date with 2.79 nightly builder bot builds the final step-over to 2.8 will be less of a jump. |
|
External pressure :) Like a comet set on direct path with Earth ? :) |
comets. the universe's answer to ignorance :) |
|
Bl_idname. What to do? Not clear to me. Where to read? |
|
The link at the top @nortikin is all the information we've been given. But .. for example # SvMoveSocketOpExp(Operator, MonadOpCommon)
SvMoveSocketOpExp -> SV_OT_MoveSocketOpExp |
|
I am not sure if we need to manually pass bl_idname = "node.sverchok_move_socket_exp"it might already default to something else if we don't. # bl_idname = "ops.SV_OT_MoveSocketOpExp"will need to experiment. |
|
Oops, I didn't know github would create a notice here if I linked this issue from my repository, sorry. Since I'm here already: |
|
Changing in user interface: |
|
I am very curious on how SV can just work in 2.8, maybe there will be some
changes.
|
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/__init__.py", line 77, in <module>
imported_modules = init_architecture(__name__, utils_modules, ui_modules)
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/core/__init__.py", line 99, in init_architecture
import_settings(imported_modules, sv_name)
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/core/__init__.py", line 80, in import_settings
settings = importlib.import_module(".settings", sv_dir_name)
File "/home/ololo/Downloads/INSTALL/blender-2.80-35efa1d3d33-linux-glibc219-x86_64/2.80/python/lib/python3.6/importlib/__init__.py", line 126, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/settings.py", line 8, in <module>
from sverchok.core import handlers
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/core/handlers.py", line 10, in <module>
from sverchok.ui import (
File "/home/ololo/.config/blender/2.80/scripts/addons/sverchok/ui/viewer_draw_mk2.py", line 36, in <module>
from bgl import (
ImportError: cannot import name 'glBegin' |
|
BGL go crazy |
|
Some more news about Blender 2.8 UI: https://developer.blender.org/T55386 |
|
New node editor is coming:
|
|
2.8 is already alpha. |
|
Sverchok can be forced to "work" on 2.8. But without all nodes what use BGL, and nodetree updates only on frame change. Also no way to link new objects to scene. Some icons missing. Here testing branch: https://github.com/nortikin/sverchok/commits/Blender-2.8-testing |
|
I heard on |
|
Yes, I received the same from them. It is okay... ish... The only thing I am worrying about is that there might be too small gap between "python api stabilization" and "blender release" dates for us to update sverchok. |
|
i think it's perfectly acceptable for a non trivial add-on (like Sverchok) to take some time to update. Once the scripting interface is ready for the bgl replacement. i'm not going to spend time doing this, i wish others didn't either. ( i already did tests early on : https://github.com/nortikin/sverchok/tree/b28_test ) |
|
https://developer.blender.org/T56644 |
|
https://devtalk.blender.org/t/everything-nodes-with-sverchok/2029 also they say it is better place. |
|
bgl now exists again in 2.8 nightly builds, but glBegin and _End are no longer supported ImportError: cannot import name 'glBegin' from 'bgl' (unknown location)seems like we must now construct proper VBO. i'll dig into this. :) |
|
looks like fun :) |
|
https://wiki.blender.org/wiki/Reference/Release_Notes/2.80/Python_API/Addons and Also not register_module, but register_class |
|
|
|
|
well, if we acess own class, will it looks like: sverchok.trees['__name__'].datasteps[3]=np.array([.....])? |
|
not sure.. but am tempted to start the port very soon. (and no backward compatibility... time for a fresh start? ) keep it very basic at the start.. only very few nodes. |
|
trying to call self for addon radiola.py 2.8 |
bl_info = {
"name": "Radiola",
"author": "nikitron.cc.ua",
"version": (0, 0, 1),
"blender": (2, 8, 0),
"location": "View3D > Tool Shelf > SV > Radiola",
"description": "Play the radio",
"warning": "",
"wiki_url": "",
"tracker_url": "",
"category": "Misc"}
import os
import signal
#import threading
import bpy
import time
import subprocess as sp
import radiola
print(dir(radiola))
class SV_OT_radiola(bpy.types.Operator):
'''Radiola'''
bl_idname = "sound.radiola"
bl_label = "play radio"
make: bpy.props.BoolProperty(name='make',default=False)
clear: bpy.props.BoolProperty(name='clear',default=False)
play: bpy.props.BoolProperty(name='play',default=True)
item_play: bpy.props.IntProperty(name='composition',default=0)
def execute(self, context):
if self.clear:
context.scene.rp_playlist.clear()
context.window_manager.radiola_clear = True
self.clear = False
return {'FINISHED'}
if self.make:
self.dolist(urls,names)
context.window_manager.radiola_clear = False
self.make = False
return {'FINISHED'}
if not len(context.scene.rp_playlist):
self.dolist(urls,names)
url = context.scene.rp_playlist[self.item_play].url
if self.play:
music = sp.Popen(['/usr/bin/mplayer', url])
context.window_manager.radiola_ind = self.item_play
context.window_manager.radiola = music.pid
else:
os.kill(context.window_manager.radiola, signal.SIGTERM)
#music.terminate()
return {'FINISHED'}
def dolist(self,urls,names):
for u,n in zip(urls,names):
bpy.context.scene.rp_playlist.add()
bpy.context.scene.rp_playlist[-1].url = u
bpy.context.scene.rp_playlist[-1].name = n
class SV_PT_radiola_panel(bpy.types.Panel):
bl_space_type = 'VIEW_3D'
bl_region_type = 'TOOLS'
bl_label = "Radiola"
bl_options = {'DEFAULT_CLOSED'}
bl_category = 'SV'
make: bpy.props.BoolProperty(name='make',default=False)
clear: bpy.props.BoolProperty(name='clear',default=False)
play: bpy.props.BoolProperty(name='play',default=True)
item_play: bpy.props.IntProperty(name='composition',default=0)
def draw(self, context):
''' \
Radiola \
'''
layout = self.layout
col = layout.column(align=True)
col.scale_y = 1
if radiola.radiola_clear:
col.operator('sound.radiola',text='Make').make = True
else:
col.operator('sound.radiola',text='Clear').clear = True
col = layout.column(align=True)
col.scale_y = 3
b = col.operator('sound.radiola',text='Stop')
b.play=False
playlist_print = [a.name for a in radiola.rp_playlist]
i=0
col = layout.column(align=True)
col.scale_y = 1
for p in playlist_print:
i+=1
if i == (radiola.radiola_ind+1):
a = col.operator('sound.radiola', text='> '+str(i)+' | '+str(p))
a.item_play=i-1
a.play=True
else:
a = col.operator("sound.radiola", text=' '+str(i)+' | '+str(p))
a.item_play=i-1
a.play=True
class RP_Playlist(bpy.types.PropertyGroup):
url: bpy.props.StringProperty()
name: bpy.props.StringProperty()
urls = [ 'http://icecast.vgtrk.cdnvideo.ru/vestifm_mp3_192kbps',
'http://strm112.1.fm/atr_mobile_mp3',
'http://ic2.101.ru:8000/v4_1',
'http://online.radiorecord.ru:8101/rr_320',
'http://air.radiorecord.ru:8102/sd90_320',
'http://46.105.180.202:8040/sr_128',
'http://strm112.1.fm/chilloutlounge_mobile_mp3',
'http://185.53.169.128:8000/192',
'http://sumerki.su:8000/Sumerki',
'http://myradio.ua:8000/loungefm128.mp3',
'http://icecast.piktv.cdnvideo.ru/vanya', #:8108/shanson128.mp3
'http://icecast.rmg.cdnvideo.ru/rr.mp3', #:8000/russianradio128.mp3
'http://81.30.54.74:8000/radio4',
'http://ic2.101.ru:8000/v5_1',
'http://radio.globaltranceinvasion.com:8000/radiohi',
'http://icecast.vgtrk.cdnvideo.ru/mayakfm_mp3_192kbps',
'http://nashe1.hostingradio.ru/nashe-128.mp3',
'http://icecast.radiodfm.cdnvideo.ru/dfm.mp3',
'http://ic2.101.ru:8000/v1_1',
'http://listen1.myradio24.com:9000/4455',
'http://174.36.206.197:8000/;stream.nsv',
'http://choco.hostingradio.ru:10010/fm', #http://pianosolo.streamguys.net:80/live
'http://sc1c-sjc.1.fm:7070/?type=.flv',
'http://source.dnbradio.com:10128/128k.mp3',
'http://sc3b-sjc.1.fm:7802/?type=.flv',
'http://quarrel.str3am.com:7990/;stream.nsv&type=mp3',
'http://s7.radioheart.ru:8003/live',
'http://stream.dubstep.fm/stream/1/',
'http://176.104.22.115:8000/192.mp3',
]
names = [ 'Вести', 'Амстердам транс',
'Романтика', 'Рекорд электроника',
'90-е гг', 'Электроскай',
'1фм лаунж', 'Атмосфера ланж',
'Сумерьки', 'ЛанжФМ',
'Ваня', 'Русское Радио',
'Дача', 'Юмор фм',
'Транс', 'Маяк',
'Наше радио', 'Электроника',
'Энергия', 'Хип Хоп',
'Классика', 'Шакалад',
'Классика', 'ДНБ',
'Кантри', 'Жаз',
'80-е гг', 'Дабстеп',
'Прогрессивное','custom link...',
]
def dolist(urls,names):
for u,n in zip(urls,names):
radiola.rp_playlist.add()
radiola.rp_playlist[-1].url = u
radiola.rp_playlist[-1].name = n
classes = (
RP_Playlist,
SV_OT_radiola,
SV_PT_radiola_panel
)
register, unregister = bpy.utils.register_classes_factory(classes)
rp_playlist: bpy.props.CollectionProperty(type=RP_Playlist)
radiola_clear: bpy.props.BoolProperty(default=False)
radiola: bpy.props.IntProperty()
radiola_ind: bpy.props.IntProperty() |
|
File "//\blender\radiola_2.8.blend\radiola.py", line 85, in draw if __name__ == '__main__':
register() |
|
i'm starting the 2.8 port now. i need distraction or something :) |
|

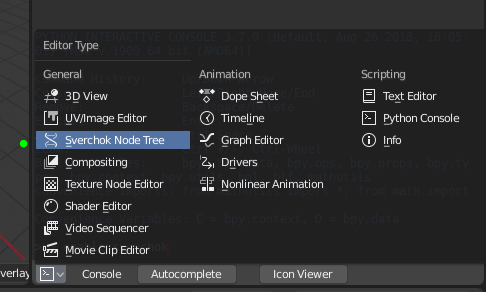

lol.. where is nodeview in 2.8 now ? :) |
|
that is a question... How AN deal? |
|
https://devtalk.blender.org/t/custom-node-trees/1614 |
|
python nodetree demo import bpy
from bpy.types import NodeTree, Node, NodeSocket
# Implementation of custom nodes from Python
# Derived from the NodeTree base type, similar to Menu, Operator, Panel, etc.
class MyCustomTree(NodeTree):
# Description string
'''A custom node tree type that will show up in the node editor header'''
# Optional identifier string. If not explicitly defined, the python class name is used.
bl_idname = 'CustomTreeType'
# Label for nice name display
bl_label = "Custom Node Tree"
# Icon identifier
bl_icon = 'NODETREE'
# Custom socket type
class MyCustomSocket(NodeSocket):
# Description string
'''Custom node socket type'''
# Optional identifier string. If not explicitly defined, the python class name is used.
bl_idname = 'CustomSocketType'
# Label for nice name display
bl_label = "Custom Node Socket"
# Enum items list
my_items = (
('DOWN', "Down", "Where your feet are"),
('UP', "Up", "Where your head should be"),
('LEFT', "Left", "Not right"),
('RIGHT', "Right", "Not left")
)
my_enum_prop = bpy.props.EnumProperty(name="Direction", description="Just an example", items=my_items, default='UP')
# Optional function for drawing the socket input value
def draw(self, context, layout, node, text):
if self.is_output or self.is_linked:
layout.label(text)
else:
layout.prop(self, "my_enum_prop", text=text)
# Socket color
def draw_color(self, context, node):
return (1.0, 0.4, 0.216, 0.5)
# Mix-in class for all custom nodes in this tree type.
# Defines a poll function to enable instantiation.
class MyCustomTreeNode:
@classmethod
def poll(cls, ntree):
return ntree.bl_idname == 'CustomTreeType'
# Derived from the Node base type.
class MyCustomNode(Node, MyCustomTreeNode):
# === Basics ===
# Description string
'''A custom node'''
# Optional identifier string. If not explicitly defined, the python class name is used.
bl_idname = 'CustomNodeType'
# Label for nice name display
bl_label = "Custom Node"
# Icon identifier
bl_icon = 'SOUND'
# === Custom Properties ===
# These work just like custom properties in ID data blocks
# Extensive information can be found under
# http://wiki.blender.org/index.php/Doc:2.6/Manual/Extensions/Python/Properties
my_string_prop = bpy.props.StringProperty()
my_float_prop = bpy.props.FloatProperty(default=3.1415926)
# === Optional Functions ===
# Initialization function, called when a new node is created.
# This is the most common place to create the sockets for a node, as shown below.
# NOTE: this is not the same as the standard __init__ function in Python, which is
# a purely internal Python method and unknown to the node system!
def init(self, context):
self.inputs.new('CustomSocketType', "Hello")
self.inputs.new('NodeSocketFloat', "World")
self.inputs.new('NodeSocketVector', "!")
self.outputs.new('NodeSocketColor', "How")
self.outputs.new('NodeSocketColor', "are")
self.outputs.new('NodeSocketFloat', "you")
# Copy function to initialize a copied node from an existing one.
def copy(self, node):
print("Copying from node ", node)
# Free function to clean up on removal.
def free(self):
print("Removing node ", self, ", Goodbye!")
# Additional buttons displayed on the node.
def draw_buttons(self, context, layout):
layout.label("Node settings")
layout.prop(self, "my_float_prop")
# Detail buttons in the sidebar.
# If this function is not defined, the draw_buttons function is used instead
def draw_buttons_ext(self, context, layout):
layout.prop(self, "my_float_prop")
# my_string_prop button will only be visible in the sidebar
layout.prop(self, "my_string_prop")
# Optional: custom label
# Explicit user label overrides this, but here we can define a label dynamically
def draw_label(self):
return "I am a custom node"
### Node Categories ###
# Node categories are a python system for automatically
# extending the Add menu, toolbar panels and search operator.
# For more examples see release/scripts/startup/nodeitems_builtins.py
import nodeitems_utils
from nodeitems_utils import NodeCategory, NodeItem
# our own base class with an appropriate poll function,
# so the categories only show up in our own tree type
class MyNodeCategory(NodeCategory):
@classmethod
def poll(cls, context):
return context.space_data.tree_type == 'CustomTreeType'
# all categories in a list
node_categories = [
# identifier, label, items list
MyNodeCategory('SOMENODES', "Some Nodes", items=[
# our basic node
NodeItem("CustomNodeType"),
]),
MyNodeCategory('OTHERNODES', "Other Nodes", items=[
# the node item can have additional settings,
# which are applied to new nodes
# NB: settings values are stored as string expressions,
# for this reason they should be converted to strings using repr()
NodeItem("CustomNodeType", label="Node A", settings={
"my_string_prop": repr("Lorem ipsum dolor sit amet"),
"my_float_prop": repr(1.0),
}),
NodeItem("CustomNodeType", label="Node B", settings={
"my_string_prop": repr("consectetur adipisicing elit"),
"my_float_prop": repr(2.0),
}),
]),
]
classes = (
MyCustomTree,
MyCustomSocket,
MyCustomNode,
)
def register():
from bpy.utils import register_class
for cls in classes:
register_class(cls)
nodeitems_utils.register_node_categories('CUSTOM_NODES', node_categories)
def unregister():
nodeitems_utils.unregister_node_categories('CUSTOM_NODES')
from bpy.utils import unregister_class
for cls in reversed(classes):
unregister_class(cls)
if __name__ == "__main__":
register() |
|
it's already partially working, it was a lot of work... adding the viewers back today (new versions of existing viewer/objects nodes) |
|
|
|
current status is here in this pullrequest: #2299 |
|
|
|
Can be useful. |
|
closing this because i dont want to have todolists in two places for the same project |
This issue hopes to collect major Blender Python API changes that may or may not affect sverchok.
see: https://wiki.blender.org/index.php/Dev:2.8/Source/Python/UpdatingScripts
bpy.utils.register_modulefunction, this doesn't affect us much..or maybe at all.bl_idnameof operators/menus/headers/panels and uiLists.update=updateNodeto traverse the graph.bgldrawing ( stethoscope, vdmk2, indexviewer ) are all impacted.bpy.types(small task- done!)bpy.types(big task- done!)Regisering classes
A suggestion on that page gives: ( i like this.. we can use this a lot..can even use our own version of this for pre 2.8 sverchok ..)
this will work for most node files, i'm not immediately aware that any nodes register scene variables directly in
register(but there might be one or two)bl_idname
...
BGL
a few
bglfunctions that we use are now dropped frombgl. I'm not sure how large the impact on the drawing code is. Good opportunity to write a new Viewer node.see : https://gamedev.stackexchange.com/questions/34108/opengl-vbo-or-glbegin-glend
The text was updated successfully, but these errors were encountered:
