README.md

tellurium

[![Documentation Status](https://readthedocs.org/projects/tellurium/badge/?version=latest)](http://tellurium.readthedocs.org/en/latest/?badge=latest) [![Build Status](https://travis-ci.org/sys-bio/tellurium.svg?branch=mkoenig)](https://travis-ci.org/sys-bio/tellurium)

Copyright 2014-2017 Kiri Choi, J Kyle Medley, Matthias König, Kaylene Stocking, Caroline Cannistra, Michal Galdzicki, and Herbert Sauro

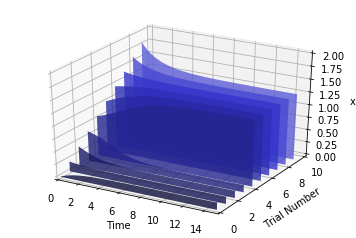

Parameter scan demo

Parameter scan example

Introduction

Tellurium is a python environment based on the Spyder2 IDE for building, simulating, and analysing models of biochemical networks, including gene regulatory networks, metabolic networks, and signaling pathways. It combines state-of-the-art scientific Python libraries, such as NumPy and SciPy, and includes special-purpose systems biology Python tools. Out of the box, Tellurium includes libRoadRunner, Antimony, PhraSED-ML, libSBML (via its Python bindings), and libSED-ML.

The Tellurium project is funded from the NIH/NIGMS (GM081070).

Installation Instructions

Tellurium can be installed via a front-end which includes all of its constituent packages, or via pip:

  1. Notebook front-end
  2. IDE front-end
  3. pip

We recommend option 1. unless you are a developer and plan on integrating Tellurium with your current system.

Front-end 1: Tellurium Notebook

Windows

  1. Download Tellurium notebook for Windows
  2. Double-click the installer to start the installation
  3. Follow the instructions

Mac OSX

  1. Download Tellurium notebook for Mac OS X 10.10 or later
  2. Double-click the .dmg file to open a new window
  3. Drag the Tellurium icon to your Applications
  4. You can now launch Tellurium from e.g. Spotlight or your Applications folder directly

Linux (RedHat)

  1. TODO: Upload rpm

Linux (Debian)

  1. Download the Debian package for Tellurium notebook
  2. Install the package using dpkg -i Tellurium_2.0.0_amd64.deb
  3. You should be able to launch Tellurium from your activities pane. If not, log out and in again or run tellurium from the terminal.

Front-end 2: Tellurium IDE

Windows

  1. Download Tellurium IDE for Windows
  2. Double-click the installer to start the installation
  3. Follow the instructions

NOTE: Installation requires administrative rights. It is recommended to accept the default settings.

Mac OSX

  1. Download Tellurium IDE for Mac OS X 10.10 or later
  2. Double-click the .dmg file to open a new window
  3. Double-click the Spyder icon

NOTE: On some older hardware we have noticed that this front-end sometimes fails. If this happens, we recommend using the Tellurium notebook front-end instead.

PIP Installation (no front-end)

Binaries wheels for Tellurium are available via the pip command. To install Tellurium and the necessary packages on both Linux and OS X, type the following into a terminal:

pip install tellurium

Detailed instructions for using the conda package manager are available here.

Usage

import tellurium as te

rr = te.loada('''
    model example0
      S1 -> S2; k1*S1
      S1 = 10
      S2 = 0
      k1 = 0.1
    end
''')

result = rr.simulate(0, 40, 500)
te.plotArray(result)

Tellurium front page demo

Documentation

System Requirements

The Tellurium notebook supports Windows 10, Mac OS X 10.10+, Debian 8+, and Fedora 22+. The Spyder IDE installers are tested with Windows 7+ and Mac OS X 10.9+. Some older Macs cannot run Spyder, regardless of whether the operating system is up-to-date. Pip packages are tested on Fedora 22, Debian 8, Ubuntu 14.04, and Mac OS X 10.10.

Supported Python Versions

The Tellurium PyPI packages support 64-bit Python versions 2.7, 3.4, 3.5, and 3.6 for Windows, Mac, and Linux. The notebook viewer comes with Python 3.6 (64-bit) and the IDE comes with Python 2.7 (32-bit).

Legal

The source code for the Tellurium Python package is hosted at https://github.com/sys-bio/tellurium and is licensed under the Apache License, Version 2.0. Tellurium uses third-party dependencies which may be licensed under different terms. Consult the documentation for the respective third-party packages for more details.
