FTDI FT232RQ Breakout Board with Variable LDO for VIO

Board Features:

• Capability to configure microcontrollers directly (e.g. CC430F5137)
• Configurable VCCIO between 1.8V to 5V using on-board LDO
• Data Rate Max 3,000,000 BAUD (FTDI FT232R Chip)
• Route the RTS and DTR to a header for easy mode as a Programmer
• TX and RX LED (Red/Green)
• Small form factor



Reflowing QFN-32 FTDI FT232RQ Chip:

First attempt to reflow a QFN-32 device to a board without purchasing expensive equipment. I used a hot air gun that I purchased on Amazon for $14 ( TruePower 01-0712 Mini Heat Gun, Blue). I also used solder paste that melts at 183C degrees.

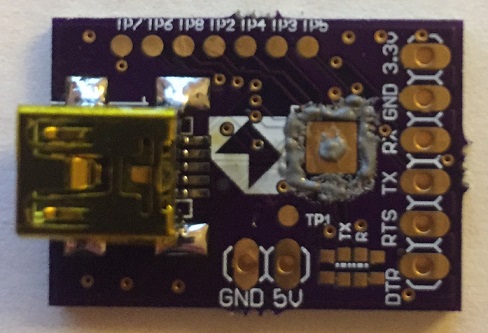

###Applied the solder paste:

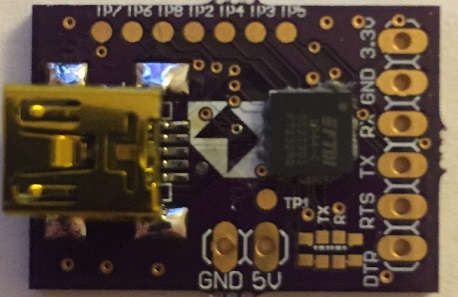

###Placed QFN-32 Device

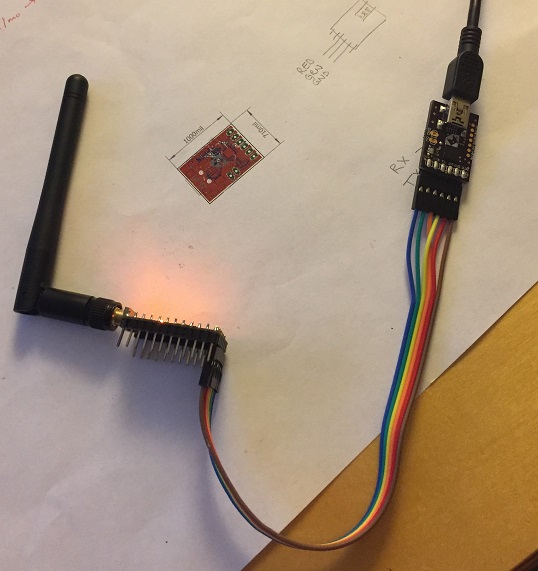

###Final Product being used to configure a CC430F5137 microcontroller

Documents:

• Eagle_SCH_BRD_GERBER
  • Schematic, Layout and Gerber files
• FTDI_EEPROM_Configuration.xml
  • Configuration file used to configure the FT232RQ device
• Verify_Serial_Communications.py
  • Simple Python script to test the serial communications between a reference USB design and the Unit Under Test (UUT)

Parts List

Part	Part Number	Unit Price	Notes	Link
USB Mini Connector	151-1206-1-ND	$6.55	10 Connectors	http://www.digikey.com/product-detail/en/edac-inc/690-005-299-043/151-1206-1-ND/4312192
FTDI FT232RQ	768-1008-1-ND	$4.50	1	http://www.digikey.com/product-detail/en/ftdi-future-technology-devices-international-ltd/FT232RQ-REEL/768-1008-1-ND/1836403
LM317	768-1008-1-ND	$0.77	In stock	http://www.digikey.com/product-detail/en/texas-instruments/LM317DCYR/296-12602-1-ND/443738
0.1uF, 0402, Cap	490-6328-1-ND	$0.55	100 capacitor	http://www.digikey.com/product-detail/en/murata-electronics-north-america/GRM155R71C104KA88J/490-6328-1-ND/3845525
10uF, 0805, Cap	1276-6456-1-ND	$0.78	10 capacitor	http://www.digikey.com/product-detail/en/samsung-electro-mechanics-america-inc/CL21A106KPFNNNG/1276-6456-1-ND/5958084
143 ohm, 0402	YAG2980CT-ND	$0.48	100 resistors	http://www.digikey.com/product-detail/en/yageo/RC0402FR-07143RL/YAG2980CT-ND/5281845
240 ohm, 0402	311-240JRCT-ND	$0.47	100 resistors	http://www.digikey.com/product-detail/en/yageo/RC0402JR-07240RL/311-240JRCT-ND/729393
392 ohm, 0402	YAG3145CT-ND	$0.48	100 resistors	http://www.digikey.com/product-detail/en/yageo/RC0402FR-07392RL/YAG3145CT-ND/5282010
1k ohm, 0402	311-1.0KJRCT-ND	$0.47	100 resistors	http://www.digikey.com/product-detail/en/yageo/RC0402JR-071KL/311-1.0KJRCT-ND/729355
Red LED	SML-D12V1WT86CT-ND	$1.71	10 LEDs	http://www.digikey.com/product-detail/en/rohm-semiconductor/SML-D12V1WT86/SML-D12V1WT86CT-ND/5843857
Yellow/Green LED	SML-D12M1WT86CT-ND	$1.71	10 LEDs	http://www.digikey.com/product-detail/en/rohm-semiconductor/SML-D12M1WT86/SML-D12M1WT86CT-ND/5843861
PCB Fab	2 layer prototype	$5.00	3 copies	http://docs.oshpark.com/services/two-layer/

Additional Information:

• Fab board at https://oshpark.com/
  • Gerber Zip Package was used to fab board
