Out-of-bounds memory access in DXF loader (path identification)

[eldstal]

Summary

A DXF-format drawing with particular (not necessarily malformed!) properties may cause an out-of-bounds memory access when imported using import().

Vulnerable versions

• OpenSCAD Linux (commit eedf370)
• OpenSCAD Windows x64 (2021.01)

Steps to reproduce

Two Proof-of-concept files are provided. oob_dxfdata_505 is larger, but more reliably reproduces the fault. oob_dxfdata_k5 is my attempt at a minimal working example, but only reliably crashes the linux build from the latest commit on the main branch (i.e. it does not crash in the windows release). Both illustrate the same crash, so I expect the _min example to be more helpful in testing.

oob_dxfdata_505.zip, the larger messier p-o-c
oob_dxfdata_k5.zip, the smaller p-o-c

1. Unzip one of the provided proof of concept files
2. Open the .scad file in OpenSCAD
3. Render with F6
4. Observe the application crashing

Alternatively, for headless operation:

1. Unzip one of the provided proof of concept files
2. openscad --export-format stl -o /dev/null oob_dxfdata_k5.scad
3. Observe the segmentation fault

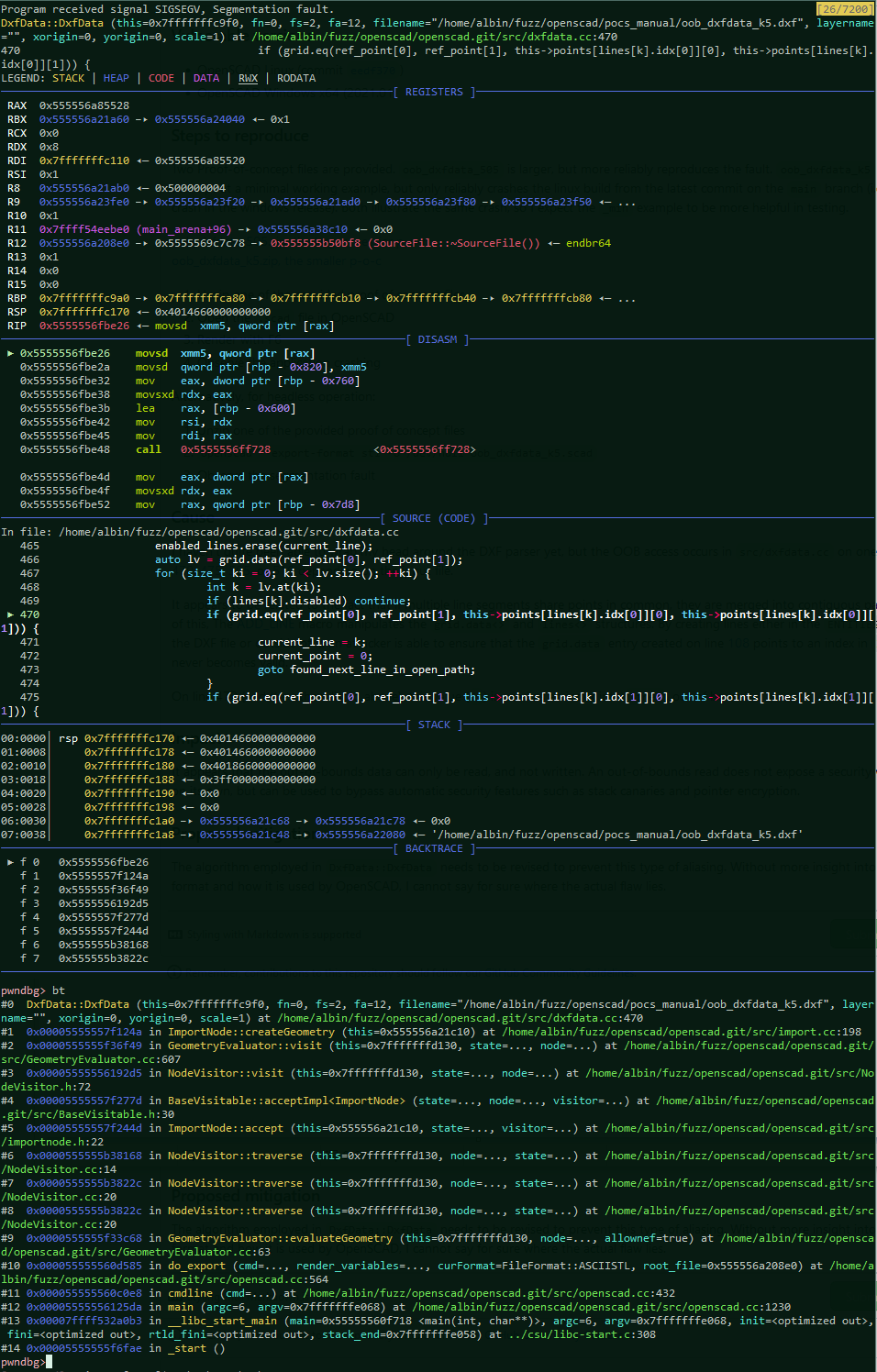

Screenshot

Cause

I haven't quite been able to wrap my head around the DXF parser yet, but the OOB access occurs in src/dxfdata.cc on one of the lines 470, 475, 505, or 510 depending on the input file.

It appears to be related to the fact that if multiple line segments share points in common, they are merged into contiguous paths. As a part of this, The ADD_LINE macro manipulates the grid.data<> and lines<> structures. By creating lines either in the ENTITIES section of the DXF file or outside of it, an attacker is able to ensure that the grid.data entry created on line 108 points to an index in lines which never becomes valid.

On line 470 (and the others listed above), this value (k) is used as an index into lines, out of bounds.

Impact

It appears that the out-of-bounds data can only be read, and not written. An out-of-bounds read does not expose a security vulnerability on its own, but can be used to bypass automatic security features such as stack canaries and pointer encryption.

Proposed mitigation

The algorithm employed in DxfData::DxfData needs to be revised to prevent this type of aliasing. Without more insight into the DXF format and how it is used by OpenSCAD, I cannot say for sure where the actual flaw lies.

It seems likely that the ADD_LINE macro on lines 108-109 is the culprit, since it inserts values that will be used for indexing even though the values are not yet valid indices.

[ChrisCoxArt]

I see lots of warnings, but no crash on MacOS with the current development code.
I even tried with guard malloc, guard edges, and zombie (use after free) detection enabled.
Ah, but got it to fail with malloc_scribble enabled!
It's reading one entry over the end of the lines vector (size = 10, index = 10). Because of the way vectors double allocations (so this one has 16 values allocated), the address is valid, but the data is bogus, and the data is used as an index to another array, which then gets the access violation. Under normal debugging situations, the memory was probably zero-ed and leading to a valid index.

[ChrisCoxArt]

And there are at least 3 places in the code with the same fragility.
OK, probably best to skip any bad indices, and log a warning about the bad index in the DXF file.

I hope this doesn't break any import tests... Good, it doesn't break any of the tests. I still want to test this with more files, though.

[ChrisCoxArt]

I thought maybe we could catch the error earlier in the process (when adding lines), but so far I haven't figured out a way to do it.
This DXF code is more than a little fragile.

BTW - the second example actually hits the same sort of error in a different place, so thanks for providing both!

[kintel]

OpenSCAD's DXF support is really a rather large piece of technical debt. At some point it's worth digging further into replacing it with an existing library, see https://github.com/openscad/openscad/wiki/Project%3A-Improve-DXF-import-and-export

[ChrisCoxArt]

Ok, I have a fix that is safe, if not optimal. Trying to catch the error earlier runs into a lot of code that I cannot decipher easily (it's a huge state machine, with many inter-dependent arrays of data) -- so I cannot say that any changes there would be safe.

[eldstal]

Thanks for taking a look at this issue! Has the fix been merged?

This vulnerability has been assigned CVE-2022-0496.

[ChrisCoxArt]

No, the fix has not been merged. It's waiting on other pull requests to be merged (which have been sitting for 3 weeks).

[ChrisCoxArt]

Now it has been merged! yay!

[t-paul]

Hold the horses, it will be in a bit :)
