Certain (very large) Hamamatsu NDPI files cannot be opened with OpenSlide

[GeertLitjens]

I have some Hamamatsu slides which are very large (>5GB) which cannot be opened (error message is "Can't validate JPEG for directory 0: Expected marker at 4294971018, found none". I am able to share such a file if this is needed. They do open with Bioformats and NDPIView.

I am sure it is directly related to the size of the file, the smaller files scanned in the same batch are ok.

[ilykos]

Same issue here.
This concerns the image areas captured from 50mm x 75mm slide format.

[ylaizet]

Hello, I used the openslide-python lib and got the same issue on Hamamatsu file > 4.2Go. None of the big files can be opened with openslide while the windows ndpi viewer works perfectly on those big files.
Is there a workaround?

[CamNZ]

Are you trying to load the entire slide into memory? This is a common source of errors with large WSI files (instead just load parts of the slide as you need them)

[bgilbert]

@CamNZ That is indeed a common source of errors, but this is a real bug.

@ylaizet The workaround, for what it's worth, is to keep pyramid levels smaller than 4 GiB (or perhaps 2 GiB) -- by reducing either the scan resolution or the size of the scan area.

All: this bug is on my radar, but I may not have a chance to get to it for a while. It's actually more of a missing feature, and the fix may not be trivial.

[ylaizet]

Hey, I use the openslide-python deepzoom_multiserver.py script to set up a server which lists all available slides by using the lowlevel.detect_vendor function - which maps to the openslide_detect_vendor function - to detect the files. As far as I could see, from there, I get None (NULL) from the detection on big files whereas smaller files return "hamamastu". I guess, this does not load the entire file yet. Actually, the script runs on a 32Go memory computer so I would be surprised to have a lack of memory but there might be a parameter to adjust?
I keep in mind that for the moment, it would be better to try to have small files. I am looking forward to be able to load bigger file. If you have any idea to make it work in the meantime, I would be happy to give it a try.
Thanks.

[ilykos]

Is there a workaround?

Hi @ylaizet, I've had the same problem and one of the alternatives I considered is to use bioformats python library as @GeertLitjens suggests. Though, I have not tried it myself. I can also mention that this is not the most elegant solution since it depends on java.

[bgilbert]

@ilykos I haven't worked on this problem yet, and I'm not aware that anyone else has either. The NDPI section of the Hamamatsu page has a summary of the current situation with large NDPI files. The fix will involve looking at sample files with a hex editor to determine how very large levels are stored, and then implementing heuristics in OpenSlide to read them correctly.

[GeertLitjens]

You could try to reverse engineer the Bioformats NDPIReader, that is capable of reading these NDPI files, some info should be in there that helps with this.

[bgilbert]

@GeertLitjens It might be okay to look at Bio-Formats for information about NDPI files, but if you then produce code which is a derivative work of Bio-Formats (for example, by porting some of their code), we won't be able to merge it, since Bio-Formats' GPLv2+ license is stricter than OpenSlide's LGPLv2.1 license.

(I am not a lawyer; this is not legal advice.)

[ilykos]

In my experience this affects svs files as well, when a certain size threshold is overstepped (usually around 4.0-4.2 GB boundary)

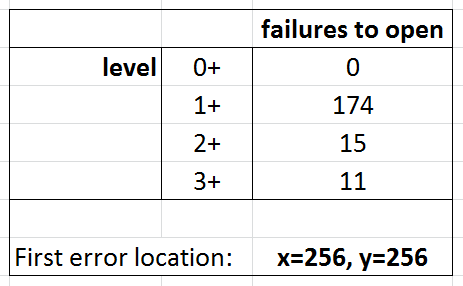

Different error messages come from libjpeg on different levels:

• LEVEL 1: JPEGLib: Not a JPEG file: starts with 0xff 0x11.
• LEVEL 2: JPEGLib: Not a JPEG file: starts with 0x11 0x00.
• LEVEL 3: (no libjpeg error, but an exception is thrown nonetheless)

None of the files I've worked with had errors on level 0, the errors started at level 1 and beyond. All these files were imaged from 76x26mm glass slides, so it is possible there was not enough slide surface area to fail on level 0.

[bgilbert]

@ilykos Thanks for the report. The Aperio problem almost certainly has a different cause, so I've opened a new bug for it: #212.
