GBFS geofencing zones - part 1

[leonardehrenfried]

Summary

This implements part of the GBFS 2.1 geofencing zones specification. It is the continuation of #4680 which was bogged down in rebase/merge conflicts.

@optionsome @hannesj This one is the clean branch, which also stores the information on the vertex rather than the edge. It is ready for review.

It also adds leaving your vehicle at the edge of the rental zone and continue walking. This also works for no-drop-off zones.

However, the implementation is incomplete. The following issues exist:

• arrive by/reverse search that finishes in a zone is not implemented

Unit tests

Lots of unit tests added and existing ones adjusted.

Documentation

Autogenerated.

Performance implications

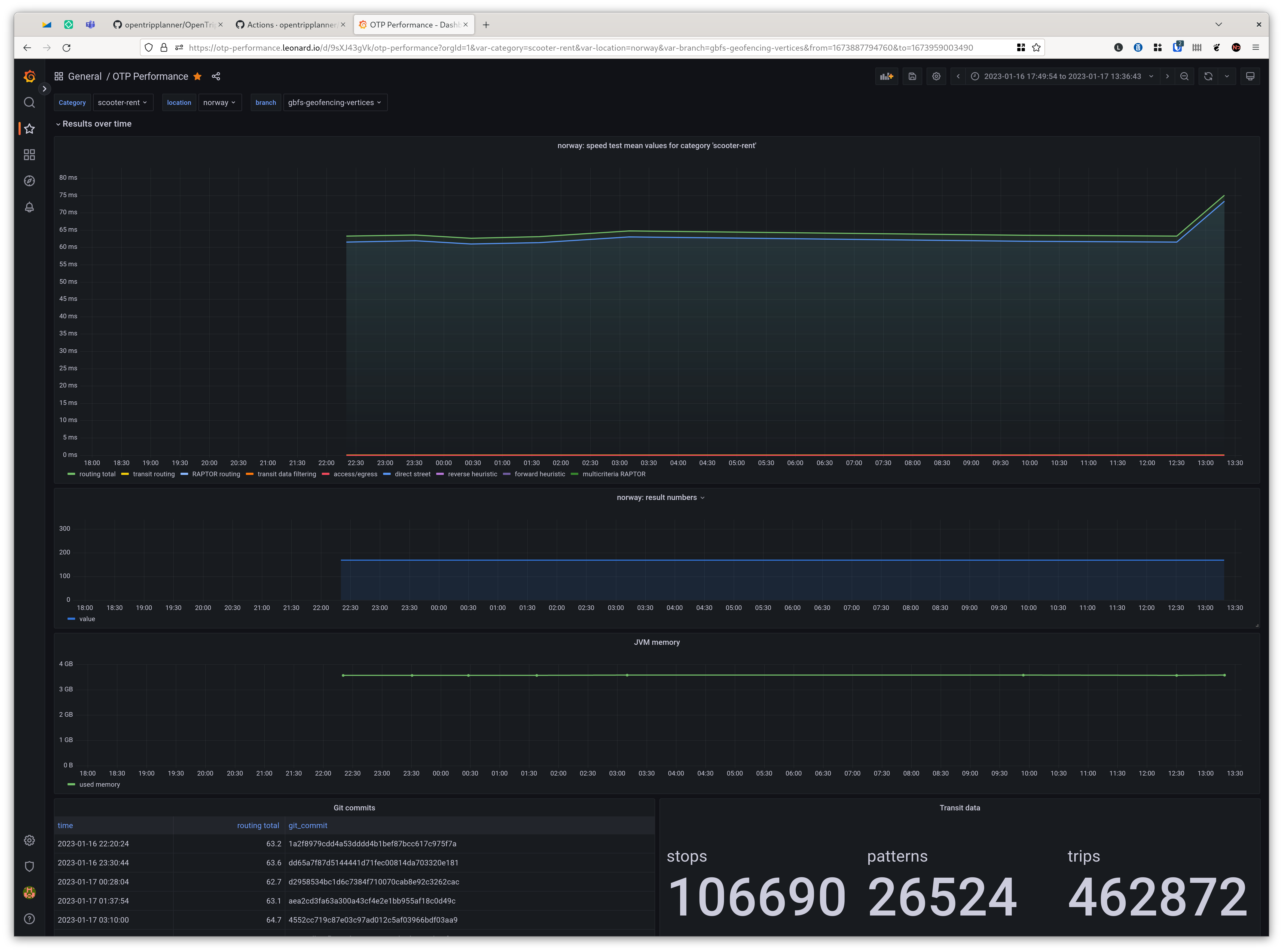

The slowdown is very moderate (in Oslo): https://tinyurl.com/2evoymtt

From ~65ms to ~75ms.

[codecov]

Codecov Report

Base: 61.96% // Head: 61.98% // Increases project coverage by +0.02% 🎉

Coverage data is based on head (9da98b0) compared to base (3990b47).
Patch coverage: 59.81% of modified lines in pull request are covered.

❗ Current head 9da98b0 differs from pull request most recent head 9bfc058. Consider uploading reports for the commit 9bfc058 to get more accurate results

Additional details and impacted files

@@              Coverage Diff              @@
##             dev-2.x    #4741      +/-   ##
=============================================
+ Coverage      61.96%   61.98%   +0.02%
- Complexity     12864    12920      +56
=============================================
  Files           1637     1644       +7
  Lines          65251    65530     +279
  Branches        7096     7139      +43
=============================================
+ Hits           40431    40622     +191
- Misses         22531    22596      +65
- Partials        2289     2312      +23

Impacted Files	Coverage Δ
...t/smoovebikerental/SmooveBikeRentalDataSource.java	100.00% <ø> (ø)
...irectory/VehicleRentalServiceDirectoryFetcher.java	0.00% <0.00%> (ø)
...t/vilkkubikerental/VilkkuBikeRentalDataSource.java	71.05% <ø> (ø)
...api/resource/GraphInspectorVectorTileResource.java	0.00% <0.00%> (ø)
...vector/geofencing/GeofencingZonesLayerBuilder.java	0.00% <0.00%> (ø)
...ctor/geofencing/GeofencingZonesPropertyMapper.java	0.00% <0.00%> (ø)
...r/routing/vehicle_rental/VehicleRentalService.java	4.25% <ø> (ø)
...r/updater/vehicle_rental/VehicleRentalUpdater.java	0.00% <0.00%> (ø)
...al/datasources/VehicleRentalDataSourceFactory.java	0.00% <ø> (ø)
...le_rental/datasources/VehicleRentalDatasource.java	0.00% <0.00%> (ø)
... and 23 more

Help us with your feedback. Take ten seconds to tell us how you rate us. Have a feature suggestion? Share it here.

☔ View full report at Codecov.
📢 Do you have feedback about the report comment? Let us know in this issue.

[optionsome]

The vertex based debug layer is slightly difficult to interpret as it's not always straightforward to understand in which direction from the vertex the zone is.
