mediatek: add Xiaomi Redmi Router AX6000 support #10690

aiamadeus · 2022-09-12T09:00:07Z

Hardware specification:
SoC: MediaTek MT7986A 4x A53
Flash: ESMT F50L1G41LB 128 MB
RAM: K4A4G165WF-BCWE 512 MB
Ethernet: 4x 10/100/1000 Mbps
WiFi1: MT7976GN 2.4GHz ax 4x4
WiFi2: MT7976AN 5GHz ax 4x4
Button: Mesh, Reset

Flash instructions:

Gain ssh and serial port access (see the link: https://openwrt.org/toh/xiaomi/redmi_ax6000#installation)
Use ssh or serial port to log in to the router, and execute the following command:
nvram set boot_wait=on
nvram set flag_boot_rootfs=0
nvram set flag_last_success=1
nvram set flag_boot_success=1
nvram set flag_try_sys1_failed=8
nvram set flag_try_sys2_failed=8
nvram commit
Set a static ip on the ethernet interface of your computer (e.g. default: ip 192.168.31.100, gateway 192.168.31.1)
Download the initramfs image, rename it to initramfs.bin, and host it with the tftp server.
Interrupt U-Boot and run these commands:
setenv mtdparts nmbm0:1024k(bl2),256k(Nvram),256k(Bdata),2048k(factory),2048k(fip),256k(crash),256k(crash_log),112640k(ubi)
saveenv
tftpboot initramfs.bin
bootm
After openwrt boots up, use scp or luci web to upload sysupgrade.bin to upgrade.

Note:

I don't have this router, thanks to @pengchujin for providing a remote environment for debugging.
The led chip (may be a spi) seems to lack driver, since I don't have this router, I'm not sure what that is.
I haven't actually operated unlocking ssh/serial, my friend has done this, and it seems like it would be too long
to write it into the commit message. Hope someone can help write the unlocking tutorial into the openwrt wiki.

Checklist:

soxrok2212 · 2022-09-12T11:16:25Z

There is some instruction on the Wiki for rooting the device. https://openwrt.org/toh/xiaomi/redmi_ax6000#rooting

Ansuel · 2022-09-12T12:05:07Z

3. I haven't actually operated unlocking ssh/serial, my friend has done this, and it seems like it would be too long
to write it into the commit message. Hope someone can help write the unlocking tutorial into the openwrt wiki.

ideally we should first have some instruction and at least link them in the commit description

soxrok2212 · 2022-09-12T12:28:28Z

Instructions worked great for me!

root@OpenWrt:~# uptime
 12:25:11 up 3 min,  load average: 0.23, 0.18, 0.08
root@OpenWrt:~# uname -a
Linux OpenWrt 5.15.67 #0 SMP Mon Sep 12 05:18:31 2022 aarch64 GNU/Linux
root@OpenWrt:~# cat /etc/os-release
NAME="OpenWrt"
VERSION="SNAPSHOT"
ID="openwrt"
ID_LIKE="lede openwrt"
PRETTY_NAME="OpenWrt SNAPSHOT"
VERSION_ID="snapshot"
HOME_URL="https://openwrt.org/"
BUG_URL="https://bugs.openwrt.org/"
SUPPORT_URL="https://forum.openwrt.org/"
BUILD_ID="r20615-fbf70f4bca"
OPENWRT_BOARD="mediatek/filogic"
OPENWRT_ARCH="aarch64_cortex-a53"
OPENWRT_TAINTS="no-all"
OPENWRT_DEVICE_MANUFACTURER="OpenWrt"
OPENWRT_DEVICE_MANUFACTURER_URL="https://openwrt.org/"
OPENWRT_DEVICE_PRODUCT="Generic"
OPENWRT_DEVICE_REVISION="v0"
OPENWRT_RELEASE="OpenWrt SNAPSHOT r20615-fbf70f4bca"
root@OpenWrt:~#

LED bar stays on and solid blue for me, so definitely not working but I can live with it for now.

aiamadeus · 2022-09-12T15:26:51Z

There is some instruction on the Wiki for rooting the device. https://openwrt.org/toh/xiaomi/redmi_ax6000#rooting

Great, I'll add this link to the commit message.

LED bar stays on and solid blue for me, so definitely not working but I can live with it for now.

Can you see which chip the leds are connected to?
The original fdt has a strange node called HM0807A, I don't know what it is.

soxrok2212 · 2022-09-12T15:49:45Z

Can you see which chip the leds are connected to?
The original fdt has a strange node called HM0807A, I don't know what it is.

As far as physical visibility, nope. The LEDs are connected via this header at the bottom:

DragonBluep · 2022-09-12T16:37:15Z

I remember kernel size in mediatek target is very close to 4 MiB recently, so it's better to enlarge it to 8 MiB. And for NMBM reserved space, 8 MiB is enough. Refer to bootlog, block 960 start at 0x7800000:

NOTICE:  First info table with writecount 0 found in block 960
NOTICE:  Second info table with writecount 0 found in block 963

aiamadeus · 2022-09-12T17:01:36Z

I remember kernel size in mediatek target is very close to 4 MiB recently, so it's better to enlarge it to 8 MiB. And for NMBM reserved space, 8 MiB is enough.

So I added this line KERNEL_SIZE := 4096k. Due to stock uboot limitations, the kernel must be included in the ubi partition.
And with nmbm, all partitions except ubi should be remapped, is it appropriate to directly change the size of bmt-remap-range? Sorry I don't know nmbm very well, so I'm a little confused.

DragonBluep · 2022-09-12T18:37:02Z

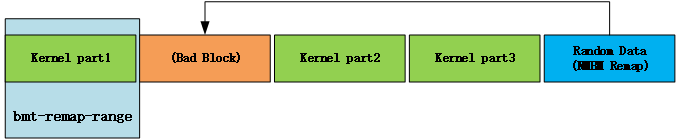

I think enlarge bmt-remap-range won't hurt before kernel reach to the end of the remap range.
nmbm will use the last 8MiB as a spare tire. When there is a bad block in the bmt-remap-range, the NMBM layer picks a good block from the last 8MiB and creates a "link" that maps to the address of the bad block. Outside the remap range, it seems that mtd skips the bad blocks directly, which may cause u-boot that supports nmbm failed to load the kernel properly.

In first image u-boot will load part1+part2+part3, and in second image, u-boot load the wrong kernel (part1+random+part2)

Maybe using pad-to to control the size of the kernel to a fixed value is a good option. Although there will be some storage waste, but fortunately we still have 100 MiB+ of space

soxrok2212 · 2022-09-13T01:05:55Z

After leaving my device running all day, I did a reboot an hour or two ago and it seems hard bricked. Bootloader appears corrupt, u-boot is busted, can't tftpboot, and UART is not working correctly. I'm not sure if I'm just a one-off, but something bad happened.

DragonBluep · 2022-09-13T03:58:20Z

@soxrok2212 Can you try plugging in the power first and waiting for about 1~2 second, then connect the TTL GND to see if there is any output.

aiamadeus · 2022-09-13T07:18:06Z

Maybe using pad-to to control the size of the kernel to a fixed value is a good option. Although there will be some storage waste, but fortunately we still have 100 MiB+ of space

Thank you so much for your suggestion. I tried to ask mtk, and their reply was that since the kernel is already in ubi, there is no need to care about the size of kernel.

ptpt52 · 2022-09-13T09:54:03Z

trying to make it possible to flash via ssh on stock system (and we don't like to use serial port to flash firmware.)
this patch to gen an initramfs-factory.ubi image to flash it to ubi1 mtd partition

diff --git a/target/linux/mediatek/image/filogic.mk b/target/linux/mediatek/image/filogic.mk
index 3015c7a86f..2c9ddcb86f 100644
--- a/target/linux/mediatek/image/filogic.mk
+++ b/target/linux/mediatek/image/filogic.mk
@@ -38,6 +38,20 @@ define Build/mt7986-gpt
        rm $@.tmp
 endef

+define Build/gen-ubi-initramfs
+       sh $(TOPDIR)/scripts/ubinize-image.sh \
+               $(if $(UBOOTENV_IN_UBI),--uboot-env) \
+               --kernel $(KDIR)/tmp/$(KERNEL_INITRAMFS_IMAGE) \
+               $(foreach part,$(UBINIZE_PARTS),--part $(part)) \
+               "$(1).tmp" \
+               -p $(BLOCKSIZE:%k=%KiB) -m $(PAGESIZE) \
+               $(if $(SUBPAGESIZE),-s $(SUBPAGESIZE)) \
+               $(if $(VID_HDR_OFFSET),-O $(VID_HDR_OFFSET)) \
+               $(UBINIZE_OPTS) && \
+       cat "$(1).tmp" > "$(1)" && rm "$(1).tmp" && \
+       $(CP) "$(1)" $(BIN_DIR)/
+endef
+
 define Device/bananapi_bpi-r3
   DEVICE_VENDOR := Bananapi
   DEVICE_MODEL := BPi-R3
@@ -136,6 +150,9 @@ define Device/xiaomi_redmi-router-ax6000
   BLOCKSIZE := 128k
   PAGESIZE := 2048
   KERNEL_IN_UBI := 1
+  KERNEL_INITRAMFS := kernel-bin | lzma | \
+       fit lzma $$(KDIR)/image-$$(firstword $$(DEVICE_DTS)).dtb with-initrd | \
+       gen-ubi-initramfs $(KDIR)/tmp/$$(KERNEL_INITRAMFS_PREFIX)-factory.ubi
   IMAGE/sysupgrade.bin := sysupgrade-tar | append-metadata
 endef
 TARGET_DEVICES += xiaomi_redmi-router-ax6000

possible installation method:

Gain ssh.
login ssh and flash initramfs-factory.ubi to ubi1 mtd partition, via command:

ubiformat  /dev/mtdXX -y -f /tmp/initramfs-factory.ubi

where mtdXX is the ubi1 partition mtd device path.

change nvram env to boot from ubi1
boot into openwrt-initramfs and login ssh, do ubootenv setup, and then flash sysupgrade file via sysupgrade command.

I have no device to do test, I hope somebody can add more details

nasbdh9 · 2022-09-13T12:25:51Z

It is best if stock u-boot can be replaced like Linksys E8450

soxrok2212 · 2022-09-13T12:51:26Z

@soxrok2212 Can you try plugging in the power first and waiting for about 1~2 second, then connect the TTL GND to see if there is any output.

I was able to tftpboot again and refresh OpenWrt, but the device still refuses to boot it. Think the console was broken last night because of a bad ground pin.

soxrok2212 · 2022-09-13T13:03:47Z

Here is how the UBI partition (mtd7) looks...

soxrok2212 · 2022-09-13T13:43:50Z

~~Looks like the sys upgrade isn't writing to UBI correctly. Sometimes it loops like the image above, others it writes a bunch of junk. Stuck in boot loop. I'm going to fresh build an image~~

I grabbed a dump of the flash from the forums and reset these:
setenv flag_try_sys1_failed 0
setenv flag_try_sys2_failed 0

sys1 was at 9 and sys2 was at 97. I presume some other nvram params need to be changed as the standard fw as 2 ubi partitions. https://openwrt.org/toh/xiaomi/redmi_ax6000#flash_layout Seems it got stuck looking at the second.

Unsure what triggered it to go bad. Bad gnd pin on uart made the rest look corrupt but seems okay. So I guess 2 things to figure out/adjust are:

What made it go bad
remove second boot option as original fw had 2 ubi partitions, looks like 2nd one sometimes gets stuck and fails: setenv boot_fw1 run boot_rd_img\;bootm

aiamadeus · 2022-09-14T07:18:10Z

@soxrok2212 Can you try setting uboot env like this?

setenv boot_fw1 run boot_rd_img\;bootm
setenv flag_boot_rootfs 1
setenv flag_last_success 1

Then the router will boot from ubi or ubi1?

soxrok2212 · 2022-09-14T13:41:10Z

@soxrok2212 Can you try setting uboot env like this?
setenv boot_fw1 run boot_rd_img\;bootm
setenv flag_boot_rootfs 1
setenv flag_last_success 1
Then the router will boot from ubi or ubi1?

This puts it into a boot loop, so yes looks like it tries booting from ubi1. From there, reset flag_try_sys1_failed and flag_try_sys2_failed both to 0 and it boots normally.

aiamadeus · 2022-09-14T14:28:09Z

This puts it into a boot loop, so yes looks like it tries booting from ubi1. From there, reset flag_try_sys1_failed and flag_try_sys2_failed both to 0 and it boots normally.

So if flag_boot_rootfs=1 even if we change boot_rd_img2, will the router still boot from the ubi1 partition?
It looks like vendor uboot modifies the env by itself, not sure how redmi ax6s avoids this problem.

soxrok2212 · 2022-09-14T15:15:19Z

This puts it into a boot loop, so yes looks like it tries booting from ubi1. From there, reset flag_try_sys1_failed and flag_try_sys2_failed both to 0 and it boots normally.

So if flag_boot_rootfs=1 even if we change boot_rd_img2, will the router still boot from the ubi1 partition? It looks like vendor uboot modifies the env by itself, not sure how redmi ax6s avoids this problem.

Looks like its booting normally even though both flag_try_sys1_failed and flag_try_sys2_failed counters are not 0. The boot loader algorithm is here, from the forums. https://pastebin.com/xzRXCbzU (this is from the RB03 but looks to be the same on the RB06).

dangowrt · 2022-09-14T21:59:34Z

It is best if stock u-boot can be replaced like Linksys E8450

Should be easily possible, just pick the right combination for storage and DRAM and check ARM Trusted Firmware and U-Boot are done for the Bananapi BPi-R3.

target/linux/mediatek/dts/mt7986a-xiaomi-redmi-router-ax6000.dts

package/boot/uboot-envtools/files/mediatek_filogic

remittor · 2022-09-15T18:24:19Z

Download the initramfs image, rename it to initramfs.bin, and host it with the tftp server.

Interrupt U-Boot and run these commands:
setenv mtdparts nmbm0:1024k(bl2),256k(Nvram),256k(Bdata),2048k(factory),2048k(fip),256k(crash),256k(crash_log),112640k(ubi)
saveenv
tftpboot initramfs.bin
bootm

And why is it so difficult? Users here can do terrible things!

Here is the simplest solution: https://forum.openwrt.org/t/adding-openwrt-support-for-xiaomi-redmi-router-ax6s-xiaomi-router-ax3200/111085/938

soxrok2212 · 2022-09-25T12:07:53Z

For some users reverting would be great. I’ll personally never go back to a fw that calls home though… :)

soxrok2212 · 2022-09-26T15:23:31Z

Perhaps we could make multiple (2) options like the RT3200/E8450? For those like myself who'd rather utilize all the available space and do not wish to ever return to stock fw this would be optimal. I'd imagine most users would like to stick with OpenWrt as the stock fw is only available in Chinese if no other reason.

aiamadeus · 2022-09-26T18:16:14Z

@soxrok2212 Can you test the replacement of u-boot? I'm not sure if this will make it bricks.

soxrok2212 · 2022-09-26T19:33:06Z

I’m a little hesitant to do that, especially now that setting flag_try_sys1_failed >= 6 and flag_try_sys2_failed >= 6 seems to have fixed that bricked device.

remittor · 2022-09-27T18:45:43Z

I'd imagine most users would like to stick with OpenWrt

The ability to easily return to stock firmware should be required!
#5063

the stock fw is only available in Chinese if no other reason.

I made a very easy to use stock firmware translator (EN/RU): https://forum.openwrt.org/t/adding-openwrt-support-for-xiaomi-redmi-router-ax6s-xiaomi-router-ax3200/111085/938
Sources: https://github.com/openwrt-xiaomi/xmir-patcher
This method supports all xiaomi routers.

dangowrt · 2022-10-02T15:48:53Z

I'd imagine most users would like to stick with OpenWrt

The ability to easily return to stock firmware should be required! See: #5063

Having the option to return to stock firmware is nice to have, especially while the device is still very new.
However, please consider that in OpenWrt we will most likely offer support for this hardware much longer than the vendor firmware will receive any updates. Today there are many devices which are 10+ years old are still actively maintained and supported in OpenWrt, vendors usually update firmware for about 2-3 years before declaring the hardware being EOL.
Having that in mind, I wouldn't accept any compromise in functionality when running OpenWrt just for being able to revert to stock -- because anyway this is only relevant now in the beginning of the shelf-life of a device till the vendor declares the firmware EOL, after that nobody will ever want to return to a then outdated stock firmware.

So having 10% less flash space is absolutely ok, of course. But if keeping compatibility with the stock firmware means having to live with more limiting choices of the vendor I'd always be in favor of getting the most out the device when running OpenWrt, because that's what the project is all about in the end.

soxrok2212 · 2022-10-02T18:20:38Z

@dangowrt could we get your approval to start 1 of 6? :)

EUA · 2022-10-03T01:35:21Z

Can you see which chip the leds are connected to?
The original fdt has a strange node called HM0807A, I don't know what it is.

As far as physical visibility, nope. The LEDs are connected via this header at the bottom:

4 pin for just a led? I bet that LED is controlled from I2C bus...

target/linux/mediatek/dts/mt7986a-xiaomi-redmi-router-ax6000.dts

rjocoleman · 2022-10-10T21:19:14Z

@soxrok2212 Can you test the replacement of u-boot? I'm not sure if this will make it bricks.

@aiamadeus do you still need some testing on u-boot replacement? (or anything else) I have a couple of these. I'm going to dump the nand shortly and then should be able to do some testing if that would be helpful.

Manufacture date on the box is 2202.07 and came out of the box with 1.0.48 firmware. I've got root and checked that mtd7/mtd8 partitions are read-write.

The LEDs appear to have embedded drivers. I haven't identified which yet but they are on the SPI bus, the 4 pin header goes to a LED board under the heat sink with two packages on it.

soxrok2212 · 2022-10-18T03:57:04Z

What's left to get this merged in?

PussAzuki · 2022-10-19T20:44:12Z

Most of us can't open this lower cover perfectly, so I think we should give priority to submitting solutions that can be TTL-free?

PussAzuki · 2022-10-22T09:48:42Z

If using LEDs requires proprietary drivers, can we skip the LED-related ones first and then merge this new device in first?

soxrok2212 · 2022-10-28T14:06:32Z

Up and stable for about 2 weeks for me. 0 issues so far. Device is rock stable and MT7986 is great :)

Ansuel · 2022-10-28T14:07:35Z

If using LEDs requires proprietary drivers, can we skip the LED-related ones first and then merge this new device in first?

imho this should be the best solution currently.

shauno100 · 2022-10-28T16:33:32Z

I'm a complete newbie when it comes to the code here, I have a Redmi AX6000 myself and am eagerly awaiting OpenWRT support. I can see that 6 approvers are required for this PR to be merged into the OpenWRT master branch. So far there's 1 approval and 2 with review comments so essentially 5 more approvals are needed. The PR seems to be sound code wise according to the comments here so apart from the LEDs which can be revisited later (would majority of users care about this if option for OpenWRT support was granted to begin with?), what is the hold up? The LED strip as far as i am concerned is a waste of time to begin with, all multiple dots of one color with no symbols showing what each LED means, purely aesthetics rather than usefulness in my opinion.

stoickish · 2022-10-29T12:07:08Z

I just got one of these devices yesterday, and I was able to get my device flashed successfully. My observations thus-far have been:

I had to resort to UART to get it working. I tried using SSH using this patch to create a 'factory.bin' and these instructions and it just put the device into a boot loop
I could just be stupid, but I couldn't find any information on the UART pinouts. For anyone who cares, if you're looking at the device from the bottom with the antennas at the top, UART pinouts (from left to right) seemed to be TX, GND, RX, VCC (3.3V)
Minor nitpick but it seems like the numbering of the ports as they're painted on the device don't line up with how they're labeled in OpenWRT. Like on the device, the WAN port is marked as "1" and the three LAN ports are 2-4, whereas in OpenWRT the LAN ports are 1-3 and in reverse order (like port '4' on the device correlates with 'lan1' in OpenWRT)
Not sure if it's a bug in OpenWRT itself or if it has something to do with this specific device, but I did note that if I configure an 802.1q VLAN on one of the LAN ports, and add that VLAN to a bridge, that it seems like wired devices on that VLAN can communicate with each other but NOT with wireless clients on the same bridge. This is a configuration I've used successfully on many other devices.

Hardware specification: SoC: MediaTek MT7986A 4x A53 Flash: ESMT F50L1G41LB 128 MB RAM: K4A4G165WF-BCWE 512 MB Ethernet: 4x 10/100/1000 Mbps WiFi1: MT7976GN 2.4GHz ax 4x4 WiFi2: MT7976AN 5GHz ax 4x4 Button: Mesh, Reset Flash instructions: 1. Gain ssh and serial port access, see the link below: https://openwrt.org/toh/xiaomi/redmi_ax6000#installation 2. Use ssh or serial port to log in to the router, and execute the following command: nvram set boot_wait=on nvram set flag_boot_rootfs=0 nvram set flag_boot_success=1 nvram set flag_last_success=1 nvram set flag_try_sys1_failed=8 nvram set flag_try_sys2_failed=8 nvram commit 3. Set a static ip on the ethernet interface of your computer (e.g. default: ip 192.168.31.100, gateway 192.168.31.1) 4. Download the initramfs image, rename it to initramfs.bin, and host it with the tftp server. 5. Interrupt U-Boot and run these commands: setenv mtdparts nmbm0:1024k(bl2),256k(Nvram),256k(Bdata),2048k(factory),2048k(fip),256k(crash),256k(crash_log),112640k(ubi) saveenv tftpboot initramfs.bin bootm 6. After openwrt boots up, use scp or luci web to upload sysupgrade.bin to upgrade. Revert to stock firmware: Restore mtdparts back to default, then use the vendor's recovery tool (Windows only). Signed-off-by: Chukun Pan <amadeus@jmu.edu.cn>

aiamadeus · 2022-10-29T14:06:45Z

Minor nitpick but it seems like the numbering of the ports as they're painted on the device don't line up with how they're labeled in OpenWRT. Like on the device, the WAN port is marked as "1" and the three LAN ports are 2-4, whereas in OpenWRT the LAN ports are 1-3 and in reverse order (like port '4' on the device correlates with 'lan1' in OpenWRT)

Can you try the latest code?

stoickish · 2022-10-29T16:11:23Z

Minor nitpick but it seems like the numbering of the ports as they're painted on the device don't line up with how they're labeled in OpenWRT. Like on the device, the WAN port is marked as "1" and the three LAN ports are 2-4, whereas in OpenWRT the LAN ports are 1-3 and in reverse order (like port '4' on the device correlates with 'lan1' in OpenWRT)

Can you try the latest code?

Yes, that fixed it. The OpenWRT UI seems to be consistent with what's printed on the device now. Thanks!

dangowrt · 2022-10-30T14:49:00Z

Picked. Thank you!

feitian124 · 2022-11-01T16:26:26Z

@dangowrt excuse me, may i know this pr is closed？

dangowrt · 2022-11-01T16:34:59Z

Because the commit has been picked into the main git branch.
641e4f2

Ansuel added target/mediatek pull request/issue for mediatek target new device pull request with new device labels Sep 12, 2022

aiamadeus force-pushed the rm-ax branch from fbf70f4 to 5f79f8f Compare September 12, 2022 15:20

aiamadeus force-pushed the rm-ax branch from 5f79f8f to 1fa7681 Compare September 13, 2022 10:08

aiamadeus force-pushed the rm-ax branch from 1fa7681 to b697d11 Compare September 15, 2022 17:07

github-actions bot added the core packages pull request/issue for core (in-tree) packages label Sep 15, 2022

aiamadeus force-pushed the rm-ax branch from b697d11 to 68c1540 Compare September 15, 2022 17:08

remittor reviewed Sep 15, 2022

View reviewed changes

aiamadeus force-pushed the rm-ax branch from dee0a08 to ad8f496 Compare September 26, 2022 08:10

981213 reviewed Oct 6, 2022

View reviewed changes

target/linux/mediatek/dts/mt7986a-xiaomi-redmi-router-ax6000.dts Outdated Show resolved Hide resolved

aiamadeus force-pushed the rm-ax branch from ad8f496 to d1eee15 Compare October 6, 2022 15:36

aiamadeus force-pushed the rm-ax branch from d1eee15 to 780daf1 Compare October 29, 2022 14:01

dangowrt closed this Oct 30, 2022

aiamadeus deleted the rm-ax branch November 20, 2022 12:09

DragonBluep mentioned this pull request Dec 10, 2023

mediatek: add support for Routerich AX3000 #14185

Merged

aiamadeus mentioned this pull request Jun 13, 2025

GL.iNet MT3000 is missing bmt-remap-range freifunk-gluon/gluon#3523

Closed

Uh oh!

mediatek: add Xiaomi Redmi Router AX6000 support #10690

mediatek: add Xiaomi Redmi Router AX6000 support #10690

Conversation

aiamadeus commented Sep 12, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

soxrok2212 commented Sep 12, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

Ansuel commented Sep 12, 2022

Uh oh!

soxrok2212 commented Sep 12, 2022

Uh oh!

aiamadeus commented Sep 12, 2022

Uh oh!

soxrok2212 commented Sep 12, 2022

Uh oh!

DragonBluep commented Sep 12, 2022

Uh oh!

aiamadeus commented Sep 12, 2022

Uh oh!

DragonBluep commented Sep 12, 2022

Uh oh!

soxrok2212 commented Sep 13, 2022

Uh oh!

DragonBluep commented Sep 13, 2022

Uh oh!

aiamadeus commented Sep 13, 2022

Uh oh!

ptpt52 commented Sep 13, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

nasbdh9 commented Sep 13, 2022

Uh oh!

soxrok2212 commented Sep 13, 2022

Uh oh!

soxrok2212 commented Sep 13, 2022

Uh oh!

soxrok2212 commented Sep 13, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

aiamadeus commented Sep 14, 2022

Uh oh!

soxrok2212 commented Sep 14, 2022

Uh oh!

aiamadeus commented Sep 14, 2022

Uh oh!

soxrok2212 commented Sep 14, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

dangowrt commented Sep 14, 2022

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

remittor commented Sep 15, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

soxrok2212 commented Sep 25, 2022

Uh oh!

soxrok2212 commented Sep 26, 2022

Uh oh!

aiamadeus commented Sep 26, 2022

Uh oh!

soxrok2212 commented Sep 26, 2022

Uh oh!

remittor commented Sep 27, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

dangowrt commented Oct 2, 2022

Uh oh!

soxrok2212 commented Oct 2, 2022

Uh oh!

EUA commented Oct 3, 2022

Uh oh!

Uh oh!

rjocoleman commented Oct 10, 2022

Uh oh!

aiamadeus commented Sep 12, 2022 •

edited

Loading

soxrok2212 commented Sep 12, 2022 •

edited

Loading

ptpt52 commented Sep 13, 2022 •

edited

Loading

soxrok2212 commented Sep 13, 2022 •

edited

Loading

soxrok2212 commented Sep 14, 2022 •

edited

Loading

remittor commented Sep 15, 2022 •

edited

Loading

remittor commented Sep 27, 2022 •

edited

Loading

shauno100 commented Oct 28, 2022 •

edited

Loading

stoickish commented Oct 29, 2022 •

edited

Loading
