PPPoE Server Problem

[msnzare]

I have problem with PPPoE Server on opnsense
OPNSense version: 18.7.7
os-pppoe Plugin version: 1.7_2

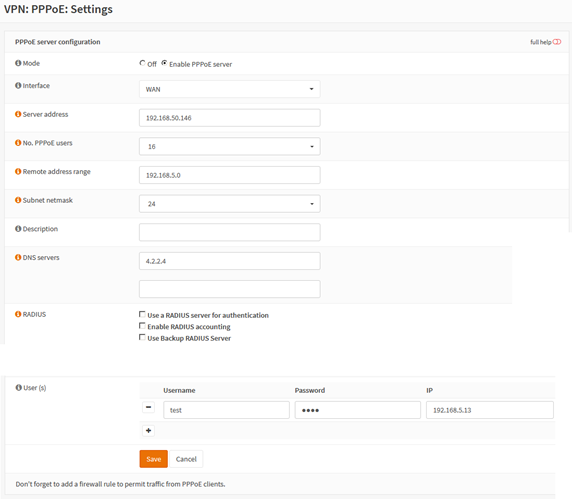

PPPoE server is configured as follows:

I have also added “any to any” ipv4 rules in Firewall rules (WAN & PPPoE)
When I want to connect OPNSense using PPPoE client (in windows 7) there is an error (following image) and There is no PPPoE Logins log in opnsense.

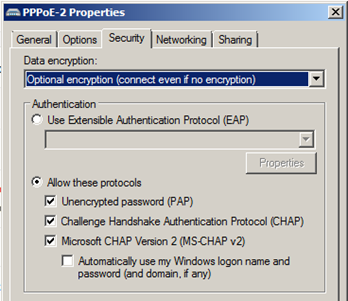

The PPPoE client security profile is as follow:

Thanks for support.

[mimugmail]

I have no idea of this plugin, but at first I'd start to check if:

• daemon is running
• packets arriving at WAN interface
• something to see in filter.log
• any other logs available?

Did your setup successfully run on any other version like 18.1?

[msnzare]

I have no idea of this plugin, but at first I'd start to check if:

* daemon is running

* packets arriving at WAN interface

* something to see in filter.log

* any other logs available?

Did your setup successfully run on any other version like 18.1?

I've checked:
Daemon is running
Packets arriving at wan interface
and there is not special log available
Is there any idea?
Thanks.

[mimugmail]

Do you see packets also replied?
I'd check system.log, ppps.log, or better everything in /var/log :)

[msnzare]

g, pp

I've checked as following:
The firewall has globally been disabled,

Dump PPPoE Discovery packets:
root@OPNsense:~ # tcpdump -i igb0 pppoed
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on igb0, link-type EN10MB (Ethernet), capture size 262144 bytes
07:32:49.821187 PPPoE PADI [Service-Name] [Host-Uniq 0x0E000000000000000E000000]
07:32:54.823256 PPPoE PADI [Service-Name] [Host-Uniq 0x0E000000000000000E000000]
07:32:59.825883 PPPoE PADI [Service-Name] [Host-Uniq 0x0E000000000000000E000000]
07:33:04.828672 PPPoE PADI [Service-Name] [Host-Uniq 0x0E000000000000000E000000]
^C
4 packets captured
287 packets received by filter
0 packets dropped by kernel
root@OPNsense:~ #

Dump PPPoE Session packets:
root@OPNsense:~ # tcpdump -i igb0 pppoes
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on igb0, link-type EN10MB (Ethernet), capture size 262144 bytes
^C
0 packets captured
207 packets received by filter
0 packets dropped by kernel
root@OPNsense:~ #

poes.log file:
ov 27 06:54:12 OPNsense poes: caught fatal signal TERM
Nov 27 06:54:14 OPNsense poes: [B] Bundle: Shutdown
Nov 27 06:54:14 OPNsense poes: [L] Link: Shutdown
Nov 27 06:54:14 OPNsense poes: PPPoE: stop waiting for connection on igb0:, service "pppoe1"
Nov 27 06:54:14 OPNsense poes: process 54912 terminated
Nov 27 06:54:23 OPNsense poes: Multi-link PPP daemon for FreeBSD
Nov 27 06:54:23 OPNsense poes:
Nov 27 06:54:23 OPNsense poes: process 74143 started, version 5.8 (root@opn-build-amd64-1 23:48 27-Jul-2018)
Nov 27 06:54:23 OPNsense poes: PPPoE: waiting for connection on igb0:, service "pppoe1"

Actually PPPoE Discovery packets are sent to OPNsense but there is no reply from it.

Thanks for support.

[newerit]

not resolved? i am have the same problem!

[polumish]

I have this problem too. Issue - set correct service name on client side. From our log - service name is "pppoe1". After I set this name on client side, all worked correctly.
Other question - where we can rename service name on server side?

[tuyenld]

I have a work around solution. You need to comment out the line then try to change any PPPoE server configuration:

vi /usr/local/etc/inc/plugins.inc.d/if_pppoe.inc
//set pppoe service pppoe{$pppoecfg['pppoeid']}

According to mpd man page:

set pppoe service service-name
Sets the requested PPPoE service name. Setting service name to "*" on link with allowed incoming connections allows to accept incoming connection requests with any service name specified.

Since FreeBSD 6.3-STABLE/7.0-STABLE of 2008-01-30 it is possible to use "AC-Name\Service-Name" syntax to request specified access concentrator for outgoing connection.

The default is "*".

[benddevice]

No solution ???

[AdSchellevis]

This issue has been automatically timed-out (after 180 days of inactivity).

For more information about the policies for this repository,
please read https://github.com/opnsense/plugins/blob/master/CONTRIBUTING.md for further details.

If someone wants to step up and work on this issue,
just let us know, so we can reopen the issue and assign an owner to it.
