net/haproxy: 3rd feature set for release 2.10 #1003

Merged
merged 2 commits into from
Nov 19, 2018

Conversation

fraenki
Copy link
Member

@fraenki fraenki commented Nov 19, 2018

full changelog added to #960

@fraenki fraenki added the feature Adding new functionality label Nov 19, 2018
@fraenki fraenki self-assigned this Nov 19, 2018
@fraenki
Copy link
Member Author

fraenki commented Nov 19, 2018

@fichtner Is it too late for OPNsense 18.7.8?

@fraenki
Copy link
Member Author

fraenki commented Nov 19, 2018

CPU Affinity Rules

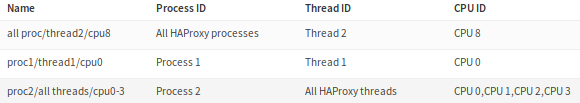

Setup rules; they will globally be used if enabled:
cpuaff1

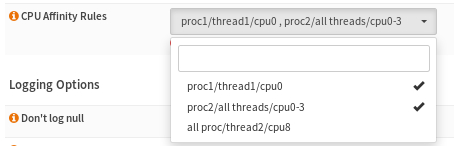

Assign one or more CPU affinity rules to a Public Service (frontend):
cpuaff2

This results in multiple HAProxy CPU affinity configurations:

global
    cpu-map                     1/1 0
    cpu-map                     2/all 0 1 2 3
    cpu-map                     all/2 8

frontend example
    bind-process 1 2
    bind 10.1.2.3:443 process 1/1 process 2/all

(This haproxy.conf is for demonstration purposes only, it's not considered particular useful.)

NOTE: It's absolutely possible to build nonfunctional combinations of rules, so be sure to always use the "Test Syntax" button before applying a new configuration.

@fraenki fraenki merged commit 64d5eca into opnsense:master Nov 19, 2018
