display e-ink 3 colors #1017
Replies: 11 comments
-
Posted at 2017-10-02 by Wilberforce It uses an spi interface, the data sheet is here https://www.waveshare.com/w/upload/d/d8/2.7inch-e-paper-b-specification.pdf This lists the commands - there might be a similar display in the modules currently supported - or you could try to write a specific module for this board. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2017-10-02 by @gfwilliams Looks like the forum is breaking the links - I'll see if I can tweak them :) I don't think there is currently a library to support it, but I'd be happy to help you write one. It should be pretty straightforward |
Beta Was this translation helpful? Give feedback.
-
Posted at 2017-10-02 by L0cutus Ahem no, i'm too much noob to be able to make a library! |
Beta Was this translation helpful? Give feedback.
-
Posted at 2017-10-02 by @allObjects I got recently a 3 colored one... just did not yet have the time to play around with it... It is on my list... but pushed down a bit in priority because a small monochrome OLED I have covers my display needs... |
Beta Was this translation helpful? Give feedback.
-
Posted at 2017-10-02 by L0cutus Great! |
Beta Was this translation helpful? Give feedback.
-
Posted at 2018-06-30 by urish I managed to get the 2-colored one working on Espruino as part of my IRL Chrome T-Rex game project. You can find my initial PoC code in this gist, or check out the final version here. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2018-09-04 by hygy So this is a working library for waveshare e-ink? Do you have an example usage code for this? |
Beta Was this translation helpful? Give feedback.
-
Posted at 2018-09-04 by urish It's not a library per-se, just a code example. You can run PoC the code in the gist and it should draw a t-rex image on the screen (assuming that you have a similar model to mine, otherwise adjustments might be needed). Then you can look inside the display.js module of my game and use it as a basis for a library. You will probably have to manually change the pins in the code to whatever pins your display is connected to. Good luck! |
Beta Was this translation helpful? Give feedback.
-
Posted at 2019-02-28 by Sacha Adafruit has the display as well: https://www.adafruit.com/product/4098 Dear allObjects, did you find the time to use this display with espruino ? Thanks |
Beta Was this translation helpful? Give feedback.
-

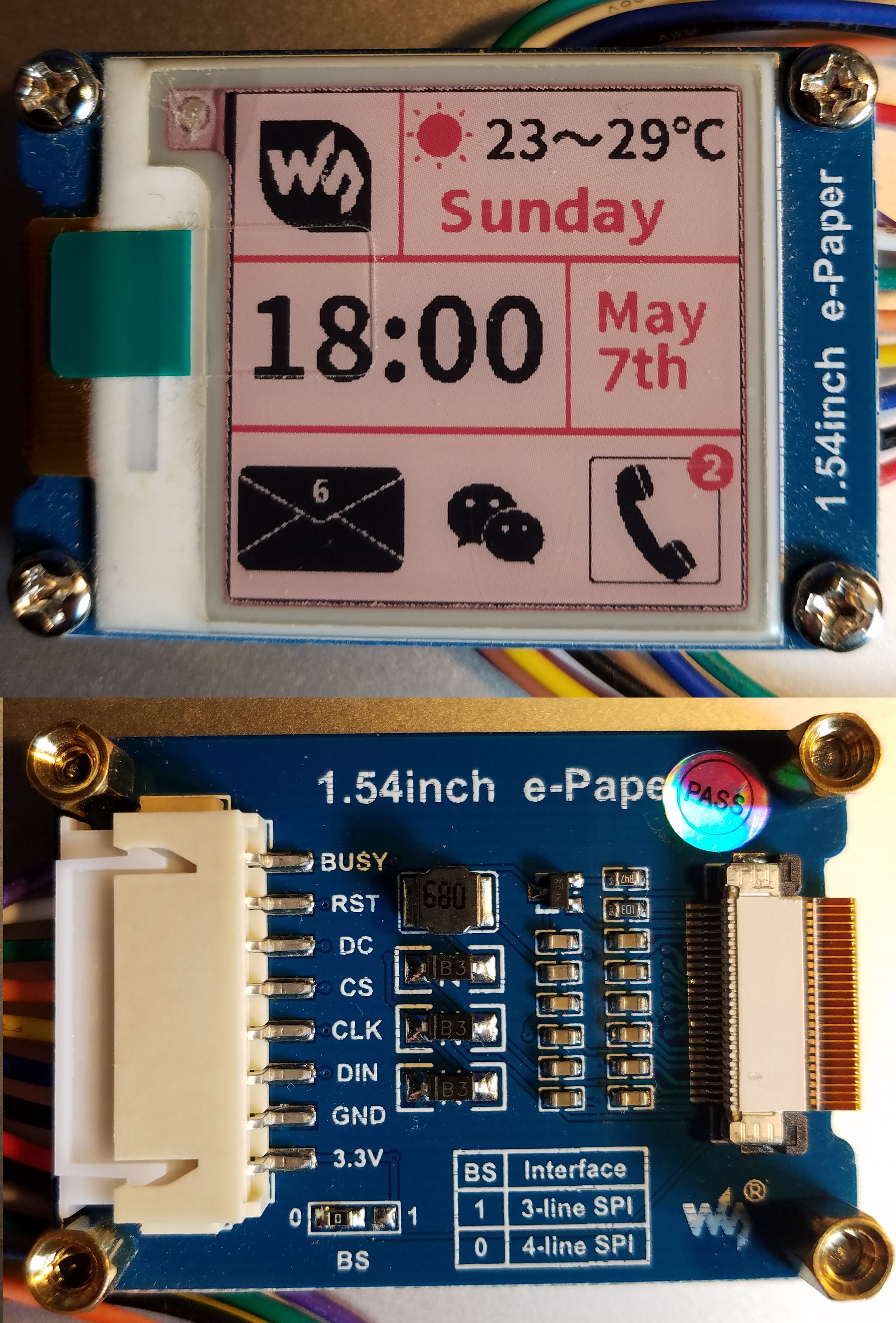

Posted at 2019-02-28 by @allObjects I have the one as shown in attached pictures. I still hope to find time at one point to connect it. More recent activities included connecting the Espruino Graphics object to displays built with NeoPixels. Some functions needed speed up - saving/restoring/moving and copying around of areas - for which I used inline C..., which btw works really nicely, as you can see documented in this conversation about Efficiently moving things around in zig-zag Graphics buffer visualized w/ 24/32 bpp displays / neopixel strings.Attachments: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2019-03-06 by Sacha Thanks for the Info. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2017-10-02 by L0cutus
Hi!
someone know if this display:
https://www.waveshare.com/wiki/2.7inch_e-Paper_HAT_(B)
is supported by espruino ?
if yes, which library ?
Thanks !
