Breaking out of loop (graphical programming) #372
Replies: 23 comments
-
Posted at 2015-04-29 by DrAzzy break only works within a loop. "do every X seconds" in espruino is not implemented as a loop, but by setInterval(), which runs a callback every X seconds. Quite frankly, I don't think blockly is well equipped to represent this kind of thing - the way it deals with timeout/intervals is not really what you expect looking at it. To stop an interval, you use the interval number and clearInterval. I think this does more like what you were looking for.
|
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-04-30 by @gfwilliams Yes, blockly isn't great for that kind of thing - although it would be possible for someone to add a special block that would break out of an For now though, I reckon you've got 2 options to do what you want:
|
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-01 by Progma Is there a section in this code that accounts for my OR condition? |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-01 by Progma I don't quite understand the first option. What would the variable do as far as exiting the loop And far as the second one, would I make this a recursive function? I'm just making sure that the program can be reset essentially (without literally pressing the reset button). Either way here's what I interpreted from your second optionAttachments: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-02 by @allObjects #blockly #graphicalprogramming #visualprogramming First of all, Espruino is event driven, in other words, it does not kill time by nested loops of doing nothing - like the way time is killed in the Arduino code loop - but by setting a timer and linking it to a piece of code that will be run when the timer times out (In Arduino, you can of course use events too - interrupts based on a timing out event of a timer, but it is way more complicated than in Espruino... that's why many of us Espruini - or Espruine, to be politically correct and complete - are so thrilled with Espruino!). Espruino's main difference to the typical setup of a code loop is that it work only when there is something to do triggered by all sorts of events, such as a timing out timer, a status change of a watched pin, an input available, or some other under the hood created software events. Between the actvities, Espruino can go into very very deep, deep sleepto make a large battery outlive you - litteraly (of course, battery with 'no' self-dicharge). In your code(s) above, after serting up the timer (javascript: setTimout(...)), it goes to the next statment, which invokes makeSound() rightAway (again)... and you will be able to confirm thia fact when closely lookinf at the description of Espruino-blockly-wait. The right-away invoking of itself will make Espruino end up with out of memory / stack-overflow, because makeMusic calls itself within itself / while it is still executing. You can fix this issue easily: move the makeSound into the do of wait. This way it does most closely what you described in your first blockly post: check after 5 seconds C7 and C8, and if one is on, get the sound going again and checking again after 5 seconds, and so forth, or switch sound of and wait for the next C6 to fall and get music going. *I 'despise' this By now you noticed: there is no loop in the programmatic sense of 'while' or 'for' or 'repeat-until' (even though an interval may look like a loop as in the first blockly post, it is not. It is more like a timing with repetition or continuous timing. And since ou get a handle back on the setup Above blockly code has still an issue afer fixing: while the sound goes on - and the 5 seconds are passing to switch it off and eventually on again, C6 can go low again... and trigger another run of makeSound. Such constructs create nice, upredictable, and difficult to detect application behavior... Therefore, you make the watching a single shot, and after switching the sound off (or not switching it on because neither C7 nor C8 are on), you set the watching again. The javascript code for that would look like this (otice the debounce AND repeat options which blockly does not support and in Espruino Javascript default to no-debounce and false, respectively, and therefore blockly's default option settings are unknown to me. - @gordon, do I miss something here?):

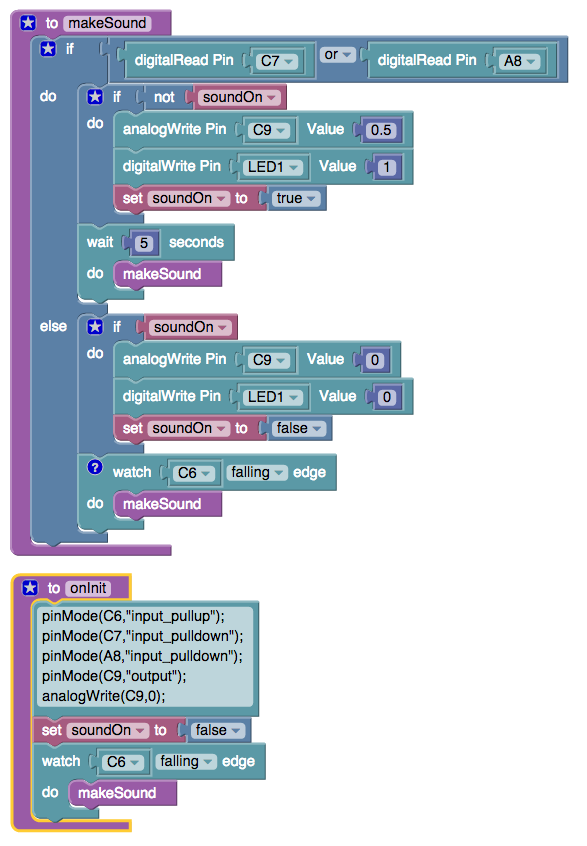

Instead of coding The blockly code looks like as attached screenshot. I'm sure you did also some initializing.... Btw, with given code uploaded, you can type What I miss in blockly too - aside of the watch options - is the ability to set a variable to a function, which then would allow to make the execution sequence very clear: first the initializations, then the (makeSound) function assigned to a variable, and lastly the onInit() with the initial setWatch(). PS: You may hear the re-switching-on as a hick-up. To avoid that, you would keep the on or off state in a global variable and execute the switching on only when not on (yet), and - of course - swtich of only when not switched off (yet). As a human listener, you may not hear nor notice the hickup because Espruino is so fast, but another Espruino potentially 'listening' to your signals will notice. Therefore you want to fully control what is happending. You find the solution in the second blockly attachement.Attachments: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-04 by Progma I've tried to use the block code you provided but I ended up with an out of memory error. If it would help I can include pictures of my setup. Would the device work better with the actual Javascript code? I guess I could try. Thanks for your help so far!Attachments: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-08 by @allObjects I had run the blockly like code structure successfully... without going out of memory to turn the LED1 on (instead of sound on C9) and then turning off based on the BTN1 (instead of C6) event and with variables for C7 and A8 that I controlled in the console to emulate your hardware setup. It is quite challenging to replicate larger blockly on visual basis only. Also, at the time of the post, I did not know how I could get the generated / uploaded Javascript code to be shown. Now I know (as you can read in post): To show blockly generated Javascript code, upload the blockly code to Espruino board, then click into the console pane (left-hand pane), and press the up-arrow button TWICE. To be precise, it shows only the last uploaded blockly block. If you have more than one blockly block - for example two functions (* to functionName) - press the up button again to show the other block, and so on... This will show the generated and uploaded code... in a bit ugly format (and not with all semicolons the WebIDE wants it, but nevertheless correct (optimized) javascript). By copying the code shown from the console (just mark the code with the mouse includes an auto-copy on marking-end-event), then pasting it into the javascript source code editor (right hand pane), and doing some editing, you get a nice head start though for moving on with 'real' coding... Yes, code form source is easier to understand and to build... of course, this is mostly true only for users that did already some (javascript) coding/programming. But you get quickly there and like the code more than the nice looking, instructional blockly presentation (btw, I'm not aware of any function in the WebIDE that would create blockly out of source code).
No, not really, because it is javascript after all that is uploaded... Espruiono has not knowledge whether the code came to be by direct coding or by generating from blockly. Too bad that I did not save the blockly code or I just cannot find it quickly and look at the geneated code... but I will see what I can do to find the issue you are running into. Using coding with the same logic, you should though just be fine. Thanks for sharing what you actually are doing. I may understand a bit better what you want to achieve. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-08 by @allObjects Hi, found some intermediate version of the blockly code and looked at it: in deed, it goes out of memory - for me after a while only - for multiple reasons (confirmed by the inserted console.log() statements to figure out what's going on):

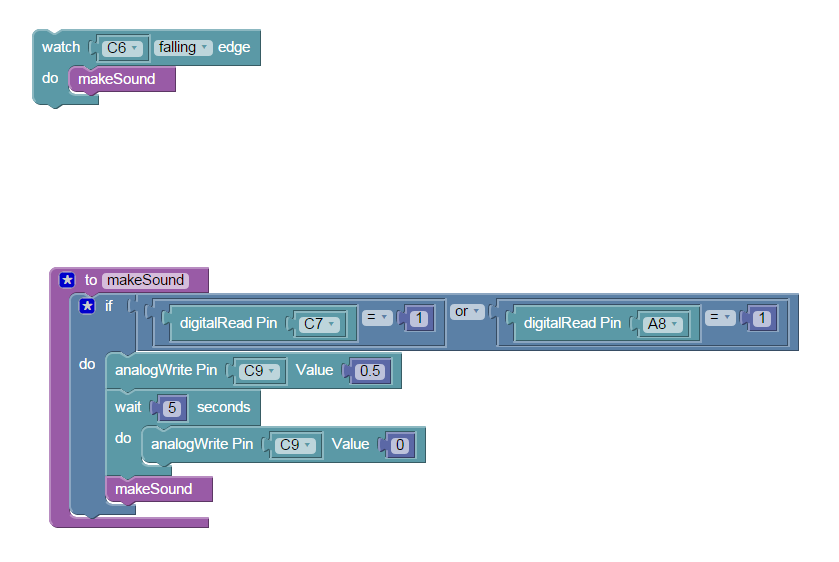

With grabing what blockly uploads, then fixing it, gives the code that shold work perfectly for you (if not, just come back and give me the red card... :|):
Btw, this eval("javascript source code string") is a very very bad thing... may be blockly has to do it (not really... since for espruinio passing just the source string would work too... (@gordon?)), you can do it directly with:
Furthermore, you can take the *pinMode()*s out of the onInit() and put it together with the declaration of the soundOn variable, because saving the code makes Espruino holding on to the pin configuration - is that right, @gordon?
|
Beta Was this translation helpful? Give feedback.
-

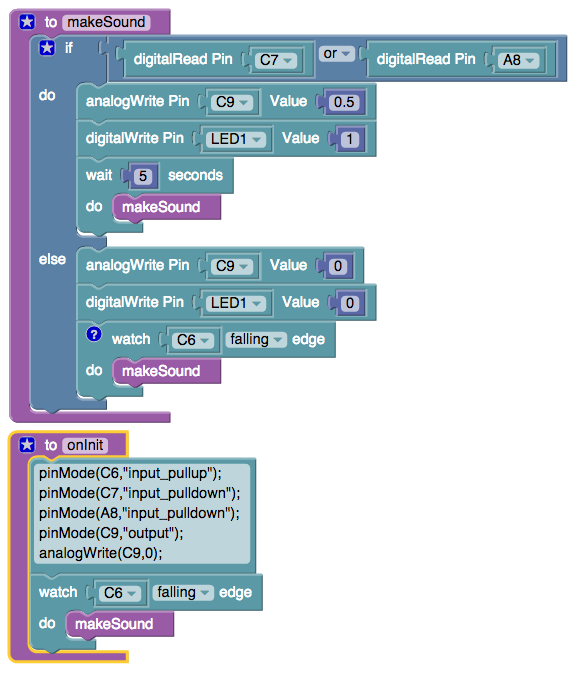

Posted at 2015-05-08 by @allObjects Your final code looks then like:
When you develop/test (without the last line), you upload the code and invoke the So much for the code correctness... ;-). To use Espruino through blockly, blockly needs some more work to cover all Espruino specifics. Now for your actual case, I have to mentally picture it first, before elaborating on possible code changes. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-08 by @allObjects Since C6 is an event (falling) and not a state, it cannot be a decision-item ('if') of your flow diagram... it is the trigger of getting that flow going... (your 'flow-loop'-pattern may come from the typical implementation in an Arduino execution loop). Because you mention a Door, the door does something to trigger your sensor to create a falling signal. Is the event - A) 'door just closed', or - B) 'door just opened'? You also have a crossed-out timer. What was the original purpose of it? Since only a door event makes something happen, I'm not clear what is going on. A more detailed description - and even a picture of your setup could help. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-11 by @gfwilliams Sorry, in too much of a rush to check everything, but:
It's actually not that bad to do in Espruino, but in this case it is pointless. I think there was a reason I did it that way in the graphical editor - but I can't remember it now. It's not a big deal, because realistically you're never going to fill up available RAM with a blockly program and speed isn't really a priority either...
Yes, that's true. It tidies the code up a little :) |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-13 by Progma Sorry for the late response, I must have missed the email notification.
The one HES (Hall Effect Sensor) is on a door that is (what I wanted it to do) just opened. The code with it though needs to reflect the switch aspect of the HES. Did I also mention that this HES is the sensor on C6?

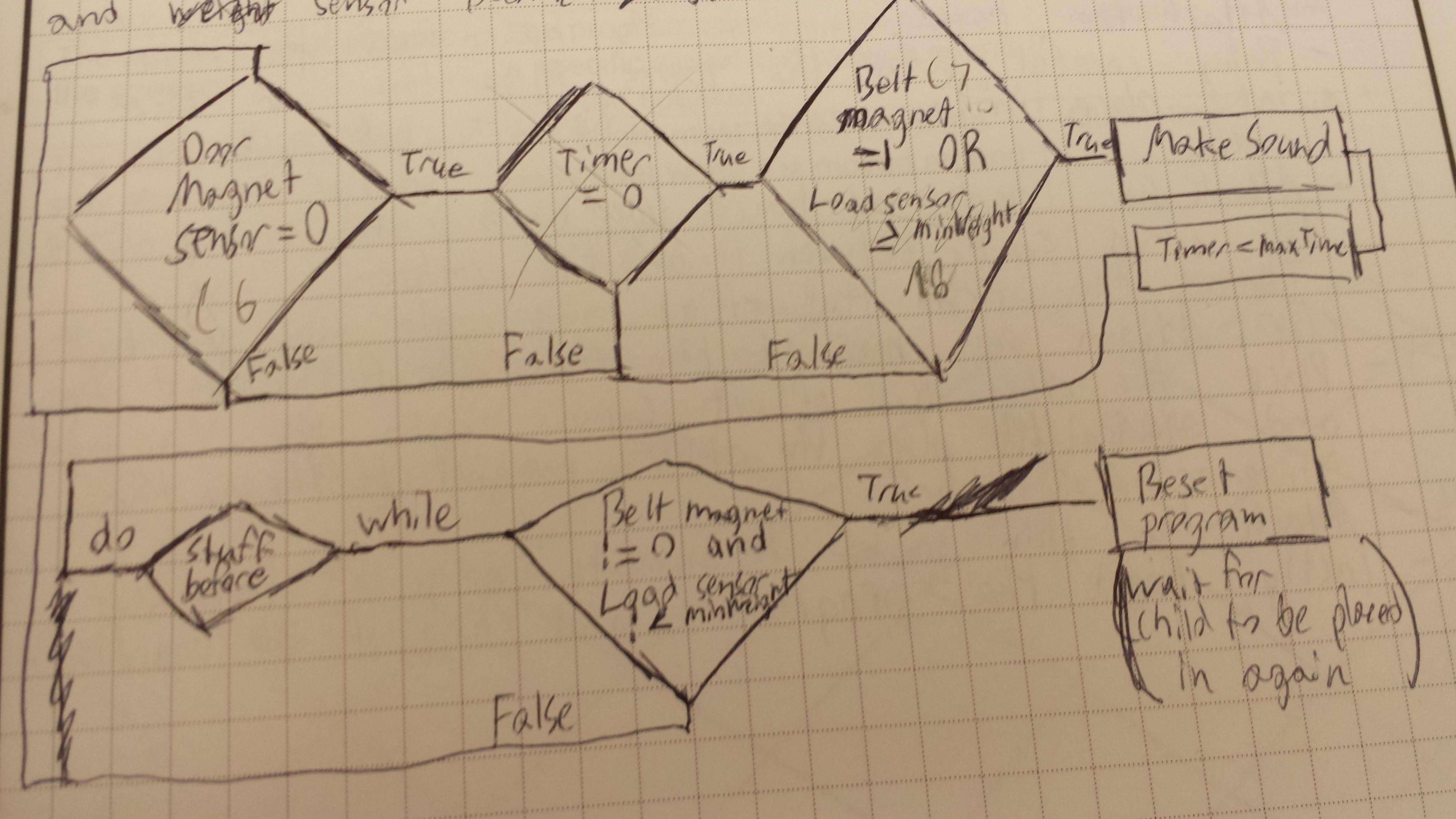

The original purpose of the timer was to have the program check if the scale and belt HES were both on and then sound the speaker for a certain amount of time until the scale and belt HES went off no matter the reading of the door HES and then somehow be able to repeat this (scale would output and then belt HES would activate and then wait for door to open). Also with that little note, I realized that someone would have to open the door after those two activated, and I need it to go off only after the person is getting out of the car (so opening the door after setting up the sensors but ignoring that door opening until the person gets out) . Anyways, the timer now would just be used for timing the time the speaker is on and then off. I will upload the picture in another post as well as a better description. Hopefully that helps answer some things. Thanks! |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-13 by @allObjects Door, belt, scale... I was in plant/warehouse processing... With car and person, I get the proper belt and scale context: safety belt of a car and scale is a weight sensor in the car seat. With hat, I guess, you want to make a device that reminds you to buckle up and save yourself a ticket... as the immediat actions... and have a longer life when looking at the grander scale... ;-) Cklick-it - or Tick-et... |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-13 by @allObjects Are you planning to put the hall sensor into the buckle to detect if the 'plug' part is in? With the ability go to (almost) any length in your code, you can even detect - to some degree - cheaters: Defining a sequence of events on a state machine lets you detect any odd behavior and sound alarm... |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-13 by Progma Okay the top HES is the door HES and is C6. The right HES is C7 and is for the belt. The scenario is for my senior engineering class. My partner and I decided to try to prevent child (aged 1-4) heatstroke deaths. We came up with a setup that has an HES on the door and one on the belt of a car seat. The scale would be on the place where the child would sit. The scale (how we would have it) would output the weight of the child to the board so we could use it, but we couldn't find a way to integrate it that way do we opted for a signal that would come from the scale Lcd when the weight was above the minimum value(the scale shown turns on the lcd above a minimum weight). That wasn't the case. The child would be placed in the safety seat which would add weight to the scale and then the belt would be buckled together which would activate the belt HES. When the driver opens the speaker should sound for five seconds and be org for five seconds until the belt is unbuckled and the child removed from the safety seat. Closing that door should not turn off the speaker.Attachments: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-13 by Progma
Yes that was the plan but it won't quite work like that because of the switch function of the HES. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-14 by @allObjects That is way cool! I would start just with the door HES and the scale. To get the belt sensed may turn out difficult, and a changing of the buckle is a legal/insurance thing (may be the buckle has already something for such a sensing but it is not populated...). For sensing that the belt is unbuckled, you could just take a small box where the belt tab has to be placed/parked. An if it is not parked, it considers it buckled. Next thing is the scale: did you check if the scale stays put? Most scales have a timeout... in other words, you may need to switch the scale on and off with Espruino to make sure it is on. The issue then with most scales is, that they try to find their 0 (zero), and if the weight is not stable, it goes to error. if you can find a capacitive sensor, that could help. Said that, you may just use a device where the child seat belt tab has to be parked in order to consider a child in or out, and then deal with the door. In todays cars with airbags, the driver and the front passenger seat have already an even weight distinguishing senser. Check out what these sensors are and you may go the same route for that. You put such a sensor into the child seat (under the lining, between the fabric (with padding) - which you usualy can take of for washing). Other options are sensing weather the key is in the ignition (and partially turned...) just came switched on of just switchet off, etc... that's easy: most cars have a outlet (cigaret lighter) socket that disconnect from 12 V power as soon as the key is taken out (to prevent the battery going down). Plugging your device into that gives you the signal right away: when power switches from external 12 volt to your device powering battery... Using that 12 socket is at the same time a charging source... ;-) - you get me going here... |
Beta Was this translation helpful? Give feedback.
-

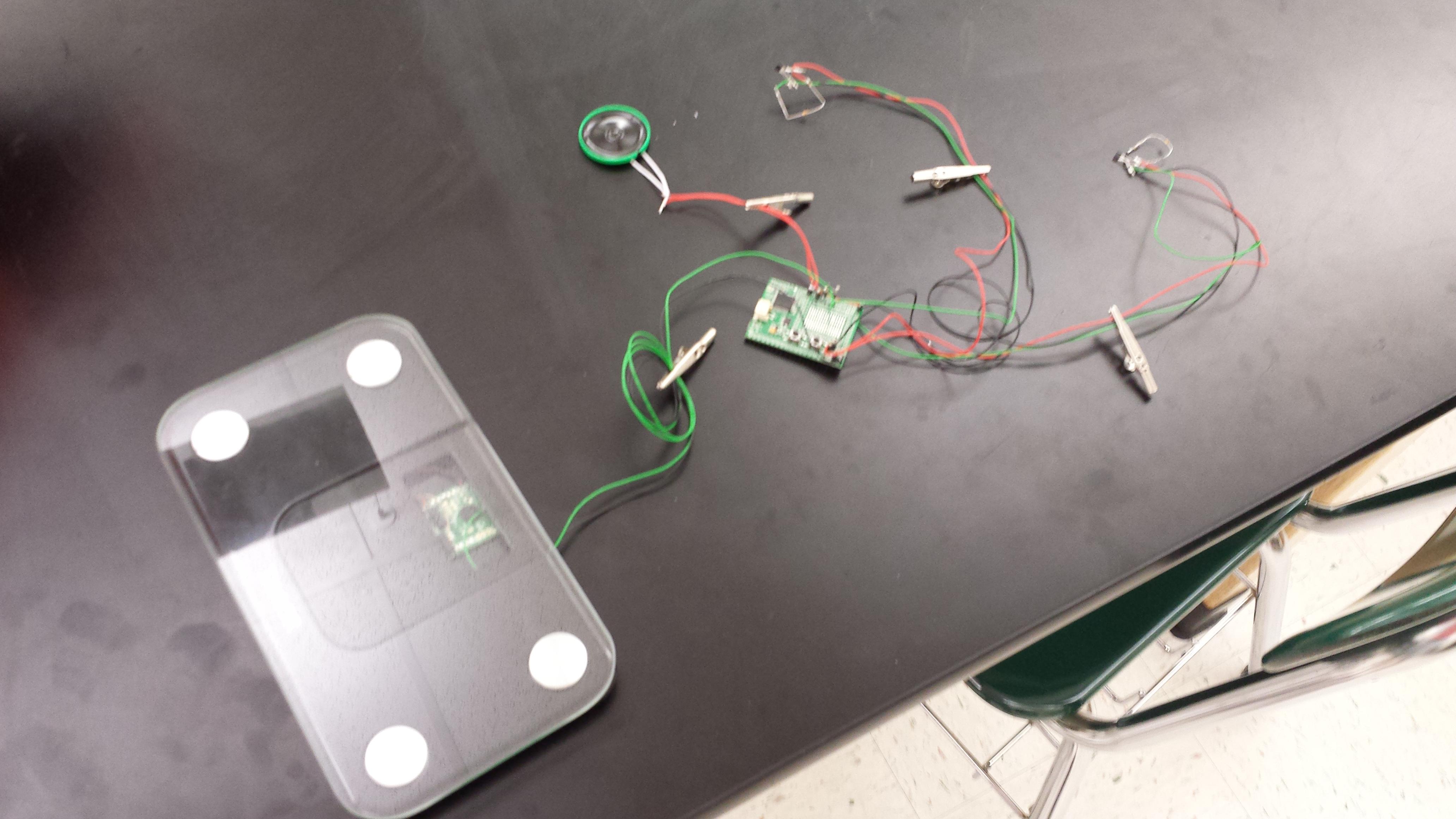

Posted at 2015-05-14 by @gfwilliams I'm not quite sure what you're planning with the scale, but it looks to me like you only connected one wire... You'd need to connect ground up between Espruino and the scale as well. Also, maybe the signal out of it is actually PWM? I have no idea what you've connected to, but maybe you should try and use an oscilloscope to see what the value out of it is actually doing? |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-15 by Progma @gordon the Espruino is connected to the ground of the scale as well. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-15 by @gfwilliams @progma nice idea - it's unlikely to be PWM then! If you are getting varying values off it, it might be worth checking with a scope though - I guess it could be 'scanning' out the plates. You could always just add a resistor and capacitor to try and smooth it out though... |
Beta Was this translation helpful? Give feedback.
-

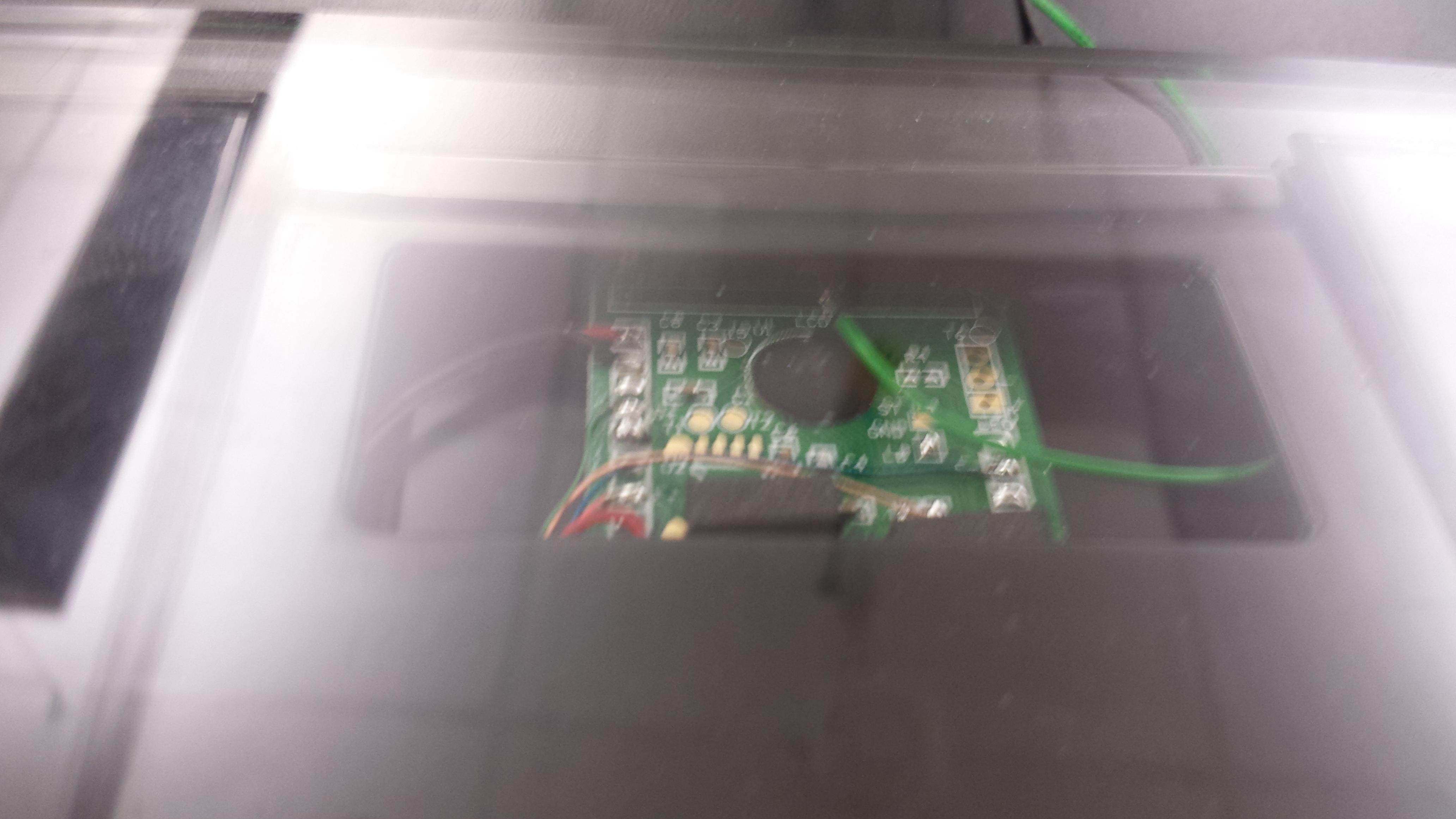

Posted at 2015-05-15 by Progma @gordon I tried to use a scope but I didn't really find anything. I also didn't know what to have my physics teacher do with the scope. I did find however that there is a constant wave going through that specific LCD pin/plate(I don't know what to call them at this point) which would account for the non-zero value. I also don't know what kind of LCD I have in the scale, since that might shed some light on what kind of input that kind needs. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-15 by @allObjects Such (scale LCD) displays are multiplexed. In other words, when you look at one 'pin' of the LCD, you see a on-off-on-off-... signal. Multiplexing is a technique to reduce the number of connections. I would be surprised when these cheapo things - chip under the black blob - would provide connectivity to an information/externalize a signal that would tell you something about the weight on the scale. Most of these boards have test pads. I would start of with a simple multi-meter and see if one of the golden, shiny pads provide you with a signal that you can use. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-05-18 by @gfwilliams
So it's not stable at one voltage? If that particular pin of the LCD display does what you want, I'd just use that. When that part of the LCD shouldn't be lit, do you end up with nothing on the signal line? Or is it always the same waveform displayed regardless of the weight on the scale? |
Beta Was this translation helpful? Give feedback.
-
Posted at 2015-04-29 by Progma

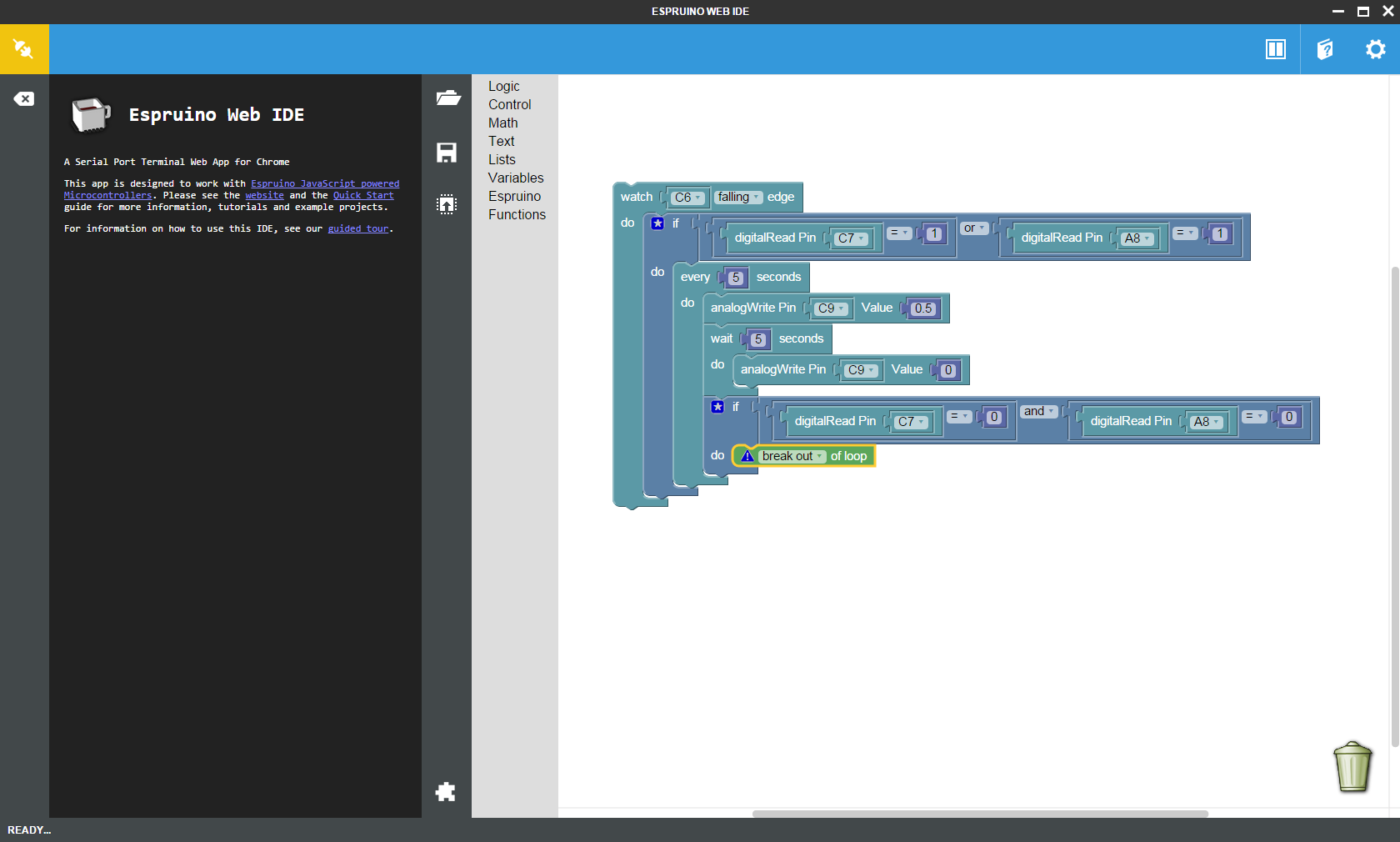

I need to end a "repeat every __ seconds" loop, but I only want it to end after a certain condition is met. I think that just putting the "break out of loop" control function would work but it is warning me that it needs to be placed in a loop, which it technically would be. I'll place an image to show what I mean just in case.
Attachments:
Beta Was this translation helpful? Give feedback.
