Posted at 2024-06-07 by user158306

Hi! I am new to Arduino and Puck and Bluetooth programming. This is probably a very simple thing - but I am really struggling to make this work.

I have a Puck and an Adafruit Feather BLE board that I am jut trying to send signals between. I have the Arduino board setup and I know it is broadcasting. I have the Puck setup and I can run the findDevice() to search for devices (and it creates a list of available devices).

I have the board renamed - say to "Splitz" - and my phone and Mac see the board as renamed as "Splitz" if I connect to it. But I can not for the life of me get the Puck to "see" the board.

This is what I am using to scan for devices on a Puck button push.

setWatch(function(e) {
    NRF.findDevices(function(devices) {
      print(devices);
  });
}, BTN, { edge: "falling", repeat: true, debounce: 50 });

The below is some of what returns. I know I just don't know what I am looking for in the returned data to parse out which one is the Feather board. The code says it is 0x00D6 hardware? I can see both devices on the Bluefruit App as well and can connect and UART to them both. I'd like to be able to send signals from the puck to the Board and vice versa.

[
BluetoothDevice: {
    "id": "d9:c7:44:31:02:87 random",
    "rssi": -79,
    "data": new Uint8Array([26, 255, 76, 0, 18, 2, 238, 1, 7, 17, 6, 125, 223, 234, 190, 158, 8, 80, 62, 43, 210, 193, 95, 101, 14, 224, 65]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([18, 2, 238, 1, 7, 17, 6, 125, 223, 234, 190, 158, 8, 80, 62, 43, 210, 193, 95, 101, 14, 224, 65]).buffer
   },
  BluetoothDevice: {
    "id": "65:40:40:bb:4d:7f private-resolvable",
    "rssi": -66,
    "data": new Uint8Array([2, 1, 26, 13, 255, 76, 0, 22, 8, 0, 108, 189, 35, 11, 170, 240, 33]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([22, 8, 0, 108, 189, 35, 11, 170, 240, 33]).buffer
   },
  BluetoothDevice: {
    "id": "6d:67:7b:97:ef:28 private-resolvable",
    "rssi": -48,
    "data": new Uint8Array([2, 1, 26, 13, 255, 76, 0, 22, 8, 0, 172, 3, 209, 26, 155, 13, 167]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([22, 8, 0, 172, 3, 209, 26, 155, 13, 167]).buffer
   },
  BluetoothDevice: {
    "id": "cf:1b:24:db:c7:86 random",
    "rssi": -49,
    "data": new Uint8Array([7, 255, 76, 0, 18, 2, 0, 3]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([18, 2, 0, 3]).buffer
   }
 ]

Any help in the right direction would be amazing!!

espruino-discuss · 2025-02-12T12:31:30Z

espruino-discuss
Feb 12, 2025
Maintainer Author

Posted at 2024-06-07 by @fanoush

The device name is often sent in scan response packet that Puck.js must actively ask for for every device. That is the active: true option which is not enabled by default. https://www.espruino.com/Reference#l_NRF_findDevices

Posted at 2024-06-07 by @gfwilliams

Do you know (maybe from the adafruit app, or the NRF connect app) what the device's MAC address is? That way you can at least try and track down which the correct device is - or you can even just specify it manually using the MAC address.

In what you posted all I see is "manufacturer": 76, - these are all Apple devices, so not your Feather BLE.

Could you feather still be connected by BLE to your phone/PC? If so it won't be advertising.

Posted at 2024-06-07 by user158306

Thank you for the response - I've updated the puck.js code to include the "active:true" below, and I've included a full list of the devices that are seen by the puck.

setWatch(function(e) {

  NRF.findDevices(function(devices) {
    print(devices);
  }, {timeout : 2000,
      active : true,
      filters : [
        { manufacturerData:{0x00D6:{}}}
      ]
     });
}, BTN, { edge: "falling", repeat: true, debounce: 50 });

[
  BluetoothDevice: {
    "id": "2d:3b:c7:59:79:b0 private-nonresolvable",
    "rssi": -50,
    "data": new Uint8Array([2, 1, 26, 11, 255, 76, 0, 9, 6, 3, 191, 192, 168, 0, 10]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([9, 6, 3, 191, 192, 168, 0, 10]).buffer
   },
  BluetoothDevice: {
    "id": "47:b8:c7:f3:29:b4 private-resolvable",
    "rssi": -69,
    "data": new Uint8Array([3, 3, 159, 254, 23, 22, 159, 254, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]).buffer,
    "services": [
      "fe9f"
     ],
    "serviceData": {
      "fe9f": new ArrayBuffer(20)
     }
   },
  BluetoothDevice: {
    "id": "70:10:8f:e4:08:a5 private-resolvable",
    "rssi": -49,
    "data": new Uint8Array([2, 1, 26, 2, 10, 12, 10, 255, 76, 0, 16, 5, 78, 28, 90, 249, 167]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([16, 5, 78, 28, 90, 249, 167]).buffer
   },
  BluetoothDevice: {
    "id": "7f:bb:91:1f:68:11 private-resolvable",
    "rssi": -50,
    "data": new Uint8Array([2, 1, 26, 2, 10, 12, 11, 255, 76, 0, 16, 6, 61, 30, 200, 213, 243, 249]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([16, 6, 61, 30, 200, 213, 243, 249]).buffer
   },
  BluetoothDevice: {
    "id": "ff:8d:05:ae:17:64 random",
    "rssi": -45,
    "data": new Uint8Array([2, 1, 6, 2, 10, 0, 17, 6, 158, 202, 220, 36, 14, 229, 169, 224, 147, 243, 163, 181, 1, 0, 64, 110]).buffer,
    "services": [
      "6e400001-b5a3-f393-e0a9-e50e24dcca9e"
     ]
   },
  BluetoothDevice: {
    "id": "68:6b:cd:8a:7a:e2 private-resolvable",
    "rssi": -76,
    "data": new Uint8Array([2, 1, 26, 2, 10, 7, 10, 255, 76, 0, 16, 5, 114, 28, 211, 224, 196]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([16, 5, 114, 28, 211, 224, 196]).buffer
   },
  BluetoothDevice: {
    "id": "df:f6:01:75:33:e8 random",
    "rssi": -75,
    "data": new Uint8Array([7, 255, 76, 0, 18, 2, 0, 0]).buffer,
    "manufacturer": 76,
    "manufacturerData": new Uint8Array([18, 2, 0, 0]).buffer
   }
 ]

Posted at 2024-06-08 by user158306

Ok, I think I am getting closer. I'm just really trying to navigate how the two different libraries (Arduino and Espruino) talk to each other.

I have the following code on the puck.js. I can see and connect to the Arduino Adafruit Feather board with the puck on a button push.

// Initialize the UART connection on Puck.js
Serial1.setup(9600, { tx: D29, rx: D28 });

// Function to send a message
function sendMessage(message) {
  NRF.connect("ff:8d:05:ae:17:64 random").then(function(d)   {
    device = d;
    console.log("Device ",device);
    Serial1.print(message);
  });
}

// Send a message when the button is pressed
setWatch(function() {
  sendMessage("Hello, Arduino!");
}, BTN, { edge: "rising", debounce: 50, repeat: true });

The code on the Arduino Feather is below. In the Serial output, when I click the puck button it shows the Device Connected in the output - but I can not for some reason get the UART message to be passed between the puck and the Arduino board. I'm sure it's something simple I'm missing - so sorry if this is an easy one.

#include <Arduino.h>
#include <SPI.h>
#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"

#include "BluefruitConfig.h"

#if SOFTWARE_SERIAL_AVAILABLE
  #include <SoftwareSerial.h>
#endif

    #define FACTORYRESET_ENABLE         1
    #define MINIMUM_FIRMWARE_VERSION    "0.6.6"
    #define MODE_LED_BEHAVIOUR          "MODE"
    #define LED_BUILTIN                 13
/*=========================================================================

Adafruit_BluefruitLE_UART ble(bluefruitSS, BLUEFRUIT_UART_MODE_PIN,
                      BLUEFRUIT_UART_CTS_PIN, BLUEFRUIT_UART_RTS_PIN);

// A small helper
void error(const __FlashStringHelper*err) {
  Serial.println(err);
  while (1);
}

/**************************************************************************/
/*!
    @brief  Sets up the HW an the BLE module (this function is called
            automatically on startup)
*/
/**************************************************************************/

void setup() {
  // Start the hardware serial communication at 9600 baud rate
  Serial.begin(9600); // Serial Monitor
  Serial1.begin(9600); // UART Communication (Replace Serial1 with appropriate Serial for your Feather)

  Serial.println(F("Adafruit Bluefruit Command Mode Example"));
    Serial.println(F("---------------------------------------"));

    /* Initialise the module */
    Serial.print(F("Initialising the Bluefruit LE module: "));

    if ( !ble.begin(VERBOSE_MODE) ){
      error(F("Couldn't find Bluefruit, make sure it's in CoMmanD mode & check wiring?"));
    }
    Serial.println( F("OK!") );

    if ( FACTORYRESET_ENABLE ){
      /* Perform a factory reset to make sure everything is in a known state */
      Serial.println(F("Performing a factory reset: "));
      if ( ! ble.factoryReset() ){
        error(F("Couldn't factory reset"));
      }
    }

    /* Disable command echo from Bluefruit */
    ble.echo(false);

    Serial.println("Requesting Bluefruit info:");
    /* Print Bluefruit information */
    ble.info();

    Serial.println(F("Please use Adafruit Bluefruit LE app to connect in UART mode"));
    Serial.println(F("Then Enter characters to send to Bluefruit"));
    Serial.println();

    ble.verbose(false);  // debug info is a little annoying after this point!

    /* Wait for connection */
    while (! ble.isConnected()) {
        delay(500);
    }

    while(ble.isConnected()){
      Serial.println(F("Device is connected."));
      delay(500);
    }
    pinMode(LED_BUILTIN, OUTPUT); // Optional: Use the built-in LED to indicate received data
}

void loop() {
  // Check if there is any data available on Serial1
  if (Serial.available()) {
    // Read the incoming byte
    String incomingMessage = "";
    while (Serial.available()) {
      char incomingByte = Serial.read();
      incomingMessage += incomingByte;
    }
    // Print the incoming message to the Serial Monitor
    Serial.println("Received: " + incomingMessage);

    // Optional: Blink LED to indicate message received
    digitalWrite(LED_BUILTIN, HIGH);
    delay(1000);
    digitalWrite(LED_BUILTIN, LOW);
  }
}

Posted at 2024-06-10 by @gfwilliams

Ahh - ok. Right, well, first off to detect the feather, using MAC address is great if it's just one-off. You can see it reports as:

  BluetoothDevice: {
    "id": "ff:8d:05:ae:17:64 random",
    "rssi": -45,
    "data": new Uint8Array([2, 1, 6, 2, 10, 0, 17, 6, 158, 202, 220, 36, 14, 229, 169, 224, 147, 243, 163, 181, 1, 0, 64, 110]).buffer,
    "services": [
      "6e400001-b5a3-f393-e0a9-e50e24dcca9e"
     ]
   },

So you can do:

NRF.requestDevice({ filters: [{ services: ['6e400001-b5a3-f393-e0a9-e50e24dcca9e"'] }] }).then(function(device) { ... });

To return any device advertising the Nordic UART service.

What you're doing with Serial1.* is you're using the physical UART on the Puck on pins D28/29 - that's nothing to do with Bluetooth. What you need is https://www.espruino.com/BLE+UART

So your code would be more like:

// Function to send a message
function sendMessage(message) {
  NRF.connect("ff:8d:05:ae:17:64 random").then(function(d)   {
    device = d;
    console.log("Device ",device);
    require("ble_simple_uart").write(device, message, function() {
      print('Done!');
    });
  });
}
// Send a message when the button is pressed
setWatch(function() {
  sendMessage("Hello, Arduino!");
}, BTN, { edge: "rising", debounce: 50, repeat: true });

Posted at 2024-06-10 by @gfwilliams

I should add I'm not 10o% sure whether that's the right code for the Feather either... I'd have expected the ble class to be providing functionality to read data, not Serial - but I could be wrong as I don't have any experience of BLE on the Feather

Posted at 2024-06-10 by @fanoush

There are plenty of such Feather boards
https://www.adafruit.com/search?q=ble+feather&c=1010
so it is not clear which one it is, the Arudino code includes Adafruit_BluefruitLE_UART.h and some of those boards have nrf51 module connected over serial to main CPU. Maybe it is this one ? https://www.adafruit.com/product/2995

There are even modules just with the nrf51 to be connected over UART or SPI https://www.adafruit.com/search?q=ble+friend (there is also #include "Adafruit_BluefruitLE_SPI.h"

Also I see in the Arduino code that the FACTORYRESET_ENABLE is enabled so maybe the device name gets reset on every power on and maybe that's why it is not available in the scan?

Posted at 2024-06-10 by user158306

Hi fanoush and Gordon,

Thank you for your help in trying to connect the puck with the Feather. The board that I am using is: https://learn.adafruit.com/adafruit-feather-32u4-bluefruit-le/using-with-arduino-ide

I can get the puck and feather to "connect" to each other - when I push the button on the puck the Bluetooth LED on the Feather lights up - which means it is making a connection.

Figuring out how to exchange/communicate UART data between them after they are connected seems to be tricky.

When I include the code above I get the following error:

Device  BluetoothRemoteGATTServer: {
  "device": BluetoothDevice: {
    "id": "ff:8d:05:ae:17:64 random",
    "gatt":  ...
   },
  "connected": true, "handle": 1 }
Uncaught Error: Unhandled promise rejection: Error: Can't read property 'connect' of undefined
 at line 1 col 97 in .bootcde
var d;return h.gatt.connect().then(function(a){d=a;return a....
                   ^
in function "write" called from line 16 col 6 in .bootcde
    });
     ^
in function called from system

Posted at 2024-06-10 by user158306

I've got the Puck to connect and return the promise using requestDevice. I just don't see the result on the Arduino board. I know they connect.

// Blink green for 100ms
function blinkGreen() {
  LED2.write(true);
  setTimeout(function () { LED2.write(false); }, 100);
}

// Function to send a message
function sendMessage(message) {
  NRF.requestDevice({ filters: [{ id: 'ff:8d:05:ae:17:64 random' }], timeout: 2000, active:true }).then(function(device) {
    print(device);
    return require("ble_simple_uart").write(device, message);
    }).then(function() {
      print('Done!');
  });
}

// Send a message when the button is pressed
setWatch(function() {
  sendMessage("Hello, Arduino!/n");
  blinkGreen();
}, BTN, { edge: "rising", debounce: 50, repeat: true });

This is my arduino code with the libraries included.

#include <Arduino.h>
#include <SPI.h>
#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"

#include "BluefruitConfig.h"

#if SOFTWARE_SERIAL_AVAILABLE
  #include <SoftwareSerial.h>
#endif

/*=========================================================================
    -----------------------------------------------------------------------*/
    #define FACTORYRESET_ENABLE         1
    #define MINIMUM_FIRMWARE_VERSION    "0.6.6"
    #define MODE_LED_BEHAVIOUR          "MODE"
    #define LED_BUILTIN                 13
/*=========================================================================*/

Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);

// A small helper
void error(const __FlashStringHelper*err) {
  Serial.println(err);
  while (1);
}

/**************************************************************************/
/*!
    @brief  Sets up the HW an the BLE module (this function is called
            automatically on startup)
*/
/**************************************************************************/

void setup() {
  // Start the hardware serial communication at 9600 baud rate
  Serial.begin(9600); // Serial Monitor
  Serial1.begin(9600); // UART Communication (Replace Serial1 with appropriate Serial for your Feather)

  Serial.println(F("Adafruit Bluefruit Command Mode Example"));
    Serial.println(F("---------------------------------------"));

    /* Initialise the module */
    Serial.print(F("Initialising the Bluefruit LE module: "));

    if ( !ble.begin(VERBOSE_MODE) ){
      error(F("Couldn't find Bluefruit, make sure it's in CoMmanD mode & check wiring?"));
    }
    Serial.println( F("OK!") );

    if ( FACTORYRESET_ENABLE ){
      /* Perform a factory reset to make sure everything is in a known state */
      Serial.println(F("Performing a factory reset: "));
      if ( ! ble.factoryReset() ){
        error(F("Couldn't factory reset"));
      }
    }

    /* Disable command echo from Bluefruit */
    ble.echo(false);

    Serial.println("Requesting Bluefruit info:");
    /* Print Bluefruit information */
    ble.info();

    Serial.println(F("Please use Adafruit Bluefruit LE app to connect in UART mode"));
    Serial.println(F("Then Enter characters to send to Bluefruit"));
    Serial.println();

    ble.verbose(false);  // debug info is a little annoying after this point!

    /* Wait for connection */
    while (! ble.isConnected()) {
        delay(500);
    }

    while(ble.isConnected()){
      Serial.println(F("Device is connected."));
      delay(5000);
    }

    pinMode(13, OUTPUT); // Optional: Use the built-in LED to indicate received data
}

void loop() {
  // Check if there is any data available on Serial1
  Serial.println("Serial is Available");
  if (Serial.available()) {
    Serial.println("Serial is Available");
    // Read the incoming byte
    String incomingMessage = "";
    while (Serial.available()) {
      char incomingByte = Serial.read();
      incomingMessage += incomingByte;
    }
    // Print the incoming message to the Serial Monitor
    Serial.println("Received: " + incomingMessage);

    // Optional: Blink LED to indicate message received
    digitalWrite(13, HIGH);
    delay(1000);
    digitalWrite(13, LOW);
  }
}

Posted at 2024-06-11 by @gfwilliams

Sorry, that's my fault for some bad example code. Glad you got it sorted with requestDevice.

One thing I do notice is you do sendMessage("Hello, Arduino!/n"); which I assume is to send a newline, but the slash is the wrong way around so it'll just send /n and not a newline.

So you could try sendMessage("Hello, Arduino!\n"); and see if that helps?

Posted at 2024-06-11 by @fanoush

I just don't see the result on the Arduino board.

you should perhaps work with the ble object to read/write data, something like

  while ( ble.available() )
  {
    Serial.print(ble.read());
  }

inside the loop could get the data?

Posted at 2024-06-11 by user158306

Thank you both for the support! I put in an update using fanoush's recommendation on the Feather.
I removed the while loop so that it just continually loops. The serial response when clicking the Puck returns "I received: -1". The -1 means no data. So I'm not sure if that means the serial ports are not looking on the same space?

void loop() {
    incomingByte = ble.read();
    // say what you got:
    Serial.print("I received: ");
    Serial.println(incomingByte, DEC);
}

Posted at 2024-06-11 by @fanoush

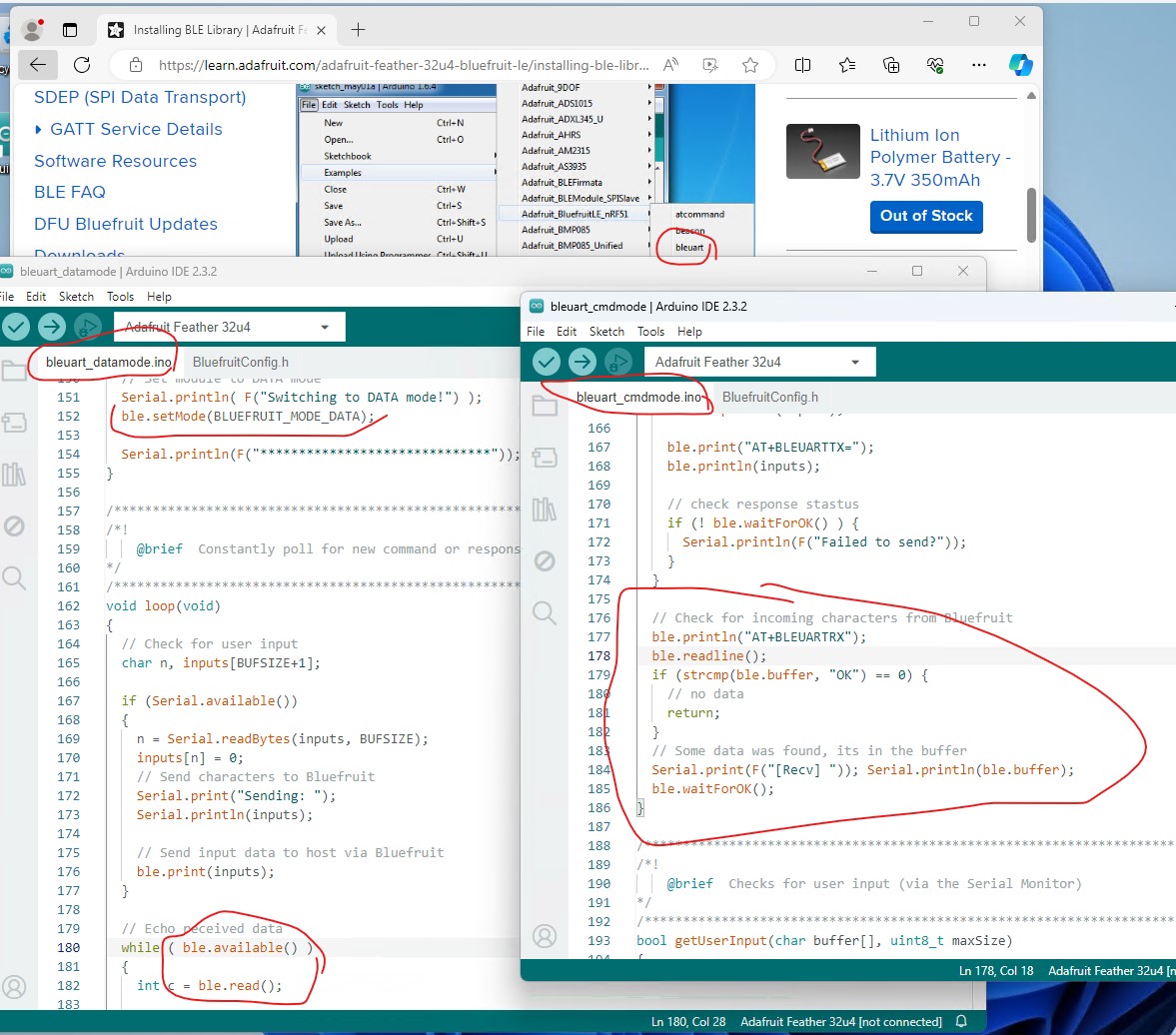

What about trying some bleuart example from adafruit?

Attachments:

Screenshot 2024-06-11 134406.jpg

Posted at 2024-06-11 by @gfwilliams

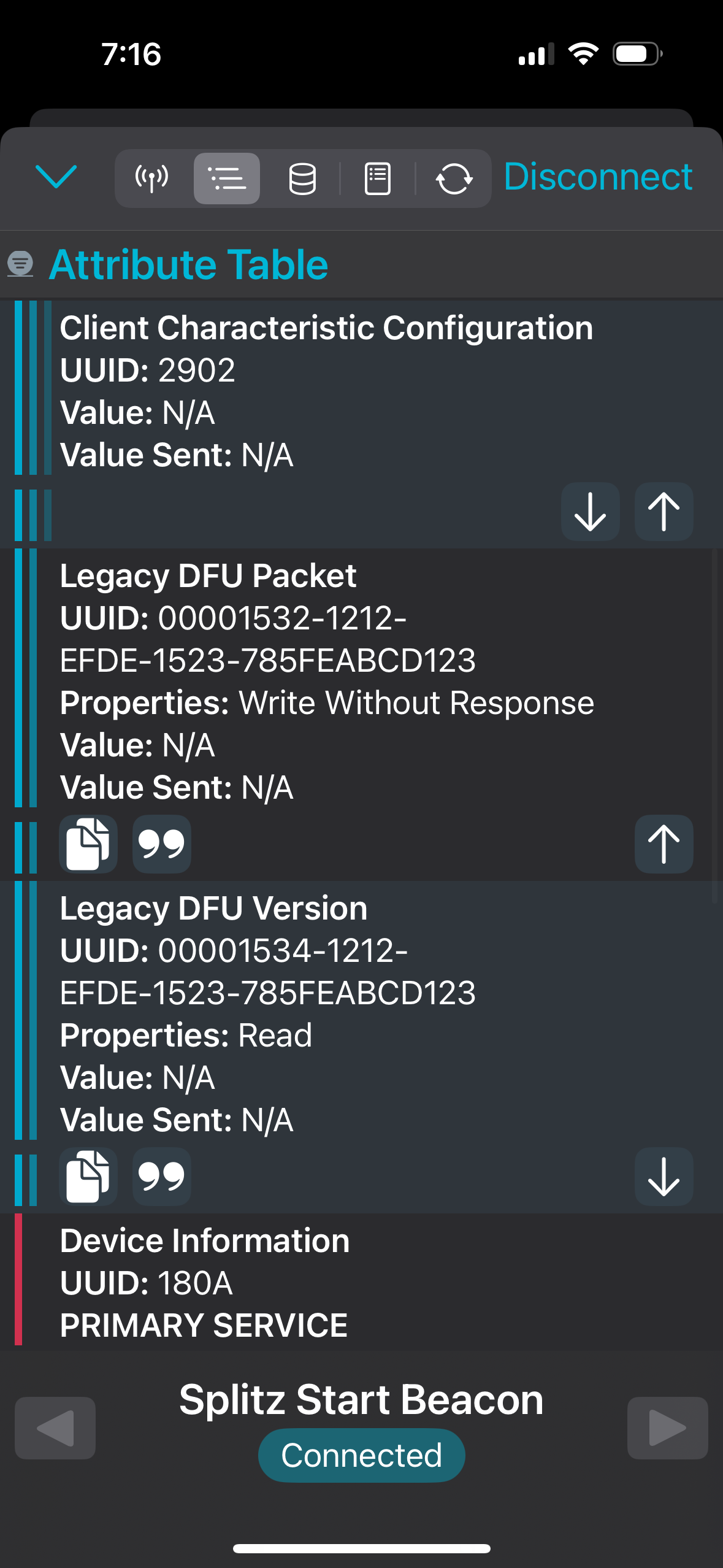

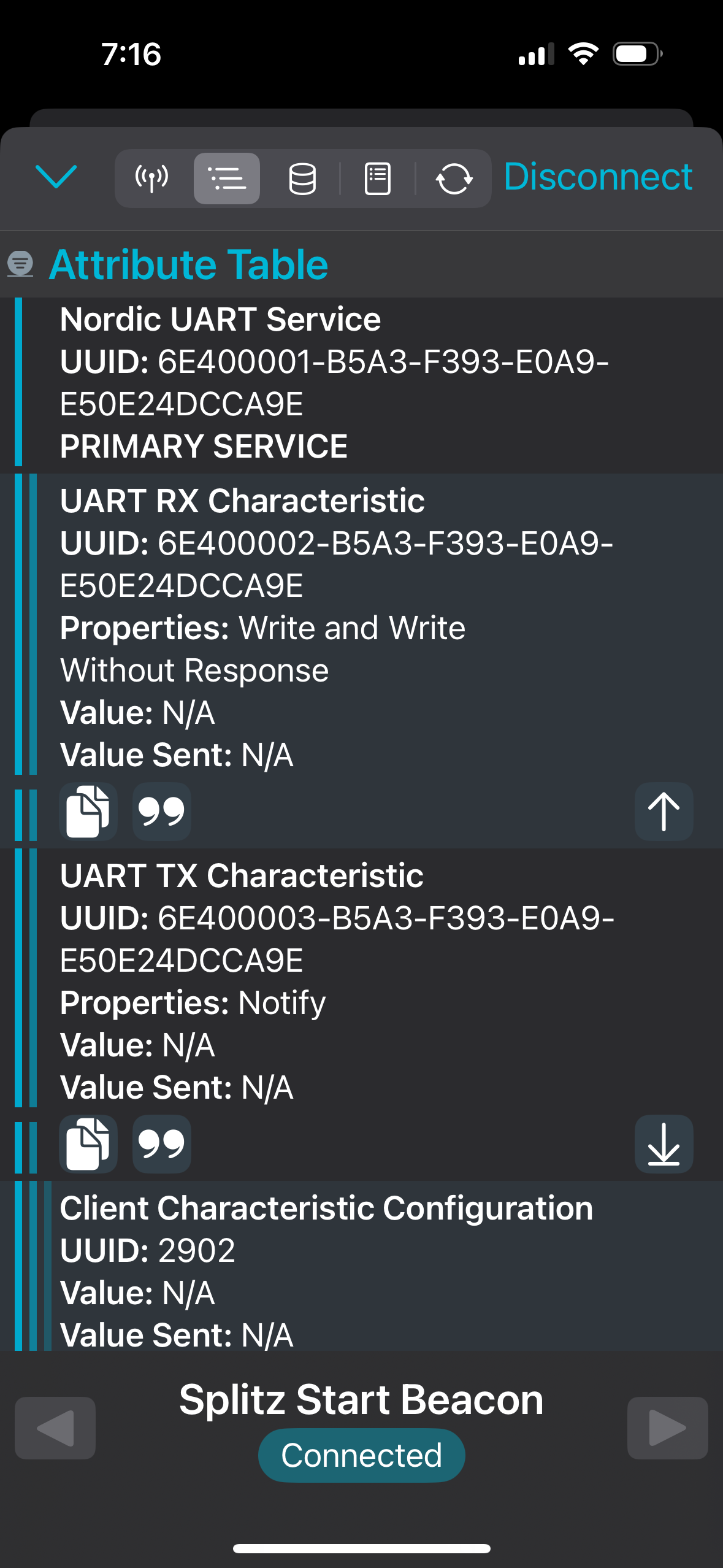

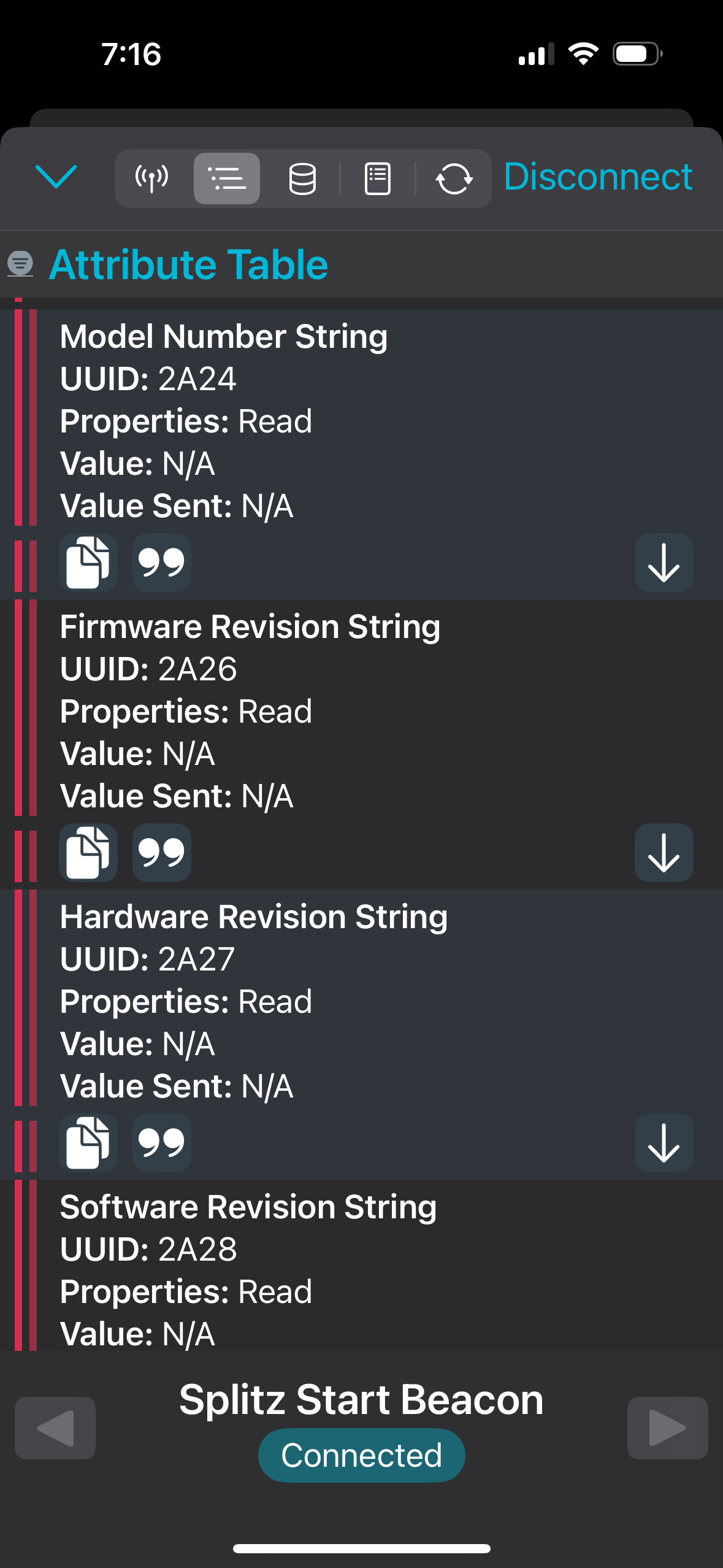

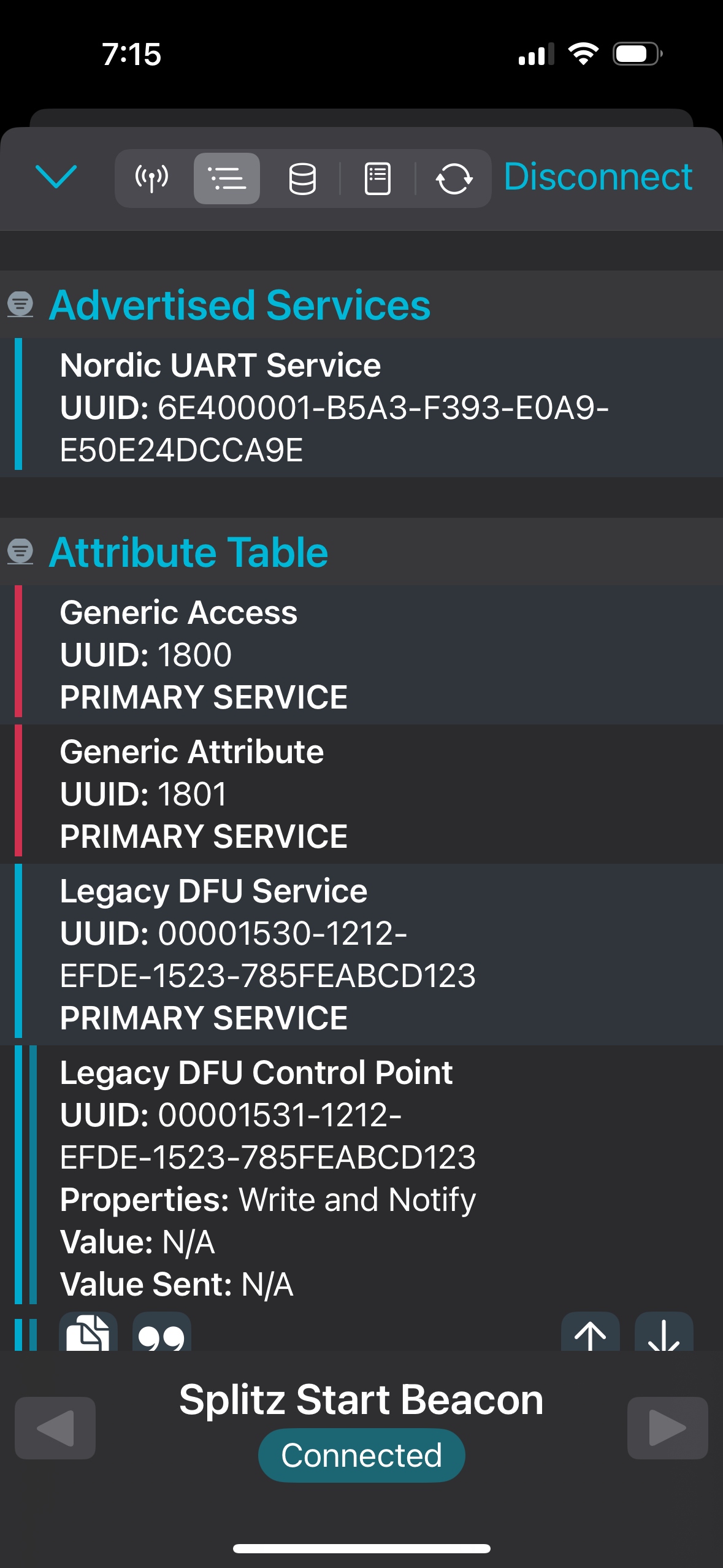

You could also try connecting to the feather with the 'nRF Connect' Android/iOS app and writing to the characteristic directly - that way you can rule out Espruino as being the problem

Posted at 2024-06-11 by user158306

Lots of progress - thank you both for your patience and guidance!!! In the process, I'm learning a lot about the environments (BLE, Aurduino, and Espruino).

I have the Puck and the Feather talking to each other!!! I'm not sure EXACTLY what made it happen, but I'll go with it

Here is what I have on the Puck that works.

var feather = "ff:8d:05:ae:17:64 random";

// Blink green for 100ms
function blinkGreen() {
  LED2.write(true);
  setTimeout(function () { LED2.write(false); }, 100);
}

// Function to send a message
function sendMessage() {
  console.log("Trying to Connect");

  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
    print(device);
    return require("ble_simple_uart").write(device, "true");
  }).then(function() {
    console.log('Done!');
  });
}

// Send a message when the button is pressed
setWatch(function() {
  blinkGreen();
  sendMessage();
}, BTN, { edge: "rising", debounce: 50, repeat: true });

Here is what I have on the Feather. I am able to read the serial and then I have an if statement to check the value and if it matches then it triggers another function. This is just a simple example to test it, but it works.

#include <Arduino.h>
#include <SPI.h>
#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"

#include "BluefruitConfig.h"

#if SOFTWARE_SERIAL_AVAILABLE
  #include <SoftwareSerial.h>
#endif

/*=========================================================================
    -----------------------------------------------------------------------*/
    #define FACTORYRESET_ENABLE         1
    #define MINIMUM_FIRMWARE_VERSION    "0.6.6"
    #define MODE_LED_BEHAVIOUR          "MODE"
    #define LED_BUILTIN                 13
/*=========================================================================*/

Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);

// A small helper
void error(const __FlashStringHelper*err) {
  Serial.println(err);
  while (1);
}

/**************************************************************************/
/*!
    @brief  Sets up the HW an the BLE module (this function is called
            automatically on startup)
*/
/**************************************************************************/

int incomingByte = 0; // for incoming serial data
String readString;

void testFunction(){
  Serial.println(F("if statement worked"));
}

void setup() {
  // Start the hardware serial communication at 9600 baud rate
  Serial.begin(115200); // Serial Monitor
  Serial1.begin(115200); // UART Communication (Replace Serial1 with appropriate Serial for your Feather)

  /* Initialise the module */
  Serial.print(F("Initialising the Splitz Start Beacon"));
  Serial.println(F("---------------------------------------"));

  if ( !ble.begin(VERBOSE_MODE) ){
    error(F("Couldn't find Bluefruit, make sure it's in CoMmanD mode & check wiring?"));
  }
  Serial.println( F("OK!") );

  if ( FACTORYRESET_ENABLE ){
    /* Perform a factory reset to make sure everything is in a known state */
    Serial.println(F("Performing a factory reset: "));
    if ( ! ble.factoryReset() ){
      error(F("Couldn't factory reset"));
    }
  }

  /* Disable command echo from Bluefruit */
  ble.echo(false);

  Serial.println("Requesting Bluefruit info:");
  /* Print Bluefruit information */
  ble.info();
  Serial.println();

  ble.verbose(false);  // debug info is a little annoying after this point!

  /* Change the device name to make it easier to find */
  Serial.println(F("Setting device name to 'Splitz Start Beacon'"));
  if (!ble.sendCommandCheckOK(F("AT+GAPDEVNAME=Splitz Start Beacon"))) {
    error(F("Could not set device name?"));
  }

  // Set module to DATA mode
  Serial.println( F("Switching to DATA mode!") );
  ble.setMode(BLUEFRUIT_MODE_DATA);

  /* Wait for connection */
  while (! ble.isConnected()) {
      delay(500);
  }

  if(ble.isConnected()){
    Serial.println(F("Device is connected."));
  }

  pinMode(13, OUTPUT); // Optional: Use the built-in LED to indicate received data
}

void loop() {
  // Echo received data
  while ( ble.available() )
  {
    char c = ble.read();
    readString += c; //makes the String readString
    delay(3);  //slow looping to allow buffer to fill with next character
  }

  if (readString.length() > 0) {
    Serial.println(readString);  //so you can see the captured String
    if (readString == "true"){
      testFunction();
    }
    readString = "";
  }
}

The only issue is that it disconnects after it sends the info. How would I be able to persist the connection?

I tried the below. It connects to the board but doesn't write to the serial like "requestDevice " did.

  NRF.connect(feather).then(function(d){
    print(d);
    return require("ble_simple_uart").write(d, "true");
  }).then(function() {
    console.log('Done!');
  });

Posted at 2024-06-12 by @gfwilliams

Glad you got it working! ble_simple_uart will always disconnect BLE - it's just there to have something super simple to use.

If you look at https://www.espruino.com/BLE+UART#receiving-evaluating there are some other examples though. Probably most useful is:

NRF.requestDevice({ filters: [{ id: feather }] }).then(function(device) {
  return require("ble_uart").connect(device);
}).then(function(uart) {
  uart.on('data', function(d) { print("Got:"+JSON.stringify(d)); });
  uart.write("testing!"); // .then(...)
  setTimeout(function() {
    uart.disconnect();
    console.log("Disconnected");
  }, 20000); // disconnect after 20s
});

Posted at 2024-08-16 by user158306

Thank you so much for all of your support on this! I've been making further progress in other areas and trying to get the arduino board and the puck to talk to each other. What I can't seem to figure out - after looking at the tutorials and digging through the forums is how to receive a ble_art update from the arduino board. I have seen the "eval" function and I've seen the examples with the web and python implementations - but how do those get adapted for the puck? sorry, I have a feeling this is a very basic question, but I can't seem to find the right direction.

Posted at 2024-08-16 by user158306

Thank you so much for all of your support on this! I've been making further progress in other areas and trying to get the arduino board and the puck to talk to each other. What I can't seem to figure out - after looking at the tutorials and digging through the forums is how to receive a ble_art update from the arduino board. I have seen the "eval" function and I've seen the examples with the web and python implementations - but how do those get adapted for the puck? sorry, I have a feeling this is a very basic question, but I can't seem to find the right direction.

Posted at 2024-08-17 by user158306

One of the things I am stuck on with the ble_uart module, is what does the puck code look like if I already have an established connection. When I look at the source of the module, and most of the examples, they show requestDevice as the default. But when I try to use the standard ble_uart, I am getting errors that I am already connected or if I do something like :

// Function to send a message
function sendMessage() {
  console.log("Trying to Connect");
  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
    print(device);
    uart.write(device, "true");
  }).then(function() {
    console.log('Done!');
  });
}

I get a "Uncaught Error: Unhandled promise rejection: Error: Function "write" not found!"

Here is all of the testing code:

var feather = "ff:8d:05:ae:17:64 random";
var uart = require("ble_uart");


NRF.setAdvertising({},{
  name: "Splitz Puck",
  showName: true,
  discoverable: true,
  connectable: true,
  scannable : true,
});

// Blink green for 100ms
function blinkGreen() {
  LED2.write(true);
  setTimeout(function () { LED2.write(false); }, 100);
}
// Function to send a message
function sendMessage() {
  console.log("Trying to Connect");
  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
    print(device);
    uart.write(device, "true");
  }).then(function() {
    console.log('Done!');
  });
}

/*function sendMessage(text, tx) {
  return new Promise(function sender(resolve, reject) {
    if (text.length) {
      tx.writeValue(text.substr(0,20)).then(function() {
        sender(resolve, reject);
      }).catch(reject);
      text = text.substr(20);
    } else resolve();
  });
}*/

// Send a message when the button is pressed
setWatch(function() {
  blinkGreen();
  sendMessage();
}, BTN, { edge: "rising", debounce: 50, repeat: true });

Posted at 2024-08-27 by @gfwilliams

I feel like maybe you're getting code mixed up somewhere? On the BLE UART page it gives you some examples, but you're doing something a bit different: https://www.espruino.com/BLE+UART#receiving-evaluating

For example you're doing uart.write(device, "true"); but the code in the link above requires you to do require("ble_uart").connect(device) to get a promise that returns a uart instance, and then you do uart.write("true"); on that.

So your code should look something like:

function sendMessage() {
  console.log("Trying to Connect");
  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
  return require("ble_uart").connect(device);
}).then(function(uart) {
  uart.write("true"); // .then(...)
  setTimeout(function() {
    uart.disconnect();
    console.log("Disconnected");
  }, 2000);
});
}

If you want to stay connected you could hang onto the uart variable rather than only using it in sendMessage though

Posted at 2024-09-25 by user158306

Thanks for this info Gordon - and apologies for the delay in getting this updated. I think I'm really stuck on the eval aspect of how to receive data to the Puck.js. I'm sure I'm just missing something trivial in the library that once I see it, it will be so obvious. I tried to reduce the code to just a basic - send a simple vale "1" to the Arduino board, and once the board receives a value of "1" return back to the Puck a value of "1" to confirm the data.

Puck Code:

// Variables
var feather = "ff:8d:05:ae:17:64 random";
var uart;

function sendMessage() {
  console.log("Trying to Connect");
  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
  //return require("ble_simple_uart").write(device, "1");
  return require("ble_uart").connect(device);
}).then(function(uart) {
  uart.write("1");
}).then(function() {
  console.log("Message sent successfully.");
  uart.on('data', function(d) {
    console.log("Got:"+JSON.stringify(d));
  });
});
}

// Send a message when the button is pressed
setWatch(function() {
  sendMessage();
}, BTN, { edge: "rising", debounce: 50, repeat: true });

Arduino Code:

#include <Arduino.h>
#include <SPI.h>
#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"
#include "BluefruitConfig.h"

#if SOFTWARE_SERIAL_AVAILABLE
  #include <SoftwareSerial.h>
#endif

#define FACTORYRESET_ENABLE         1
#define MINIMUM_FIRMWARE_VERSION    "0.6.6"
#define MODE_LED_BEHAVIOUR          "MODE"
#define LED_BUILTIN                 13

Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);

void error(const __FlashStringHelper* err) {
  Serial.println(err);
  while (1);
}

int incomingByte = 0;
String readString;

void startRaceSequence() {
  Serial.println(F("if statement worked"));
  Serial.print("Sending Start: 1");
  ble.println("1");
}

void setup() {
  pinMode(LED_BUILTIN, OUTPUT);
  Serial1.begin(9600);
  Serial.begin(115200);

  ble.echo(false);
  Serial.println("Requesting Bluefruit info:");
  ble.info();
  Serial.println();

  ble.verbose(false);

  Serial.println(F("Setting device name to 'Splitz Start Beacon'"));
  if (!ble.sendCommandCheckOK(F("AT+GAPDEVNAME=Splitz Start Beacon"))) {
    error(F("Could not set device name?"));
  }

  Serial.println(F("Switching to DATA mode!"));
  ble.setMode(BLUEFRUIT_MODE_DATA);

  while (!ble.isConnected()) {
    delay(500);
  }

  if (ble.isConnected()) {
    Serial.println(F("BLE device is connected."));
  }
}

void loop() {
  while (ble.available()) {
    Serial.println("Waiting for message.");
    char c = ble.read();
    readString += c;
    delay(2);
  }

  if (readString.length() > 0) {
    Serial.println(readString);
    if (readString == "1") {
      // Send back a response message after receiving "1"
      ble.write("Received '1', race sequence triggered");
      startRaceSequence();
    }
  }

  readString = "";
}

I am able to send the value to the Arduino board, and can trigger a function on the Arduino board based on the value sent by the Puck (but usually only when I use the ble uart simple). But am not able to get a value back. I usually receive a CCCD error.

Any direction would be greatly appreciated!

Posted at 2024-09-26 by @gfwilliams

On the Puck, maybe try:

function sendMessage() {
  console.log("Trying to Connect");
  NRF.requestDevice({ filters: [{ id: feather }], active:true }).then(function(device) {
  return require("ble_uart").connect(device);
}).then(function(_uart) {
  uart = _uart;
  uart.on('data', function(d) {
    console.log("Got:"+JSON.stringify(d));
  });
  return uart.write("1");
}).then(function() {
  console.log("Message sent successfully.");
});
}

There were a few issues on the Puck side:

you weren't returning the promise from uart.write so it'd have returned immediately
best to register to receive the data before it's sent, or maybe the data will come back before the .on has executed
You were never setting the value of the global uart variable - it would always have been undefined, so the uart.on code would always fail

Posted at 2024-09-26 by user158306

Hi Gordon - Thank you for the reply.

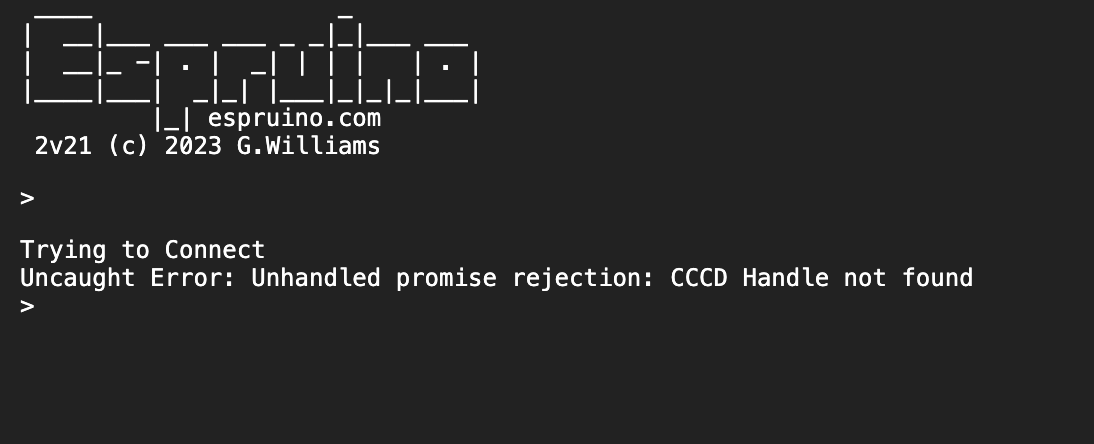

When I try this, I am getting a "Uncaught Error: Unhandled promise rejection: CCCD Handle not found" error from the Puck.

The Puck does connect to the Arduino board. Then it seems to lock/hold a connection to the board (which is because of not having the disconnect), but the Arduino board doesn't register the Puck writing (arduino receiving) the value to the board, so the return promise is never handled. Does that make sense?

Under the Arduino Serial output should be the lines
"if statement worked"
"Sending Start: 1"
if the arduino board received the value.

Attachments:

Posted at 2024-09-27 by @gfwilliams

Ahh, ok, thanks! So the CCCD Handle not found error is coming from Espruino via ble_uart.

When a device provides a 'characteristic' that provides notifications when its value changes, it's supposed to have another characteristic linked to that one called a CCCD that allows you to switch those characteristics on or off.

It would seem that the Bluefruit is providing the UART TX data characteristic, but somehow the CCCD that's supposed to be for it can't be found by Espruino.

Without me having a Bluefruit here it might be a bit hard for me to track this down.

However looking back, it seems that you didn't really want the two-way communication anyway? You just wanted to be able to send some data without disconnecting?

In that case we can just modify the code from https://www.espruino.com/modules/ble_simple_uart.js slightly and include it in your folder directly:

var device;
const feather = "e8:76:9a:13:1a:32 random"; // Change me!

function ble_uart_write(gatt, text) {
  return gatt.getPrimaryService("6e400001-b5a3-f393-e0a9-e50e24dcca9e"
  ).then(function(s) {
    return s.getCharacteristic("6e400002-b5a3-f393-e0a9-e50e24dcca9e");
  }).then(function(c) {
    function sender(resolve, reject) {
      if (text.length) {
        c.writeValue(text.substr(0,20)).then(function() {
          sender(resolve, reject);
        }).catch(reject);
        text = text.substr(20);
      } else  {
        resolve();
      }
    }
    return new Promise(sender);
  });
}


function sendMessage() {
  var promise = (device&&device.gatt.connected) ? Promise.resolve(device.gatt) :
     NRF.requestDevice({ filters: [{ id: feather }] }).then(function(d) {
      device = d;
      console.log("Trying to Connect");
      return device.gatt.connect();
     });
  promise.then(function(gatt) {
    console.log("Sending message");
    return ble_uart_write(gatt, "LED.toggle();\n"); // Change me!
  }).then(function() {
    console.log("Message sent successfully.");
  });
}

Just tried this - not on a feather though, and it works well for me - and automatically reconnects if there's no connection

Posted at 2024-09-27 by user158306

Hi Gordon, thank you again for spending time helping me with this.

I would like to be able to communicate back and forth between the Arduino and the Puck.

Is there something that I can share from the Bluefruit that would help?

When I use:

return require("ble_uart").connect(device);

I am receiving the error "Uncaught Error: Unhandled promise rejection: CCCD Handle not found"

But if I use

return require("ble_simple_uart").write(device, "1");

The puck will write "1" to the feather.

Posted at 2024-09-27 by user158306

I'll try to add as much code and images as possible to see what might help figure this out.

Here is my bare bones Arduino Code. It should receive the value from the Puck and then if it matches, send a value back.

#include <Arduino.h>
#include <SPI.h>
#include "Adafruit_BLE.h"
#include "Adafruit_BluefruitLE_SPI.h"
#include "Adafruit_BluefruitLE_UART.h"
#include "BluefruitConfig.h"

#if SOFTWARE_SERIAL_AVAILABLE
  #include <SoftwareSerial.h>
#endif

#define FACTORYRESET_ENABLE         1
#define MINIMUM_FIRMWARE_VERSION    "0.6.6"
#define MODE_LED_BEHAVIOUR          "MODE"
#define LED_BUILTIN                 13

Adafruit_BluefruitLE_SPI ble(BLUEFRUIT_SPI_CS, BLUEFRUIT_SPI_IRQ, BLUEFRUIT_SPI_RST);

void error(const __FlashStringHelper* err) {
  Serial.println(err);
  while (1);
}

int incomingByte = 0;
String readString;

void setup() {
  pinMode(LED_BUILTIN, OUTPUT);
  Serial.begin(9600);
  Serial.println();

  Serial.println("Setting beacon configuration details: ");
  Serial.println("---------------------------------------");

  if (!ble.begin(VERBOSE_MODE)) {
    error(F("Couldn't find Bluefruit, make sure it's in CoMmanD mode & check wiring?"));
  }

  if (FACTORYRESET_ENABLE) {
    Serial.println(F("Performing a factory reset: "));
    if (!ble.factoryReset()) {
      error(F("Couldn't factory reset"));
    }
  }

  ble.echo(false);
  Serial.println("Requesting Bluefruit info:");
  ble.info();
  Serial.println();

  ble.verbose(false);

  Serial.println(F("Setting device name to 'Splitz Start Beacon'"));
  if (!ble.sendCommandCheckOK(F("AT+GAPDEVNAME=Splitz Start Beacon"))) {
    error(F("Could not set device name?"));
  }

  Serial.println(F("Switching to DATA mode!"));
  ble.setMode(BLUEFRUIT_MODE_DATA);

  while (!ble.isConnected()) {
    delay(500);
  }

  if (ble.isConnected()) {
    Serial.println(F("BLE device is connected."));
  }
}

void loop() {
  if (ble.available()) {
    char input[64];
    int len = ble.readBytesUntil('\n', input, sizeof(input)-1);
    input[len] = 0;

    Serial.print(F("Received: "));
    Serial.println(input);

    if (strcmp(input, "hi") == 0) {
      Serial.println(F("Sending reply: hello"));
      ble.println("hello");
      // Write to the characteristic
      ble.sendCommandCheckOK(("AT+GATTCHAR=1,hello"));
    }
  }
}

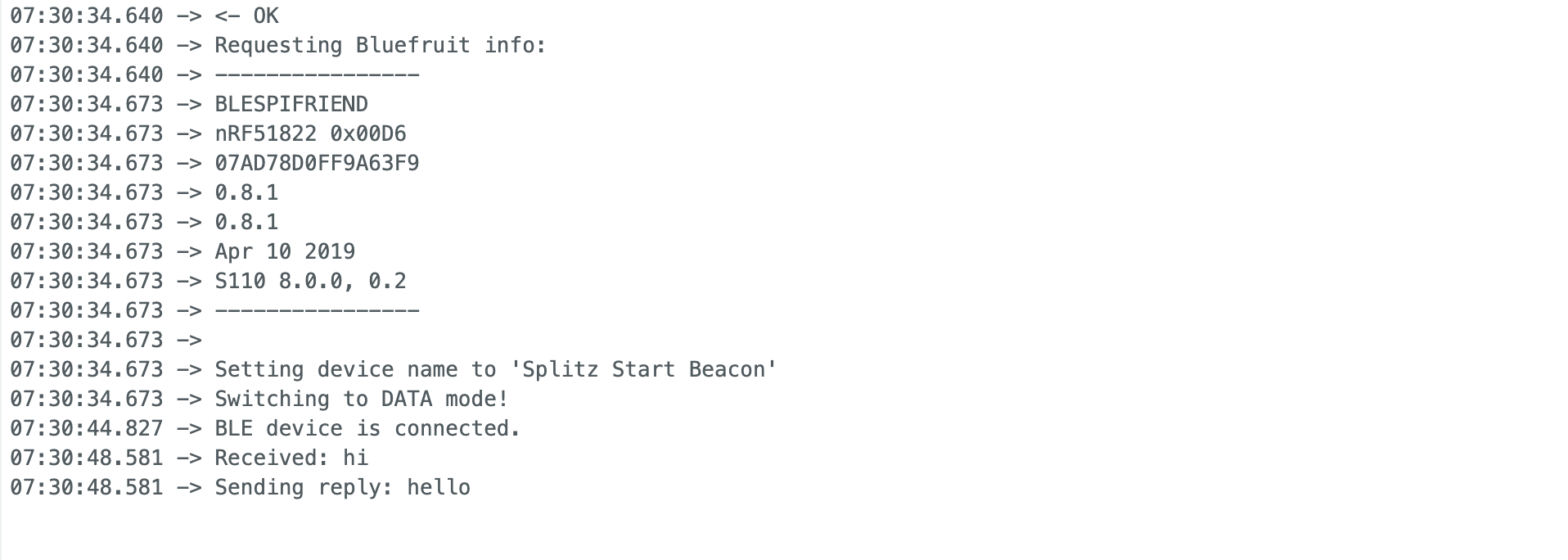

The first image is the Serial response.

This is the code I have for the Puck.

// Blink green for 100ms
function blinkGreen() {
  LED2.write(true);
  setTimeout(function () { LED2.write(false); }, 100);
}

// Variables
var feather = "ff:8d:05:ae:17:64 random";
let gattServer;

// UART Service UUID
const UART_SERVICE_UUID = "6E400001-B5A3-F393-E0A9-E50E24DCCA9E";
// UART RX Characteristic UUID (for sending data to the Arduino)
const UART_RX_CHARACTERISTIC_UUID = "6E400002-B5A3-F393-E0A9-E50E24DCCA9E";
// UART TX Characteristic UUID (for receiving data from the Arduino)
const UART_TX_CHARACTERISTIC_UUID = "6E400003-B5A3-F393-E0A9-E50E24DCCA9E";

// Function to connect and send data
function connectAndSend() {
  console.log("Trying to connect to Arduino Board.");
  NRF.requestDevice({ filters: [{ id: feather }], active: true })
    .then(function(device) {
      console.log("Connecting to device...");
      return device.gatt.connect();
    })
    .then(function(gatt) {
      console.log("Connected to GATT server");
      gattServer = gatt;
      return gatt.getPrimaryService(UART_SERVICE_UUID);
    })
    .then(function(service) {
      console.log("Got UART service");
      return service.getCharacteristic(UART_RX_CHARACTERISTIC_UUID);
    })
    .then(function(characteristic) {
      console.log("Got RX characteristic, sending 'hi'...");
      return characteristic.writeValue("hi");
    })
    .then(function() {
      console.log("Message sent successfully");
      blinkGreen();
      return gattServer.getPrimaryService(UART_SERVICE_UUID);
    })
    .then(function(service) {
      console.log("Setting up TX Service...");
      return service.getCharacteristic(UART_TX_CHARACTERISTIC_UUID);
    }).then(function(characteristic) {
      console.log("Setting up listener for incoming data");
      characteristic.on('characteristicvaluechanged', function(event) {
        console.log("RX: "+JSON.stringify(event.target.value.buffer));
      });
      return characteristic.startNotifications();
    })
    .catch(function(error) {
      console.log("Error: " + error);
    });
}

// Function to disconnect
function disconnect() {
  if (gattServer && gattServer.connected) {
    gattServer.disconnect();
    console.log("Disconnected");
  }
}

// Button press to initiate connection and sending
setWatch(connectAndSend, BTN, {edge:"rising", repeat:true, debounce:50});

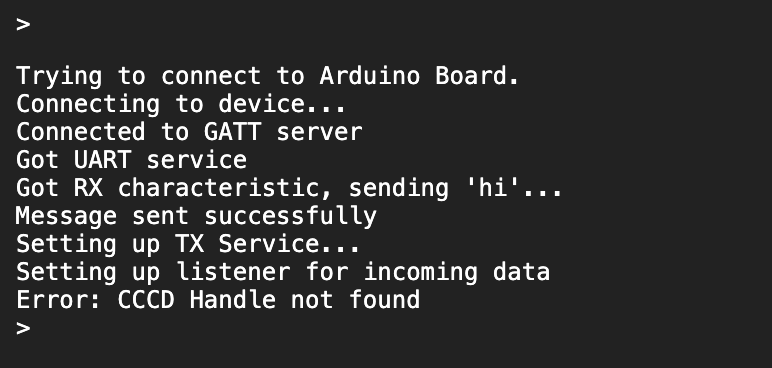

The 2nd image is the output I receive. Even if I move the TX handle to before the RX , I still get a CCCD error.

I also just added log to the Primary, RX, and TX return so that we can see what is being returned.

Trying to connect to Arduino Board.
Connecting to device...
Connected to GATT server
Got UART service
BluetoothRemoteGATTService: {
  "device": BluetoothDevice: {
    "id": "ff:8d:05:ae:17:64 random",
    "rssi": -61,
    "data": new Uint8Array([2, 1, 6, 2, 10, 0, 17, 6, 158, 202, 220, 36, 14, 229, 169, 224, 147, 243, 163, 181, 1, 0, 64, 110]).buffer,
    "services": [
      "6e400001-b5a3-f393-e0a9-e50e24dcca9e"
     ],
    "gatt": BluetoothRemoteGATTServer: {
      "device":  ... ,
      "connected": true, "handle": 1 }
   },
  "uuid": "6e400001-b5a3-f393-e0a9-e50e24dcca9e",
  "isPrimary": true, "start_handle": 31, "end_handle": 65535 }

Got RX characteristic, sending 'hi'...
BluetoothRemoteGATTCharacteristic: {
  "service": BluetoothRemoteGATTService: {
    "device": BluetoothDevice: {
      "id": "ff:8d:05:ae:17:64 random",
      "rssi": -61,
      "data": new Uint8Array([2, 1, 6, 2, 10, 0, 17, 6, 158, 202, 220, 36, 14, 229, 169, 224, 147, 243, 163, 181, 1, 0, 64, 110]).buffer,
      "services": [
"6e400001-b5a3-f393-e0a9-e50e24dcca9e"
       ],
      "gatt": BluetoothRemoteGATTServer: {
"device":  ... ,
"connected": true, "handle": 1 }
     },
    "uuid": "6e400001-b5a3-f393-e0a9-e50e24dcca9e",
    "isPrimary": true, "start_handle": 31, "end_handle": 65535 },
  "uuid": "6e400002-b5a3-f393-e0a9-e50e24dcca9e",
  "handle_value": 37, "handle_decl": 36,
  "properties": { "broadcast": false, "read": false, "writeWithoutResponse": true, "write": true,
    "notify": false, "indicate": false, "authenticatedSignedWrites": false }
 }

Setting up TX Service...
BluetoothRemoteGATTCharacteristic: {
  "service": BluetoothRemoteGATTService: {
    "device": BluetoothDevice: {
      "id": "ff:8d:05:ae:17:64 random",
      "rssi": -61,
      "data": new Uint8Array([2, 1, 6, 2, 10, 0, 17, 6, 158, 202, 220, 36, 14, 229, 169, 224, 147, 243, 163, 181, 1, 0, 64, 110]).buffer,
      "services": [
"6e400001-b5a3-f393-e0a9-e50e24dcca9e"
       ],
      "gatt": BluetoothRemoteGATTServer: {
"device":  ... ,
"connected": true, "handle": 1 }
     },
    "uuid": "6e400001-b5a3-f393-e0a9-e50e24dcca9e",
    "isPrimary": true, "start_handle": 31, "end_handle": 65535 },
  "uuid": "6e400003-b5a3-f393-e0a9-e50e24dcca9e",
  "handle_value": 33, "handle_decl": 32,
  "properties": { "broadcast": false, "read": false, "writeWithoutResponse": false, "write": false,
    "notify": true, "indicate": false, "authenticatedSignedWrites": false }
 }

Setting up listener for incoming data
Error: CCCD Handle not found

Attachments:

Posted at 2024-09-30 by @gfwilliams

Yes, you'd expect simple_uart to work because that's not trying to get the CCCD characteristic.

Please could you try running this? It should dump all the info Espruino knows about the device:

var device,gatt;
const feather = "ff:8d:05:ae:17:64 random"; // Change me!

NRF.requestDevice({ filters: [{ id: feather }] }).then(function(d) {
  device = d;
  console.log("Connecting");
  return device.gatt.connect();
}).then(function(g) {
  gatt = g;
  console.log("Connected");
  return gatt.getPrimaryServices();
}).then(function getServices(services) {
  if (services.length==0) return;
  let service = services.shift();
  print(`Service ${service.uuid} ${service.start_handle}=>${service.end_handle}`);
  return service.getCharacteristics().then(characteristics => {
    if (characteristics===undefined)
      print("  No Characteristics");
    else characteristics.forEach(char => {
      print(`  Characteristic ${char.uuid} ${char.handle_value} (desc=${char.handle_decl}) ${E.toJS(char.properties)}`);
    });
    return Promise.resolve(services).then(getServices);
  });
}).then(() => {
  gatt.disconnect();
});

But also if you could run NRF Connect on your phone, connect to the Arduino device,
then tap on the Nordic UART Service entry to expand it and screenshot what you see, that'd be great.

Posted at 2024-09-30 by user158306

Hi Gordon - thanks so much for all of your support!

This is what the Puck returns after connection:

>
Connecting
Connected
>
Service 0x1800 1=>7
  Characteristic 0x2a00 3 (CCCD 2) {broadcast:false,read:true,writeWithoutResponse:false,write:true,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a01 5 (CCCD 4) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a04 7 (CCCD 6) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
Service 0x1801 8=>11
  Characteristic 0x2a05 10 (CCCD 9) {broadcast:false,read:false,writeWithoutResponse:false,write:false,notify:false,indicate:true,authenticatedSignedWrites:false}
Service 0x0000[vendor] 12=>19
  Characteristic 0x0000[vendor] 14 (CCCD 13) {broadcast:false,read:false,writeWithoutResponse:true,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x0000[vendor] 16 (CCCD 15) {broadcast:false,read:false,writeWithoutResponse:false,write:true,notify:true,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x0000[vendor] 19 (CCCD 18) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
Service 0x180a 20=>30
  Characteristic 0x2a29 22 (CCCD 21) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a24 24 (CCCD 23) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a28 26 (CCCD 25) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a26 28 (CCCD 27) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
  Characteristic 0x2a27 30 (CCCD 29) {broadcast:false,read:true,writeWithoutResponse:false,write:false,notify:false,indicate:false,authenticatedSignedWrites:false}
Service 6e400001-b5a3-f393-e0a9-e50e24dcca9e 31=>65535
  Characteristic 6e400003-b5a3-f393-e0a9-e50e24dcca9e 33 (CCCD 32) {broadcast:false,read:false,writeWithoutResponse:false,write:false,notify:true,indicate:false,authenticatedSignedWrites:false}
  Characteristic 6e400002-b5a3-f393-e0a9-e50e24dcca9e 37 (CCCD 36) {broadcast:false,read:false,writeWithoutResponse:true,write:true,notify:false,indicate:false,authenticatedSignedWrites:false}

I've attached all of the pictures from nRF Connect.

Attachments:

Posted at 2024-09-30 by @gfwilliams

Thanks! So I've been trying to track this down, and as far as I can see, the issue is that the Bluefruit isn't putting the CCCD handle right after the characteristic, which is what Espruino is expecting (and which seems to work on most other devices).

Please can you try changing the code as follows:

    }).then(function(characteristic) {
      console.log("Setting up listener for incoming data");
      characteristic.on('characteristicvaluechanged', function(event) {
        console.log("RX: "+JSON.stringify(event.target.value.buffer));
      });
      characteristic.handle_cccd = 35; // <--------- this line is new
      return characteristic.startNotifications();
    })

Unfortunately NRF connect doesn't show what the 'handle values' are for the characteristics, and I don't think Adafruit publish the source code for their Bluefruits so I can't actually see what's going on.

If 35 doesn't work, maybe try 34? failing that, 38 or 39.

Sorry it's such a mess - but this is the first time in 5+ years it's come up and it feels like the Bluefruits are doing something a bit different to the way other devices do.

Posted at 2024-09-30 by @fanoush

BTW, you can see all handle numbers with gatttool in linux, see e.g. this blog post https://cxiao.net/posts/2015-12-13-gatttool/

Posted at 2024-10-01 by user158306

Hi Gordon!

Thank you for your patience and support with my project. Good news, we have success!!! I'll post the final code below for anyone that is having a similar issue with the BlueFruit Feather. What seemed to make it finally work were two things - 1) The direct setting of the CCCD handle to 35. 2) Moving the TX up so that it registers the notification before sending the value to the Arduino board.

In the code below I've also added the buffer conversion, and a disconnect once it receives the correct value so that you can push the Puck to start the process again.

Again, thank you so much for your patience and support!

// Blink green for 100ms
function blinkGreen() {
  LED2.write(true);
  setTimeout(function () { LED2.write(false); }, 100);
}

// Variables
var feather = "ff:8d:05:ae:17:64 random";
let gattServer;

// UART Service UUID
const UART_SERVICE_UUID = "6E400001-B5A3-F393-E0A9-E50E24DCCA9E";
// UART RX Characteristic UUID (for sending data to the Arduino)
const UART_RX_CHARACTERISTIC_UUID = "6E400002-B5A3-F393-E0A9-E50E24DCCA9E";
// UART TX Characteristic UUID (for receiving data from the Arduino)
const UART_TX_CHARACTERISTIC_UUID = "6E400003-B5A3-F393-E0A9-E50E24DCCA9E";

// Function to connect and send data
function connectAndSend() {
  console.log("Trying to connect to Arduino Board.");
  NRF.requestDevice({ filters: [{ id: feather }], active: true })
    .then(function(device) {
      console.log("Connecting to device...");
      return device.gatt.connect();
    })
    .then(function(gatt) {
      console.log("Connected to GATT server");
      gattServer = gatt;
      return gatt.getPrimaryService(UART_SERVICE_UUID);
    })
    .then(function(service) {
      console.log("Setting up TX Service...");
      return service.getCharacteristic(UART_TX_CHARACTERISTIC_UUID);
    }).then(function(txcharacteristic) {
      console.log("Setting up listener for incoming data...");
      txcharacteristic.on('characteristicvaluechanged', function(event) {
        console.log("Received: "+JSON.stringify(event.target.value.buffer));
        // Convert the event target value to a Uint8Array
        let receivedData = new Uint8Array(event.target.value.buffer);
        // Convert the array of ASCII codes to a string
        let decodedValue = String.fromCharCode.apply(null, receivedData);
        // Log the received value
        console.log("RX: " + decodedValue);
        if (decodedValue.trim() === "1") {
          disconnect();
        } else {
          console.log("Received unexpected value: " + decodedValue);
        }
      });
      txcharacteristic.handle_cccd = 35;
      return txcharacteristic.startNotifications();
    })
    .then(function() {
      return gattServer.getPrimaryService(UART_SERVICE_UUID);
    })
    .then(function(service) {
      console.log("Got UART service");
      //console.log(service);
      console.log(" ");
      return service.getCharacteristic(UART_RX_CHARACTERISTIC_UUID);
    })
    .then(function(rxcharacteristic) {
      console.log("Got RX characteristic, sending '1'...");
      //console.log(rxcharacteristic);
      console.log(" ");
      return rxcharacteristic.writeValue("1");
    })
    .catch(function(error) {
      console.log("Error: " + error);
    });
}

// Function to disconnect
function disconnect() {
  if (gattServer && gattServer.connected) {
    gattServer.disconnect();
    console.log("Disconnected");
  }
}

// Button press to initiate connection and sending
setWatch(connectAndSend, BTN, {edge:"rising", repeat:true, debounce:50});

Posted at 2024-10-02 by @gfwilliams

Great! Glad it's working now!

I made a change to the firmware so if it doesn't find the CCCD in the normal place it looks one after.

So please could you try installing a 'cutting edge' firmware and removing the characteristic.handle_cccd = 35; line? I think it might be ok after that and you could even use the default ble_uart module.

Posted at 2024-10-05 by user158306

Hi Gordon,
For sure, happy to try it. Let me know what you need.

Posted at 2024-10-07 by @gfwilliams

Thanks! Literally all you need to do for now is update to the latest (cutting edge) firmware, and then try and run the code you posted above but without the txcharacteristic.handle_cccd = 35; line

0 replies

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Espruino JavaScript

Puck.js Connect to Adafruit Feather Board #4347

Uh oh!

{{title}}

Uh oh!

Replies: 1 comment

Uh oh!

{{title}}

Uh oh!

Select a reply

Uh oh!

Espruino JavaScript

Puck.js Connect to Adafruit Feather Board #4347

Uh oh!

espruino-discuss Feb 12, 2025 Maintainer

Replies: 1 comment

Uh oh!

espruino-discuss Feb 12, 2025 Maintainer Author

espruino-discuss
Feb 12, 2025
Maintainer

espruino-discuss
Feb 12, 2025
Maintainer Author
