rotary encoder strange behavior (too many datas)

[espruino-discuss]

Posted at 2022-09-25 by Mrbbp

Hello,

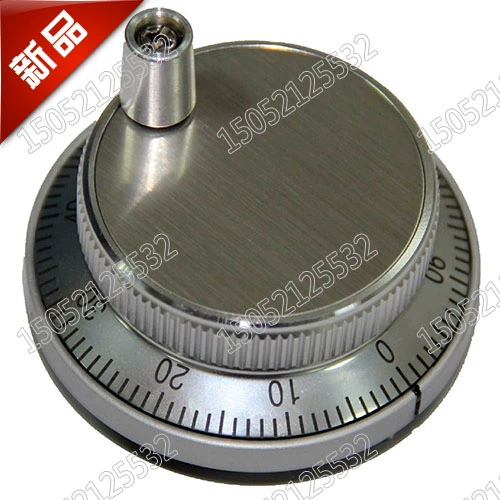

i'm playing with a rotary encoder a big MYSM60-100PPRR-5L with the example given
but the console is populated with too many answer for 1 step.

function onInit() {
  var step = 0;
  require("Encoder").connect(A5,A8, (dir) => {
    print(dir);
    if (dir > 0) {
      //allume la led 20ms
      digitalPulse(LED1, 1, 20);
    } else {
      digitalPulse(LED2, 1, 20);
    }
  });
}

console return for 1step backward

-1
-1
-1
-1
-1
1
>

and

1
1
1
1
>

for 1 step forward...

what i'm doing badly?

[espruino-discuss]

Posted at 2022-09-25 by Mrbbp

It matchs 4 time for 1 step

---

Posted at 2022-09-25 by Mrbbp

i've corrected my pb with an ugly trick but it works as i need.
it sends through the serial :
1 for clockwise and pulse Green led
-1 for conterclockwise and pulse Red led

function onInit() {
  var step = 0;
  var final = 0;
  require("Encoder").connect(A5, A8, (temp) => {
    step += temp;
    if (Math.floor(step / 4) == step / 4) {
      (step > 0) ? dir = 1: dir = -1;
      step = 0;
      (dir > 0) ?digitalPulse(LED1, 1, 20):digitalPulse(LED2, 1, 20);
      print(dir);
    }
  });
}

---

Posted at 2022-09-27 by Mrbbp

no more answer than mine... okay it's not really interesting, nevermind... there is a glitch in the lib...

and my attempt is not 100% efficient.
if I turn the encoder quickly, the algorithm slips, and the number advances slowly with a step backwards from time to time...

a better idea than mine?

regards

éric

---

Posted at 2022-09-28 by @gfwilliams

Sorry - I thought from the above that you may have sorted it... Espruino does actually include the ability to monitor a pin in a setWatch, so that may help you:

var value = 0;
setWatch(function(e) {
  if (e.data) value++ else value--;
  print(value);
}, A5, {data:A8, repeat:true});

I notice you're doing a print and digitalPulse. Is it possible that turning the knob quick is creating so many events that the functions can't be called quick enough and so it loses track?

---

Posted at 2022-09-28 by Mrbbp

Thanks Gordon
i've commented the digitalPulse and print to minimize the interference...
i send through HID
i'll try your code tonight.

é.

---

Posted at 2022-09-28 by Mrbbp

Hello @gordon
what is suppose to do?
e.data is always false when it fire. So, value stepdown what ever i turn clockwise or counterclockwise...

regards

é.

---

Posted at 2022-09-29 by @gfwilliams

That is strange... Do the pins need pullups?

Maybe swap A5 and A8 in the code and see if that helps. Also maybe you needed edge:'falling' in the watch.

Usually in an encoder, when one pin changes state, the state of the other pin determines the angle. But in this case I guess because we were reacting on both edges of A5, we'd just end up adding and subtracting from value

---

Posted at 2022-09-30 by Mrbbp

OK thank you @gfwilliams

the final solution was the pull_up

function onInit() {
  var value = 0;
  pinMode(A8, 'input_pullup');
  pinMode(A5, 'input_pullup');
  setWatch(function(e) {
    if (e.data) value++ else value--;
    print(value);
    }, A5, {data:A8, repeat:true, edge:'falling'});
}

the value increases and decreases according to the rotation.

é.
