[Bangle.js 2] Seemingly random freezes / unresponsive? #6496
Replies: 1 comment
-
|
Posted at 2022-07-25 by @halemmerich I sometimes see similar behavior. Mostly when connected to Gadgetbridge and listening to music/podcasts for at least half an hour. Disconnecting and reconnecting the bangle from Gadgetbridge "revives" it. Seems to have no bad side effects on further use. Auto-open for music is switched off. Posted at 2022-07-26 by @gfwilliams I'd say definitely try a different clock face, but it could also be related to apps with boot code/widgets.
How often does that happen? That would imply that some app is writing to Storage very frequently (it'd have to in order to use up 8MB of memory so quick). And that could well be an issue. When storage gets too low, a 'compact' pass is run automatically. As I'm sure you know when you've run it manually, it can take quite a while - could it be that's what is happening in your case and the Bangle is just sitting there unresponsive for ~90 seconds or so while it is compacting itself?
When it happens, please could you go to
That is interesting - I'll give it a try here and see if I can reproduce. Next time it happens, it'd be great if you could check the log to see if there's anything in it. Posted at 2022-07-27 by johan_m_o I have seen this as well in the past few weeks. I've also noted that the Gadgetbridge app (Bangle.js version) sometimes also has crashed when the watch has locked up. Haven't had time to debug yet, and I cannot get the app to save a debug log (nothing happens when I press Fetch Debug Logs)... I'm using "A Configurable Analog Clock" as my watch face. Posted at 2022-07-27 by @gfwilliams
Ahh, it might be you're on an old version of Gadgetbridge then? Posted at 2022-07-27 by johan_m_o
I don't think so... Version 0.68a-banglejs Posted at 2022-07-27 by @thyttan To get the debug logs from Gadgetbridge you can (edit: apparently not the same, see Gordons response below) first activate logging by:
Then share the log:
Posted at 2022-07-27 by johan_m_o Hm... I have been trying that too, but no dice. I'll do some more testing. Posted at 2022-07-27 by @gfwilliams
Actually, It doesn't pop up a window or anything (maybe just a quick 'toast' message) - it just writes the file.
Actually those are different logs. The ones I'm suggesting show just the communications between the watch and Gadgetbridge Posted at 2022-07-27 by johan_m_o
In this case, when I say "nothing happens" I mean that no file is written (I check the folder). But I'll try to take a closer look at a logcat, maybe try to reset things, etc... Posted at 2022-07-27 by @thyttan

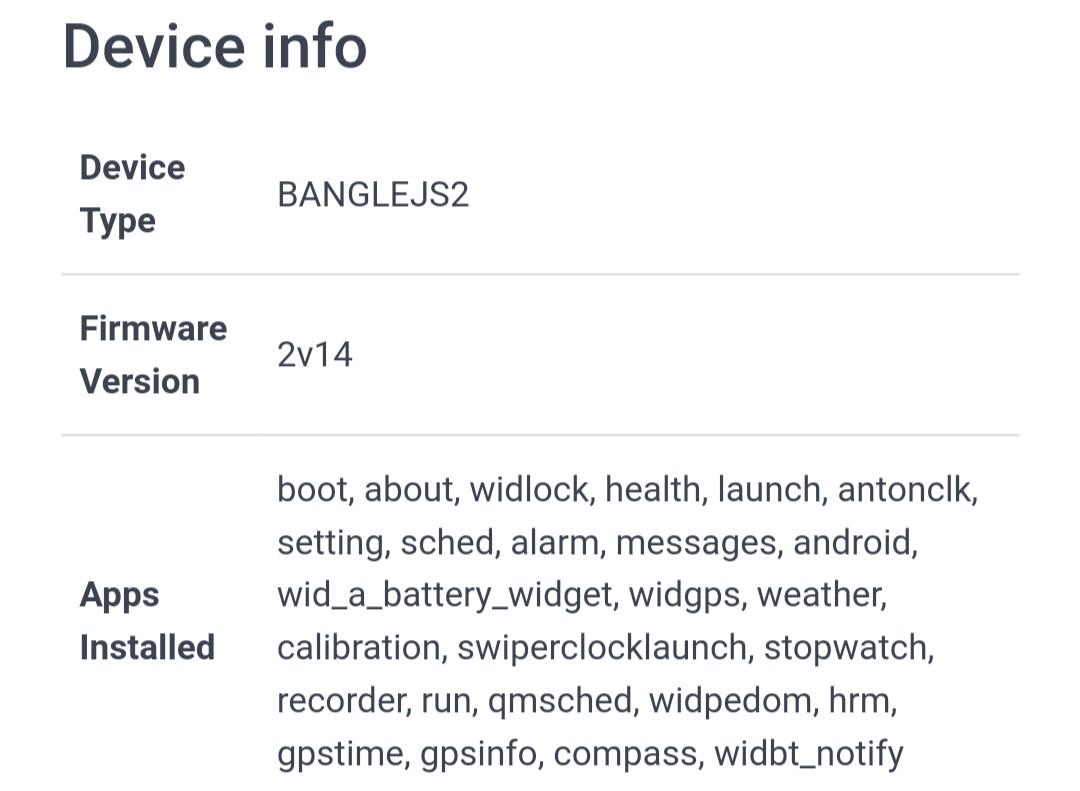

Ok, good to know! Posted at 2022-07-27 by m2c_n3e I had the same problem. I am not sure what triggered it. I suspected a Bluetooth disconnect during app upload, but that was just a guess. I have performed a factory reset which solved the problem for several weeks. It occurred again today. I have not uploaded any apps today, but I have compacted storage today. This may have been a coincidence though. I also use Gadegetbridge (latest version) and I use the apps from https://espruino.github.io/BangleApps/ I have attached the device info from https://espruino.github.io/BangleApps/?c= (maybe we can find a pattern) Attachments: Posted at 2022-08-29 by m2c_n3e After I did the factory reset a few weeks ago everything worked fine for a few days, but then my watch would seemingly freeze again. Disconnecting it from the phone in Gadgetbridge reliably cured the condition. Then I did not use the watch for a week and did not connect it to my phone either. The watch did not freeze a single time. When I connected the watch to my phone, I experienced occasional freezes again. Two weeks ago I changed my phone from a Fairphone 2 (nearly 7 year old hardware) to a Fairphone 4 (recent hardware) and I did not experience any freezes since then. This led me to the conclusion that the cause of the freezes may be connected to the Bluetooth connection. I think the connection was quite unreliable with my old phone. Is it possible that an unreliable connection causes a deadlock on the watch when the connection is lost during data transfer between Gadgetbridge and the watch? Posted at 2022-09-07 by @gfwilliams Sorry for the delay replying here... That's really interesting! It might explain why it's been very hard to pin down.
It shouldn't happen but I guess there is some small chance. I don't think there is anything in Espruino itself that would suffer however I guess there is a chance it's something at a lower level in the bluetooth stack that is causing problems. If I had a way to reliably reproduce this here then I could get one of the watches set up on a hardware debugger and might have more of an idea what's going wrong. Posted at 2022-09-07 by @fanoush It happens to me randomly every few days or weeks too. The watchface is frozen with some old time still shown. Button does not work except holding it for the watchdog reboot - that 'fixes' it. I do use gadgetbridge too. Did not think about relation to connection as it happened when the phone was near (over night, both on table next to each other) and it worked fine many times when connection was lost during day but still it can be related. Was thinking about debugging it over SWD but didn't get to it yet. For that I think I'd need my own firmware build installed with matching debug symbols to see exact source line where it hangs including variable values and call stack so that is what I did not do yet. Will try to make such build, install it and wait. Posted at 2022-09-09 by @gfwilliams
It'd be awesome if you could do that. No offence but I'm quite glad it's happening to you - since I think by now you know the Nordic bluetooth stack better than I do! Posted at 2022-10-20 by morganwable No solutions yet, but I did narrow in on what might be causing it - it's definitely a gadgetbridge issue. I had my watch disconnected for over a week, and I'm 95% sure it didn't freeze that entire time. I reconnected it this morning and already had to reboot it once. Temperature doesn't seem to be a factor nor does disk space - compacting and removing apps has no apparent effect on the phenomenon. I forgot to enable debug logs previously but I'll just did, and I'll respond with info if I find anything promising. My current hypothesis is that it happens whenever too many things happen at once - specifically, whenever it's called upon to load something when a "loading" box is already on the screen. A "loading" box seems to appear 2/3s of the time it crashes. My thinking: is it possible that a notification coming in at the same time as a scheduled timer is what's causing the crash? Like I said... I'm 90% sure it exclusively happens whenever notifications are active. My branch is about 600 commits behind, though, so perhaps I should update before doing any more digging? Either way, it's a busy week for me. Not sure when I'll get around to looking into this more. Posted at 2022-10-20 by @fanoush I do have watch in this state for many days but did not figure so far out how to find out what is exactly wrong with it. It is not frozen it just does not react to anything but it still works and saves power so I think the idle javascript loop still runs fine. Looks like it is in some high level logical 'lock' or bad state. When it 'froze' gadgetbridge was still connected over BLE and stayed being connected without reporting any error. I disconnected it like hour after it froze and it disconnected just fine, again without reporting that anything is wrong with the connection, however it just could not reconnect later. After one day the screen went blank (may be some screen blanking code?). The trouble with using SWD debugger is that with bluetooth stack enabled you cannot stop the CPU and then resume because BLE stack will immediately crash due to strict timing needed. So I have one shot and then need to reboot the watch. Also when Espruino works and is in idle loop/sleep and I halt the CPU it is in some interrrupt context and I don't see regular stacktrace where I could see how C function calls are nested and could examine local C variables on different levels. When I keep it running I can just read memory like global C variables but don't see what it is doing. I have few ideas - I need some live profiler that could sample running code (CPU registers and stack/RAM) without stopping it, should be doable somehow but I did not figure out details how to do it with openocd/gdb. Also I can make custom firmware with some extra logging and extra debug code and wait with this for next freeze. I am planning to implement javascript console over SWD (another object of javascript Posted at 2022-10-20 by @fanoush Also since the gadgedbridge did not report any issue maybe the connection still works so if there was a way to inject some simple js code over existing connection in this frozen state (Like running Posted at 2022-10-21 by @gfwilliams
So does it update the time in that state? It's that it doesn't respond to the button presses?
This would be awesome! I wasn't sure how to get started with this, but if you have a proof of concept for what to do on the nRF52 I could probably integrate it pretty quick.
I've been meaning to implement something like https://www.espruino.com/ide/relay/ in the App Loader (so it could be used from within Gadgetbridge) - that might really help here - although if debugging Gadgetbridge in Android Studio I believe you can get it to send data. Posted at 2022-10-21 by @fanoush
no, time is frozen on screen, no reaction to anything except that for me the screen was blanked next day and battery lasts for very long (like normal). And holding button will trigger watchdog reboot => without holding button the watchdog is obviously still pinged so it is still alive.
I think I already mentioned it somewhere but there is Segger RTT technology - basically small C code linkable to Espruino that does memory buffer as i/o more info https://wiki.segger.com/RTT the code itsef is e.g. here https://github.com/adfernandes/segger-rtt So from JS/Espruino it could be standard console object writing to circular memory buffer. From the other side it can be used from openocd with some swd debugger but I am thinking about some SWD library as Inline C + maybe some JS around it so you could use another espruino with 2 gpios to connect to it. Basically the device would then act as usb to segger rtt i/o 'serial' adapter so you would connect IDE or putty to it and you would get bangle console. Specific espruino device I have for this is the ~$2 STlink V2 clone dongle (aliexpress) https://github.com/fanoush/EspruinoBoards/tree/master/STLINKV2 Someone even had basically same idea with Forth and com over swd here https://mecrisp-stellaris-folkdoc.sourceforge.io/swdcom.html but they did not use segger rtt and they used that dongle 'as is' with original stlink firmware and some custom code talking to it https://github.com/Crest/swdcom . In theory same could be also done with CMSIS-DAP dongles (same ~$2 thing on aliexpress in many variants) which uses USB HID protocol so no need for custom OS driver with that one. But I think something acting like USB to serial would be easier to use with IDE. EDIT: started separate conversation for this https://forum.espruino.com/conversations/380926/ Posted at 2022-10-21 by @fanoush
also the frozen state showed blue icon so gadgetbridge was still connected and as mentioned gadgetbridge on the phone did not complain about connection being broken in any way, I had to disconnect manually. So maybe the watch could be just out of memory or maybe it could have entered javascript Posted at 2022-10-26 by @gfwilliams Gadgetbridge nightly should have a Posted at 2022-12-02 by @fanoush
is this in the playstore version now? I have just installed your playstore version and there is "fetch device debug logs" button in Debug menu but clicking it has no feedback and then I see there is However I do see UART RX and UART TX lines when the device does communicate - like when clicking other test buttons to simulate calls and messages. Posted at 2022-12-02 by @gfwilliams I'm afraid this did go in the Play Store version, and then someone pushed a change to Gadgetbridge which broke it! It should now be fixed, but I don't think that fix has made it into Play Store yet (On Nov 1st Google introduced some new restrictions which I have to work around before I can update it!).
This should still be good for debugging I'd hope - but it's not as clear as the log that would have been produced. Posted at 2022-12-08 by @fanoush So you still managed to reconnect via GB while the watchface was stil frozen? What FW version you have? In my case the battery lasted several days while being stuck. At least when attaching charger after few days it still only charged and did not boot from cold state so battery was not dead. When CPU is stuck in a loop it should die in a day or two. Also I could never reconnect in the frozen state. Anyway, I have updated mine to latest version few days ago and waiting for the freeze to happen again. Posted at 2022-12-08 by @halemmerich (previous message) I have noticed a hanging watchface today, stuck on 18:41. Last value for battery in GB is 15:11 (100%). I have Watch was still connected to GB at 20:48. I saved two GB logs, one 20:48 before reconnecting and one 20:50 after reconnecting. Both logs are identical save the additional lines in the one saved later. lines. First log stops at 20:47:33.853, so definitely still hanging then, reconnect in GB reviving the Bangle shortly after that. Sadly nothing obvious (at least to me) in the logs. Saving the debug logs did not actually store the logs. I am using the fdroid version of the app. Edit: Not a percent of battery lost in the last hour, so hanging actually does something expensive in terms of power use on the watch. Yes, did not touch the bangle after noticing the freeze. Disconnecting and reconnecting in GB usually brings it back, holding the button for full reboot works as well. I'm on 2v16.7 currently. I had some hangs that could not be solved by reconnecting in GB, but have not seen one of those for months. Attachments: Posted at 2022-12-08 by @gfwilliams Thanks for the update @halemmerich - that log is really interesting.
So, it seems this doesn't 'just happen'. There is some kind of reconnect, and BangleJSDeviceSupport is torn down and then restarted, but either I've had a quick check and it seems like none of the other watches deal with this eventuality - they all assume that But it would explain a lot - there is flow control when sending from Bangle.js to Gadgetbridge, so what happens is Gadgetbridge connects, but never enables notifications on the Bluetooth serial characteristic. After a while the Bangle has sent enough data that its internal buffer gets full, and it sits there just waiting for Gadgetbridge to enable notifications on the characteristic, which it never does. It looks like I could really do with a Gadgetbridge log including the moment things went wrong to be sure ... but this definitely looks like a Gadgetbridge issue now, rather than Bangle.js. Posted at 2022-12-08 by HughB I get occasional hangs when using Settings menu's. I'm on 2.16.7 firmware and everything else 100% up to date. I dont use GadgetBridge atm. Posted at 2022-12-11 by @halemmerich I have captured another log. Clock was frozen at 11:41 and log goes back to 9:10. Attachments: Posted at 2022-12-12 by @halemmerich Small update: Have not connected the Bangle to GB since saturday morning, no freezes since then and significantly lower battery use. Posted at 2022-12-13 by @gfwilliams That's great, thanks for that! And good removal of sensitive info ;) I filed an issue with Gadgetbridge here asking for the correct way to go about fixing this: https://codeberg.org/Freeyourgadget/Gadgetbridge/issues/2996 But I'd be pretty sure we know what the issue is now. It's just how to force a disconnect + reconnect nicely. Posted at 2023-11-18 by user156982 Sorry to poke such an old thread but I'm currently experiencing this issue and was just wondering if there's any more progress with a fix, or a good workaround? Posted at 2023-11-18 by @thyttan What Bangle.js firmware version number do you have on the watch? What Gadgetbridge version and version number do you use on your phone, if it's an Android one? Are your apps on the watch up to date? Posted at 2023-11-18 by ccchan hi, to me, it seems it happened after i changed the fontsize back to 18? i am not sure. may be could play with that later when i am in the gym, thanks update 231119T014901, may be the pattern launcher is too heavy? however without pattern launcher, the bangle cant prevent access from anybody (although pattern launcher only provide partial). would be nice if later bangle could have build in pattern lock or PIN lock? like android etc. thanks Posted at 2023-11-18 by user156982 Watch firmware: 2v19, DFU 2v16 As folks above have said, manually disconnecting/reconnecting through GB on the phone or rebooting the watch fixes it but the watch freezes and remains unresponsive on a frozen watch face until then. Posted at 2023-11-19 by @thyttan Deleted. Posted at 2023-11-19 by user156982 It freezes on both "Weather Clock" and "Mountain Pass Clock" faces, I haven't noticed it in other apps but I don't leave them up and idling for meaningful amounts of time. Attached is filtered logcat dump of all gadgetbridge tagged entries in the minute it froze at 19:19 yesterday if that helps. Attachments: Posted at 2023-11-20 by @gfwilliams Thanks for the log - that really helps to narrow it down. So this appears to be https://codeberg.org/Freeyourgadget/Gadgetbridge/issues/2996 again - I thought that had maybe sorted itself out. I've just pushed a change to Gadgetbridge to attempt to fix it - but it's a hard one to know for sure as we can't reliably reproduce it while on a debugger (and I think it might depend on your phone/OS). So if you install the nightly build of Gadgetbridge tomorrow, I hope you won't end up seeing it again :) Posted at 2023-11-20 by user156982 Awesome, I will look into getting that installed and let you know how it works out. It usually happens to me 1-2 times per day so I'll check back in a few days to a week if it's all clear. Thank you so much! edit: a couple days in and it's working great so far! Posted at 2023-11-21 by ccchan err... some of my reporting, gpt4 summarized: |
Beta Was this translation helpful? Give feedback.
-
Posted at 2022-07-25 by morganwable
Is anybody else currently dealing with seemingly random crashes and freezes?
Occasionally, multiple times a week (most days, rarely more than once a day), my Bjs2 will, without warning, become unresponsive. This almost exclusively happens on the clock face, if only because I'm usually in the habit of closing apps whenever they're open. I haven't been able to figure out how to reproduce this behavior consistently, but I'm trying to troubleshoot regardless.
Current details:
So... I'm not totally sure what to do to figure it out but I guess I have a few ideas.
In addition to logging temp readings, I'm going to switch to a different clock face for the next few days and see if it happens less frequently - perhaps it's actually just a problem with the LCARS app... which would be disappointing seeing as I plan on creating a similar feature-rich clock face soon. But I guess we'll see.
Anyway, does anybody else have similar experiences?
