New e-Paper driver for displays supporting partial update. #7672
Replies: 1 comment
-
Posted at 2019-04-03 by @gfwilliams That's great! Not sure if you're interested but you can use Posted at 2019-04-03 by TomWS Thanks, I'll check out g.getModified. Right now I have a bunch of testing to do. Will PR the new driver when I'm confident that it's ready. It would be nice if I could query the rotation of the 'g' object (within display.partial()) so I don't have to rearrange the coordinates and sizes when the partial object was created. Also, I am having a bit of trouble making images for testing. It seems your online tool is treating 'transparent' as black and everything I've tried is Black on transparent... I need to re-'color' the images for White on transparent unless there's a switch I'm missing on your tool. Posted at 2019-04-03 by @gfwilliams As far as I know, there's no getRotation - so yeah, trying to do a new Graphics could be a pain.
There should really be a switch for that, but right now all you have to do is remove Posted at 2019-04-03 by TomWS
This won't work as the bits in the B64 text are all black. It's not that big a deal, it's easy enough to convert transparent to white in the image. It's just something that slowed down my testing last night.

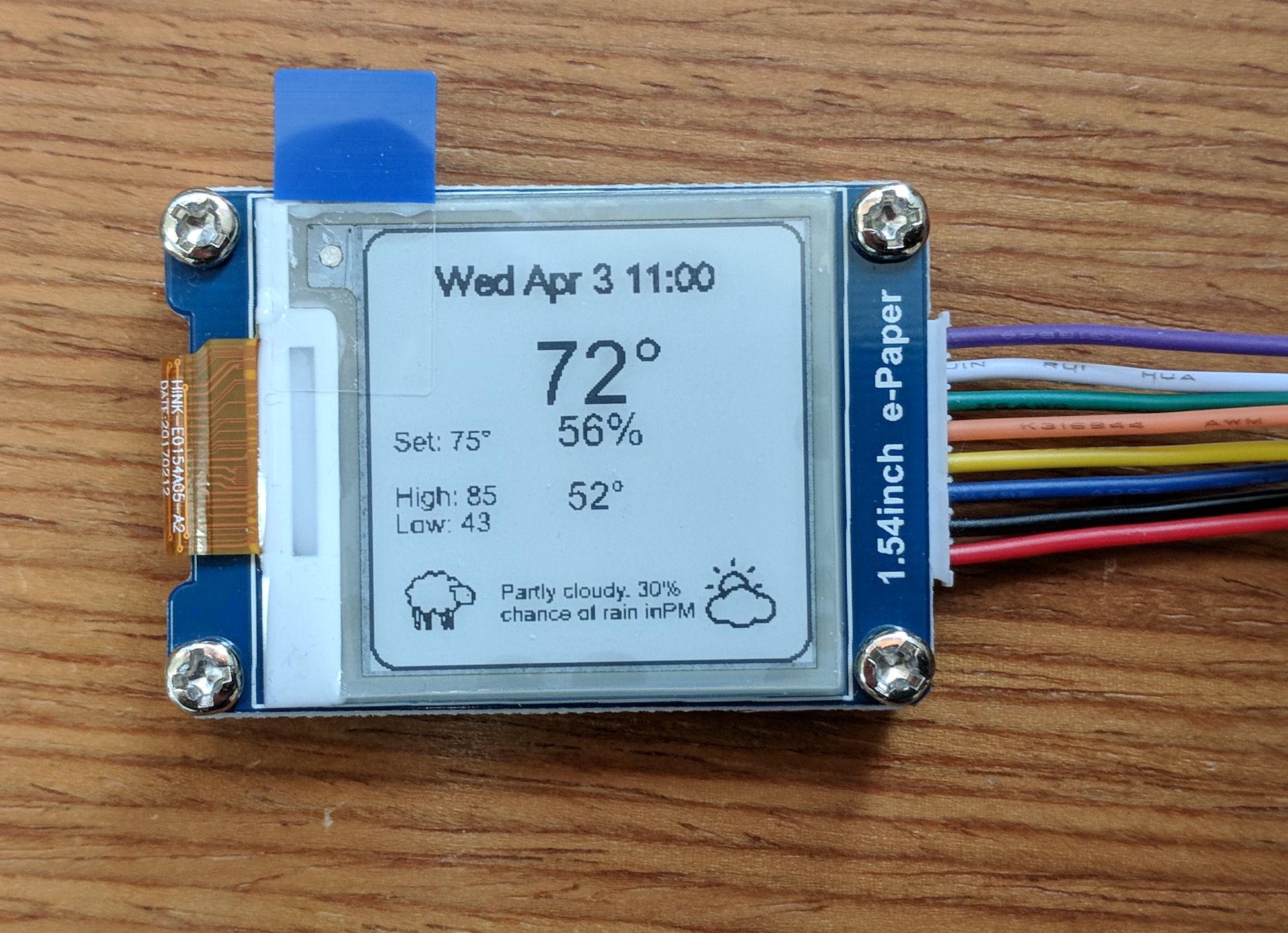

It would be easy to add, but I didn't want to mess with the Graphics library. That's a much bigger change than updating a module... I am considering adding rotation the .partial parameter list. Maybe make it an option? Posted at 2019-04-03 by TomWS Ok, multiple partial updates works, although images need to be inverted color from my expectation for some reason, but that's probably just a learning thing... Attachments: Posted at 2019-04-03 by @MaBecker Hi @tomws cool 😎 , I like it. what fonts do you use for your project? Posted at 2019-04-03 by TomWS Thanks!
Busted! :-) Other than the time & date, the text in the photo was part of the image put in as background. It may still be done that way for most of the text since the background will be common to all the thermostats in the house and the image can be made and distributed by the home server. The only thing completely local to the thermostat is the temp & rh. You are correct that the date/time used the espruino vector font. Posted at 2019-04-04 by @gfwilliams Ahh - you meant transparency in the input image? The converter just ignores the alpha channel, so it'll be using whatever colour there is even when it's set as fully transparent. Posted at 2019-10-24 by Dett Hey guys, i am new here. Posted at 2019-10-24 by @allObjects There is only the SSD1606 driver in the Espruino library at http://www.espruino.com/modules with driver at http://www.espruino.com/modules/SSD1306.js Initially I wanted to ask you the following questions, but after looking for the driver, you can skip them (only number 5 and somewhat 7 are of some relevance).
@tomws ' very first line states:
Espruino has a local sandbox in which you can create your own modules... and that is what @tomws did. He made copy of the SSD1606.js with name SSD1608.js and stored it there. To get started with the display, just use the SSD1606 module. It just works fine... https://www.espruino.com/SSD1606 . The driver code at http://www.espruino.com/modules/SSD1306.js shows you in the comment also other configurations for other ePaper displays. If you want to use @tomws' functionality, you may need to ask him for his clone! ...ask him to publish it here or as pull request to update the publicly available module library... (Since it is a actually a SSD1306 oriented driver, I'd have call it something like SSD1306X, for extended... or a like). Posted at 2021-02-01 by tom.gidden Hi @tomws! Did you progress this driver any further? It’d be interesting to merge it into the main tree; I have a few ePaper displays gathering dust that I’m intending to do something with before too long, and would very much like to see about getting partial updates working. Posted at 2021-04-26 by @MaBecker @tom.gidden this look's like a promising SSD1608 solution. |
Beta Was this translation helpful? Give feedback.
-
Posted at 2019-04-02 by TomWS
I've made a new e-Paper Display driver (cloned from SSD1606 driver) that works with newer e-Paper displays that support partial update. It's currently working with WaveShare's 200x200 1.54 inch display and 'should' work with Crystalfontz e-Paper displays (at least the 122x250 CFAP122250A0-213) but I haven't gotten around to testing that display yet.
As far as I can tell, these displays use the SSD1608 chip and, while I'm still testing, I thought I'd let y'all have a glance.
The advantages of partial update are:
Faster update,
only selected region is modified so fixed image background is maintained,
no flicker on update.
With this implementation, each partial region can have it's own graphics object that can be updated independently (in theory, I haven't tested this yet ;-)

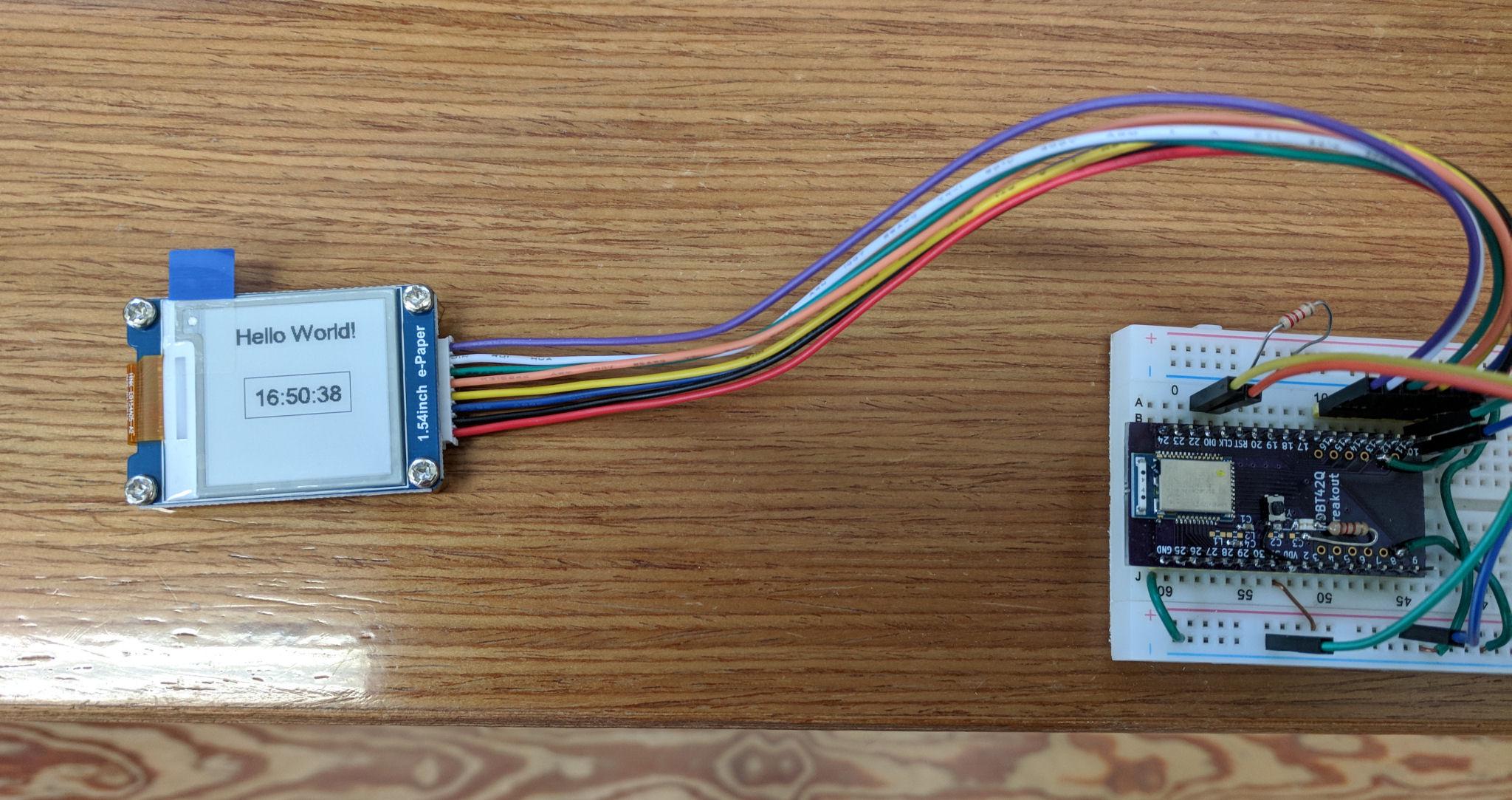

In the photo below, the background was erased and the 'standard' Hello World message written. Then a partial region was created and it is updated every ten seconds with the time of day. Boring yes, but if multiple regions can be supported (memory might be an issue) then very useful.
More later, Enjoy...
Attachments:
