Introduction

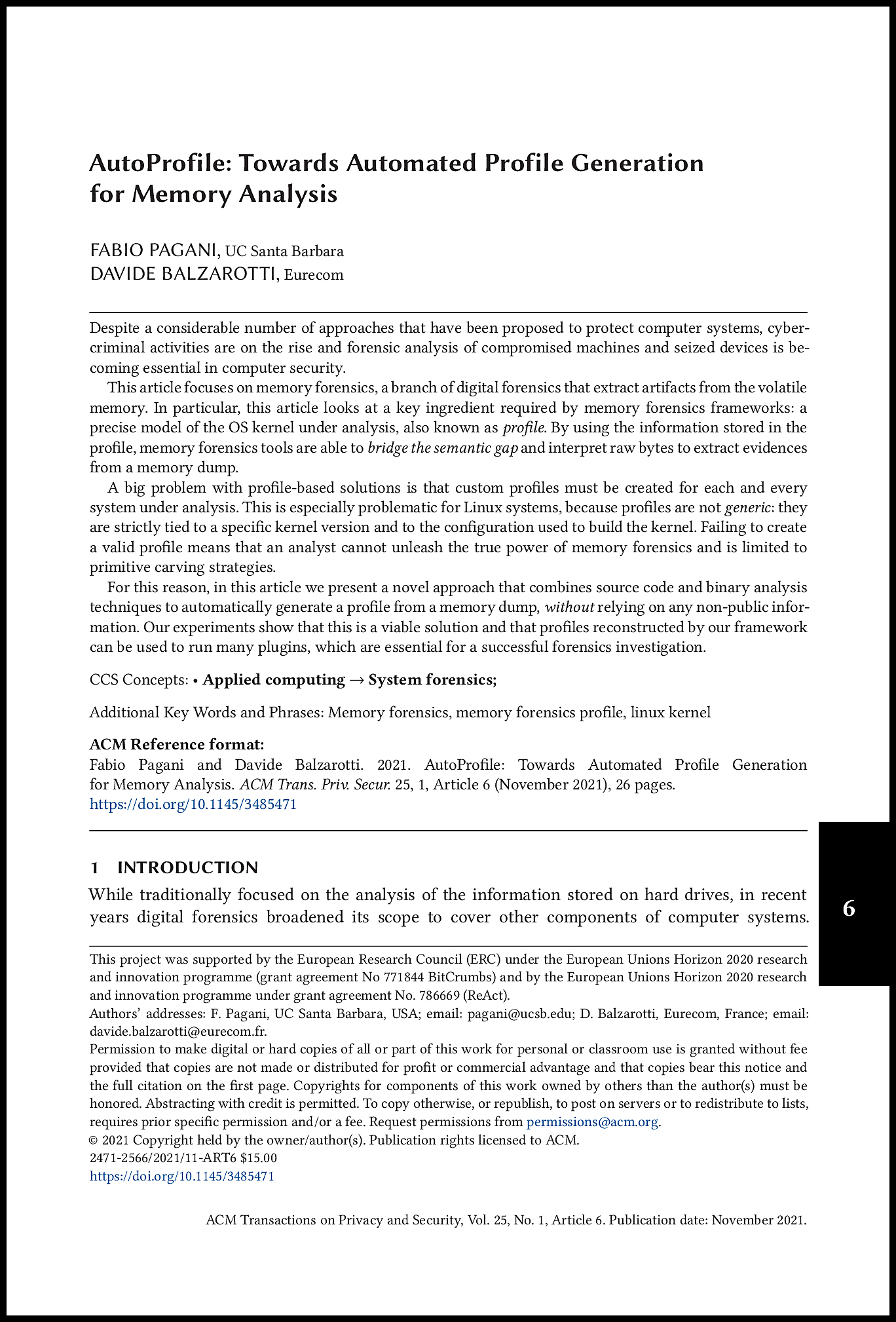

This repository contains the software developed for the paper "AutoProfile: Towards Automated Profile Generation for Memory Analysis", available here.

@article{pagani2021autoprofile,
  title={AutoProfile: Towards Automated Profile Generation for Memory Analysis},
  author={Pagani, Fabio and Balzarotti, Davide},
  journal={ACM Transactions on Privacy and Security},
  volume={25},
  number={1},
  pages={1--26},
  year={2021},
  publisher={ACM New York, NY}
}

How To

The following steps document how to reproduce the RPI experiment presented in the paper.

Setup

    git clone https://github.com/pagabuc/autoprofile
    cd autoprofile; export PROJECT=$PWD;

    cd $PROJECT/compiler; docker build -t compiler .
    cd $PROJECT/joern; [download jdk-7u80-linux-x64.tar.gz from https://www.oracle.com/java/technologies/javase/javase7-archive-downloads.html] ; docker build -t joern .
    cd $PROJECT/volatility; tar xvfz volatility.tar.gz; docker build -t volatility .
    cd $PROJECT/src; tar xvfz angr-dev.tar.gz; docker build -t autoprofile .

Setup a target folder

    mkdir -p tests/rpi/data
    git clone --depth=1 --branch rpi-5.6.y https://github.com/raspberrypi/linux tests/rpi/linux
    cp -r tests/rpi/linux tests/rpi/linux-rpi
    cp -r tests/rpi/linux tests/rpi/linux-rpi-allyes
    cp -r tests/rpi/linux tests/rpi/linux-rpi-joern
    rm -rf tests/rpi/linux

Extract access chains

    cd tests/rpi/linux-rpi-allyes/
    bash $PROJECT/compiler/compiler_allyes.sh

Run Joern

    cd tests/rpi/linux-rpi-joern
    bash $PROJECT/joern/joern.sh

Build the target kernel

    cd tests/rpi/linux-rpi/
    make defconfig   # Or put your configuration in .config
    bash $PROJECT/compiler/compiler_dist.sh

Copy files into the target's data folder

    cd $PROJECT/tests/rpi/
    cp linux-rpi/vmlinux data/
    cp linux-rpi/*.deb   data/
    cp linux-rpi-allyes/plugin.json   data/
    cp linux-rpi-allyes/pptrace.json data/
    cp linux-rpi-joern/joern.log data/

Create a QEMU VM

    cd $PROJECT/images/
    wget http://s3.eurecom.fr/~pagabuc/debian-buster.qcow2.tar.gz
    tar xvfz debian-buster.qcow2.tar.gz

Or create a VM manually:

    cd $PROJECT/images/
    wget https://cdimage.debian.org/debian-cd/current/amd64/iso-cd/debian-10.9.0-amd64-netinst.iso
    qemu-img create -f qcow2 debian-buster.qcow2 20G
    qemu-system-x86_64 -m 2G -hda debian-buster.qcow2 -cdrom debian-10.9.0-amd64-netinst.iso -boot d
    [follow the installation process and shutdown the vm]

Install the kernel, acquire a memory dump, and convert it to raw

    cd $PROJECT/tests/rpi
    bash $PROJECT/images/install-and-dump.sh
    bash $PROJECT/volatility/convert.sh

Create Volatility profile and run plugins to collect accessed fields

    cd $PROJECT/tests/rpi/
    bash $PROJECT/volatility/make_profile.sh linux-rpi rpi
    bash $PROJECT/volatility/run_plugins.sh Linuxrpix64
    [check that $PROJECT/tests/rpi/data/ contains field_accessed.txt]

Run AutoProfile (you can follow the status in $PROJECT/tests/rpi/output/log)

    cd $PROJECT/tests/rpi/
    bash $PROJECT/autoprofile.sh

Check extracted fields and copy extracted profile:

    cd $PROJECT/tests/rpi/
    docker run -ti --rm -v "/tmp/:/tmp/" -v "$PWD:$PWD" -w "$PWD" autoprofile python3 /autoprofile/fields_results.py
    cp output/profile.zip $PROJECT/volatility/volatility/volatility/plugins/overlays/linux/rpi-ape.zip

Run plugins with the extracted profile:

    cd $PROJECT/tests/rpi/
    bash $PROJECT/volatility/run_plugins.sh Linuxrpi-apex64

Examples of access chains with explanation

The following chains can be extracted with grep "\[CHAINS\]" $PROJECT/tests/rpi/log, after running Autoprofile:

• <retval fs/proc/array.c:602:do_task_stat struct mm_struct->start_data | A | get_task_mm | >[0]

  This chain represents an access of mm_struct->start_data at fs/proc/array.c:602. The base of the chain (in this case the variable mm of the function) is initialized by the return value (retval) of the function get_task_mm (this happens here)

• <param security/selinux/hooks.c:3758:selinux_file_mprotect struct vm_area_struct->vm_mm|struct mm_struct->start_stack | A-A | 0 | >[0]

  This chain represents the access happening here and in this case we have two objects chained together. The base (variable vma) is initialized from the first parameter (position 0) of the selinux_file_mprotect function.
