ENH: Configurable highlight style #38

Merged
merged 4 commits into from Feb 25, 2019

Conversation

2 participants
@KyleKing
Copy link
Contributor

commented Feb 24, 2019

Fixes #34


I'd be happy to undo any (hopefully not all 😄 ) of these changes, so let me know if you want to implement 1, 3, and 5 but not 2 and 4, etc. The four main changes are listed below and shown in side-by-side screenshot comparisons below:

  1. Implement Atom One Light Highlight.js style (other alternatives could be Foundation, Github Gist, A 11 Y Light, or others from https://highlightjs.org/static/demo/). This directly addresses #34
  2. Preserve newlines from source code docstrings with white-space: pre-wrap;. At work, we have a compact docstring style where the newlines need to be preserved in the documentation. See discussion from pdoc: pdoc/179#comment. I think keeping the newlines is more consistent with how the comments were written in a text editor, but I'm open to dropping this change
  3. Highlight the entire click region for SOURCE CODE with the same background color as the hljs style (and add a small amount of padding) (background-color: #fafafa; /* Match HLJS backgd */)
  4. Shrink the code text to 12px so it fits more compactly for easier review
  5. Remove the blue selection box when clicking the SOURCE CODE element (outline: none !important;)

Screenshots

Each example shows all of the proposed changes, but I call-out specific changes for each example. Generated with:

  1. pip install beautifulsoup4
  2. pdoc bs4 --http localhost:8000

Example 1

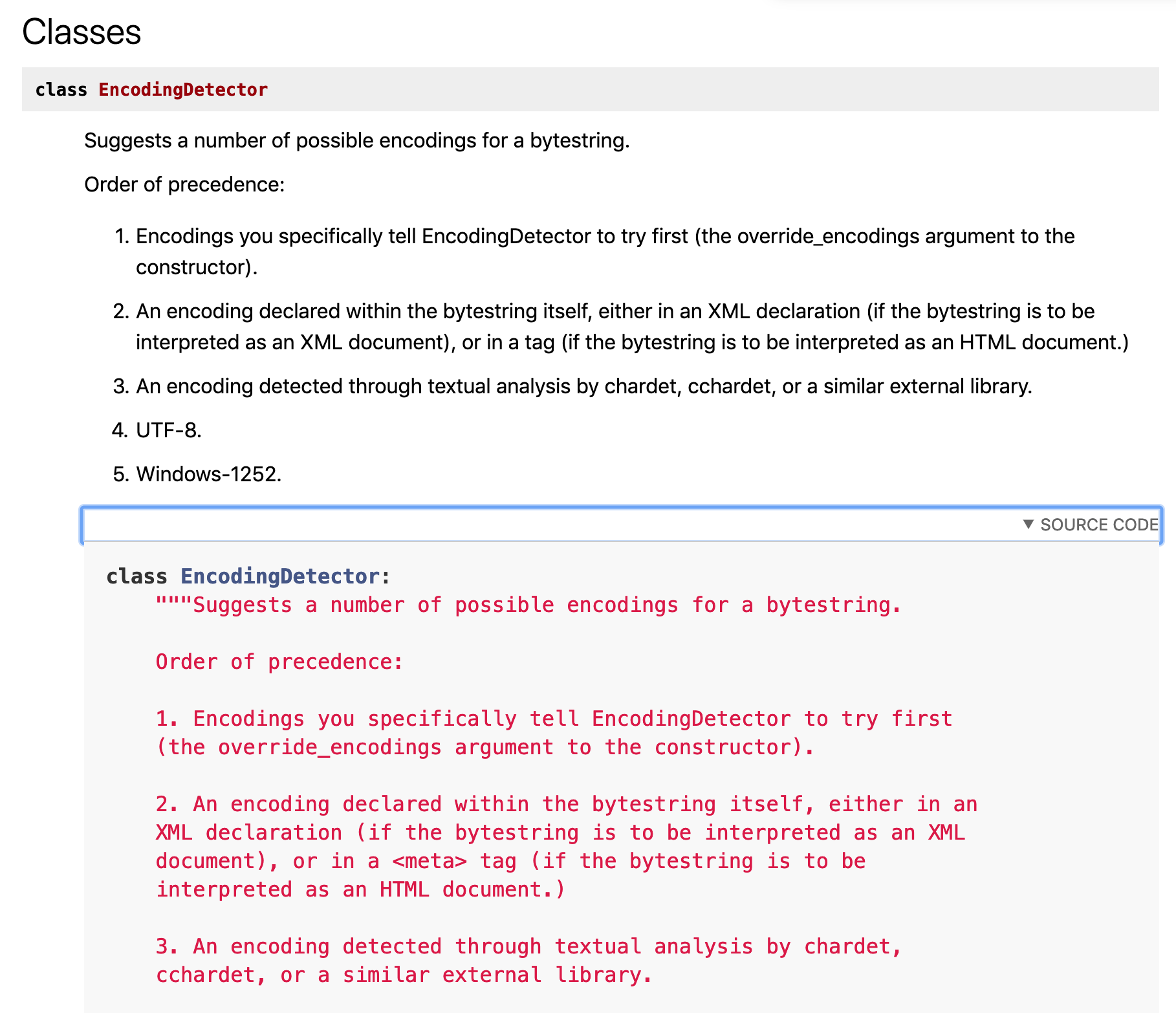

Proposed

screen shot 2019-02-24 at 05 53 04

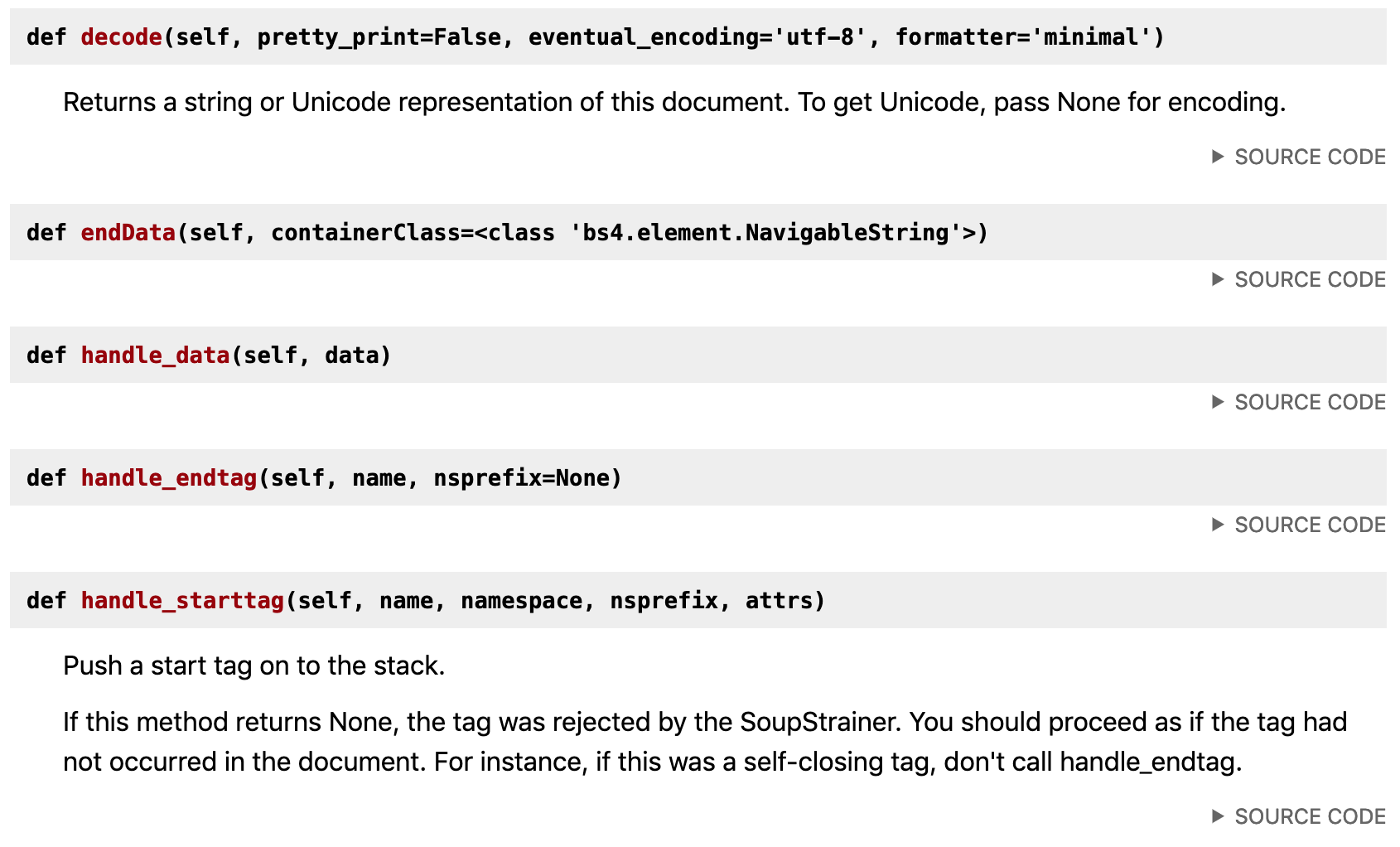

Current

screen shot 2019-02-24 at 05 55 30

Notes

2 - Examples 1 and 2 show how the pre-wrap change comes into play causing the newlines from the source code to be preserved

5 - Because of cursor: pointer;, when you click SOURCE CODE, the browser will momentary highlight the div. In the proposed version, outline: none !important; prevents the blue highlight from appearing on click (focus)

Example 2

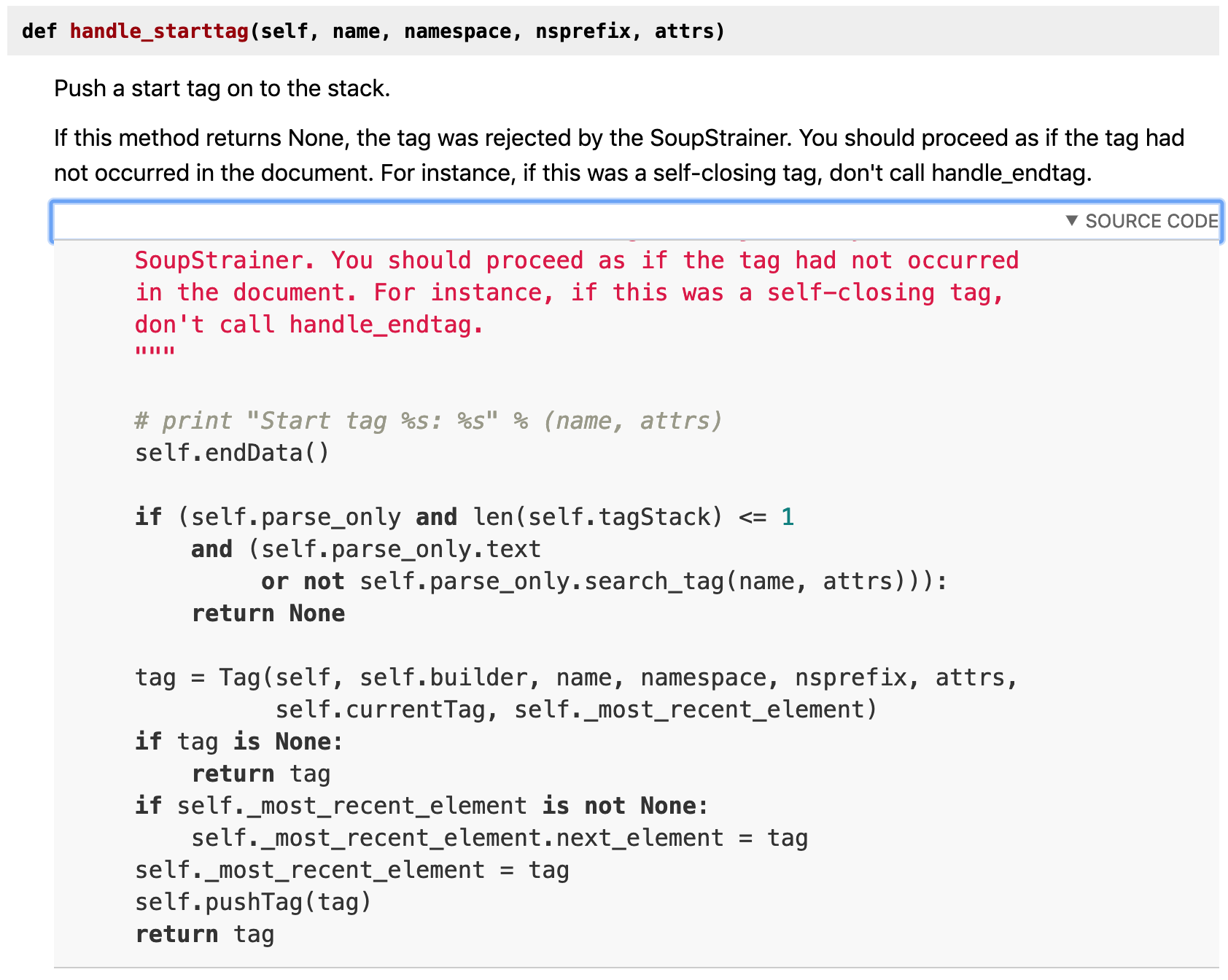

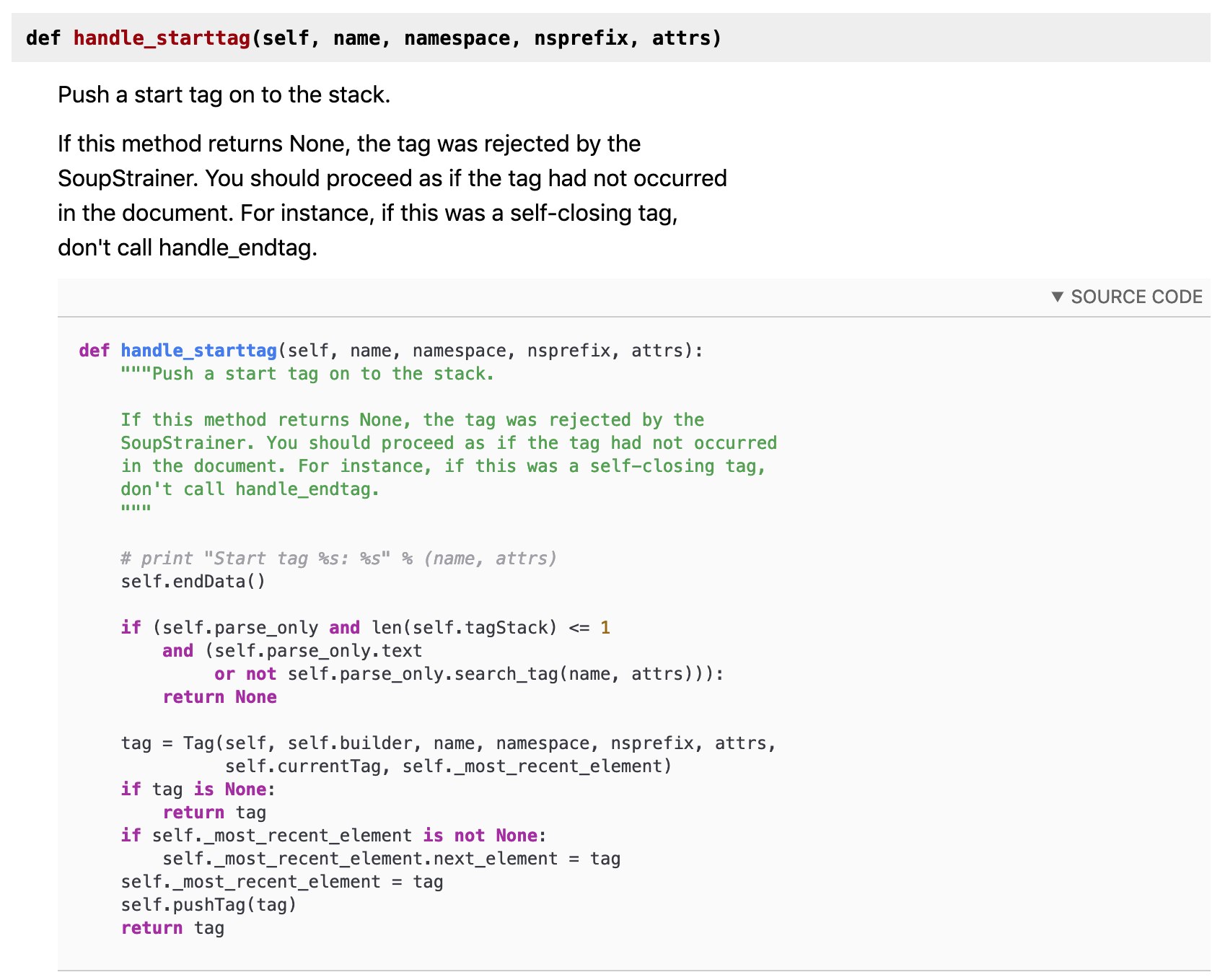

Proposed

screen shot 2019-02-24 at 06 28 58

Current

screen shot 2019-02-24 at 06 30 11

Notes

2 - See how the pre-wrap change comes into play causing the newlines from the source code to be preserved (decode() and handle_starttag())

3 - The clickable region for source code is lightly highlighted

Example 3

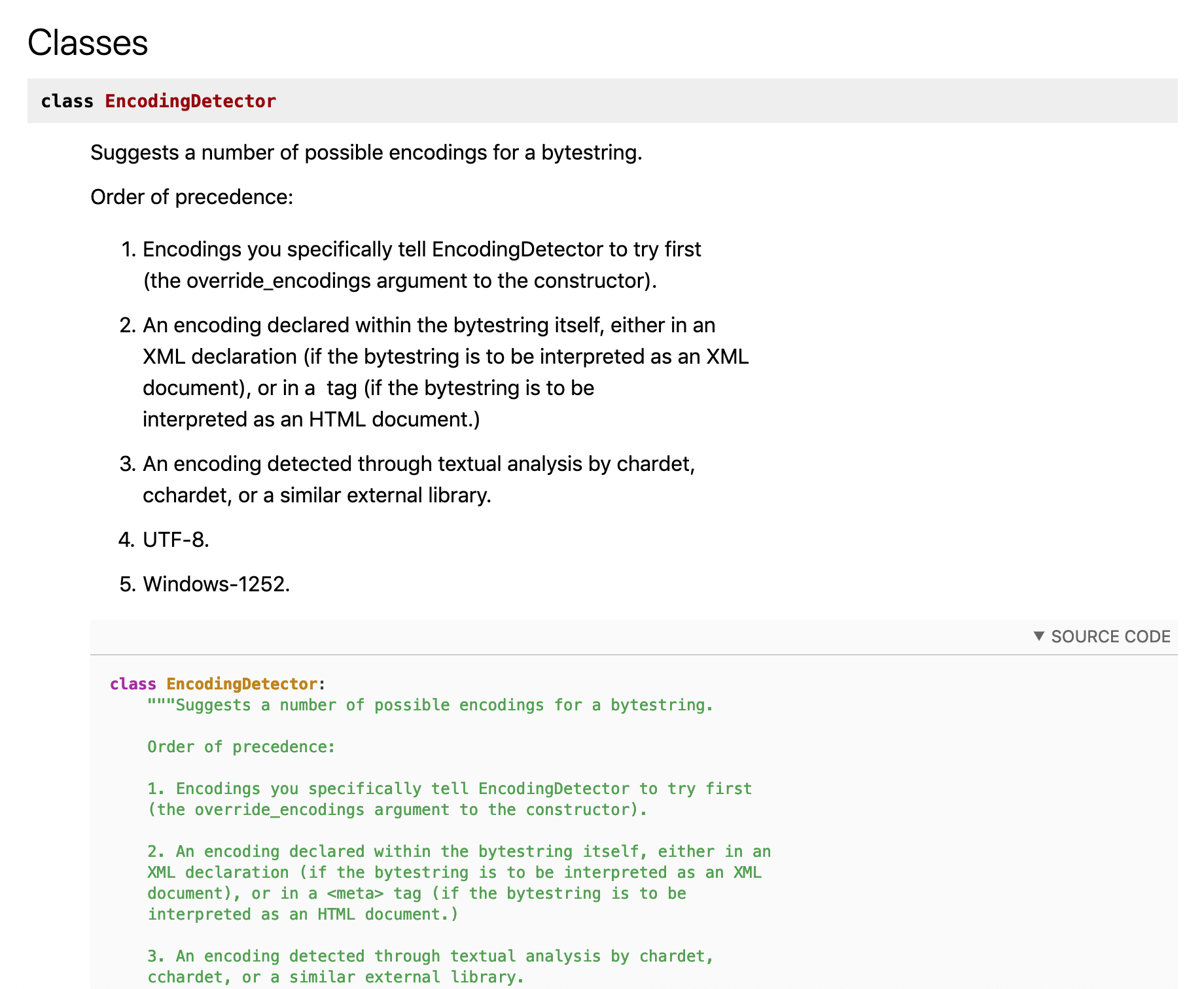

Proposed

screen shot 2019-02-24 at 05 52 14

Current

screen shot 2019-02-24 at 05 58 26

Notes

1,4 - The source code variable and built-ins are more clearly highlighted and the code better fits within the height-limited section

@kernc

This comment has been minimized.

Copy link
Contributor

commented Feb 24, 2019

  1. Implement Atom One Light Highlight.js style (other alternatives could be Foundation, Github Gist, A 11 Y Light, or others from https://highlightjs.org/static/demo/). This directly addresses #34

Bikeshedding. Imho #34 (comment) is a better way to address #34.

  1. Preserve newlines from source code docstrings with white-space: pre-wrap;. At work, we have a compact docstring style where the newlines need to be preserved in the documentation. See discussion from pdoc: pdoc/179#comment. I think keeping the newlines is more consistent with how the comments were written in a text editor, but I'm open to dropping this change

I'd prefer to drop it too. If you need this at work, you can use a custom head.mako file with contents such as:

<style>
  dd p {
    white-space: pre-wrap;
  }
</style>
  1. Highlight the entire click region for SOURCE CODE with the same background color as the hljs style (and add a small amount of padding) (background-color: #fafafa; /* Match HLJS backgd */)

I'm ok with this, but only when the details are expanded (open), i.e. on:

.source details[open] summary { background: ... }
  1. Shrink the code text to 12px so it fits more compactly for easier review

👍

  1. Remove the blue selection box when clicking the SOURCE CODE element (outline: none !important;)

The blue box is compliments of your chosen OS / widget toolkit. For me, the outline is far less conspicuous. See also: http://www.outlinenone.com. You can override CSS without overriding the rest of the HTML template by using the mentioned head.mako file.

@KyleKing KyleKing force-pushed the KyleKing:dev/CSS-Improvements branch 2 times, most recently from d04081a to 26d1a9d Feb 25, 2019

@KyleKing

This comment has been minimized.

Copy link
Contributor Author

commented Feb 25, 2019

Thanks for the feedback. I dropped 2,3,5 and kept 4 (12 px code).
I pushed new changes to support an hljs_stylename in config.mako that keeps github as the default. Let me know if you like that change

Diff: https://github.com/pdoc3/pdoc/pull/38/files

@kernc

kernc approved these changes Feb 25, 2019

Show resolved Hide resolved pdoc/templates/config.mako Outdated
Show resolved Hide resolved pdoc/templates/config.mako Outdated

@kernc kernc changed the title Refac: Atom One Light hljs style & css tweaks ENH: Configurable highlight style Feb 25, 2019

@kernc kernc added this to the 0.6.0 milestone Feb 25, 2019

@KyleKing

This comment has been minimized.

Copy link
Contributor Author

commented Feb 25, 2019

I made the changes!

@kernc

This comment has been minimized.

Copy link
Contributor

commented Feb 25, 2019

Thanks!

@kernc kernc merged commit 5c3c8b1 into pdoc3:master Feb 25, 2019

1 check passed

continuous-integration/travis-ci/pr The Travis CI build passed
Details

@KyleKing KyleKing deleted the KyleKing:dev/CSS-Improvements branch Feb 26, 2019

@kernc kernc modified the milestones: 0.6.0, 0.5.3 Mar 5, 2019
