Latitude and Longitudes swap for geometries when SRID is present in edit mode #16326

Closed
shucon opened this issue Aug 30, 2020 · 6 comments · Fixed by #16391
Closed

Latitude and Longitudes swap for geometries when SRID is present in edit mode #16326

shucon opened this issue Aug 30, 2020 · 6 comments · Fixed by #16391
Assignees
@williamdes
Labels
Bug A problem or regression with an existing feature has-pr An issue that has a pull request pending that may fix this issue. The pull request may be incomplete
Projects
issues
Milestone
5.0.4

Comments

@shucon
Copy link
Contributor

shucon commented Aug 30, 2020 •
edited by williamdes

Describe the bug

Latitude and Longitudes switch for geometries when SRID is present

To Reproduce

Steps to reproduce the behavior:

  1. Go to workd_borders table
  2. Visualize the GIS data to visit see any country
  3. Notice it's latitudes and longitudes
  4. Now go to edit menu to edit the geometry of the country.
  5. The Latitudes and Longitudes are swapped and the country would be in a different place (if the latitude and longitude range is still valid.Eg: Aruba)

Expected behavior

Latitude and Longitudes should be consistent

Screenshots

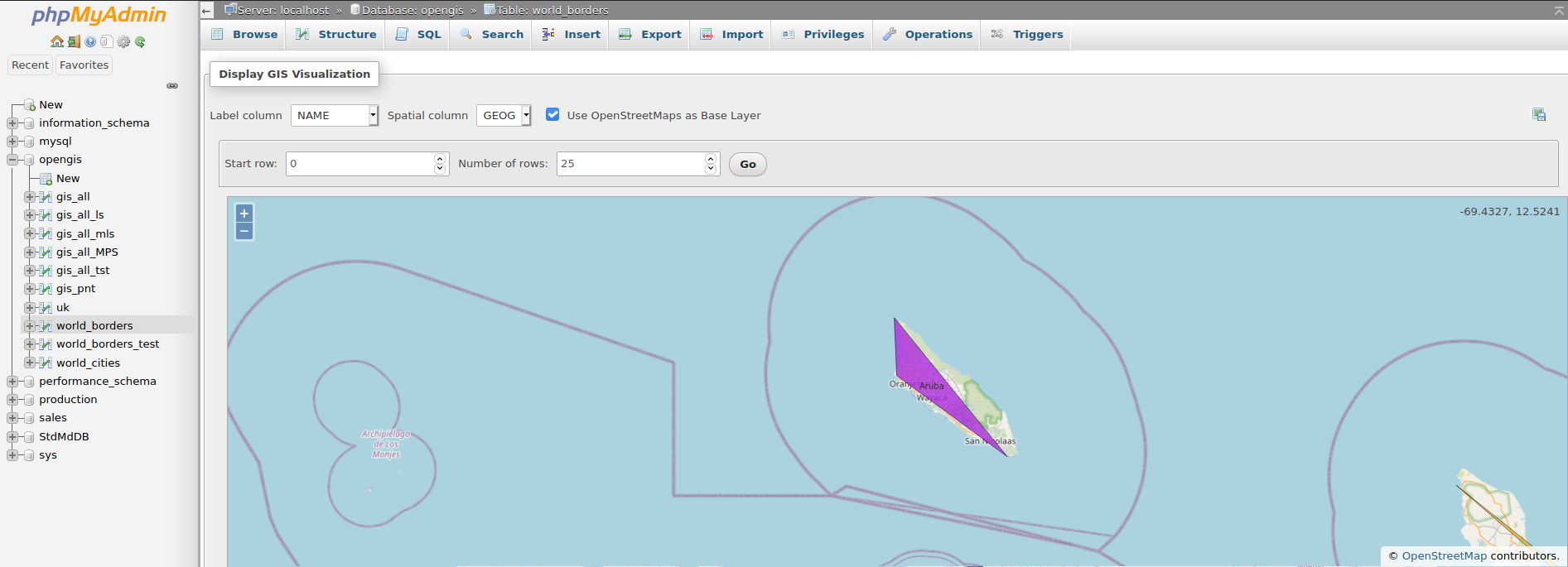

Screenshot from 2020-08-31 00-13-28

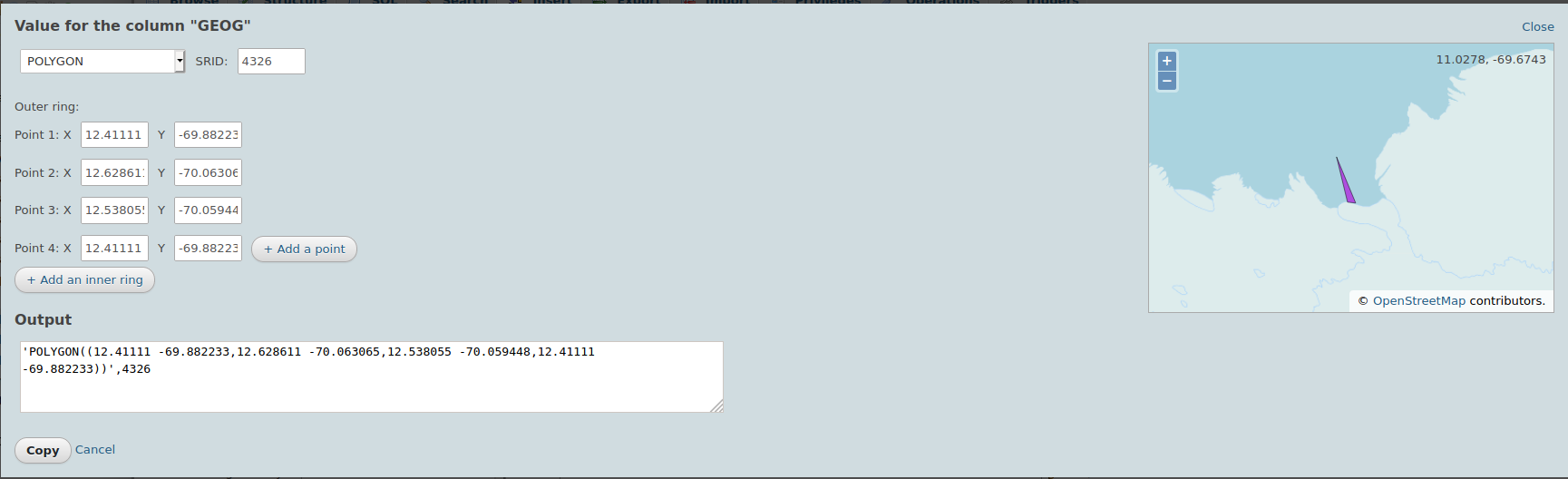

Screenshot from 2020-08-31 00-14-26

Server configuration

-Operating system: Ubuntu 20.04
-Web server: Apache
-Database version: libmysql - mysqlnd 7.4.3
-PHP version: 7.4.3
-phpMyAdmin version: 5.0, master
@williamdes
Copy link
Member

Affects 4.9->master ?

@williamdes williamdes added the Bug A problem or regression with an existing feature label Sep 2, 2020
@shucon
Copy link
Contributor Author

shucon commented Sep 2, 2020

In 4.9 the lat and long are swapped for both visualising modes. Does that need to be another issue?

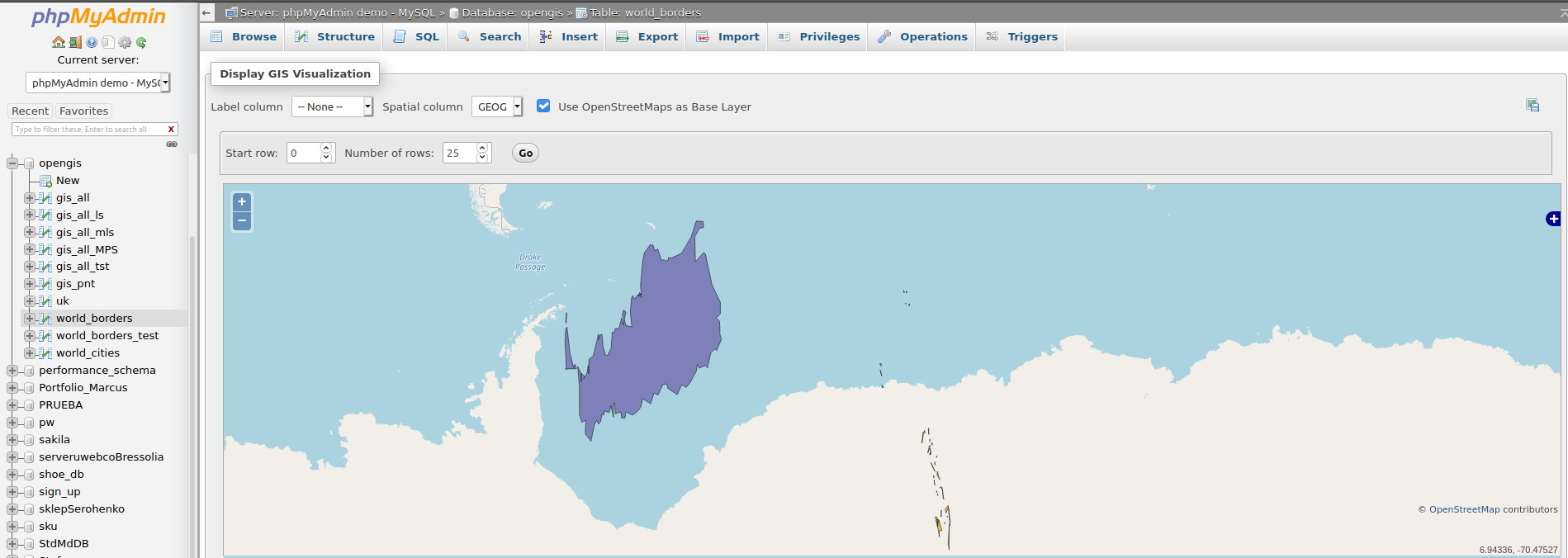

Screenshot from 2020-09-02 13-15-42

@williamdes
Copy link
Member

In 4.9 the lat and long are swapped for both visualising modes. Does that need to be another issue?
Screenshot from 2020-09-02 13-15-42

No because 4.9 will only receive security fixes :)
If 5.0 demo is affected you can create an issue

What I want to know is if this issue also affects 5.0 because you only filled "master"

@shucon
Copy link
Contributor Author

shucon commented Sep 2, 2020 •
edited

Oh! my bad. Yes, it affects 5.0 as well only in the edit mode.

@williamdes williamdes added this to Needs triage in issues via automation Sep 2, 2020
@shucon
Copy link
Contributor Author

shucon commented Oct 8, 2020

Starting to work on this.

shucon added a commit to shucon/phpmyadmin that referenced this issue Oct 8, 2020
@shucon
Fix Latitude and Longitudes swap
7c6a1ef
Fixes: phpmyadmin#16326
@shucon
Copy link
Contributor Author

shucon commented Oct 8, 2020

Seems like the default way to return geometry is swapped and thus needs to be specifically mentioned.
See: https://social.msdn.microsoft.com/Forums/sqlserver/en-US/41250c42-25e6-4de7-953e-a6c41ada383f/xy-coords-reversed-in-wkt-amp-wkb-methods-in-nov-ctp?forum=sqlspatial

@shucon shucon mentioned this issue Oct 8, 2020
Merged
6 tasks
@williamdes williamdes added the has-pr An issue that has a pull request pending that may fix this issue. The pull request may be incomplete label Oct 10, 2020
shucon added a commit to shucon/phpmyadmin that referenced this issue Oct 12, 2020
@shucon
Fix Latitude and Longitudes swap
606af7e
Fixes: phpmyadmin#16326
williamdes added a commit that referenced this issue Oct 12, 2020
@williamdes
#16326 - Add tests for Util::asWKT
0f0dc09
Signed-off-by: William Desportes <williamdes@wdes.fr>
shucon added a commit to shucon/phpmyadmin that referenced this issue Oct 12, 2020
@shucon
Squashed commit of the following:
6b9b0a1
commit 25e2cea
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Mon Oct 12 12:57:12 2020 +0530

    Fix lint

    Signed-off-by: Saksham Gupta <shucon01@gmail.com>

commit 906013a
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Mon Oct 12 12:44:18 2020 +0530

    Conditional axisOrder

    Signed-off-by: Saksham Gupta <shucon01@gmail.com>

commit 606af7e
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Fri Oct 9 00:45:42 2020 +0530

    Fix Latitude and Longitudes swap
    Fixes: phpmyadmin#16326
shucon added a commit to shucon/phpmyadmin that referenced this issue Oct 12, 2020
@shucon
Squashed commit of the following:
1d1da87
commit 25e2cea
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Mon Oct 12 12:57:12 2020 +0530

    Fix lint

    Signed-off-by: Saksham Gupta <shucon01@gmail.com>

commit 906013a
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Mon Oct 12 12:44:18 2020 +0530

    Conditional axisOrder

    Signed-off-by: Saksham Gupta <shucon01@gmail.com>

commit 606af7e
Author: Saksham Gupta <shucon01@gmail.com>
Date:   Fri Oct 9 00:45:42 2020 +0530

    Fix Latitude and Longitudes swap
    Fixes: phpmyadmin#16326
@williamdes williamdes added this to the 5.0.4 milestone Oct 12, 2020
@williamdes williamdes self-assigned this Oct 12, 2020
williamdes added a commit that referenced this issue Oct 13, 2020
@williamdes
Merge #16391 - Fix #16326 - Latitude and Longitudes swap for geometri…
711095d
…es in edit mode

Fixes: #16326
Pull-request: #16391

Signed-off-by: William Desportes <williamdes@wdes.fr>
williamdes added a commit that referenced this issue Oct 13, 2020
@williamdes
Add a ChangeLog entry for #16326
55f493d
Signed-off-by: William Desportes <williamdes@wdes.fr>
issues automation moved this from Needs triage to Closed Oct 13, 2020
@github-actions github-actions bot locked as resolved and limited conversation to collaborators Oct 14, 2021
