Regression: range vector queries report samples multiple times

[EdSchouten]

What did you do? / What did you expect to see?
Set up Prometheus with the SNMP exporter. Ran the following query through the web interface:

ifInUcastPkts{ifIndex="10648"}[2h]

Got the following results:

3548205210 @1508765401.244
3548946632 @1508765701.244
3549646577 @1508766001.266
3550396212 @1508766301.268
3551081575 @1508766601.367
3551730505 @1508766901.244
3552413802 @1508767201.244
3553181994 @1508767501.244
3554009421 @1508767801.254
3554675942 @1508768101.244
3555286317 @1508768401.244
3555922170 @1508768701.244
3556718950 @1508769001.244
3547556798 @1508765101.244
3548205210 @1508765401.244
3548946632 @1508765701.244
3549646577 @1508766001.266
3550396212 @1508766301.268
3551081575 @1508766601.367
3551730505 @1508766901.244
3552413802 @1508767201.244
3553181994 @1508767501.244
3554009421 @1508767801.254
3554675942 @1508768101.244
3555286317 @1508768401.244
3555922170 @1508768701.244
3556718950 @1508769001.244
3557449169 @1508769301.244

Notice that there are only 15 unique entries in the output; some of them are duplicated. I would have expected this to return

3547556798 @1508765101.244
3548205210 @1508765401.244
3548946632 @1508765701.244
3549646577 @1508766001.266
3550396212 @1508766301.268
3551081575 @1508766601.367
3551730505 @1508766901.244
3552413802 @1508767201.244
3553181994 @1508767501.244
3554009421 @1508767801.254
3554675942 @1508768101.244
3555286317 @1508768401.244
3555922170 @1508768701.244
3556718950 @1508769001.244
3557449169 @1508769301.244

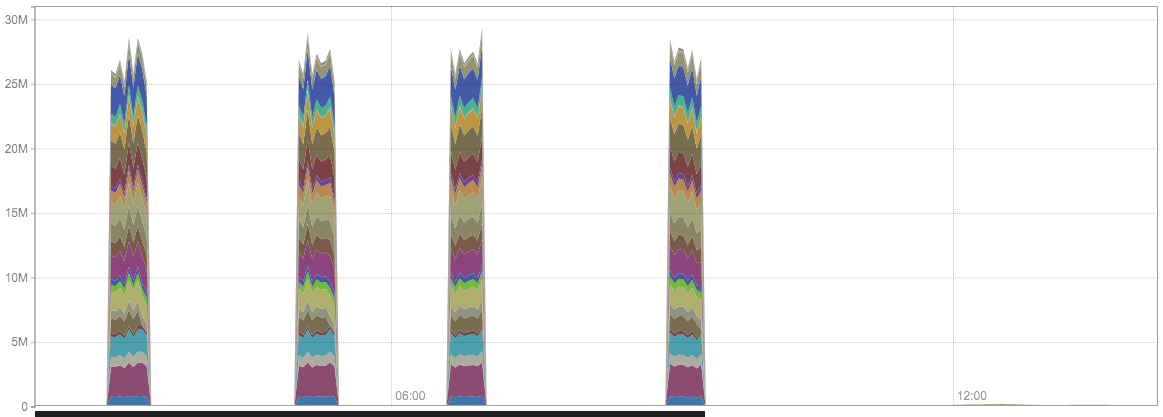

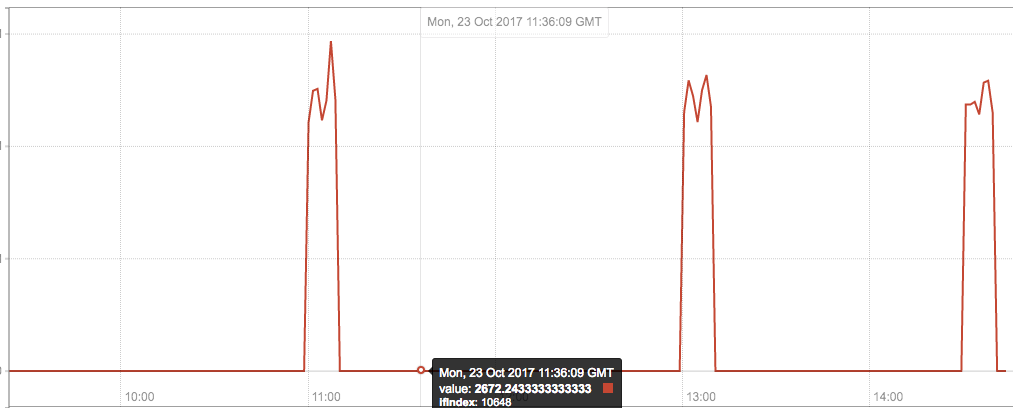

At the same time, I notice that more elaborate queries like rate(ifInUcastPkts{ifIndex="10648"}[30h]) don't work as expected. Every couple of hours, we see a huge jump in the graph that shouldn't be there:

If I do the math by hand on the raw sample data, it should be a relatively flat graph with a value of ~2000; not peaks of millions.

Environment

• System information:

Linux 3.16.0-4-amd64 x86_64

• Prometheus version:

The official Prometheus 2.0.0-rc.1 Docker image.

[fabxc]

Can you reproduce this across all metrics or just a few selected ones?

[EdSchouten]

(Hi Fabian! Thanks for your awesome work on the new storage backend!)

It seems I can reproduce this across all metrics; even implicit ones like up.

[fabxc]

Okay thanks, looks like I can reproduce it. By first intuition this may be the reason for the spike artefact you are seeing. But I cannot reproduce this equally right away.

[fabxc]

So for me it seems the repeated samples when doing a simple range query only happens once, i.e. if you do it over longer and longer periods of time, there's always the fixed same amount of lines at the beginning being duplicated.

Can you confirm that behavior?

Also, do I see it correctly that your scrape interval is 5 minutes? This is kind of a threshold number for scraping. Just for debugging purposes, could you reduce it to at most 2 minutes and check if the spiking behavior in the rate() queries remain (for the newly collected data)?

[EdSchouten]

So for me it seems the repeated samples when doing a simple range query only happens once, i.e. if you do it over longer and longer periods of time, there's always the fixed same amount of lines at the beginning being duplicated.

Can you confirm that behavior?

Yes, that seems to be the case exactly!

Also, do I see it correctly that your scrape interval is 5 minutes?

That's correct.

This is kind of a threshold number for scraping. Just for debugging purposes, could you reduce it to at most 2 minutes and check if the spiking behavior in the rate() queries remain (for the newly collected data)?

I'll give that a try first thing tomorrow morning, leave it running throughout the day and report back to you at the end of the day.

[EdSchouten]

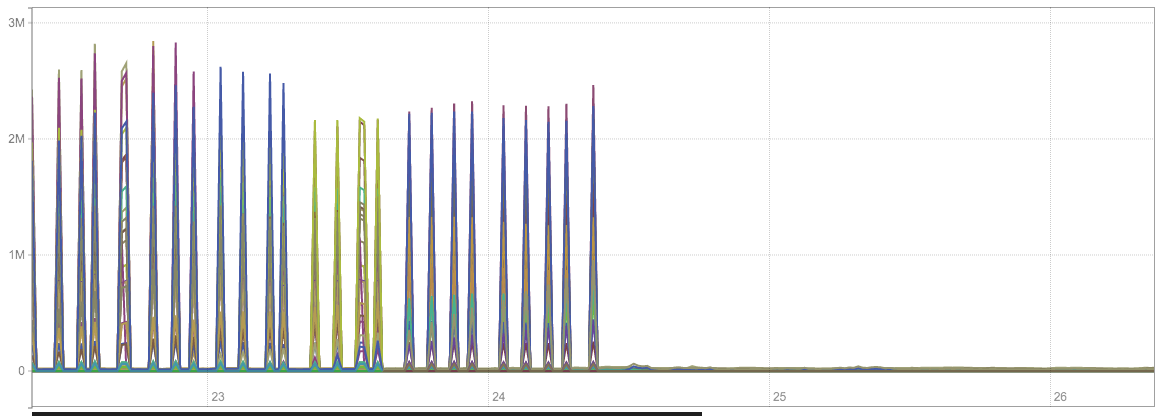

It looks like switching to a two minute scraping interval worked around the issue:

[EdSchouten]

Upgraded to RC2 this morning and set the scraping interval back to five minutes. No anomalies so far. I think it's safe to close this issue. Fabian, thanks for solving this so quickly!

[lock]

This thread has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.
