Prometheus Not getting scraped data from snmp_exporter

[Passpes]

What did you do?
I'm monitoring my snmp device using snmp_exporter

What did you expect to see?
Endpoint up

What did you see instead? Under which circumstances?
Endpoint down

Environment

• System information:

Linux 4.10.0-38-generic x86_64

• Prometheus version:

prometheus, version 2.0.0

• Prometheus configuration file:

# my global config
global:
  scrape_interval:     60s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 60s # Evaluate rules every 15 seconds. The default is every 1 minute.
#  scrape_timeout: 25s
# scrape_timeout is set to the global default (10s).

# Alertmanager configuration
      # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  - job_name: 'snmp'
    metrics_path: /snmp
    params:
      module: [if_mib]
    static_configs:
      - targets: ['10.104.x.x']
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.x.x:9116  # SNMP exporter.

• snmpwalk:

snmpwalk -v2c -c public 10.104.x.x SNMPv2-MIB::sysDescr.0
SNMPv2-MIB::sysDescr.0 = STRING: Juniper Networks, Inc. ex2200-24t-4g Ethernet Switch, kernel JUNOS 12.3R9.4, Build date: 2015-02-12 11:18:43 UTC Copyright (c) 1996-2015 Juniper Networks, Inc.

• snmp.yml

[snmp.yml.txt](https://github.com/prometheus/prometheus/files/1518011/snmp.yml.txt)

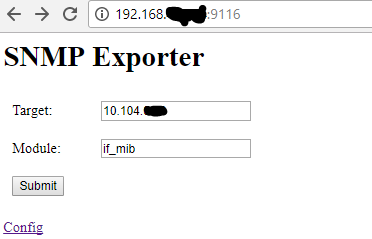

So when I use the SNMP_exporter in the browser I get the juniper_snmp scraped data below:

• Juniper_snmp scraped data

[Juniper_scraped_data.txt](https://github.com/prometheus/prometheus/files/1518012/Juniper_scraped_data.txt)

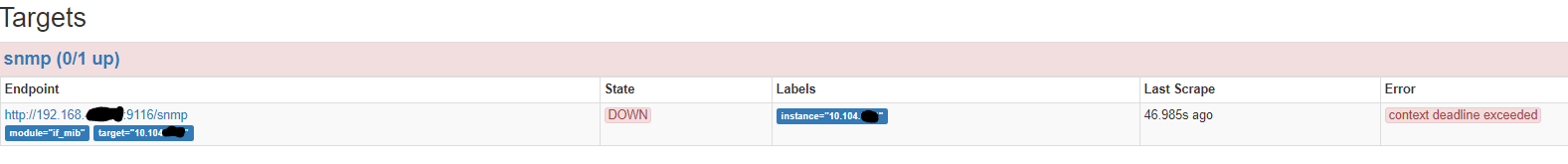

but with Prometheus target here's the output:

so Prometheus is not getting the metric data even though they are available using the snmp_exporter submit button manually, something is wrong here with Prometheus, any clue?

[brian-brazil]

It makes more sense to ask questions like this on the prometheus-users mailing list rather than in a GitHub issue. On the mailing list, more people are available to potentially respond to your question, and the whole community can benefit from the answers provided.

SNMP is slow, increase the timeout.

[Passpes]

It's working , just added scrape_timeout: 1m (/)
