Storage slow down within 2h range

[pborzenkov]

What did you do?
I have a Prometheus instance that's configured to federate a lot of metrics from 2 other instances (~190000 samples each). I know that this isn't a way federation is supposed to be used, but still I want to share the behaviour I observe.

What did you expect to see?
scrape_duration_seconds doesn't change considerably with time

What did you see instead? Under which circumstances?

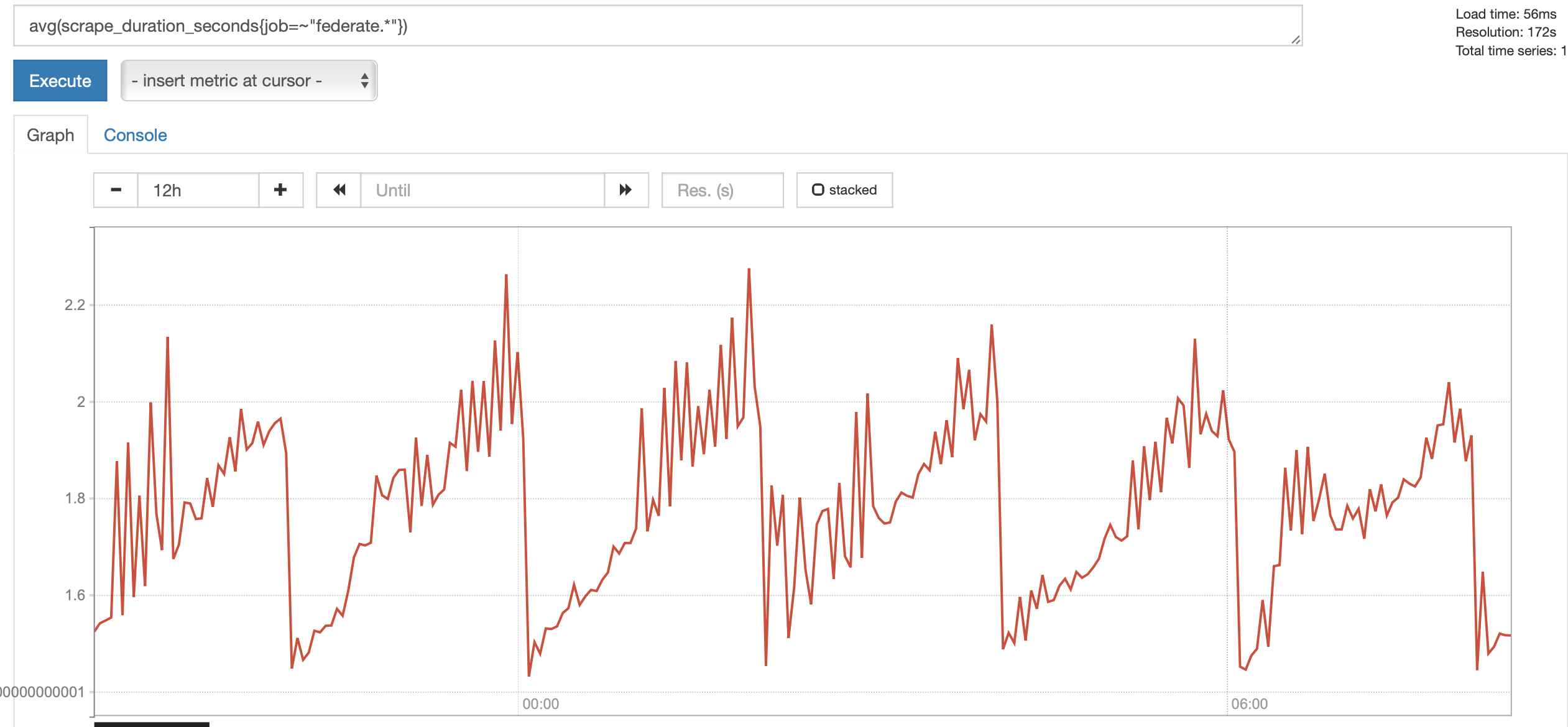

I see scrape_duration_seconds increases gradually within 2h window and then drops to the original value (obviously, after new TSDB block is started). See attached screenshot.

Environment

• System information:
  Linux 4.13.0-17-generic x86_64

• Prometheus version:
  prometheus, version 2.0.0 (branch: HEAD, revision: 0a74f98)
  build user: root@615b82cb36b6
  build date: 20171108-07:11:59
  go version: go1.9.2

# vim: set shiftwidth=2 tabstop=2 expandtab:

global:
  scrape_interval: 30s
  scrape_timeout: 20s
  evaluation_interval: 30s

rule_files:
  - '/etc/prometheus/config/*.rules'

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
      - targets: ['127.0.0.1:9090']

  - job_name: 'federate'
    honor_labels: true
    metrics_path: '/federate'

    params:
      'match[]':
        - '{__name__=~"[a-zA-Z].*"}'

    static_configs:
      - targets:
        - '<redacted>'
        - '<redacted>'

alerting:
  alertmanagers:
    - scheme: http
      static_configs:
        - targets:
          - "<redacted>"

Is this an expected behaviour? A set of metrics doesn't change with time, so I expected TSDB to perform equally well regardless of the actual file size. If this is an expected behaviour, please just close the issue and sorry for the noise.

[gouthamve]

Is it possible that there is a lot of churn involved in the Prometheus being scraped? If yes, then this is expected behavior, else this is not expected.

[pborzenkov]

@gouthamve No. Both Prometheus have static setups (they use consul for SD, but a set of services is mostly static and they rarely restart).

We have some metrics where new label values may appear over time (different error values), but they stabilise within several hours/a day after a service restarts . Yet such slowdown continue to be visible even with completely static set of time series (after all service instances have been running for a long time w/o restart).

[brian-brazil]

Can you share a snapshot of the benchmark dashboard for this Prometheus? https://grafana.com/dashboards/3834

[pborzenkov]

Sure. Here is the snapshot:

https://snapshot.raintank.io/dashboard/snapshot/SSf8lrDSf9olUTlJWncACKnso8Ja17nO?orgId=2

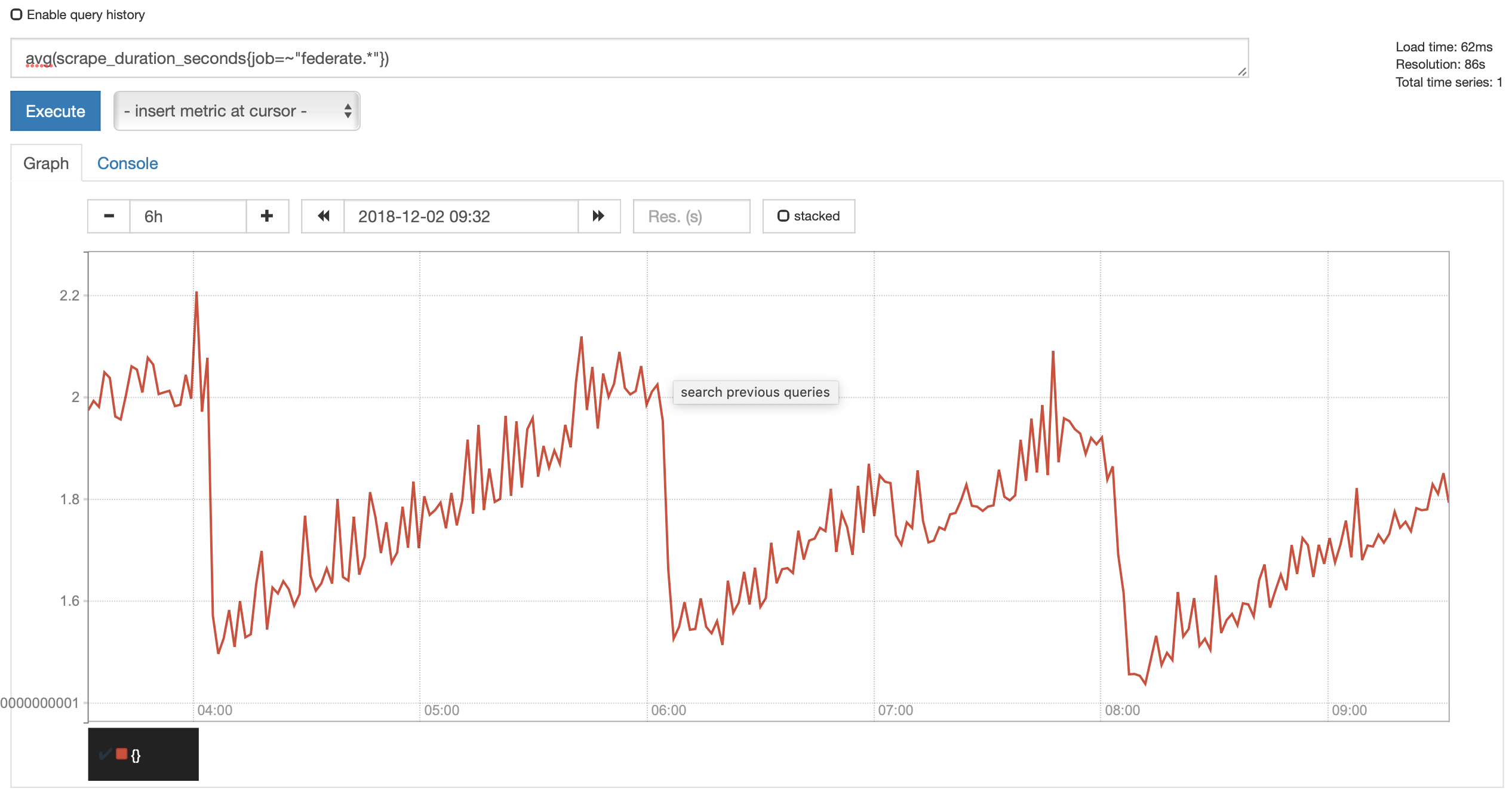

JFYI, since the bug was filed we've started to federate a lot more data (more Prometheus instances and more metrics from each one of them) and started to hit scrape timeouts on some targets. So I've split federation from each Prometheus into several jobs (one per job='' label) and the problem is not that clearly visible anymore when looking at individual scrape_duration_seconds metrics. But the sum of them clearly shows the pattern:

[brian-brazil]

This is an abuse of federation, however given you've ~no churn the time federation takes should be constant as you're looking at the latest chunk of every series.

[krasi-georgiev]

this looks stale and we haven't had any other reports for such degradation so looks like some configuration issue..
@pborzenkov feel free to reopen if you want to continue troubleshooting this.

[pborzenkov]

@krasi-georgiev It still reproduces, but it doesn't affect our Prometheus setup in any way. I just thought it might be something worth investigating.

[krasi-georgiev]

@pborzenkov thanks for the update. Can you confirm that you have no churn as Brian suggested?

[krasi-georgiev]

also might be worth pinging me on IRC to speed up the troubleshooting.
#prometheus-dev

[pborzenkov]

@pborzenkov thanks for the update. Can you confirm that you have no churn as Brian suggested?

We have no churn. We have some metrics where new label values might appear over time, but usually the process stabilises after several hours and the set of time series stays constant until a service restarts. The restarts are quite rare.

Here is the "Prometheus benchmark" dashboard snapshot for the same time period (Grafana is GMT+3).

https://snapshot.raintank.io/dashboard/snapshot/XaSMZMpeIoBSVCV2gzlHO7DX8IzanwrW?orgId=2

[pborzenkov]

also might be worth pinging me on IRC to speed up the troubleshooting.
#prometheus-dev

Sure, will do.

[krasi-georgiev]

There were quite a few fixes in tsdb and Prometheus the recent weeks and although I can't think of anything related to what you are seeing here it might be worth trying master to see if it experiences the same behaviour.

[brian-brazil]

Yes, I'm wondering if prometheus/tsdb@d2aa6ff fixes this.

[pborzenkov]

@krasi-georgiev @brian-brazil

We are currently running 2.4.2. I'll update our main setup to 2.5 (it doesn't include
prometheus/tsdb@d2aa6ff, but it's time to update anyway) and if nothing changes will bring up a new Prometheus instance from master branch on a separate machine.

BTW, can this issue be affected by the source Prometheus instances? I believe they might be quite old (2.2 or 2.3, will check later).

[krasi-georgiev]

I think only the last node(the federated one in your case) can delay the scrapes.

[pborzenkov]

I've been running 'prometheus-2.6.0-rc.0' on a fresh DB with the same config as our main setup for the past day and it shows the very same scrape slowdown within 2h window:

@krasi-georgiev I'll ping you on IRC a bit later if you are still interested.

[krasi-georgiev]

ok , I am working on few other PRs right now, but ping me on IRC in few days and will continue the troubleshooting.

[krasi-georgiev]

@pborzenkov can you test this with the 2.7 release and if still an issue please ping me on IRC so I can try to replicate and than search for the culprit.

[krasi-georgiev]

@pborzenkov have you had a chance to test it with the latest release?

[pborzenkov]

@krasi-georgiev We haven't updated all of our DCs to the latest Prometheus release yet, but the ones that have been updated to 2.7.1 don't experience any noticeable slowdown within 2h window anymore.

So, I assume, the issue can be closed now. Thanks for you help!

[krasi-georgiev]

np, thanks for the update!
