increase(...) appears to treat discontinuity as 0-value (leading to larger than expected increase)

[jamesblackburn]

What did you do?

Attempted to use increase to see change in a value over a 24h period.

What did you expect to see?

In the data we see a large jump in increase which seems to correlate with a missed scrape for the service endpoint.

Observed data:

What did you see instead? Under which circumstances?

Large increase observed around the discontinuity.

Environment

• System information:

  insert output of uname -srm here

jblackburn@dlonapahls91:~$ uname -srm
Linux 3.10.0-693.2.2.el7.x86_64 x86_64

• Prometheus version:

[root@a52004ff3fe8 /]# /usr/bin/prometheus --version
prometheus, version 2.1.0 (branch: HEAD, revision: 85f23d82a045d103ea7f3c89a91fba4a93e6367a)
  build user:       root@6e784304d3ff
  build date:       20180119-12:01:23
  go version:       go1.9.2

[brian-brazil]

That looks like the effect of a counter going backwards. Can you share the raw data of one of those time series around that time?

[jamesblackburn]

Hi -

Taking one of the metrics:
Raw Data

message_count{instance=~"1.*", env="prod", service="RSF", partition="14"}

http://prometheus.dev.ahl:9090/api/v1/query_range?query=message_count%7Binstance%3D~%221.*%22%2C%20env%3D%22prod%22%2C%20service%3D%22RSF%22%2C%20partition%3D%2214%22%7D&start=1518020340&end=1518034740&step=57&_=1518780931424
query1data.txt

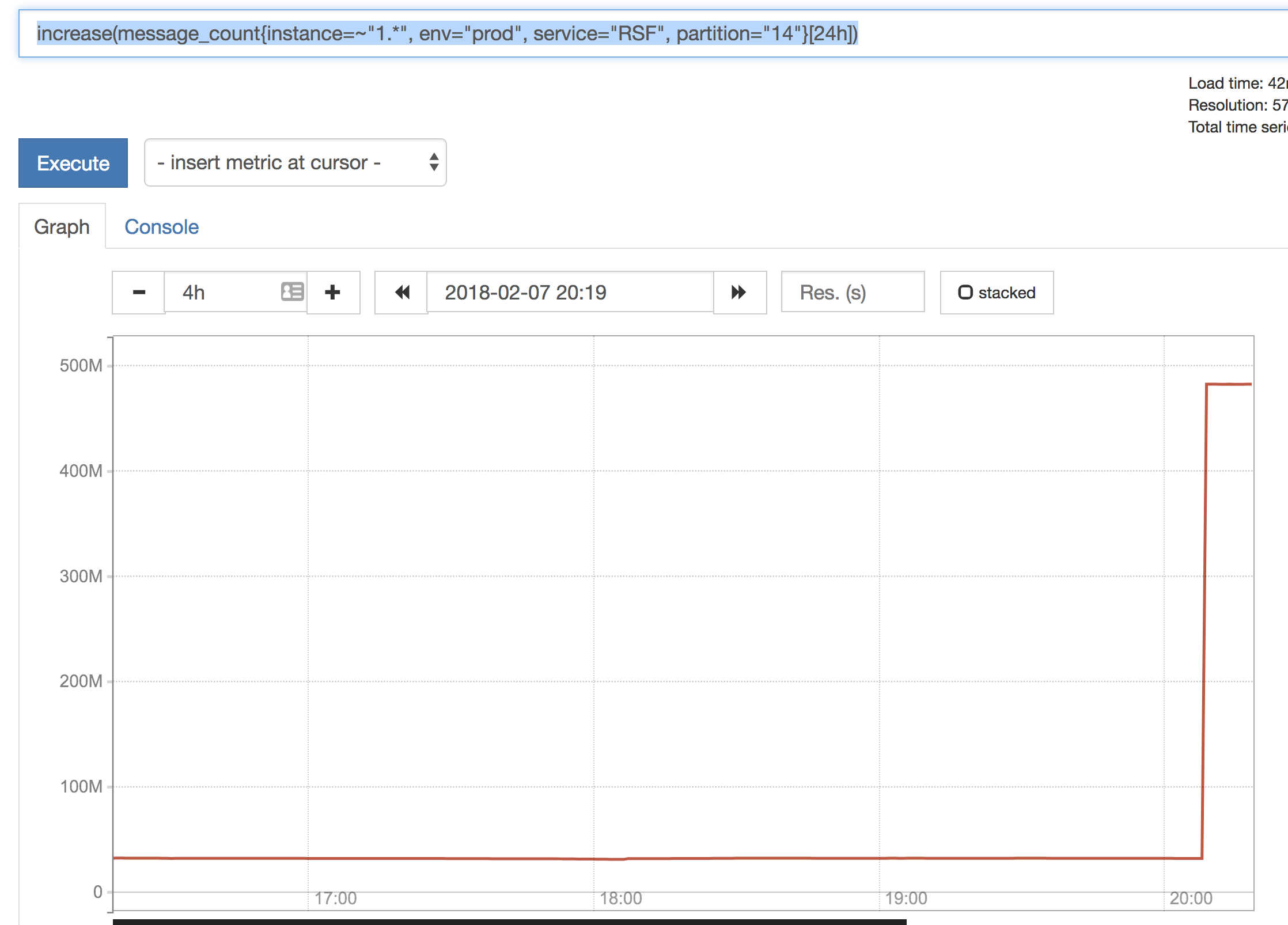

Increase

increase(message_count{instance=~"1.*", env="prod", service="RSF", partition="14"}[24h])

http://prometheus.dev.ahl:9090/api/v1/query_range?query=increase(message_count%7Binstance%3D~%221.*%22%2C%20env%3D%22prod%22%2C%20service%3D%22RSF%22%2C%20partition%3D%2214%22%7D%5B24h%5D)&start=1518020340&end=1518034740&step=57&_=1518780931425
increasedata.txt

There's a jump between these two timesteps in increase:

[1518034077,"32034316.86392156"],
[1518034134,"482297848.49101365"]

But there is no similar jump in the data.

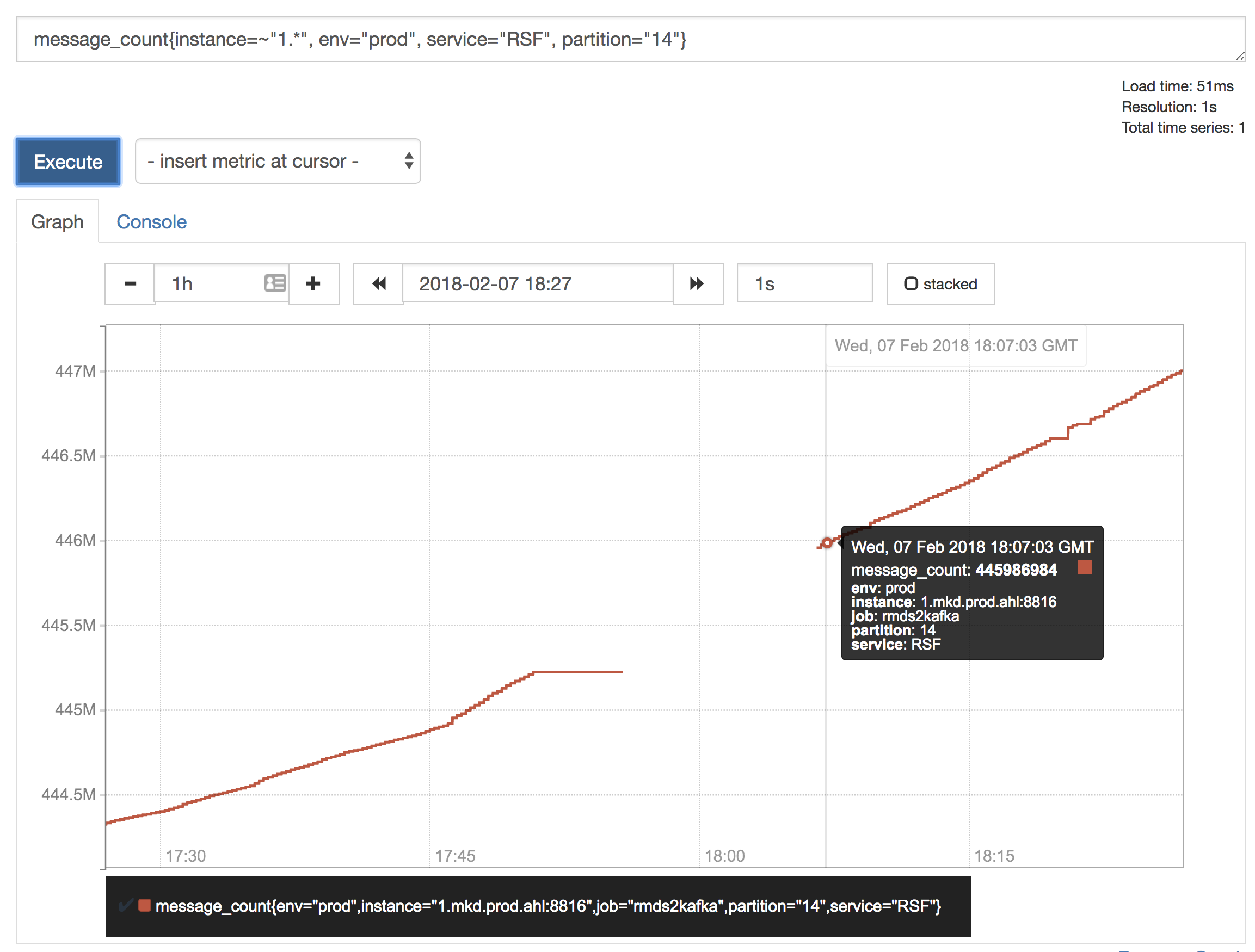

Even if I query the data at 1s precision, I don't see anything untoward in the data:

query1s.txt

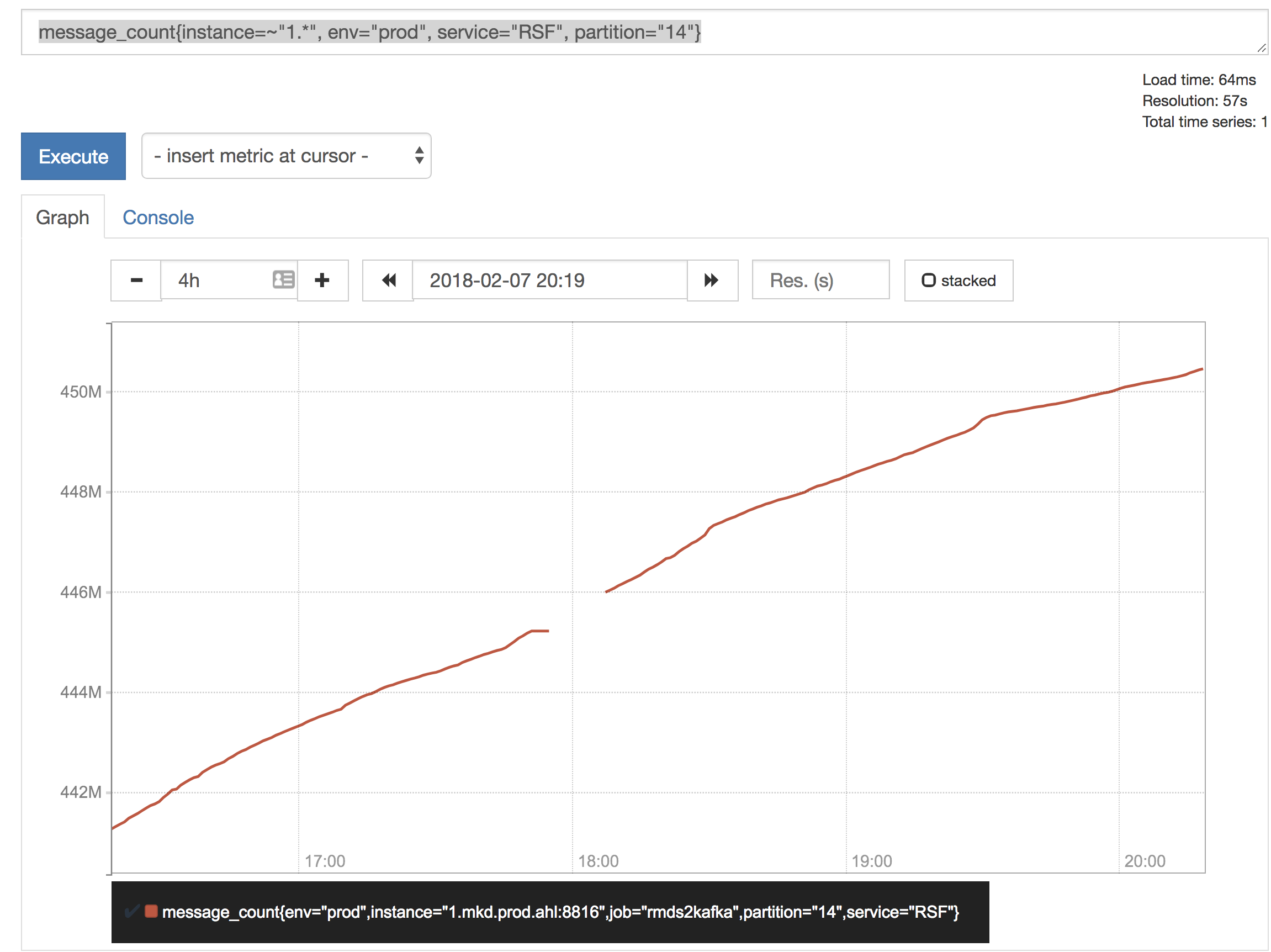

other than a discontinuity -

[1518026146,"445224004"],
[1518026147,"445224004"],
[1518026793,"445957884"],
[1518026794,"445957884"],

[jamesblackburn]

There are two other things that may be interesting / relevant:

• there is a counter reset ~27 hours later, which appears to be correctly handled by increase
• there are other scrape gaps, which appear to be correctly handled

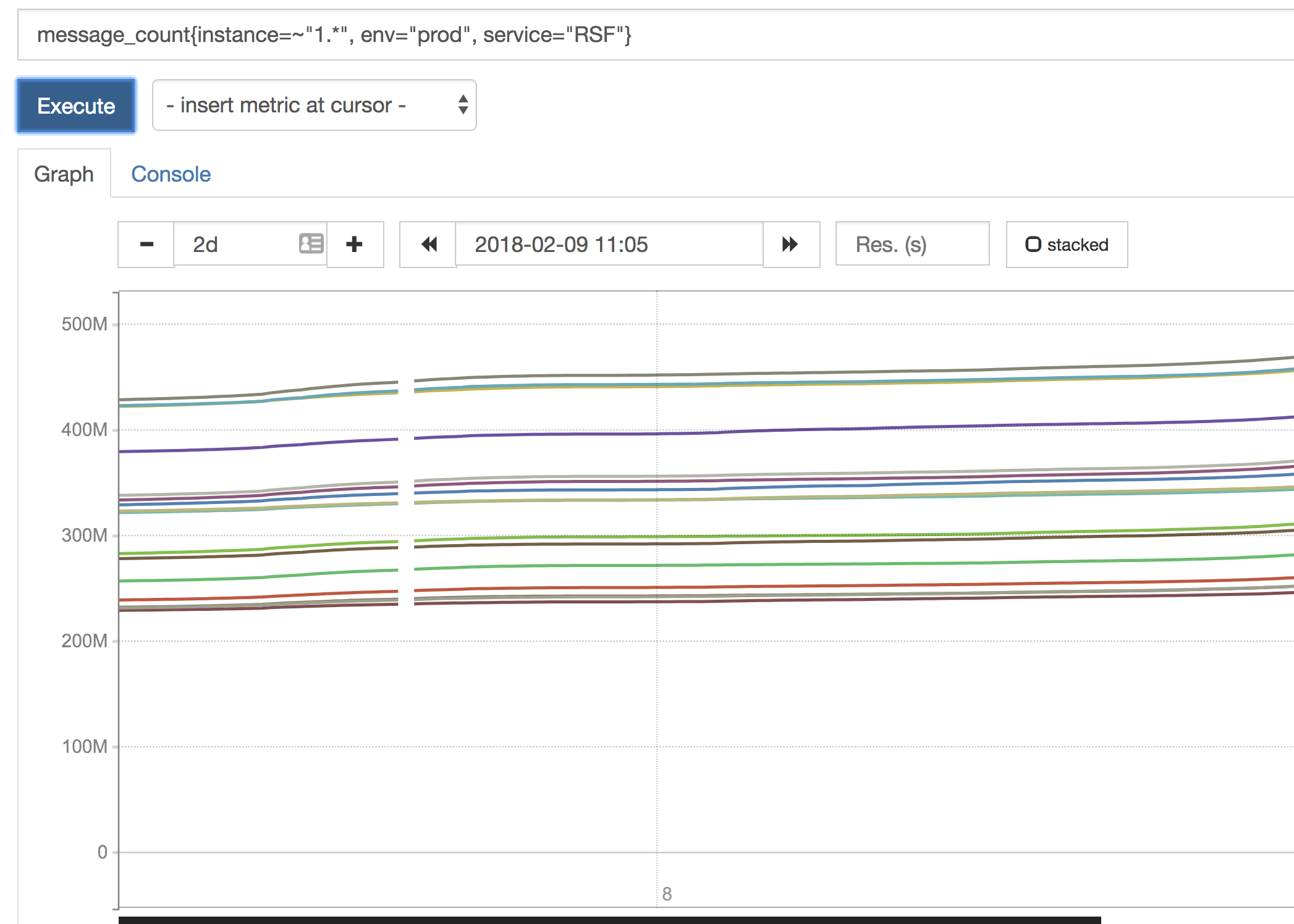

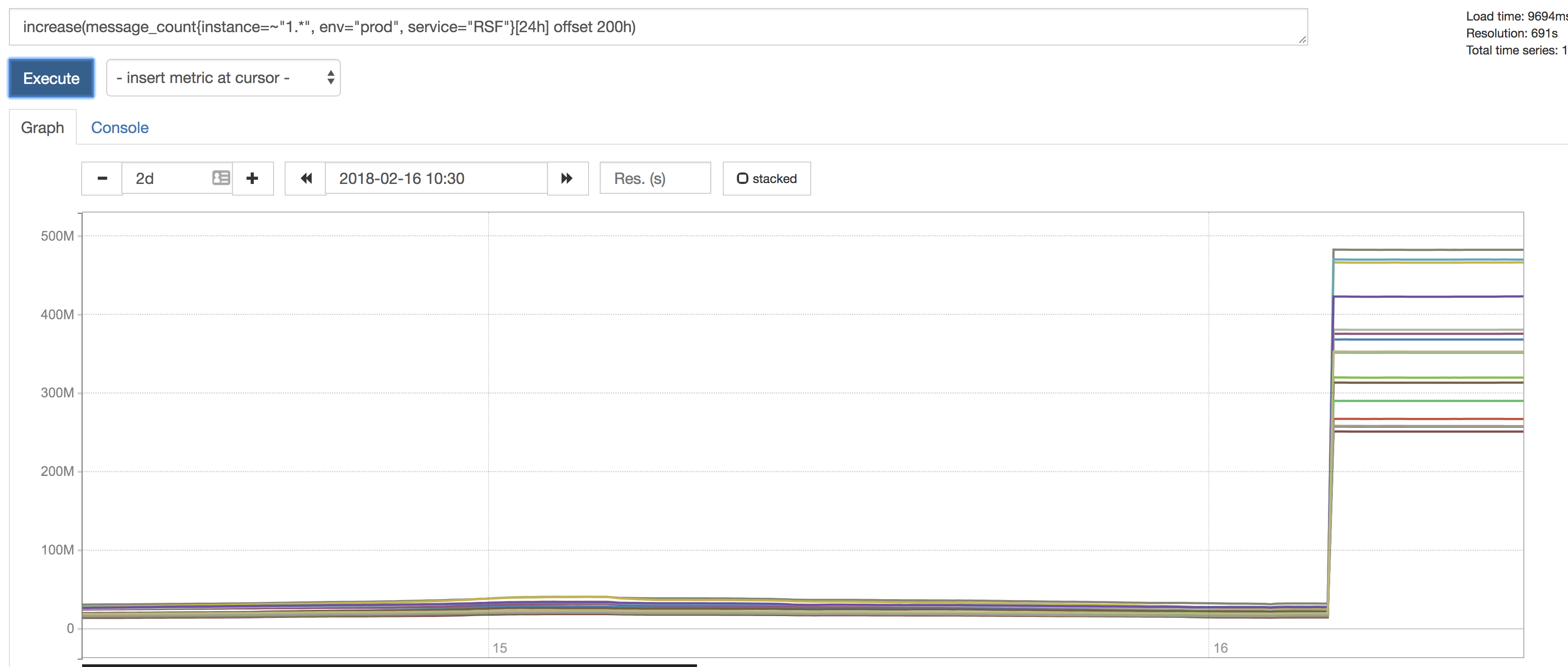

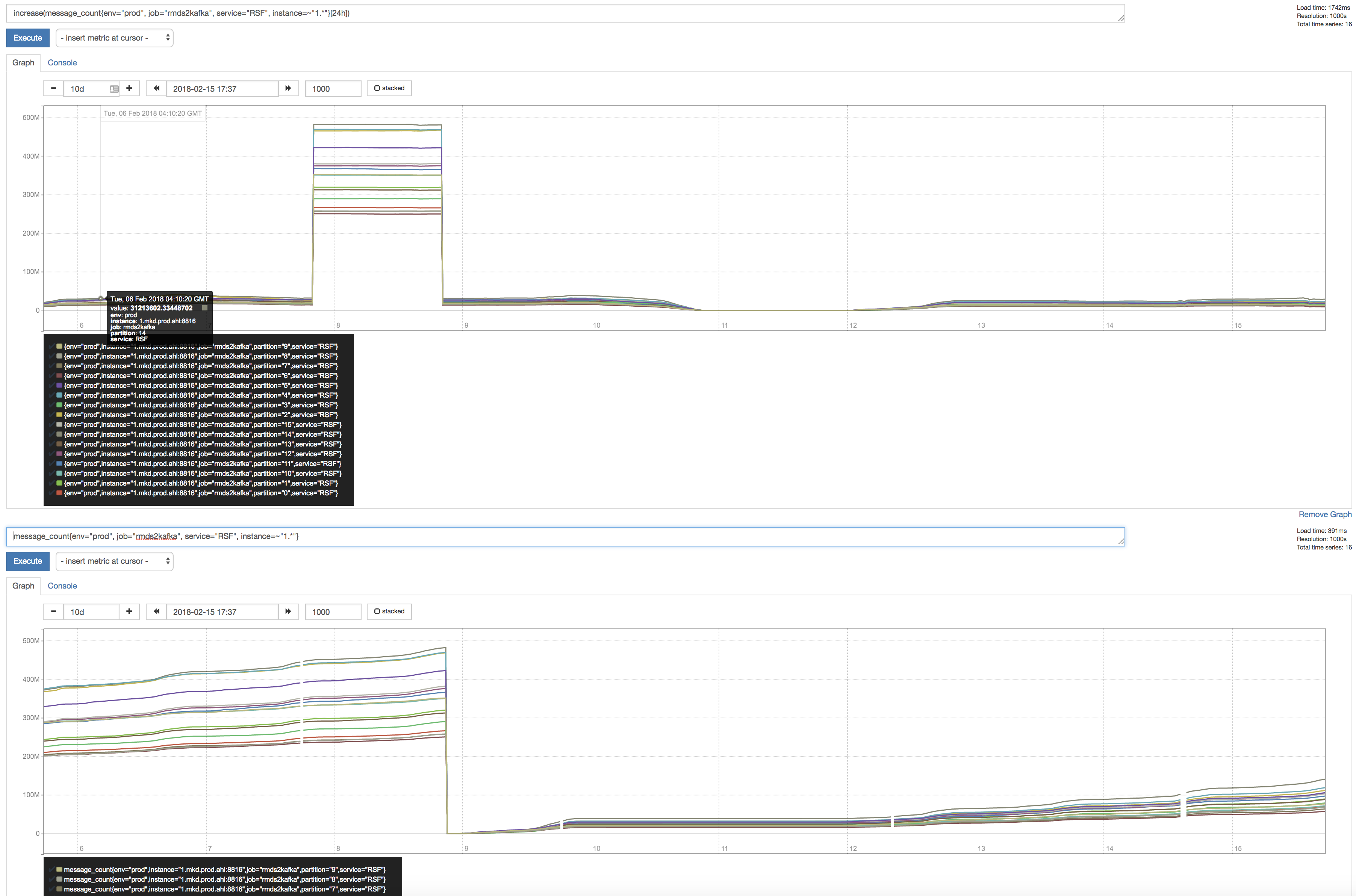

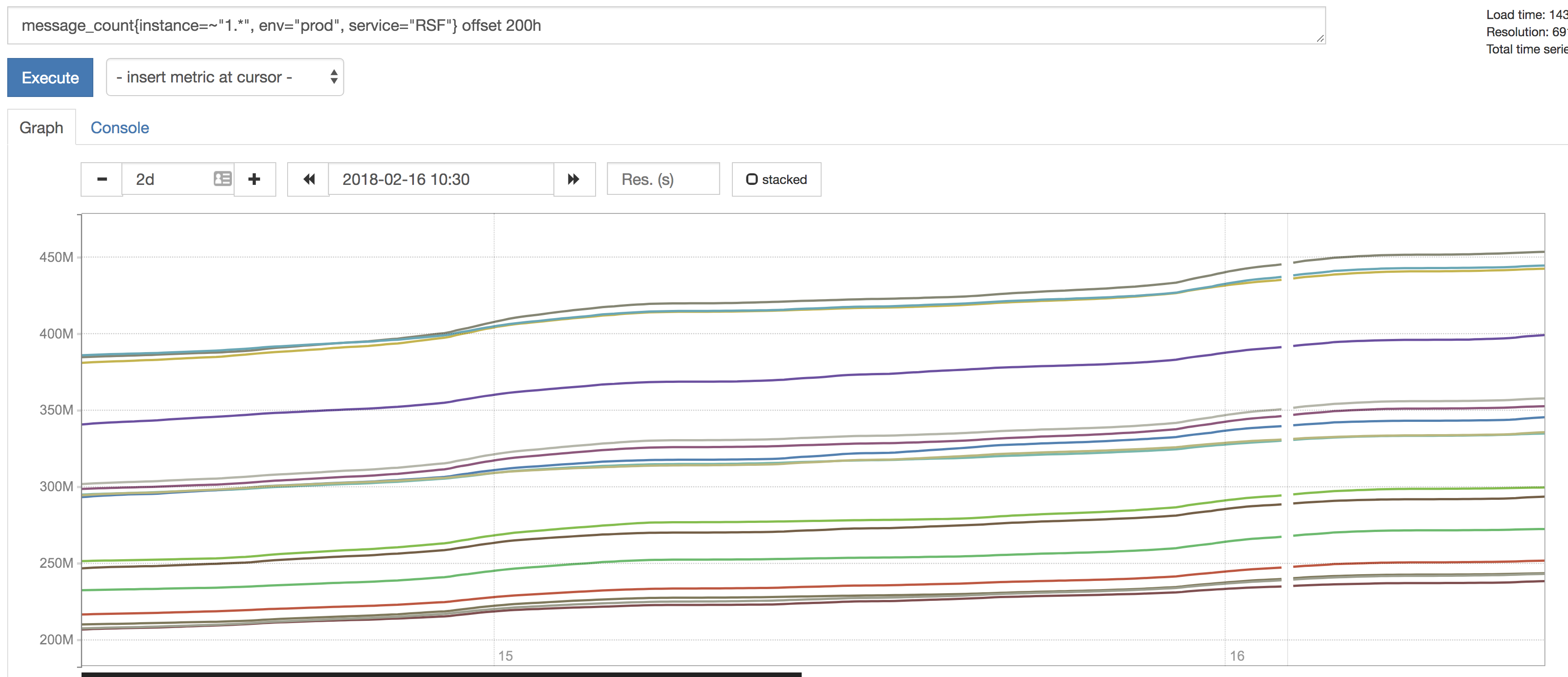

Screenshot attached showing both:

[brian-brazil]

There's a jump between these two timesteps in increase:

Can you give me the raw data around those times?

[jamesblackburn]

The raw data was in the increasedata.txt
https://github.com/prometheus/prometheus/files/1731161/increasedata.txt

and at 1s resolution query1s.txt:
https://github.com/prometheus/prometheus/files/1731173/query1s.txt

Let me know if there's any other data you would like (or some other way of getting the data).

[brian-brazil]

The data in query1s.txt does not cover the time period of the issue in increasedata.txt.

[jamesblackburn]

Ah, sorry about this - it does look like something strange has happened - the counter has briefly gone backwards by '163'...

query1s up to 1518034134:
query1s-1518034134.txt

[1518034098,"450214079"],
[1518034099,"450216699"],
[1518034100,"450216536"],
...
[1518034112,"450216536"],
[1518034113,"450220374"]

increase1s up to 1518034134:
increase1s-1518034134.txt

[1518034099,"32024457.718303636"],
[1518034100,"482298795.2844846"]

[jamesblackburn]

We're digging deeper into this - we've recently migrated from Prometheus 1.x to 2.x and it may be that there's some funny interaction between the old and the new with remote read.

[jamesblackburn]

So we think this is caused by a discontinuity caused by the migration from Prometheus 1.x to 2.x and remote read.

Sorry for the noise!

[brian-brazil]

This is the first report of a discontinuity from such a setup. This implies that users should be careful not to have scraping working for at least a scrape interval to mitigate this.
