config reloads cause huge increase in memory

[jhorwit2]

What did you do?

I updated the config in a way that should not noticeably impact cpu/memory (updated the scrape timeout from 5s to 10s).

What did you expect to see?

I expected the scrape timeout to increase, which it did and I expected CPU/memory usage to remain the same.

What did you see instead? Under which circumstances?

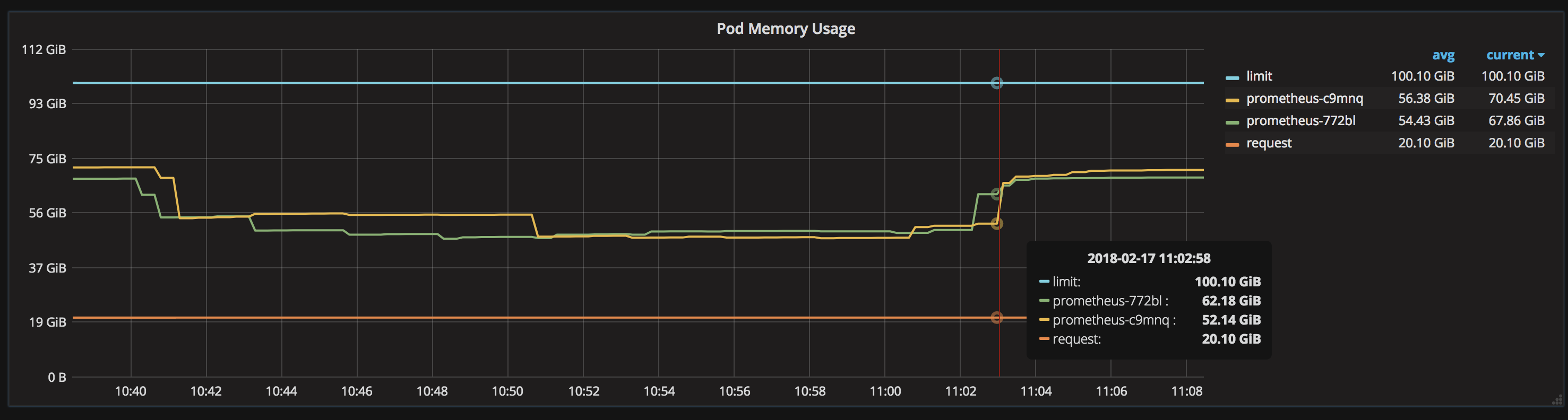

Memory spikes at reload time

I've noticed this happen with any config change as did the memory usage. The series created/removed and appended samples per second had no fluctuation.

Environment

• System information:

Running the prometheus 2.2.0-RC0 docker container from dockerhub
Host is Linux 4.1.12-112.14.13.el7uek.x86_64 x86_64

• Prometheus version:

prometheus, version 2.2.0-rc.0 (branch: HEAD, revision: 1fe05d40e4b2f4f7479048b1cc3c42865eb73bab)
  build user:       root@f7abb25edc70
  build date:       20180213-11:40:47
  go version:       go1.9.2

[jhorwit2]

I should add I've noticed this on 2.1.0 as well. It causes OOMs once prometheus has enough data.

[brian-brazil]

This is expected when you change your target labels, we need to create new chunks for all the new metrics.

[jhorwit2]

@brian-brazil That's understandable, but I'm not changing any target labels in this scenario. The only thing i updated was the global scrape timeout (i had nothing timing out before i just wanted to prove this is why it was increasing).

[brian-brazil]

In that case this was probably coincidental, 15M new chunks is going to take ~15GB of RAM. That's what the graphs you originally had in this bug indicates to me.

[jhorwit2]

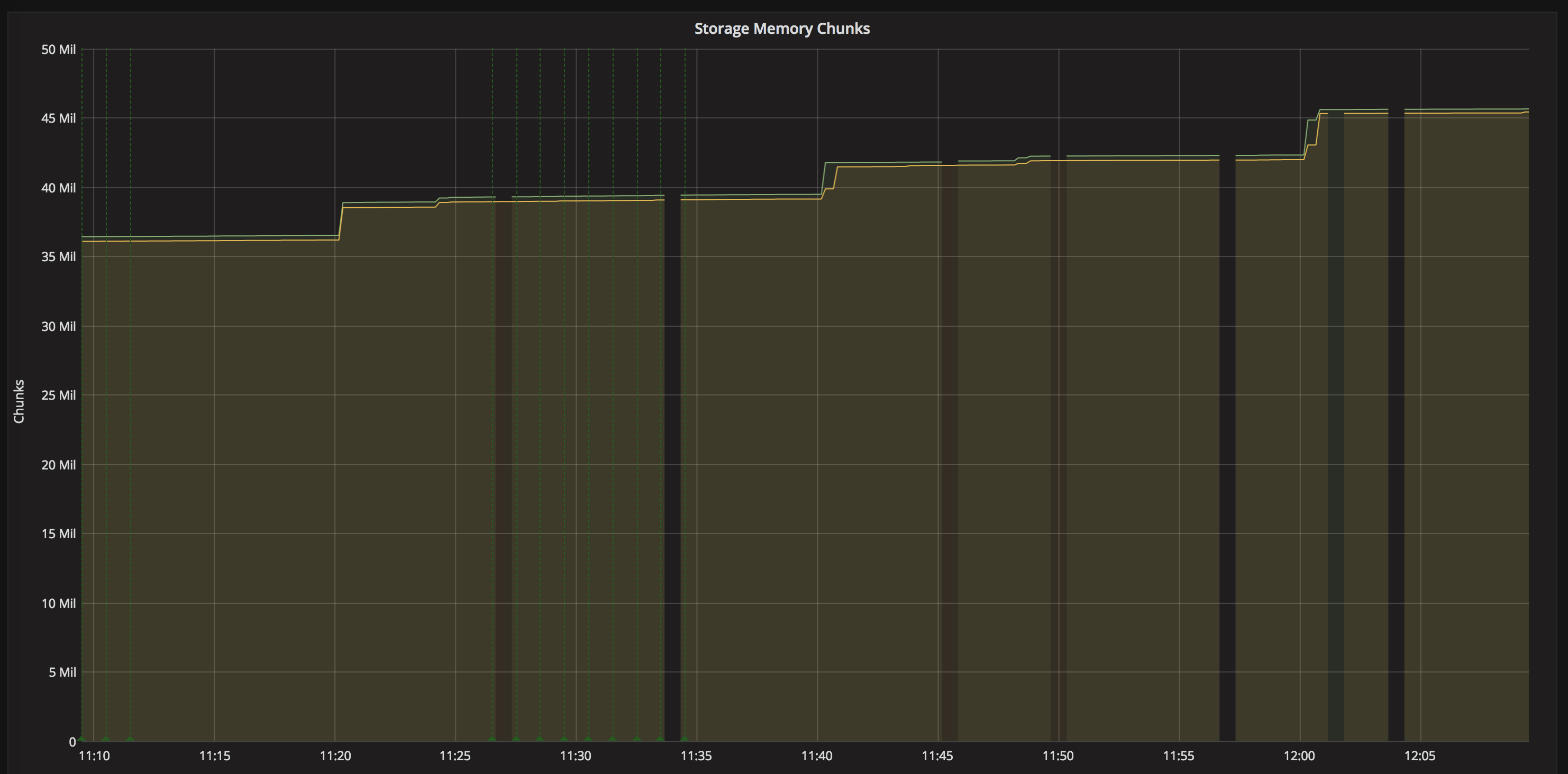

@brian-brazil the reason I removed that graph is I've since run it a couple more times and don't see a correlation between memory chunks increasing and the memory increase during a reload.

[jhorwit2]

I ran another test at ~11:25 which saw an increase in memory but no increase in memory chunks. The config change was decreasing the scrape timeout from 15s to 10s.

[fabxc]

This is probably caused by re-creating all scrape loops on reload:

prometheus/scrape/scrape.go

Lines 223 to 239 in 404b306

	for fp, oldLoop := range sp.loops {
	var (
	t = sp.targets[fp]
	s = &targetScraper{Target: t, client: sp.client, timeout: timeout}
	newLoop = sp.newLoop(t, s)
	)
	wg.Add(1)
	go func(oldLoop, newLoop loop) {
	oldLoop.stop()
	wg.Done()
	go newLoop.run(interval, timeout, nil)
	}(oldLoop, newLoop)
	sp.loops[fp] = newLoop
	}

In the past this was fairly un-invasive as loops didn't hold any meaningful memory state. But now we actually keep rather big caches per loop for our scrape performance optimisations.
So I suppose one could say the spike on reload is still a lot less than the general baseline would be without those caches – but ideally it still wouldn't happen of course.

I think it should be safe to hand over the entire scrape cache object to the new loop and thus avoiding the whole issue. But it needs some careful consideration.

[simonpasquier]

Closing it as a duplicate of #3112.

[lock]

This thread has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.
