Range selector over 16s is broken

[free]

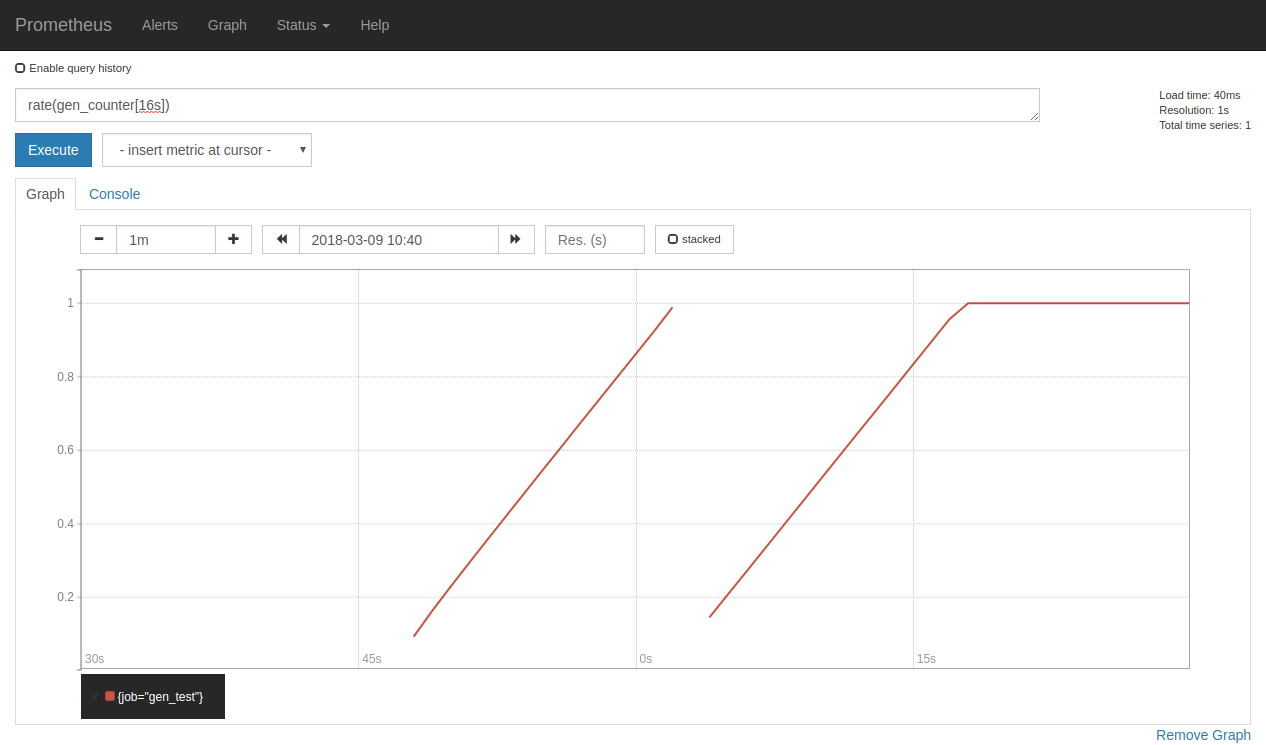

Apologies for the weirdly specific and yet vague issue title. Essentially what I see happening is that when a function that takes a range selector (e.g. rate()) is used in a query_range request with a range selector of 16s over the start of a series with 1s resolution, it appears as if it will be fed the first 16 points in the series, then (as if those first 16 points suddenly disappeared), the following 1 point, 2 points, 3 points and so on. So essentially the rate graph looks like this:

The 17s rate (and most other range values except 15s, 31s, 32s, 61s...) look correct:

What did you do?

Did a /query_range?query=rate(gen_counter[16s])&step=1 over the start of a counter with 1s resolution, incrementing by 1 every second.

What did you expect to see?

A smooth increase from 0 to 1 over the first 16 seconds, followed by a flat rate of 1.

What did you see instead? Under which circumstances?

A smooth increase from 0 to 1, followed by a missing value, followed by a smooth increase from 0 to 1, followed by a flat rate of 1.

Environment

• System information:

  Linux 4.13.0-36-generic x86_64

• Prometheus version:

  prometheus, version 2.2.0 (branch: HEAD, revision: f63e7db)
  build user: root@52af9f66ce71
  build date: 20180308-16:40:42
  go version: go1.10

• Prometheus configuration file:

# Global configuration
global:
  scrape_interval:     1s
  evaluation_interval: 1s

  external_labels:
      monitor: 'prometheus'

rule_files:
  - 'rules/*.rules.yml'

• rules/generator.rules.yml:

groups:
- name: generator.rules
  rules:

  - record: gen_helper
    expr: 0
    labels:
      job: gen_test

  - record: gen_counter
    expr: (gen_counter + 1) or gen_helper

To reproduce, dump the contents of the config directory in the attached config.tar.gz into a fresh Prometheus 2.2.0 installation, fire up Prometheus, then go to http://localhost:9090/graph?g0.range_input=1m&g0.expr=rate(gen_counter%5B16s%5D)&g0.tab=0&g1.range_input=1h&g1.expr=gen_counter%5B100s%5D&g1.tab=1 and keep refreshing until you get the first half minute of the newly generated series covered by the rate(gen_counter[16s]) graph. I suspect the problem is somewhere in promql/engine.go but I couldn't figure out where exactly.

[brian-brazil]

That smells like an issue with BufferedSeriesIterator. Does the same happen with a 2s interval 32s range?

[free]

Same thing happens with 2s resolution and 31s or 32s range.

[brian-brazil]

16s is working for me, but I'm seeing the issue with 15s.

[brian-brazil]

Found the issue, it's in sampleRing.add. When the ring is doubled the value of the local variable l is not increased, so the wraparound logic in the pruning is using the wrong limit.

[brian-brazil]

Thanks for the detailed report, #3942 should fix this.

[free]

Thank you for the quick fix.
