Unknown metric from influxdb (overlapping)

[Fank]

What did you do?

• Setup a remote influxdb
• Setup a local prometheus which collects data, which sends data to remote influxdb
• Setup a remote prometheus which reads data from influxdb
• Read metric from a server and restarted it at 07:11

What did you expect to see?
Same information on remote as on local prometheus

What did you see instead? Under which circumstances?
A overlapping on remote, e.g.:

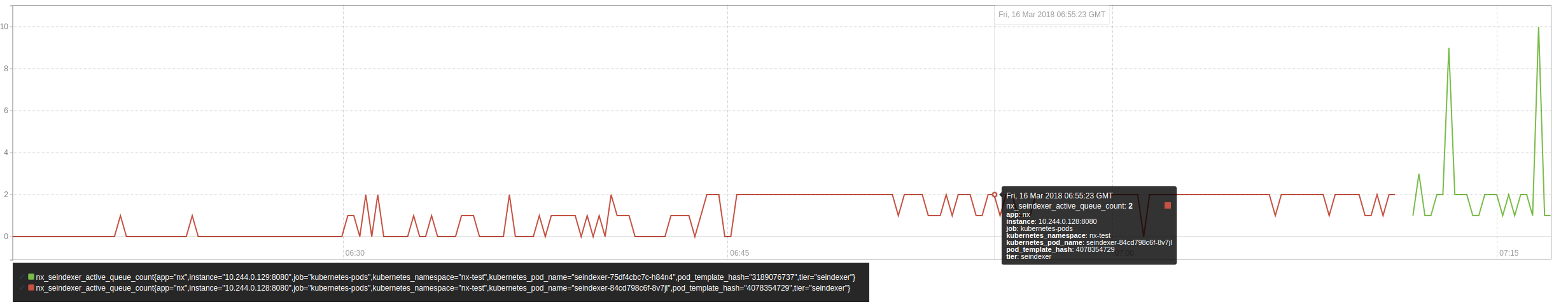

Local:

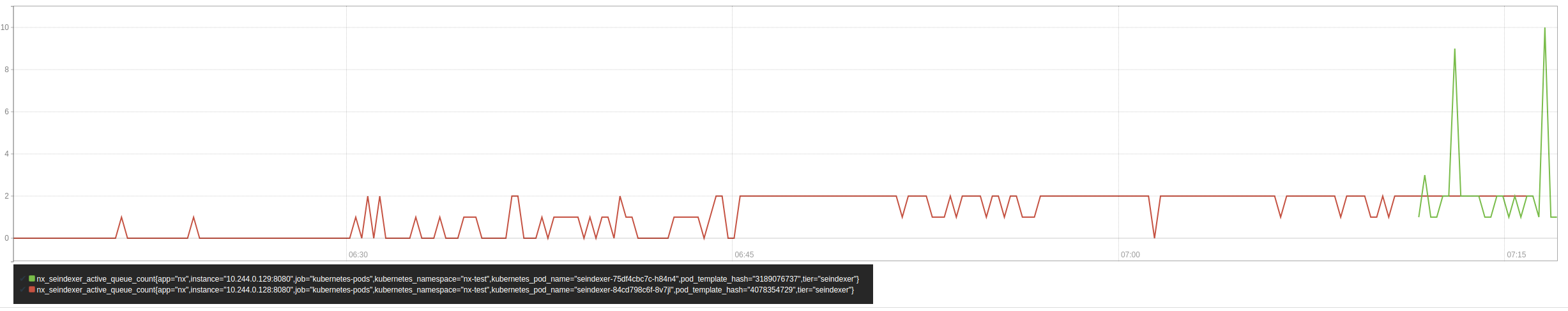

Remote:

Environment

• System information:

  Kubernetes on Ubuntu 16.04

• Prometheus version:

  docker container 2.1 (latest) and 2.2.1, tested both

• InfluxDB version:

  docker container 1.5 (latest)

• Alertmanager version:

  None

• Prometheus configuration file:
  Local

global:
  scrape_interval: 15s
  scrape_timeout: 15s
  evaluation_interval: 1m
scrape_configs:
- job_name: prometheus
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: http
  static_configs:
  - targets:
    - localhost:9090
- job_name: kubernetes-apiservers
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: https
  kubernetes_sd_configs:
  - api_server: null
    role: endpoints
    namespaces:
      names: []
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: false
  relabel_configs:
  - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: default;kubernetes;https
    replacement: $1
    action: keep
- job_name: kubernetes-nodes
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: https
  kubernetes_sd_configs:
  - api_server: null
    role: node
    namespaces:
      names: []
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: false
  relabel_configs:
  - separator: ;
    regex: __meta_kubernetes_node_label_(.+)
    replacement: $1
    action: labelmap
  - separator: ;
    regex: (.*)
    target_label: __address__
    replacement: kubernetes.default.svc:443
    action: replace
  - source_labels: [__meta_kubernetes_node_name]
    separator: ;
    regex: (.+)
    target_label: __metrics_path__
    replacement: /api/v1/nodes/${1}/proxy/metrics
    action: replace
- job_name: kubernetes-cadvisor
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: https
  kubernetes_sd_configs:
  - api_server: null
    role: node
    namespaces:
      names: []
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: false
  relabel_configs:
  - separator: ;
    regex: __meta_kubernetes_node_label_(.+)
    replacement: $1
    action: labelmap
  - separator: ;
    regex: (.*)
    target_label: __address__
    replacement: kubernetes.default.svc:443
    action: replace
  - source_labels: [__meta_kubernetes_node_name]
    separator: ;
    regex: (.+)
    target_label: __metrics_path__
    replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
    action: replace
- job_name: kubernetes-service-endpoints
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: http
  kubernetes_sd_configs:
  - api_server: null
    role: endpoints
    namespaces:
      names: []
  relabel_configs:
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
    separator: ;
    regex: (https?)
    target_label: __scheme__
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
    separator: ;
    regex: (.+)
    target_label: __metrics_path__
    replacement: $1
    action: replace
  - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
    separator: ;
    regex: ([^:]+)(?::\d+)?;(\d+)
    target_label: __address__
    replacement: $1:$2
    action: replace
  - separator: ;
    regex: __meta_kubernetes_service_label_(.+)
    replacement: $1
    action: labelmap
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: kubernetes_namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: kubernetes_name
    replacement: $1
    action: replace
- job_name: kubernetes-services
  params:
    module:
    - http_2xx
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /probe
  scheme: http
  kubernetes_sd_configs:
  - api_server: null
    role: service
    namespaces:
      names: []
  relabel_configs:
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_probe]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    target_label: __param_target
    replacement: $1
    action: replace
  - separator: ;
    regex: (.*)
    target_label: __address__
    replacement: blackbox-exporter.example.com:9115
    action: replace
  - source_labels: [__param_target]
    separator: ;
    regex: (.*)
    target_label: instance
    replacement: $1
    action: replace
  - separator: ;
    regex: __meta_kubernetes_service_label_(.+)
    replacement: $1
    action: labelmap
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: kubernetes_namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: kubernetes_name
    replacement: $1
    action: replace
- job_name: kubernetes-ingresses
  params:
    module:
    - http_2xx
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /probe
  scheme: http
  kubernetes_sd_configs:
  - api_server: null
    role: ingress
    namespaces:
      names: []
  relabel_configs:
  - source_labels: [__meta_kubernetes_ingress_annotation_prometheus_io_probe]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_ingress_scheme, __address__, __meta_kubernetes_ingress_path]
    separator: ;
    regex: (.+);(.+);(.+)
    target_label: __param_target
    replacement: ${1}://${2}${3}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: __address__
    replacement: blackbox-exporter.example.com:9115
    action: replace
  - source_labels: [__param_target]
    separator: ;
    regex: (.*)
    target_label: instance
    replacement: $1
    action: replace
  - separator: ;
    regex: __meta_kubernetes_ingress_label_(.+)
    replacement: $1
    action: labelmap
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: kubernetes_namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_ingress_name]
    separator: ;
    regex: (.*)
    target_label: kubernetes_name
    replacement: $1
    action: replace
- job_name: kubernetes-pods
  scrape_interval: 15s
  scrape_timeout: 15s
  metrics_path: /metrics
  scheme: http
  kubernetes_sd_configs:
  - api_server: null
    role: pod
    namespaces:
      names: []
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    separator: ;
    regex: (.+)
    target_label: __metrics_path__
    replacement: $1
    action: replace
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    separator: ;
    regex: ([^:]+)(?::\d+)?;(\d+)
    target_label: __address__
    replacement: $1:$2
    action: replace
  - separator: ;
    regex: __meta_kubernetes_pod_label_(.+)
    replacement: $1
    action: labelmap
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: kubernetes_namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: kubernetes_pod_name
    replacement: $1
    action: replace
remote_write:
- url: https://remote.server/api/v1/prom/write?db=prometheus
  remote_timeout: 30s
  queue_config:
    capacity: 100000
    max_shards: 1000
    max_samples_per_send: 100
    batch_send_deadline: 5s
    max_retries: 10
    min_backoff: 30ms
    max_backoff: 100ms
remote_read:
- url: https://remote.server/api/v1/prom/read?db=prometheus
  remote_timeout: 1m

Remote:

global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 15s
remote_read:
- url: http://remote.server/api/v1/prom/read?db=prometheus
  remote_timeout: 1m
  read_recent: true

• Alertmanager configuration file:

-

• Logs:

Empty

[brian-brazil]

That smells like Influx throwing away stale NaNs, which isn't something we can do much about.
