Scrape delay when using remote write to influxdb with huge samples appended

[jojohappy]

Proposal

Use case. Why is this important?

Bug Report

What did you do?
I want to export data to the influxdb for long-term storage, so I use the remote_write in prometheus.

What did you expect to see?

What did you see instead? Under which circumstances?

Environment

• System information:

/prometheus $ uname -srm
Linux 4.4.0-104-generic x86_64

• Prometheus version:

/prometheus $ prometheus --version
prometheus, version 2.2.1 (branch: HEAD, revision: bc6058c81272a8d938c05e75607371284236aadc)
  build user:       root@149e5b3f0829
  build date:       20180314-14:15:45
  go version:       go1.10

• Alertmanager version:

  insert output of alertmanager --version here (if relevant to the issue)

• Prometheus configuration file:

global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  scrape_timeout: 10s
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  external_labels:
      monitor: 'kube-remote'

rule_files:
  - "/etc/prom/rules.d/kubernetes.rules"

scrape_configs:
- job_name: 'prometheus'
  static_configs:
    - targets: ['localhost:9090']

- job_name: 'kubernetes-apiservers'

  kubernetes_sd_configs:
  - role: endpoints
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

  relabel_configs:
  - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
    action: keep
    regex: default;kubernetes;https

- job_name: 'kubernetes-nodes'
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  kubernetes_sd_configs:
  - role: node

  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - target_label: __address__
    replacement: kubernetes.default.svc:443
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __metrics_path__
    replacement: /api/v1/nodes/${1}/proxy/metrics

- job_name: 'kubernetes-cadvisor'
  scheme: https

  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

  kubernetes_sd_configs:
  - role: node

  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - target_label: __address__
    replacement: kubernetes.default.svc:443
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __metrics_path__
    replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

- job_name: 'kubernetes-service-endpoints'

  kubernetes_sd_configs:
  - role: endpoints

  relabel_configs:
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
    action: replace
    target_label: __scheme__
    regex: (https?)
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
    action: replace
    target_label: __address__
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
  - action: labelmap
    regex: __meta_kubernetes_service_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_service_name]
    action: replace
    target_label: kubernetes_name
  - action: drop
    source_labels: ["__meta_kubernetes_service_label_k8s_app"]
    regex: "node-exporter"
  - action: drop
    source_labels: ["__meta_kubernetes_service_label_k8s_app"]
    regex: "^kube-state-metrics.+"

- job_name: 'kubernetes-pods'

  kubernetes_sd_configs:
  - role: pod

  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
  - action: drop
    source_labels: ["__meta_kubernetes_pod_label_app"]
    regex: "frostmourne"
  - action: drop
    source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_namespace]
    regex: data

- job_name: 'node-exporter'

  scheme: http

  kubernetes_sd_configs:
  - role: endpoints
    namespaces:
      names:
        - devops

  relabel_configs:
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
    action: replace
    target_label: __address__
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
  - action: labelmap
    regex: __meta_kubernetes_service_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_service_name]
    action: replace
    target_label: kubernetes_name
  - source_labels: [__meta_kubernetes_pod_node_name]
    action: replace
    target_label: node_name
  - source_labels: [__meta_kubernetes_pod_host_ip]
    action: replace
    target_label: instance
  - action: "keep"
    source_labels: ["__meta_kubernetes_service_label_k8s_app"]
    regex: "node-exporter"
  metric_relabel_configs:
  - source_labels: [node_name]
    action: replace
    target_label: node

- job_name: 'kube-state-metrics'

  scheme: http

  kubernetes_sd_configs:
  - role: endpoints
    namespaces:
      names:
        - kube-system

  relabel_configs:
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
    action: replace
    target_label: __scheme__
    regex: (https?)
  - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
    action: replace
    target_label: __address__
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
  - action: labelmap
    regex: __meta_kubernetes_service_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_service_name]
    action: replace
    target_label: kubernetes_name
  - action: "keep"
    source_labels: ["__meta_kubernetes_service_label_k8s_app"]
    regex: "^kube-state-metrics.+"
  metric_relabel_configs:
  - source_labels: [pod]
    action: replace
    target_label: pod_name
  - source_labels: [container]
    action: replace
    target_label: container_name
- job_name: 'frostmourne'
  scrape_interval: 1s
  kubernetes_sd_configs:
  - role: pod
    namespaces:
      names:
        - devops

  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
        action: replace
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
        target_label: __address__
      - action: labelmap
        regex: __meta_kubernetes_pod_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: kubernetes_pod_name
      - action: "keep"
        source_labels: ["__meta_kubernetes_pod_label_app"]
        regex: "frostmourne"
    - job_name: 'pit_kafka'
      consul_sd_configs:
      - server: 'consul.int.xiaohongshu.com:8500'
        services:
        - pit_kafka
      relabel_configs:
      - source_labels: [__meta_consul_node]
        action: replace
        target_label: node_name
      - source_labels: [__meta_consul_service]
        action: replace
        target_label: pit_kafka_service
    remote_write:
    - url: http://<ip>:9000/api/v1/prom/write?db=prometheus
      remote_timeout: 30s
      queue_config:
        capacity: 300000
        max_shards: 30
        max_samples_per_send: 3000
        batch_send_deadline: 5s
        max_retries: 10
        min_backoff: 100ms
        max_backoff: 1000ms

• Alertmanager configuration file:

insert configuration here (if relevant to the issue)

• Logs:

insert Prometheus and Alertmanager logs relevant to the issue here

[brian-brazil]

Could you explain what the graphs you're sharing are, and in particular what metrics back them?

[jojohappy]

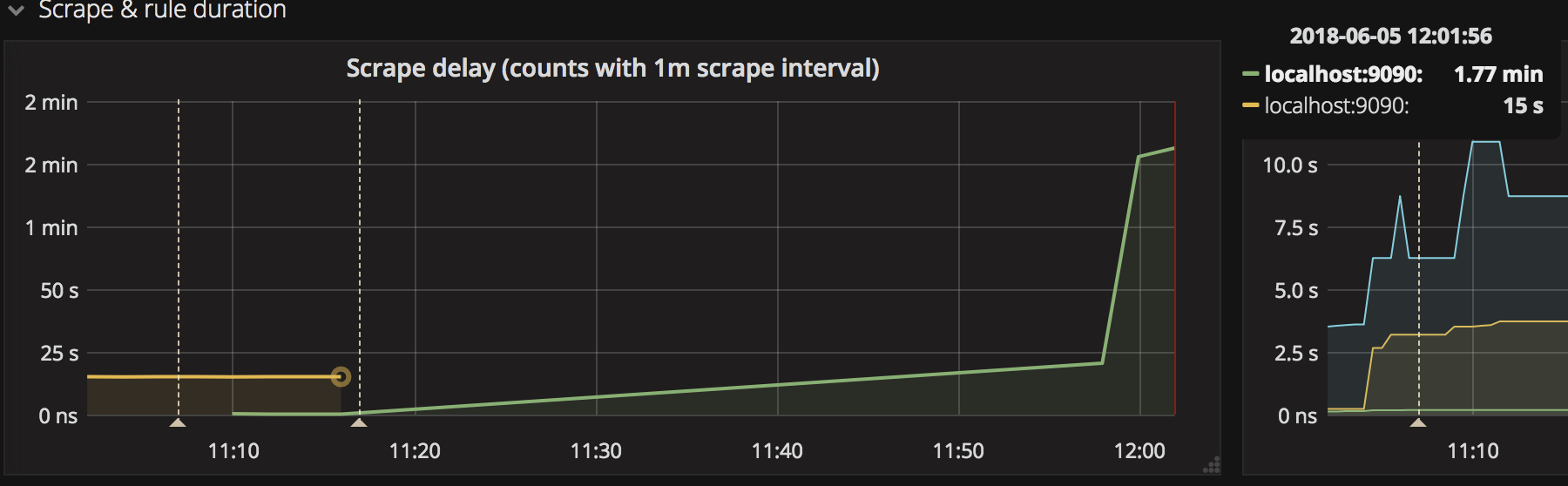

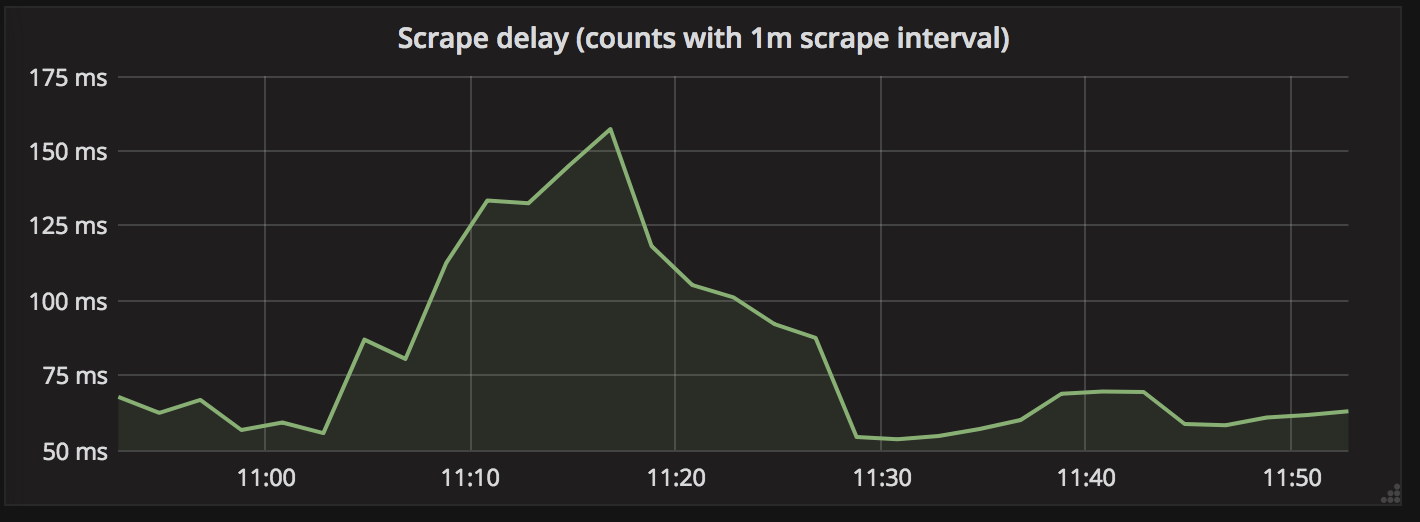

The first graph Scrape delay (counts with 1m scrape interval) represents the gap between two scrape process using expression prometheus_target_interval_length_seconds{instance="$instance",quantile="0.99"} - $scrape_interval, in my case the scrape_interval is 15s

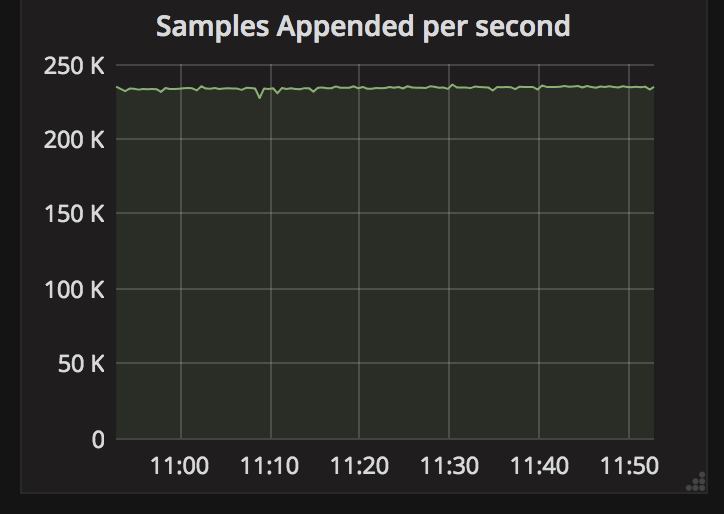

The second graph Samples Appended per second represents the speed rate of head sample append to tsdb using expression sum(rate(prometheus_tsdb_head_samples_appended_total{instance="$instance"}[1m])) by (instance)

All the metrics are provided by Prometheus self.

When I use remote_write in Prometheus, the interval of scrape will be increase and the speed rate of head sample append will be down. Without remote_write, it seems to be ok.

[jojohappy]

I have submit a PR to improve this problem, but I also should do more and more testing to verify it.
