prometheus memory leak

[Fadih]

i had memory leak when i run my prometheus for 5 hours ,
as i notice if i deleting all the files under /wall/* this will resolve the issue for a while

Environment
production

• System information:

Linux 4.9.81-35.56.amzn1.x86_64 x86_64

• Prometheus version:

  version 2.3.0

• Alertmanager version:

  0.14.0

• Prometheus configuration file:

global:
scrape_interval: 30s # By default, scrape targets every 15 seconds.

rule_files:
- /etc/prometheus/itrs-alerts.yml
- /etc/prometheus/itms-alerts.yml
- /etc/prometheus/common-alerts.yml
- /etc/prometheus/recording-rules.yml

scrape_configs:

• job_name: 'prometheus'
  static_configs:

  • targets: ['localhost:9090']

• job_name: 'ecs-cluster'
  static_configs:

  • targets: ['$EXPORTERS_DNS']
    metrics_path: /ecs-exporter-metrics
    scheme: http

• job_name: 'prometheus-ec2-instance-devtools'
  ec2_sd_configs:

  • region: $REGION
    access_key: $AWS_ACCESS_KEY_ID
    secret_key: $AWS_SECRET_ACCESS_KEY
    port: 9100
    relabel_configs:
  • source_labels: [__meta_ec2_tag_Name]
    regex: devtools-prometheus-monitoring
    action: keep
    metrics_path: /metrics
    scheme: http

• job_name: 'ecs-instances-tagger-devtools'
  ec2_sd_configs:

  • region: $REGION
    access_key: $AWS_ACCESS_KEY_ID
    secret_key: $AWS_SECRET_ACCESS_KEY
    port: 1234
    relabel_configs:
  • source_labels: [__meta_ec2_tag_Name]
    regex: devtools-prometheus-monitoring
    action: keep
    metrics_path: /metrics
    scheme: http

• job_name: 'instrumentedTest-server-node'
  ec2_sd_configs:

  • region: $REGION
    access_key: $AWS_ACCESS_KEY_ID
    secret_key: $AWS_SECRET_ACCESS_KEY
    port: 9100
    relabel_configs:
  • source_labels: [__meta_ec2_tag_Name]
    regex: espresso-server
    action: keep
  • source_labels: [__meta_ec2_tag_project]
    regex: .*
    action: keep
  • source_labels: [__meta_ec2_tag_project]
    target_label: project
  • source_labels: [__meta_ec2_tag_Name]
    target_label: name
  • source_labels: [__meta_ec2_instance_id]
    target_label: instance_id
    metrics_path: /metrics
    scheme: http

[maurorappa]

bit generic, eh?
you know you can plot also Prometheus Go memory stats using 'localhost:9090/metrics'?
scrape it and plot 'go_memstats_alloc_bytes' for example.
You will also need Pprof data to claim it's a mem leak, you can periocally collect them using
'localhost:9090/debug/pprof/heap?debug=1'

Leaving to the more experts people now :)

[krasi-georgiev]

@maurorappa thanks!

@Fadih yeah we need more info here. Why do you think there is a memory leak would be a good starts.

the 2.3.2 release #4370 will include a debug command for the promtool so you can use it attach the debug info.

[tonobo]

@maurorappa We could see the same behavior. We've discoverd the query which will trigger the exception.

count(abc_connections{instance=~"^host-.*"}) / count(connections{instance=~"^host-.*"}) * 100

The requested memory stats below:

$ # curl localhost:9090/metrics -s | grep go_memstats_alloc_bytes
# HELP go_memstats_alloc_bytes Number of bytes allocated and still in use.
# TYPE go_memstats_alloc_bytes gauge
go_memstats_alloc_bytes 7.0115873912e+10
# HELP go_memstats_alloc_bytes_total Total number of bytes allocated, even if freed.
# TYPE go_memstats_alloc_bytes_total counter
go_memstats_alloc_bytes_total 3.11637139248e+11

heap_debug.txt

[krasi-georgiev]

When you say a memory leak, does that mean the memory usage starts growing to the point where Prometheus gets OOM killed?
If that is the case can you all please run the promtool debug tool to gather all the info we need to troubleshoot this.

Also gathering some snapshots from the Grafana would be useful.
https://grafana.com/dashboards/6725
This is for the 2.3 Prometheus version.

[krasi-georgiev]

the promtool debug is included in the latest 2.3.2 release.
https://github.com/prometheus/prometheus/releases

[tonobo]

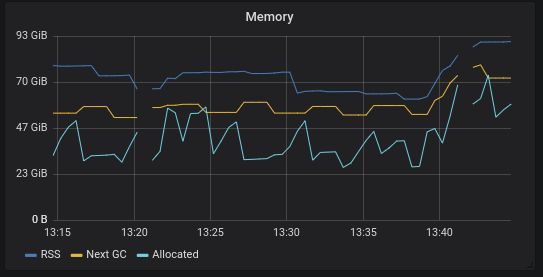

I'm not sure about if its a memory problem. The memory grows rapidly but the prometheus is completely out of cpu. Please see the attached memory graph. This seems to be quite normal memory usage, but there are few gaps, which prometheus wasn't able to scrape the metric by itself.

[krasi-georgiev]

@tonobo I am thinking the chances are that your issue is not related to the original report so could you please open a new one.

Please be as specific as possible with steps and config to replicate and attach the file produced by the promtool debug tool and the grafana dashboard at the time of the issue. It is important to run the debug tool during the unexpected high CPU/Memory usage so that the profile is captured with the info we need.

Everyone here want's to help, but We can't determine if the problem is with your config, the local setup or an actual bug if we don't have enough information.

[tonobo]

I'll reopen another issue.

I'm unable to find the debug option, the promtool from latest release wouldn't support this option.

[krasi-georgiev]

yes sorry , because of the moratorium this didn't go in the last release. I just merged it so you can build the promtool from source or use the binary attached here that I have just build for linux.
promtool.zip

[tonobo]

Great! Thank you. Please see the attached debug output.
debug.tar.gz

[krasi-georgiev]

Thanks,
I am working on other fronts right now so if anyone else has time to have a look it would be appreciated.

[simonpasquier]

@tonobo I suspect that you've got too many time series for Prometheus to handle. Your report says that prometheus_tsdb_head_chunks is 6.5685078e+07 (more than 60,000,000).

@Fadih if you still have the issue, please attach the output of promtool debug tool from #4372 (comment).

[tonobo]

@simonpasquier This sounds legit. In my opinon this worked quite better before upgrading prometheus?

[simonpasquier]

@tonobo you're hitting the limits of Prometheus so maybe your server was ingesting a little less time series before or your query load has increased. But in any case this doesn't look like a memory leak in your case.

[tonobo]

Ok, thank you for clarification.

[Fadih]

hi ,

i found what caused a memory leak
i have a java process that integrated with prometheus ,this process sending a lot of data to prometheus every 30 second , each response has a 2mb of data ,i have about 15 java processes like this that start running about 2 months ago,
i just restarted my java processes ,and the received data have only 5k size

[simonpasquier]

@Fadih thanks for the follow up. I'm closing the issue then.
