Zookeeper discovery has an exception

[wenfei3]

Bug Report

What did you do?
Added a serverset_sd_configs job in prometheus.yml and reloaded the prometheus.

What did you expect to see?
I would expect to see the prometheus could read the services which were registerd to zookeeper cluster.

What did you see instead? Under which circumstances?
When I reloaded the prometheus.yml, the prometheus stopped working and I found some error logs.

• System information:
  Linux 2.6.32-573.22.1.el6.x86_64 x86_64

• Prometheus version:
  prometheus, version 2.3.2 (branch: HEAD, revision: 71af5e2)
  build user: root@5258e0bd9cc1
  build date: 20180712-14:02:52
  go version: go1.10.3

• Zookeeper version:
  3.4.12

• Prometheus configuration file:

global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  external_labels:
      monitor: 'fishtrip-monitor'

rule_files:
  - "prometheus.rules.yml"

alerting:
  alertmanagers:
  - scheme: http
    static_configs:
    - targets:
      - "10.x.x.x:19093"
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:19090']
  -job_name: 'node_exporter'
  ...
  ...
  - job_name: 'zookeeper_discovery'
    serverset_sd_configs:
    - servers:
      - 'a3:2181'
      - 'a5:2181'
      - 'a6:2181'
      paths:
      - '/services'

• Logs:

panic: runtime error: invalid memory address or nil pointer dereference
	panic: runtime error: invalid memory address or nil pointer dereference
[signal SIGSEGV: segmentation violation code=0x1 addr=0x20 pc=0x1511546]

goroutine 58 [running]:
github.com/prometheus/prometheus/discovery/zookeeper.(*Discovery).Run.func1(0x0)
	/go/src/github.com/prometheus/prometheus/discovery/zookeeper/zookeeper.go:165 +0x26
panic(0x19972e0, 0x2ae2be0)
	/usr/local/go/src/runtime/panic.go:502 +0x229
github.com/prometheus/prometheus/discovery/zookeeper.(*Discovery).Run(0x0, 0x1deec40, 0xc4208de2c0, 0xc420b38120)
	/go/src/github.com/prometheus/prometheus/discovery/zookeeper/zookeeper.go:178 +0x8d
created by github.com/prometheus/prometheus/discovery.(*Manager).startProvider
	/go/src/github.com/prometheus/prometheus/discovery/manager.go:133 +0x116

[wenfei3]

I thought I found my problem.

[simonpasquier]

Reopening as there's indeed a problem with the Zookeeper SD when it can't connect to the servers.

[wenfei3]

@simonpasquier
Thanks for your reply! There was another problem.My prometheus connected ZK servers successfully , but it couldn't get any services' address and port.

Here is my prometheus log about ZK connection success

evel=info ts=2018-09-28T10:18:44.05267337Z caller=main.go:222 msg="Starting Prometheus" version="(version=2.3.2, branch=HEAD, revision=71af5e29e815795e9dd14742ee7725682fa14b7b)"
level=info ts=2018-09-28T10:18:44.052764946Z caller=main.go:223 build_context="(go=go1.10.3, user=root@5258e0bd9cc1, date=20180712-14:02:52)"
level=info ts=2018-09-28T10:18:44.052793254Z caller=main.go:224 host_details="(Linux 2.6.32-573.22.1.el6.x86_64 #1 SMP Wed Mar 23 03:35:39 UTC 2016 x86_64 op1 (none))"
level=info ts=2018-09-28T10:18:44.052817947Z caller=main.go:225 fd_limits="(soft=65535, hard=65535)"
level=info ts=2018-09-28T10:18:44.053894088Z caller=web.go:415 component=web msg="Start listening for connections" address=0.0.0.0:9090
level=info ts=2018-09-28T10:18:44.053873265Z caller=main.go:533 msg="Starting TSDB ..."
level=info ts=2018-09-28T10:18:45.402911724Z caller=main.go:543 msg="TSDB started"
level=info ts=2018-09-28T10:18:45.403104292Z caller=main.go:603 msg="Loading configuration file" filename=prometheus.yml
level=info ts=2018-09-28T10:18:45.405783471Z caller=main.go:629 msg="Completed loading of configuration file" filename=prometheus.yml
level=info ts=2018-09-28T10:18:45.4058165Z caller=main.go:502 msg="Server is ready to receive web requests."
level=info ts=2018-09-28T10:18:45.40758143Z caller=treecache.go:60 component="discovery manager scrape" discovery=zookeeper msg="Connected to 10.25.197.20:2181"
level=info ts=2018-09-28T10:18:45.415419815Z caller=treecache.go:60 component="discovery manager scrape" discovery=zookeeper msg="Authenticated: id=73893403303280656, timeout=10000"
level=info ts=2018-09-28T10:18:45.415490736Z caller=treecache.go:60 component="discovery manager scrape" discovery=zookeeper msg="Re-submitting `0` credentials after reconnect"

and here is the service in ZK

[zk: localhost:2181(CONNECTED) 12] get /services/zeus/c34e20d3-f278-430c-8f04-db40b145331c
{"name":"zeus","id":"c34e20d3-f278-430c-8f04-db40b145331c","address":"10.x.x.x","port":xxxx,"sslPort":null,"payload":{"@class":"org.springframework.cloud.zookeeper.discovery.ZookeeperInstance","id":"zeus:xxxx","name":"zeus","metadata":{"instance_status":"UP"}},"registrationTimeUTC":1538103418690,"serviceType":"DYNAMIC","uriSpec":{"parts":[{"value":"scheme","variable":true},{"value":"://","variable":false},{"value":"address","variable":true},{"value":":","variable":false},{"value":"port","variable":true}]}}
cZxid = 0x10000006d
ctime = Fri Sep 28 10:56:58 CST 2018
mZxid = 0x10000006d
mtime = Fri Sep 28 10:56:58 CST 2018
pZxid = 0x10000006d
cversion = 0
dataVersion = 0
aclVersion = 0
ephemeralOwner = 0x10685a8a7230007
dataLength = 515
numChildren = 0

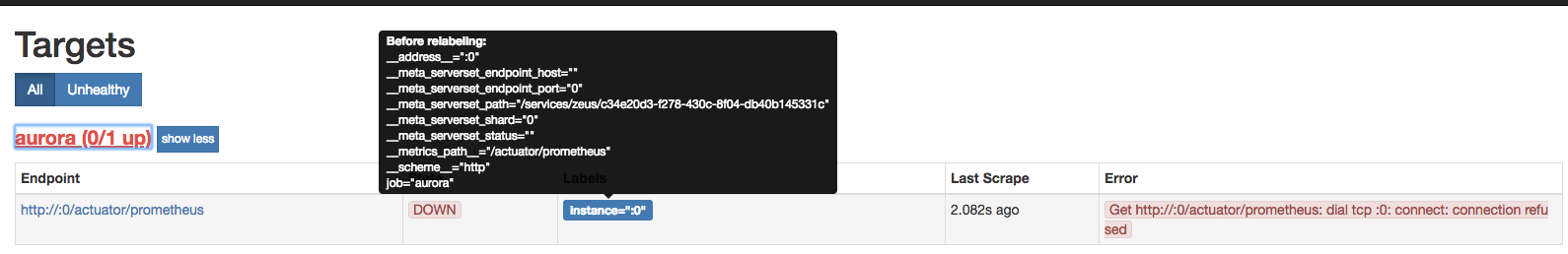

and here is my prom ui

I have no idea that why the host is empty and the port is 0.
Could anyone give me a hand?Thanks very much!

[simonpasquier]

Unfortunately I'm not a ZooKeeper SD expert. Which system does provision the serversets in your ZooKeeper cluster?

[wenfei3]

Thanks for your reply!
I think I know where my problem is.I use the spring-cloud to implement services discovery, and the prometheus doesn't support it.It only support the finagle .

[simonpasquier]

Closed by #4669
