GUI freezes when querying prometheus instance with large set of exporters.

[raypettersen]

Bug Report

What did you do?
Upgraded prometheus in environment A, queries work as expected with ~50 exporters.
Updated in environment B, typing one letter in the GUI freezes the browser. Only difference is a larger number of exporters.

What did you expect to see?
Expected to see query work even with a large number of exporters.

Environment
Apache proxy in front of apache. Identical vhosts on QA and PROD.

	<Location />
    		ProxyPass http://<ip>:9090/
    		ProxyPassReverse http://<ip>:9090/
	</Location>

• System information:

Linux 3.10.0-693.17.1.el7.x86_64 x86_64

• Prometheus version:

2.4.3

• Logs:
  Nothing of interest in logs. Browser just freezes. Nothing in apache or prometheus logs. Worked on version 1.8.3.

[simonpasquier]

Which page is failing for you exactly?

[raypettersen]

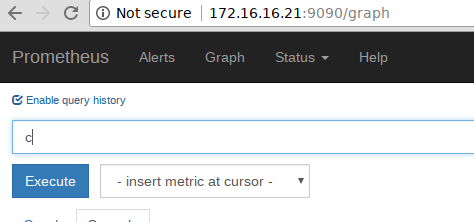

/graph. Just typing a single letter sends chrome and firefox into some sort of loop in the environment with plenty of exporters. In our other environment it works fine. Also, grafana lookup succeeds with autocomplete. So we're quite puzzled.

[raypettersen]

I could also mention that grafana query works like a charm. It's only prometheus frontend /graph that kills the browser.

One of our team members pointed out this change:
[ENHANCEMENT] Improve typeahead on /graph page.
prometheus 2.2.0 / 2018-03-08

Perhaps related? We upgraded from 1.8 to 2.4.3

[dabear]

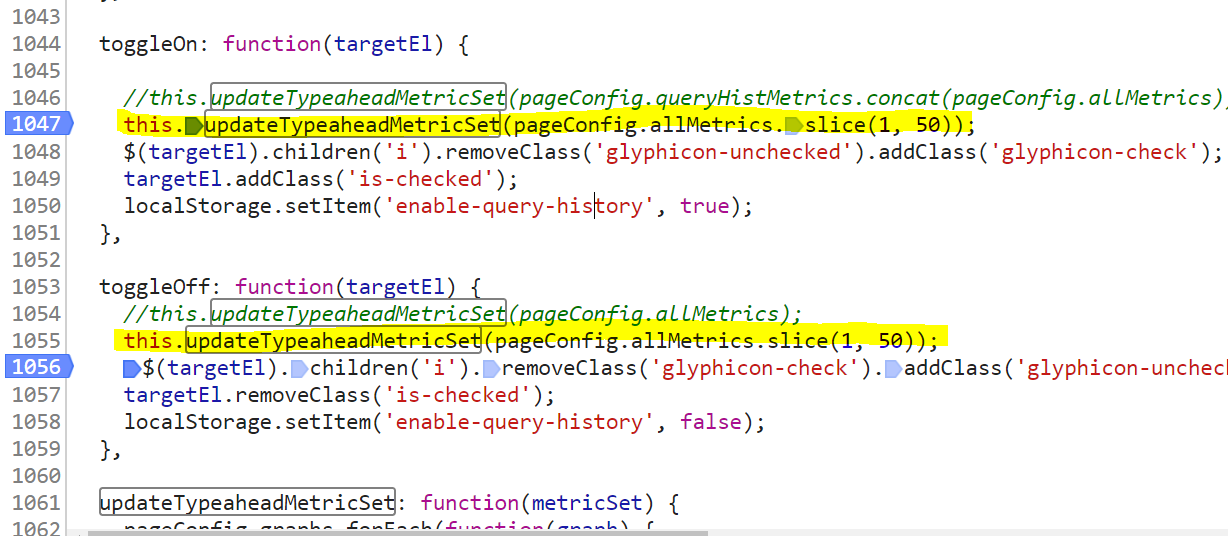

So I'm working with @raypettersen. It seems the amount of metrics loaded into typeahead is the problem. I changed /js/graph/index.js in-flight in the browser as a test, and now it's smooth again (but obviously this isn't even valid as a workaround):

I also did this console.log change before the change mentioned above:

 updateTypeaheadMetricSet: function(metricSet) {
    console.log("metricset updated: " + metricSet.length)
    pageConfig.graphs.forEach(function(graph) {
      if (graph.expr.data('typeahead')) {
        graph.expr.data('typeahead').source = metricSet;
      }
    });

toggling history on/off now produces these debug statements:

metricset updated: 13261
metricset updated: 13257

[dabear]

So we've implemented a fix(workaround) in our systems.

We assume the prometheus endpoint in /api/v1/label/__name__/values returns more values in prometheus2 than it did in prometheus1.8 and this is why we discovered the following problem:

During debugging, we discovered that one of our apps had been incorrectly writing unlabeled metrics with dynamic names. This led the allMetrics array variable in static/js/graph/index.js to contain roughly ten thousand unnecessary values. prometheus feeds the typeahead plugin with these metric names. The /graph endpoint seems to freeze consistenly in all browsers when there are 10 thousand or more such entries.

[brian-brazil]

Dupe of #2119. Looks like a 10k limit is what we'll want.
