scrape target not honoring https scheme

[ev1lm0nk3y]

Bug Report

What did you do?
Attempt to scrape a Kubernetes API endpoint using scheme https and a bearer_token.

What did you expect to see?
A successful scrape over https, like https://<api_endpoint_ip_address>:443/..., not http://<api_endpoint_ip_address>:443/...

What did you see instead? Under which circumstances?
A scrape error for the airflow-metrics target, while the federated_prometheus target has no problems.

Get http://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/: net/http: HTTP/1.x transport connection broken: malformed HTTP response "\x15\x03\x01\x00\x02\x02"

curl commands to validate the issue
Works:

curl -k https://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/ -H "Authorization: Bearer ${TOKEN}"

Doesn't Work:

$ curl -k http://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/ -H "Authorization: Bearer ${TOKEN}"

curl: (56) Recv failure: Connection reset by peer

Environment

• System information:
  for local testing Darwin 17.7.0 x86_64
  usually I'm running prometheus in a GKE cluster running node and master versions 1.11.5

• Scrape Target GKE master version:
  airflow cluster: 1.9.7
  federated GKE cluster: 1.11.5

• Prometheus version:
  v2.4.0 on the GKE cluster
  v2.6.1 locally

• Prometheus configuration file:
  This is a sample configuration that I'm running locally that shows the 2 different scrape targets with similar configurations. The same error is seen both locally and in GKE.

global:
  scrape_interval: 30s
  scrape_timeout: 10s
  evaluation_interval: 30s
scrape_configs:
- job_name: airflow-metrics
  honor_labels: true
  metrics_path: /api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics
  scheme: https
  params:
    match[]:
      - '{__name__=~"airflow.*"}'
  static_configs:
  - targets:
    - <api_endpoint_ip_address>
  bearer_token: <blah>
  tls_config:
    insecure_tls_verify: true
- job_name: federated_prometheus
  honor_labels: true
  static_configs:
    - targets:
      - <gke_api_endpoint_ip>
  scrape_interval: 60s
  scrape_timeout: 60s
  params:
    match[]:
      - '{namespace="default"}'
  metrics_path: /api/v1/namespaces/default/services/prometheus:9090/proxy/federate
  scheme: https
  bearer_token: <blah>
  tls_config:
    insecure_skip_verify: true

• Logs:

12:06 $ prometheus --log.level=debug
level=info ts=2019-01-17T17:06:50.679835Z caller=main.go:243 msg="Starting Prometheus" version="(version=2.6.1, branch=non-git, revision=non-git)"
level=info ts=2019-01-17T17:06:50.68023Z caller=main.go:244 build_context="(go=go1.11.4, user=brew@HighSierra-2.local, date=20190116-23:28:29)"
level=info ts=2019-01-17T17:06:50.680255Z caller=main.go:245 host_details=(darwin)
level=info ts=2019-01-17T17:06:50.680276Z caller=main.go:246 fd_limits="(soft=256, hard=unlimited)"
level=info ts=2019-01-17T17:06:50.680294Z caller=main.go:247 vm_limits="(soft=unlimited, hard=unlimited)"
level=info ts=2019-01-17T17:06:50.680886Z caller=main.go:561 msg="Starting TSDB ..."
level=info ts=2019-01-17T17:06:50.681758Z caller=web.go:429 component=web msg="Start listening for connections" address=0.0.0.0:9090
level=info ts=2019-01-17T17:06:51.003115Z caller=main.go:571 msg="TSDB started"
level=info ts=2019-01-17T17:06:51.003168Z caller=main.go:631 msg="Loading configuration file" filename=prometheus.yml
level=debug ts=2019-01-17T17:06:51.00729Z caller=manager.go:213 component="discovery manager scrape" msg="Starting provider" provider=string/0 subs=[airflow-metrics]
level=debug ts=2019-01-17T17:06:51.00772Z caller=manager.go:213 component="discovery manager scrape" msg="Starting provider" provider=string/1 subs=[federated_prometheus]
level=info ts=2019-01-17T17:06:51.007758Z caller=main.go:657 msg="Completed loading of configuration file" filename=prometheus.yml
level=info ts=2019-01-17T17:06:51.007773Z caller=main.go:530 msg="Server is ready to receive web requests."
level=debug ts=2019-01-17T17:06:51.007784Z caller=manager.go:231 component="discovery manager scrape" msg="discoverer channel closed" provider=string/0
level=debug ts=2019-01-17T17:06:51.007835Z caller=manager.go:231 component="discovery manager scrape" msg="discoverer channel closed" provider=string/1
level=debug ts=2019-01-17T17:07:06.926837Z caller=scrape.go:825 component="scrape manager" scrape_pool=airflow-metrics target="https://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics?match%5B%5D=%7B__name__%3D~%22airflow.%2A%22%7D" msg="Scrape failed" err="Get http://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/?match%5B%5D=%7B__name__%3D~%22airflow.%2A%22%7D: net/http: HTTP/1.x transport connection broken: malformed HTTP response \"\\x15\\x03\\x01\\x00\\x02\\x02\""
^Clevel=warn ts=2019-01-17T17:07:16.21424Z caller=main.go:405 msg="Received SIGTERM, exiting gracefully..."

[simonpasquier]

Hmm, this is strange. Can you share a screenshot of the Service Discovery page with all targets as well as the Targets page?

[ev1lm0nk3y]

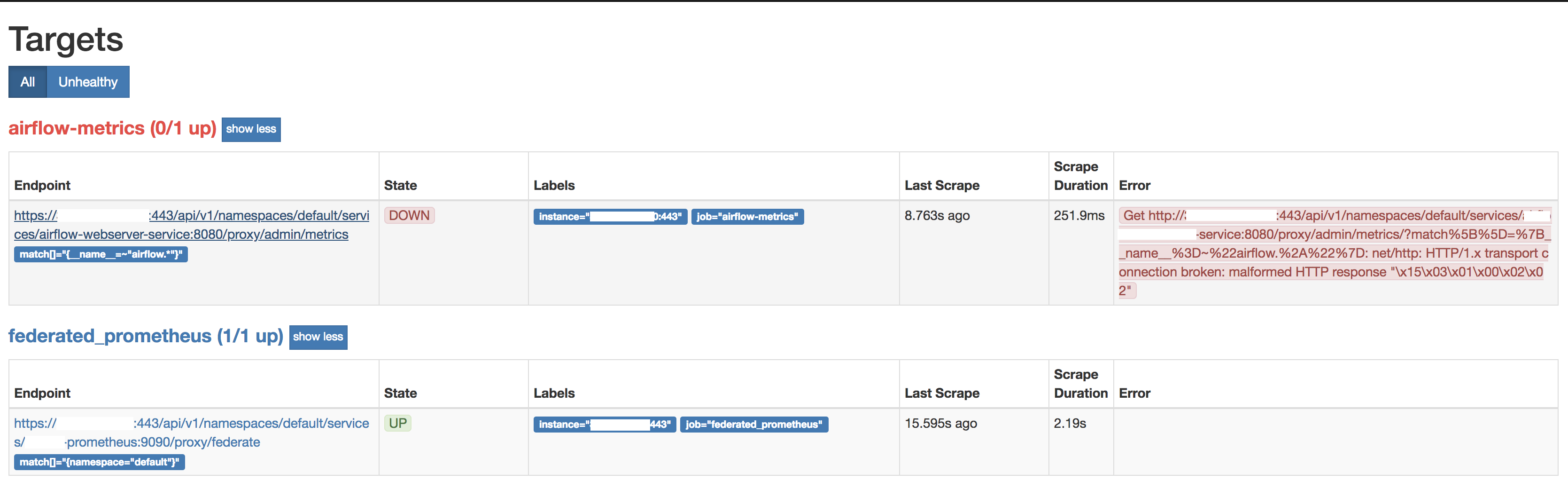

Targets:

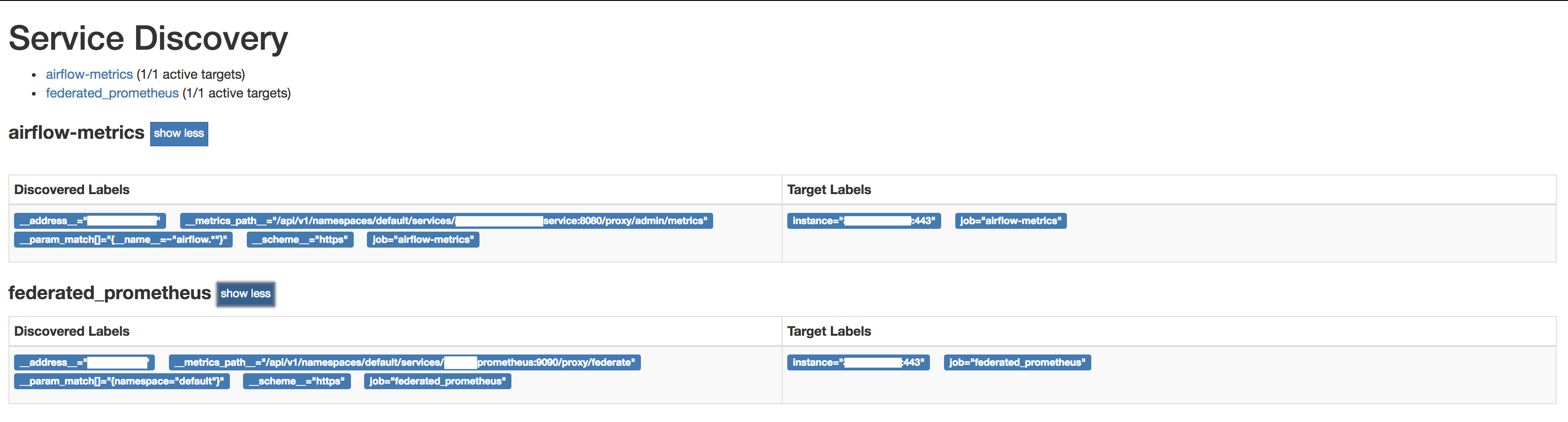

Service Discovery:

These are from my local prometheus deployment.

[ev1lm0nk3y]

While I think there is still a problem, I believe that I have resolved the immediate issue. The metrics_path that I was using caused a 301 to be returned from the target, specifically needing to add a trailing / to the path. Because the scrape target is actually the kubernetes API endpoint, not the service itself, the 301 from the service came back as an http:// redirect. Here's the verbose curl output

$ curl -v -k https://<api_endpoint_ip_address>:443/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics -H "Authorization: Bearer $TOKEN"
*   Trying <api_endpoint_ip_address>...
* TCP_NODELAY set
* Connected to <api_endpoint_ip_address> (<api_endpoint_ip_address>) port 443 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* successfully set certificate verify locations:
*   CAfile: /etc/ssl/cert.pem
  CApath: none
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Request CERT (13):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Certificate (11):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES128-GCM-SHA256
* ALPN, server accepted to use h2
* Server certificate:
*  subject: CN=<api_endpoint_ip_address>
*  start date: Sep 18 12:37:35 2018 GMT
*  expire date: Sep 17 12:37:35 2023 GMT
*  issuer: CN=1d0c9ada-8bf7-408b-92fb-a4f715e32eb5
*  SSL certificate verify result: unable to get local issuer certificate (20), continuing anyway.
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* Using Stream ID: 1 (easy handle 0x7fee73800400)
> GET /api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics HTTP/2
> Host: <api_endpoint_ip_address>
> User-Agent: curl/7.54.0
> Accept: */*
> Authorization: Bearer  blahblahblah
>
* Connection state changed (MAX_CONCURRENT_STREAMS updated)!
< HTTP/2 301
< audit-id: b8d54cfb-8290-405f-86a4-fd33884e5f7d
< content-type: text/html; charset=utf-8
< date: Fri, 18 Jan 2019 18:45:38 GMT
< location: http://<api_endpoint_ip_address>/api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/
< server: gunicorn/19.9.0
< content-length: 279
<
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 3.2 Final//EN">
<title>Redirecting...</title>
<h1>Redirecting...</h1>
* Connection #0 to host <api_endpoint_ip_address> left intact
<p>You should be redirected automatically to target URL: <a href="http://<api_endpoint_ip_address>/admin/metrics/">http://<api_endpoint_ip_address>/admin/metrics/</a>.  If not click the link.

So this explains why if I have a scrape config with

metrics_path: /api/v1/namespaces/default/services/<service>:8080/proxy/admin/metrics/

I don't get the malformed 301 and all of a sudden I have a working endpoint.

I guess this just turns into a "please generate greater debug logging" request.

[simonpasquier]

Interesting finding!

[travisgroth]

Possible suggestion - disable redirect following or error on 301/302 unless explicitly requested via configuration; like curl.

I'm not sure how easy this is to achieve in the http client, but that would make corner cases like this fairly obvious.

[brian-brazil]

It's easy to disable it, but it'd count as a breaking change (even though this is something to avoid).

[roidelapluie]

I agree to put this on the list for Prometheus 3.0.

[brian-brazil]

Hmm, could we handle the redirect better? There's basically the same issue over in the blackbox exporter too.

[roidelapluie]

What do you mean?

A HTTPS target that redirects to HTTP might be valid.

[brian-brazil]

It'd valid, but inefficient. We should scrape the required target directly.
