500 Server Error when select series

[yeya24]

Bug Report

What did you do?

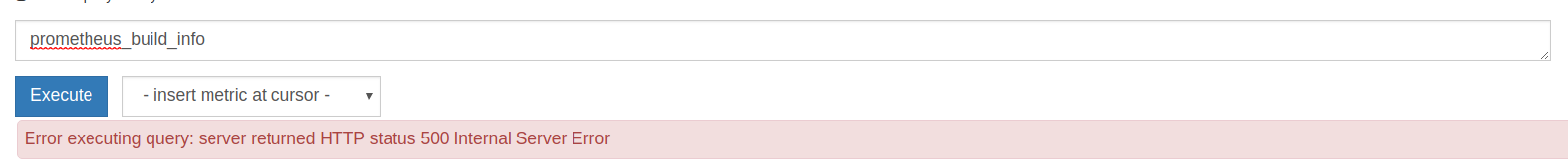

In the web UI, I search some metrics of prometheus such as prometheus_build_info or some other metrics of prometheus It returns a 500 error.
But when I search the metrics from influxdb(through remote read), I can get the correct metrics.

What did you expect to see?

I can see the correct metrics in the console

What did you see instead? Under which circumstances?

Environment

• System information:

Linux 3.10.0-862.14.4.el7.x86_64 x86_64

• Prometheus version:
  I tested in prometheus 2.4.0 and prometheus 2.5.0, all met the same problem
• Prometheus configuration file:

# my global config
global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
    - targets: ['localhost:9090']
remote_read:
  - url: "http://192.168.200.31:8086/api/v1/prom/read?db=stress"

• Logs:

level=error ts=2019-01-24T06:37:01.016535242Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:02.308943035Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:42.932953428Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:43.200055227Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:43.436832374Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:43.67769608Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:37:43.908430309Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"
level=error ts=2019-01-24T06:39:00.73227196Z caller=engine.go:498 component="query engine" msg="error selecting series set" err="server returned HTTP status 500 Internal Server Error"

[cstyan]

@yeya24 that error is from the remote read request from prometheus to influxdb

[aixeshunter]

Hi, could u see the influxdb logs?

[yeya24]

I found that maybe an error from influxdb because it throw an error of nil pointer. Here is the logs

[httpd] 172.17.0.1 - - [25/Jan/2019:02:12:41 +0000] "POST /api/v1/prom/read?db=stress HTTP/1.1" 200 0 "-" "Go-http-client/1.1" b1e70417-2046-11e9-adda-0242ac110002 210 [panic:runtime error: invalid memory address or nil pointer dereference] goroutine 115603 [running]:
runtime/debug.Stack(0xc007d17940, 0xc000136400, 0xbf0aba0663ddd0b5)
	/usr/local/go/src/runtime/debug/stack.go:24 +0xa7
github.com/influxdata/influxdb/services/httpd.(*Handler).recovery.func1.1(0xc007d17940, 0xc000136400, 0xbf0aba0663ddd0b5, 0x3bc17c2d0e06, 0x1d25320, 0xc000250e00, 0x135fe00, 0xc00013a2a0)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1690 +0xcd
panic(0x1065c20, 0x1cfcbb0)
	/usr/local/go/src/runtime/panic.go:513 +0x1b9
github.com/influxdata/influxdb/services/httpd.(*Handler).servePromRead(0xc000250e00, 0x7fa68e304898, 0xc007d17980, 0xc000136400, 0x0, 0x0)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1065 +0x270
github.com/influxdata/influxdb/services/httpd.(*Handler).servePromRead-fm(0x7fa68e304898, 0xc007d17980, 0xc000136400, 0x0, 0x0)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:183 +0x5c
github.com/influxdata/influxdb/services/httpd.authenticate.func1(0x7fa68e304898, 0xc007d17980, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1487 +0x788
net/http.HandlerFunc.ServeHTTP(0xc00001ee20, 0x7fa68e304898, 0xc007d17980, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.(*Handler).responseWriter.func1(0x135bb40, 0xc007d17960, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1667 +0xab
net/http.HandlerFunc.ServeHTTP(0xc00001ee40, 0x135bb40, 0xc007d17960, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.gzipFilter.func1(0x135bb40, 0xc007d17960, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/gzip.go:23 +0x29d
net/http.HandlerFunc.ServeHTTP(0xc00001ee60, 0x135bb40, 0xc007d17960, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.cors.func1(0x135bb40, 0xc007d17960, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1609 +0xf3
net/http.HandlerFunc.ServeHTTP(0xc00001ee80, 0x135bb40, 0xc007d17960, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.requestID.func1(0x135bb40, 0xc007d17960, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1640 +0x179
net/http.HandlerFunc.ServeHTTP(0xc00001eea0, 0x135bb40, 0xc007d17960, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.(*Handler).logging.func1(0x135bb40, 0xc007d17940, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1648 +0xdc
net/http.HandlerFunc.ServeHTTP(0xc00001eec0, 0x135bb40, 0xc007d17940, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/services/httpd.(*Handler).recovery.func1(0x135fe00, 0xc00013a2a0, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:1704 +0x147
net/http.HandlerFunc.ServeHTTP(0xc00001eee0, 0x135fe00, 0xc00013a2a0, 0xc000136400)
	/usr/local/go/src/net/http/server.go:1964 +0x44
github.com/influxdata/influxdb/vendor/github.com/bmizerany/pat.(*PatternServeMux).ServeHTTP(0xc00001e8e0, 0x135fe00, 0xc00013a2a0, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/vendor/github.com/bmizerany/pat/mux.go:117 +0x155
github.com/influxdata/influxdb/services/httpd.(*Handler).ServeHTTP(0xc000250e00, 0x135fe00, 0xc00013a2a0, 0xc000136400)
	/go/src/github.com/influxdata/influxdb/services/httpd/handler.go:381 +0x247
net/http.serverHandler.ServeHTTP(0xc00033a000, 0x135fe00, 0xc00013a2a0, 0xc000136400)
	/usr/local/go/src/net/http/server.go:2741 +0xab
net/http.(*conn).serve(0xc000830000, 0x13616c0, 0xc00002cb80)
	/usr/local/go/src/net/http/server.go:1847 +0x646
created by net/http.(*Server).Serve
	/usr/local/go/src/net/http/server.go:2851 +0x2f5

But when I switch to prometheus 2.6.0, I find it works well. So is there some bug fix in prometheus 2.6?

[aixeshunter]

@yeya24 What is the influxdb version?

[yeya24]

@yeya24 What is the influxdb version?

influxdb v1.7.2

[codesome]

@yeya24 I see that your issue is fixed with the latest Prometheus version, so I am closing this issue for now. If you face any more problem, feel free to open it again,

[yeya24]

@yeya24 I see that your issue is fixed with the latest Prometheus version, so I am closing this issue for now. If you face any more problem, feel free to open it again,

@codesome Sure, it's OK.

[cstyan]

#4832 this looks to be the only remote write change in 2.6
