High CPU and memory in Prometheus 2.3.2

[anumercian]

Proposal

Use case. Why is this important?
Facing high CPU and memory usage of Prometheus at Scale.

Bug Report

What did you do?
Created 126-130 time series and ran it for 2-3 days.

What did you expect to see?
Prometheus running at normal CPU and memory.

What did you see instead? Under which circumstances?
Prometheus is having CPU spikes every 1 minute for about 5sec to 100%.

On an average it seems like CPU is having high CPU throughout:

The memory via pprof is about 120Mb but via OS (/proc) its about 450Mb

Environment

• System information:

  insert output of uname -srm here

• Prometheus version:

  insert output of prometheus --version here
  Prometheus 2.3.2

• Alertmanager version:

  insert output of alertmanager --version here (if relevant to the issue)

• Prometheus configuration file:

insert configuration here

global:
scrape_interval: 15s
evaluation_interval: 5s
external_labels:
monitor: 'codelab-monitor'

rule_files:

• '/var/run/prometheus/alerts/*.yml'

scrape_configs:

• job_name: 'prometheus'

  scrape_interval: 5s

  static_configs:

  • targets: ['127.0.0.1:9091']

alerting:
alertmanagers:

• static_configs:
  • targets:
    • 127.0.0.1:9091

• Alertmanager configuration file:

insert configuration here (if relevant to the issue)

• Logs:

insert Prometheus and Alertmanager logs relevant to the issue here

[anumercian]

[SuperQ]

I would recommend upgrading to a more current release. There has been a lot of performance and bug fixes since 2.3.2.

I'm not sure where you're getting this data, but you might want to look at rate(process_cpu_seconds_total[1m]).

Also, please include the queries used for included graphs. Without the query we have no idea what the graphs mean.

[anumercian]

Sure, that was a REST query to read the "top" usage of Prometheus daemon.

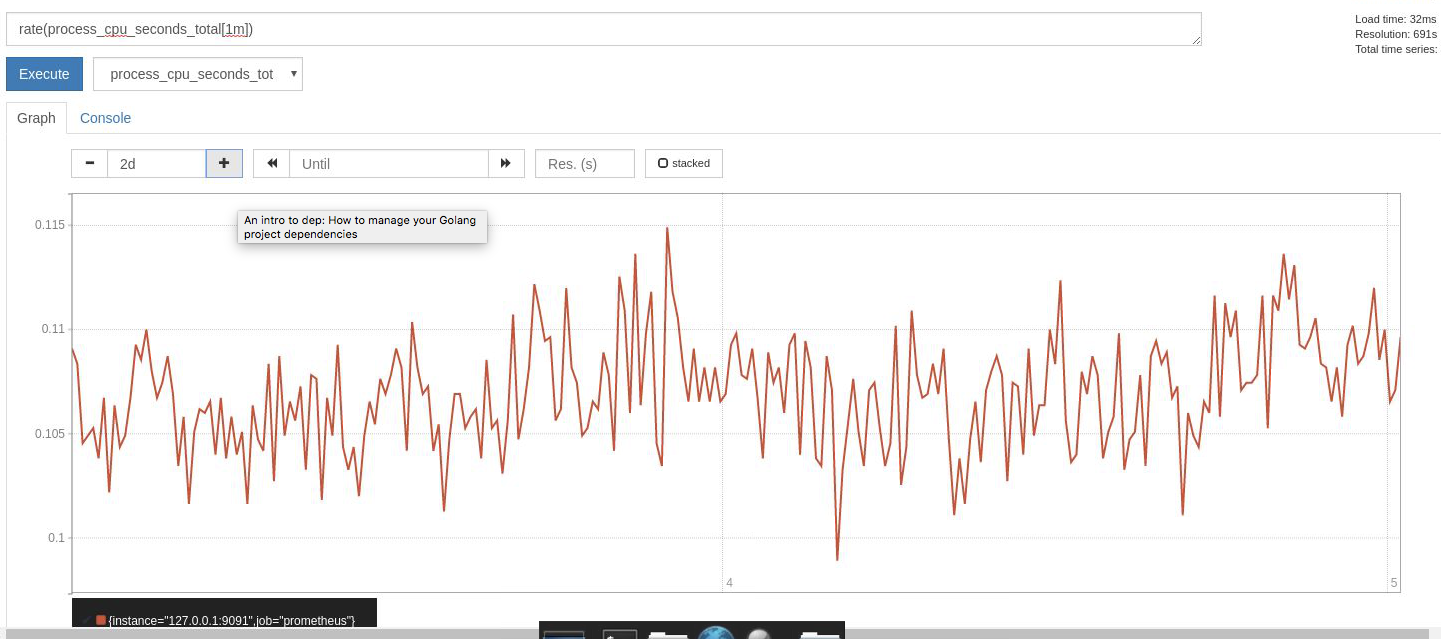

Query: rate(process_cpu_seconds_total[1m])

For 6hours

For 2days

[SuperQ]

Based on the graph, it looks like whatever is producing the other metric data is reporting false information.

[anumercian]

@SuperQ What do you mean by other metric data? The difference between OS memory of 450MB and prom heap pprof of 120Mb?

[SuperQ]

No, the CPU spikes seem non-existent in the Prometheus direct instrumentation. I'm not sure where Daemon_resource_utilization comes from, but it appears inaccurate.

[anumercian]

The daemon_resource_utilization is similar to the output of "top" on Linux shell, done for each daemon running and I am seeing Prometheus spiking to above 100% every 1-3minutes.

[SuperQ]

Prometheus CPU depends on what queries are being performed. The average CPU use seems to be about 10% of 1 core.

I don't see an actual issue here, other than "it's using resources".

[SuperQ]

As for the memory issue, can you please share the results of the query for process_resident_memory_bytes? This is the correct metric for memory use.

[anumercian]

Okay, could the CPU spike that we see in "top" be the Go Garbage collector?

[anumercian]

Will post the result of query "process_resident_memory_bytes" shortly

[anumercian]

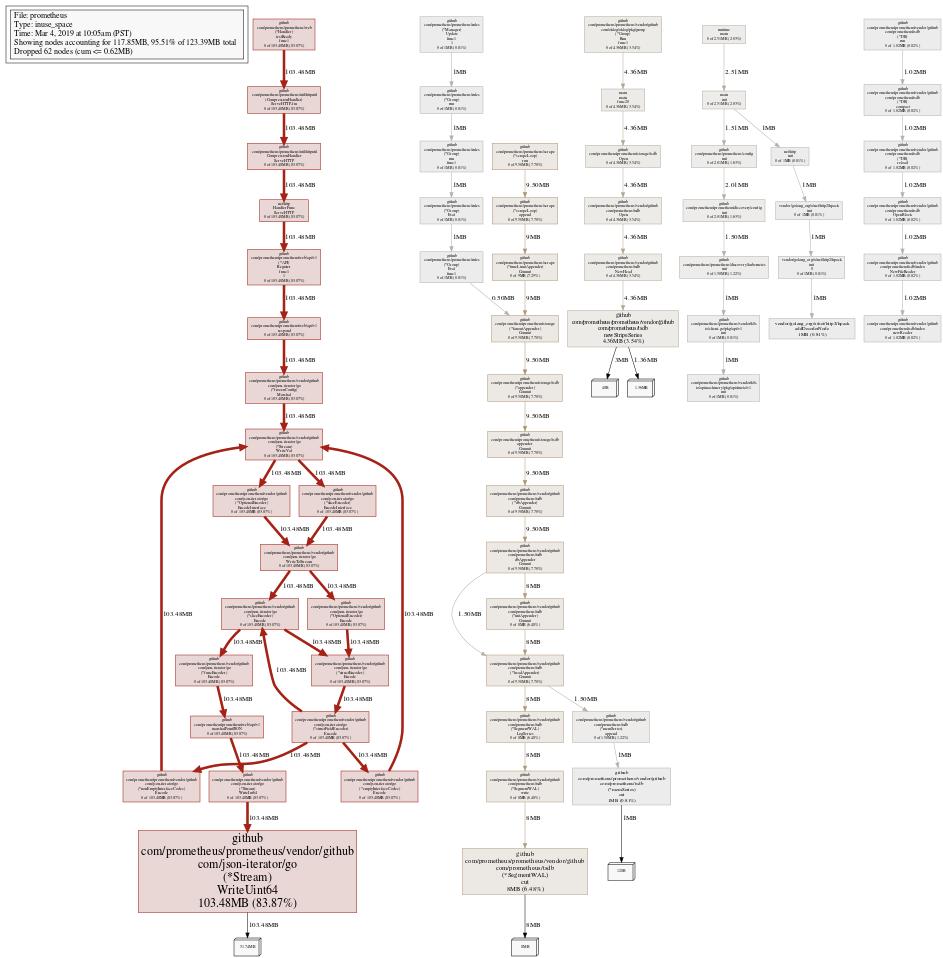

This is Heap Profile

[simonpasquier]

Closing since the discussion also happens on the mailing list (here) and there's no evidence of a problem.
