6 bugs found in sam2p #14

Closed
ghost opened this issue Sep 18, 2017 · 8 comments
Closed

6 bugs found in sam2p #14

ghost opened this issue Sep 18, 2017 · 8 comments

Comments

@ghost
Copy link

ghost commented Sep 18, 2017

bug 1: integer-overflow(lead to heap-buffer-overflow)
poc: https://drive.google.com/open?id=0B4aWmtdznlVKaXJKbU13cTBCTTg
asan: https://drive.google.com/open?id=0B4aWmtdznlVKbkE1dEloaGdudms
method: ./sam2p crash EPS: /dev/null
reason:

pinfo->w = (hdr[PCX_XMAXL] + ((int) hdr[PCX_XMAXH]<<8))

after the subduction, w will be a negative number.
else pad = bperlin - w;

so pad will become larger when the program use it to sub w.
image -= pad;

and when using pad, it will access the invalid memory before the allocated chunk.
patch: change w from signed to unsigned.

bug 2: heap-buffer-overflow
poc: https://drive.google.com/open?id=0B4aWmtdznlVKYzhJZjVZbDhBbG8
asan: https://drive.google.com/open?id=0B4aWmtdznlVKelhYUFFGOGRKaDQ
method: ./sam2p crash EPS: /dev/null
reason:

static int pcxLoadImage24 ___((char *fname, FILE *fp, PICINFO *pinfo, byte *hdr), (fname, fp, pinfo, hdr),

The crash happened in the pcxLoadImage24 function of the file in_pcx.cpp. The size of the Pic24 is w * h * planes.
But the loop time is nbytes=bperlinhplanes, in the loop, pix will add one each time.
It will cause a heap overflow when bperlin>w.
In this poc, bperlin=0x320,w=0x300.
patch: Compare the size of w and bperlin

bug 3: integer-overflow
poc: https://drive.google.com/open?id=0B4aWmtdznlVKT2pDeU5rdlV4RlU
asan: https://drive.google.com/open?id=0B4aWmtdznlVKb05nWTlkZlIwUm8
method: ./sam2p crash EPS: /dev/null
reason:
It crashed in function in_xpm_reader. The type of p is char*
When p[0]=0xa0,p[1]=0x20, p[0] will be recognized as a negative integer, it will make bin[0xffffffffffffa020]=I, which caused a crash.
patch: change p from signed to unsigned char*.

bug 4: integer-overflow
poc: https://drive.google.com/open?id=0B4aWmtdznlVKUGttRHhDU0REMjQ
asan: https://drive.google.com/open?id=0B4aWmtdznlVKNzBJazNId1RHYzg
method: ./sam2p crash EPS: /dev/null
reason:

sam2p/image.cpp

Line 751 in ac4dee3

void Image::Indexed::sortPal() {

In this poc, when getNcols returned 0 to ncols, --ncols made it to 0xffffffff, and caused a integer overflow. So the loop will excute 0xffffffff times, which caused the crash.
patch: Define Ncols as an int, or you can judge if ncols is NULL.

bug 5: out-of-bounds access
poc: https://drive.google.com/open?id=0B4aWmtdznlVKSUpaODdRN2w5ekE
asan: https://drive.google.com/open?id=0B4aWmtdznlVKYUxsSnVLUGNwa2c
method: ./sam2p crash EPS: /dev/null
reason:

p=xpmColors_dat+xpmColors_ofs[(v&65535)%xpmColors_mod];

In in_xpm.cpp's function parse_rgb(),xpmcolors_mod = 1109, but the size of xpmColors_ofs is 1098.
If v&65535%xpmColors_mod > 1098 , it will crash.
patch:
modified xpmColors_mode or expand the xpmColors_ofs.

bug 6: integer-overflow
poc: https://drive.google.com/open?id=0B4aWmtdznlVKVFgzSjNMdkJyV00
asan: https://drive.google.com/open?id=0B4aWmtdznlVKc1J3MS1LUmVBekU
method: ./sam2p crash EPS: /dev/null
reason:

pic24 = (byte *) malloc_byte((PCX_SIZE_T) w*h*planes);

In in_pcx.cpp's function pcxLoadImage24, Whplanes will cause integer-overflow.
patch:
check Whplanes' value before malloc.

@ghost
Copy link
Author

ghost commented Sep 18, 2017

bug3 add:

} else if (cpp==2 && colors<=256) { /* Similarly easy job: make an Indexed image; defer .packPal() */

@pts
Copy link
Owner

pts commented Sep 18, 2017

Thank you very much for finding and reporting these bugs, your contribution is very much appreciated! I will fix the bugs based on your recommendations, and report progress on this issue.

@fgeek
Copy link

fgeek commented Sep 21, 2017

@fpbibi It would be easier to coordinate issues if you reported one case per issue report. Please consider doing so in the future, thanks.

@ghost
Copy link
Author

ghost commented Sep 22, 2017

Ok, I'm sorry about that. @fgeek I will split bugs into different issues next time.

@ghost
Copy link
Author

ghost commented Sep 22, 2017

@fgeek @pts Hello~~ It's my pleasure to add informations about bug4 and bug5

bug 4:

In this fuction:

sam2p/image.cpp

Line 751 in ac4dee3

void Image::Indexed::sortPal() {

when getNcols returned 0 to ncols

sam2p/image.cpp

Line 753 in ac4dee3

unsigned ncols = getNcols(), i;

--ncols made it to 0xffffffff, and caused a integer overflow.

sam2p/image.cpp

Line 756 in ac4dee3

if (transp + 0U == ncols - 1) --ncols;

So the loop will execute 0xffffffff times:

sam2p/image.cpp

Line 767 in ac4dee3

for (i = 0, p = (unsigned char*)headp; i < ncols; ++i, p += 3) {

In the for(......), the parameter d is on the stack:

sam2p/image.cpp

Line 768 in ac4dee3

d[i] = (d_t)p[0] << 24 | (d_t)p[1] << 16 | (d_t)p[2] << 8 | i;

when the parameter ncols is 0xffffffff, d[i] will be an address on the stack.So it caused an attribute write to this address, which may lead to code execution. Thats why the program received a segment fault.

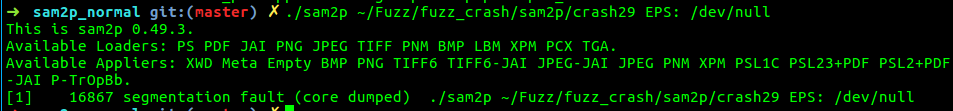

picture for segment fault:
bug4_segment_fault

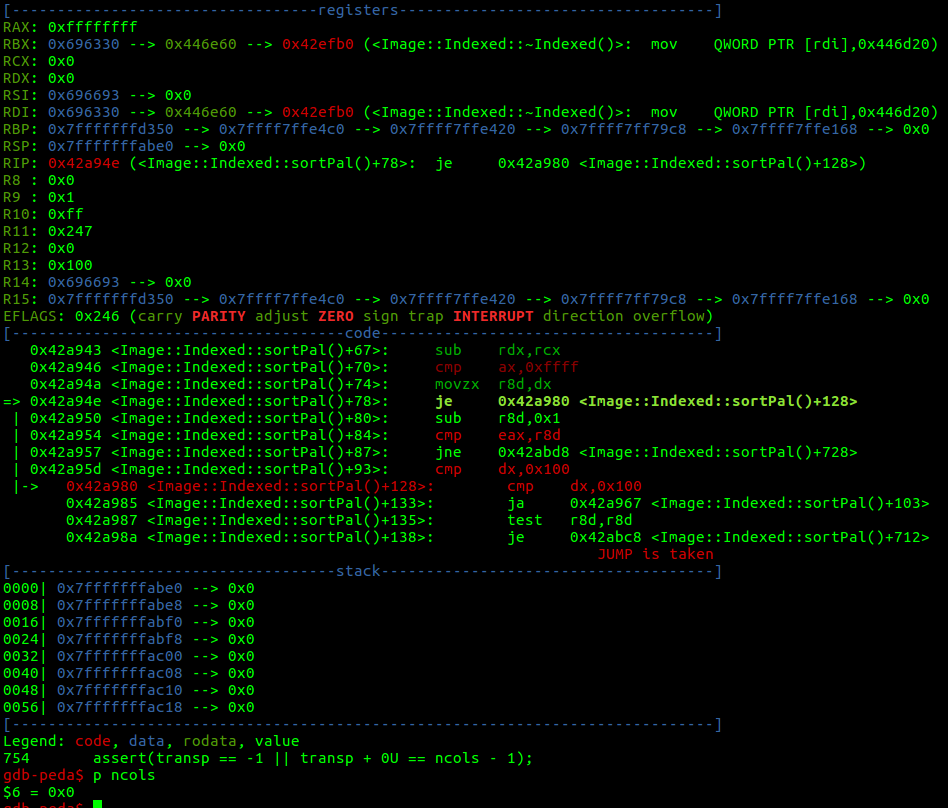

firstly, getNcols returned 0 to ncols:
3

--ncols made it to 0xffffffff
4

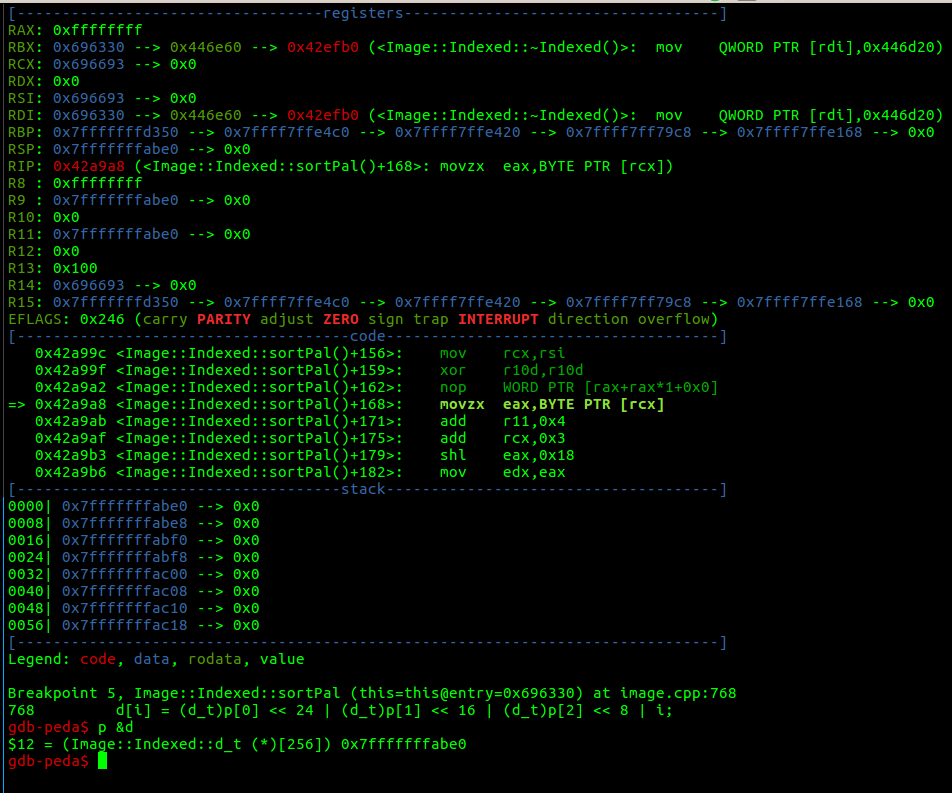

in for(......), the parameter d is on the stack:
5

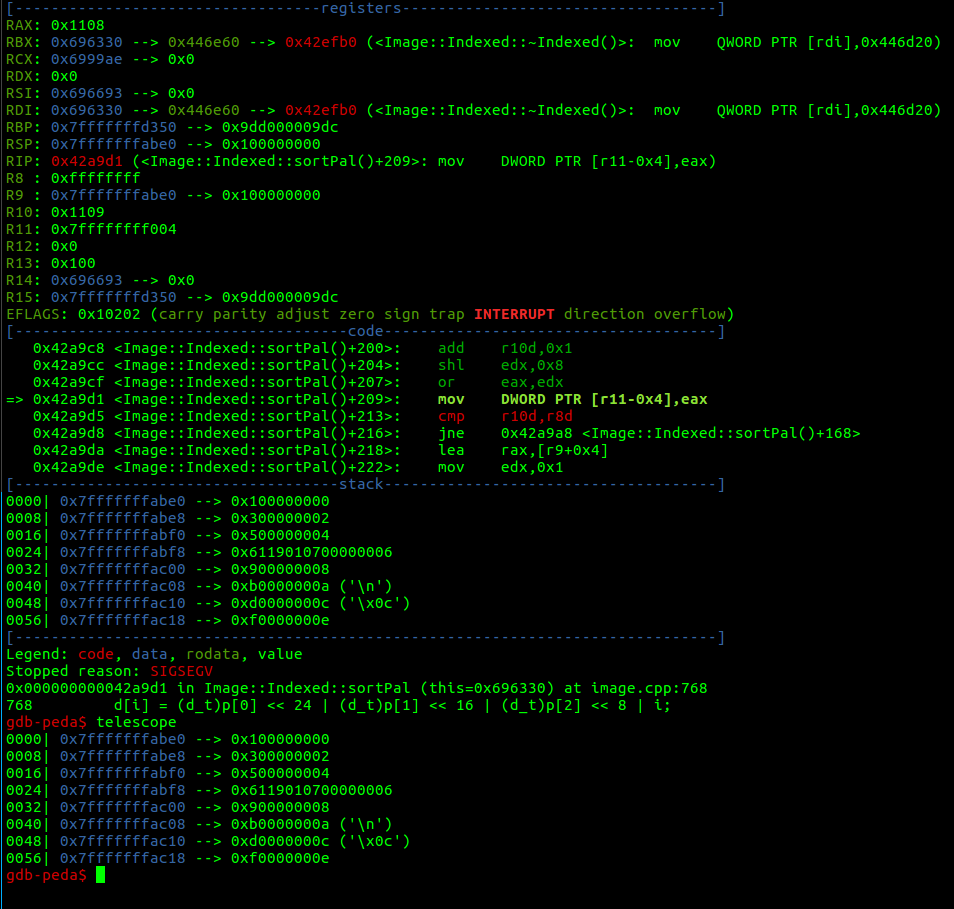

i: from 0 to 0xffffffff, and we can write stack 0xffffffff times:

sam2p/image.cpp

Line 768 in ac4dee3

d[i] = (d_t)p[0] << 24 | (d_t)p[1] << 16 | (d_t)p[2] << 8 | i;

6

@ghost
Copy link
Author

ghost commented Sep 22, 2017

@pts @fgeek
bug 5:

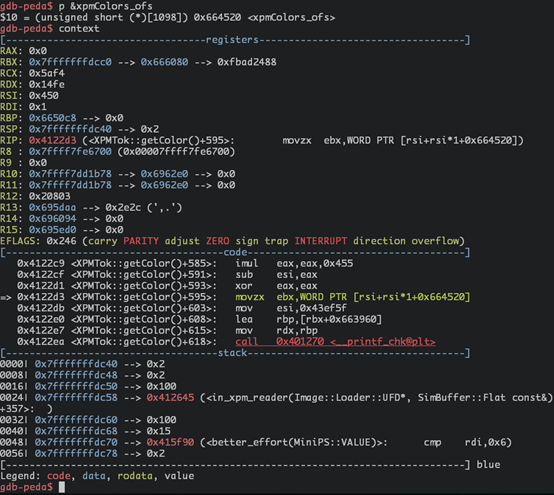

p=xpmColors_dat+xpmColors_ofs[(v&65535)%xpmColors_mod];

default

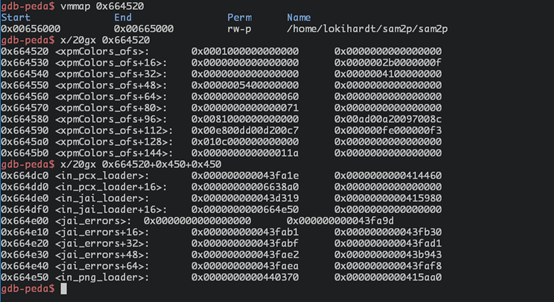

Here, the address of xpmColors_ofs is an global array on the .bss area of the program, and when the program calculate the offset (v&65535)%xpmColors_mod, the answer is 0x450.
So xpmColors_ofs[(v&65535)%xpmColors_mod ] will beyond the original size 1098, it will be 0xfa1e here.

default

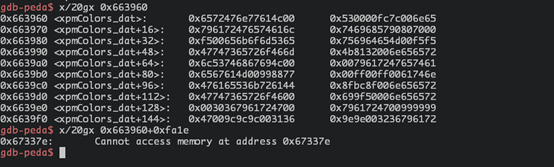

xpmColors_dat is on the bss. So p = xpmColors_dat+xpmColors_ofs[(v&65535)%xpmColors_mod] will be an illegal address.

default

If we designed the xpmColors_ofs[(v&65535)%xpmColors_mod] carefully.We can do attribute write.

@pts
Copy link
Owner

pts commented Sep 27, 2017

Fixed all these bugs and created a new binary release: https://github.com/pts/sam2p/releases/tag/v0.49.4

@pts pts closed this as completed Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Sep 27, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
pts pushed a commit that referenced this issue Oct 23, 2017
