A divergence meter that tries to look just like the one in the anime.
Switch branches/tags
Nothing to show
Clone or download
q61org
Latest commit 3773752 Apr 27, 2017

README.md

Divergence Meter Project (by q61.org)

This is yet another divergence meter project.

This project tries to make a divergence meter that look just like the one in the Steins;Gate anime series, by implementing the following features:

  • Using tip-less, flat-top nixie tubes (NL902) that look similar to the tubes in the anime.
  • Compact dimensions: so that you can hold it on your hand like Suzuha does, and so that you can use the meter for cosplaying.
  • A built-in, rechargeable battery; so that Suzuha can take it out of her bag while it is displaying a divergence value.

The result, a completed divergence meter can be seen below.

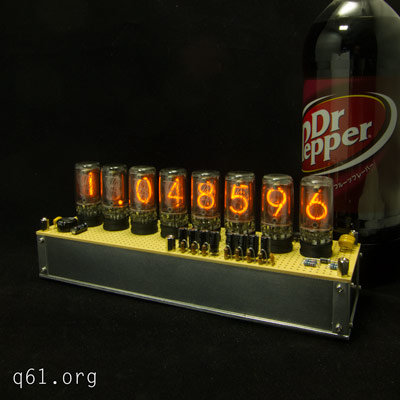

divergence meter with dr pepper divergence meter with an anime screen capture

Files in This Repository

This repository contains schematics, PCB files and a firmware of the divergence meter. Chassis design is left as an exercise to makers (forks and pull requests are welcome!).

The divergence meter is composed of 3 PCBs, and there are 3 PCB filesets in this repository:

  • dm_control: A board that controls everything; the motherboard.
  • dm_nixiebrd: A serial-to-parallel converter board with nixie drivers. This is the board where nixie tubes are mounted on, and stacks on top of dm_control board.
  • dm_topboard: A perfboard-like board that goes on top of the divergence meter. This board does not have any electrical functions, but adds very much to the aesthetics.

dm_control board has a microcontroller, and its firmware is in the following subdirectory:

  • dm_firmware: Firmware for dm_control board.

License

Schematics and PCB, and firmware are licensed under different licenses:

Please see README.md and LICENSE files in respective directories.

See Also

This project was inspired by following projects:

Disclaimer

There is no warranty, expressed or implied, associated with files in this project. Especially there is a high voltage shock hazard which can kill you. Use at your own risk.

Author

Kouichi Kuroi (q61.org)
