Filtering a sf object could be easier, and also prettier #1148

Activity

1. sheffe commented on Sep 16, 2019



   sheffe

   on Sep 16, 2019

   More actions

   I like this concept a lot. I grepped a few recent projects and found that more than half of my st_join calls were doing this operation via st_join(..., left = FALSE). An inner join has the same row-subsetting consequences as the proposed st_filter, but the downside is that it drags extra columns along. I often use st_join(..., y = dplyr::select(foo, geometry), left = FALSE) or similar.

   A minor note: it's counterintuitive to me, but I've found that st_join(..., left = FALSE) is consistently faster for subsetting than using the geometry predicates like st_intersects directly. Here's an example building on the code above:

   library(sf)
   library(tidyverse)

   nc <- st_read(system.file("shape/nc.shp", package="sf"))

   st_filter <- function(.x, .y, f = st_intersects) {
     # Leaving the error checks out for a direct comparison in function timings
     # geoms_attr <- sapply(list(.x, .y), attr, "sf_column")
     # null_geoms <- sapply(geoms_attr, is.null)
     # if(any(null_geoms)) {
     #   stop("`st_geometry` should not be `NULL`")
     # }

     .x[f(.x, .y, sparse = FALSE), ]
   }

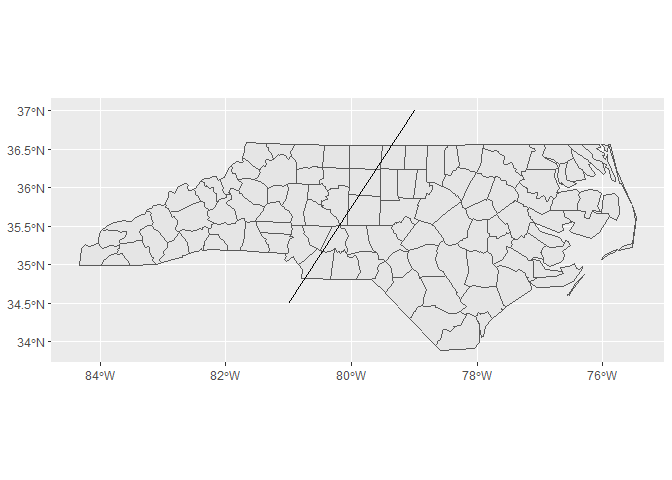

   my_line <- tibble(name = "my line", x = c(-81, -79), y = c(34.5, 37)) %>%
     st_as_sf(coords = c("x", "y")) %>%
     summarize() %>%
     st_cast("LINESTRING") %>%
     st_set_crs(4267)

   suppressMessages(suppressWarnings({
     microbenchmark::microbenchmark(
       sf::st_join(x = nc, y = my_line,
                   join = sf::st_intersects, left = FALSE),
       st_filter(.x = nc, .y = my_line),
       times = 100
     )
   }))


   Results are pretty close here on the small dataset:

   Unit: milliseconds
                                                                        expr      min       lq     mean   median       uq      max neval
    sf::st_join(x = nc, y = my_line, join = sf::st_intersects, left = FALSE) 3.475222 3.555523 3.813325 3.645118 3.894801 8.765784   100
                                            st_filter(.x = nc, .y = my_line) 3.637339 3.689342 3.877169 3.722460 3.899177 9.239481   100


   But the timing gap grows considerably over larger datasets -- median time is ~10% better here.

   guilford_roads <- tigris::roads(state = "37", county = "081", class = "sf") %>%
     sf::st_transform(4267)

   suppressMessages(suppressWarnings({
     microbenchmark::microbenchmark(
       sf::st_join(x = guilford_roads, y = my_line,
                   join = sf::st_intersects, left = FALSE),
       st_filter(.x = guilford_roads, .y = my_line),
       times = 25
     )
   }))


   Unit: milliseconds
                                                                                         expr      min       lq     mean  median       uq      max neval
    sf::st_join(x = guilford_roads, y = my_line, join = sf::st_intersects,      left = FALSE) 183.3485 187.7024 192.1303 190.482 197.0052 205.0862    25
                                                 st_filter(.x = guilford_roads, .y = my_line) 194.5699 200.8530 207.8659 207.605 210.8725 230.3960    25


   When subsetting really large sf objects like US Census Block files (~11M detailed shapes), I have found nearly 20% improvements consistently. I can't explain this behavior offhand.

   👍React with 👍1Reacted by RealCoChenchao
2. edzer commented on Sep 17, 2019



   edzer

   on Sep 17, 2019

   Member

   More actions

   @pasipasi123 that approach does not hold when my_line (or .y) holds more than one feature:

   ml = rbind(my_line,my_line)
   nc %>% st_filter(ml)
   ...
   Simple feature collection with 16 features and 14 fields (with 8 geometries empty)
   ...

   Two approaches currently work:

   nc[ml,] # which also has an op argument to control which predicate to use

   and

   nc %>% filter(lengths(st_intersects(., ml)) > 0)

   Am I right that your proposal is to make st_filter work like the second, but written as

   nc %>% st_filter(ml)

   with a parameter to control the predicate, defaulting to st_intersects?
3. pasipasi123 commented on Sep 17, 2019



   pasipasi123

   on Sep 17, 2019

   Author

   More actions

   Am I right that your proposal is to make st_filter work like the second, but written as

   nc %>% st_filter(ml)

   with a parameter to control the predicate, defaulting to st_intersects?

   Yes, that's what I was after.
4. edzer commented on Sep 17, 2019



   edzer

   on Sep 17, 2019

   Member

   More actions

   OK, that would then be

   st_filter = function(.x, .y, .pred = st_intersects) {
       # check that dplyr is loaded, then
       filter(.x, lengths(.pred(.x, .y)) > 0)
   }

   nc %>% st_filter(ml)

   👍React with 👍4Reacted by Lars Dalby, Pasi Haapakorva, Greg Macfarlane and Erin LaBrecque
5. edzer

   closed this as completedin d00445aon Sep 17, 2019
6. edzer commented on Sep 17, 2019



   edzer

   on Sep 17, 2019

   Member

   More actions

   @sheffe I think there is a substantial difference: when y has more than one feature, st_join may return more records than x has, filter never would do this.
