Performance of st_transform #1367

Robinlovelace · 2020-04-14T19:20:58Z

More of a question than a bug, but it seems that transforming object geometries is slower in sf than its predecessor. I'm not sure if this is new but was surprised to find this as most benchmarks I've seen that compare sp code with sf code show substantial performance improvements of the more recent package.

I know performance isn't everything but I thought the factor of ~4 slowdown I'm seeing in what is I think equivalent code may be of interest.

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
nc = st_read(system.file("shape/nc.shp", package="sf"))
#> Reading layer `nc' from data source `/home/robin/R/x86_64-pc-linux-gnu-library/3.6/sf/shape/nc.shp' using driver `ESRI Shapefile'
#> Simple feature collection with 100 features and 14 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> geographic CRS: NAD27
nc_sp = as(nc, "Spatial")
bench::mark(st_transform(nc, 4326), sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")), check = FALSE)
#> # A tibble: 2 x 6
#>   expression                                             min median `itr/sec`
#>   <bch:expr>                                         <bch:t> <bch:>     <dbl>
#> 1 st_transform(nc, 4326)                             100.5ms  102ms      9.80
#> 2 sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326"))  23.2ms   24ms     41.4
#> # … with 2 more variables: mem_alloc <bch:byt>, `gc/sec` <dbl>

^{Created on 2020-04-14 by the reprex package (v0.3.0)}

Session info

devtools::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 3.6.3 (2020-02-29)
#>  os       Ubuntu 18.04.4 LTS
#>  system   x86_64, linux-gnu
#>  ui       X11
#>  language en_GB:en
#>  collate  en_GB.UTF-8
#>  ctype    en_GB.UTF-8
#>  tz       Europe/London
#>  date     2020-04-14
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version     date       lib source
#>  assertthat    0.2.1       2019-03-21 [2] CRAN (R 3.6.0)
#>  backports     1.1.6       2020-04-05 [1] CRAN (R 3.6.3)
#>  bench         1.1.1       2020-01-13 [2] CRAN (R 3.6.2)
#>  callr         3.4.3       2020-03-28 [1] CRAN (R 3.6.3)
#>  class         7.3-16      2020-03-25 [2] CRAN (R 3.6.3)
#>  classInt      0.4-3       2020-04-06 [1] Github (r-spatial/classInt@d024051)
#>  cli           2.0.2       2020-02-28 [1] CRAN (R 3.6.2)
#>  crayon        1.3.4       2017-09-16 [2] standard (@1.3.4)
#>  DBI           1.1.0       2019-12-15 [2] CRAN (R 3.6.2)
#>  desc          1.2.0       2018-05-01 [2] standard (@1.2.0)
#>  devtools      2.3.0       2020-04-10 [1] CRAN (R 3.6.3)
#>  digest        0.6.25      2020-02-23 [1] CRAN (R 3.6.2)
#>  e1071         1.7-3       2019-11-26 [2] CRAN (R 3.6.1)
#>  ellipsis      0.3.0       2019-09-20 [3] CRAN (R 3.6.1)
#>  evaluate      0.14        2019-05-28 [2] CRAN (R 3.6.0)
#>  fansi         0.4.1       2020-01-08 [1] CRAN (R 3.6.2)
#>  fs            1.4.1       2020-04-04 [2] CRAN (R 3.6.3)
#>  glue          1.4.0       2020-04-03 [2] CRAN (R 3.6.3)
#>  highr         0.8         2019-03-20 [3] CRAN (R 3.5.3)
#>  htmltools     0.4.0.9003  2020-04-09 [1] Github (rstudio/htmltools@1a7d0dc)
#>  KernSmooth    2.23-16     2019-10-15 [4] CRAN (R 3.6.1)
#>  knitr         1.28        2020-02-06 [1] CRAN (R 3.6.2)
#>  lattice       0.20-41     2020-04-02 [2] CRAN (R 3.6.3)
#>  lifecycle     0.2.0.9000  2020-03-16 [1] Github (r-lib/lifecycle@355dcba)
#>  magrittr      1.5         2014-11-22 [2] CRAN (R 3.5.2)
#>  memoise       1.1.0       2017-04-21 [3] CRAN (R 3.5.0)
#>  pillar        1.4.3       2019-12-20 [1] CRAN (R 3.6.2)
#>  pkgbuild      1.0.6       2019-10-09 [2] CRAN (R 3.6.1)
#>  pkgconfig     2.0.3       2019-09-22 [2] CRAN (R 3.6.1)
#>  pkgload       1.0.2       2018-10-29 [3] CRAN (R 3.5.1)
#>  prettyunits   1.1.1       2020-01-24 [1] CRAN (R 3.6.2)
#>  processx      3.4.2       2020-02-09 [1] CRAN (R 3.6.3)
#>  profmem       0.5.0       2018-01-30 [2] CRAN (R 3.5.2)
#>  ps            1.3.2       2020-02-13 [1] CRAN (R 3.6.3)
#>  R6            2.4.1       2019-11-12 [2] CRAN (R 3.6.1)
#>  Rcpp          1.0.4.6     2020-04-09 [1] CRAN (R 3.6.3)
#>  remotes       2.1.1       2020-02-15 [1] CRAN (R 3.6.2)
#>  rgdal         1.4-8       2019-11-27 [1] CRAN (R 3.6.3)
#>  rlang         0.4.5.9000  2020-03-25 [1] Github (r-lib/rlang@a90b04b)
#>  rmarkdown     2.1.2       2020-04-09 [1] Github (rstudio/rmarkdown@65dd144)
#>  rprojroot     1.3-2       2018-01-03 [2] CRAN (R 3.5.3)
#>  sessioninfo   1.1.1       2018-11-05 [3] CRAN (R 3.5.1)
#>  sf          * 0.9-2       2020-04-09 [1] Github (r-spatial/sf@0b09452)
#>  sp            1.4-1       2020-02-28 [1] CRAN (R 3.6.2)
#>  stringi       1.4.6       2020-02-17 [1] CRAN (R 3.6.2)
#>  stringr       1.4.0       2019-02-10 [2] standard (@1.4.0)
#>  testthat      2.3.2       2020-03-02 [1] CRAN (R 3.6.3)
#>  tibble        3.0.0       2020-03-30 [1] CRAN (R 3.6.3)
#>  units         0.6-6       2020-03-16 [1] CRAN (R 3.6.3)
#>  usethis       1.6.0       2020-04-09 [1] CRAN (R 3.6.3)
#>  utf8          1.1.4       2018-05-24 [2] CRAN (R 3.5.3)
#>  vctrs         0.2.99.9011 2020-04-14 [1] Github (r-lib/vctrs@1fcc3fb)
#>  withr         2.1.2       2018-03-15 [2] CRAN (R 3.5.3)
#>  xfun          0.13        2020-04-13 [1] CRAN (R 3.6.3)
#>  yaml          2.2.1       2020-02-01 [1] CRAN (R 3.6.2)
#>
#> [1] /home/robin/R/x86_64-pc-linux-gnu-library/3.6
#> [2] /usr/local/lib/R/site-library
#> [3] /usr/lib/R/site-library
#> [4] /usr/lib/R/library

rsbivand · 2020-04-14T19:27:41Z

Could you try rgdal from R-forge? The CRAN version you have is using proj_api.h, not proj.h, and not using WKT. One difference I think is that sf uses PROJ through GDAL, but rgdal uses PROJ directly. Roger Bivand Falsensvei 32 5063 Bergen tir. 14. apr. 2020, 21.21 skrev Robin <notifications@github.com>:

…

More of a question than a bug, but it seems that transforming object geometries is slower in sf than its predecessor. I'm not sure if this is new but was surprised to find this as most benchmarks I've seen that compare sp code with sf code show substantial performance improvements of the more recent package. I know performance isn't everything but I thought the factor of ~4 slowdown I'm seeing in what is I think equivalent code may be of interest. library(sf) #> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0 nc = st_read(system.file("shape/nc.shp", package="sf")) #> Reading layer `nc' from data source `/home/robin/R/x86_64-pc-linux-gnu-library/3.6/sf/shape/nc.shp' using driver `ESRI Shapefile' #> Simple feature collection with 100 features and 14 fields #> geometry type: MULTIPOLYGON #> dimension: XY #> bbox: xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965 #> geographic CRS: NAD27 nc_sp = as(nc, "Spatial") bench::mark(st_transform(nc, 4326), sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")), check = FALSE) #> # A tibble: 2 x 6 #> expression min median `itr/sec` #> <bch:expr> <bch:t> <bch:> <dbl> #> 1 st_transform(nc, 4326) 100.5ms 102ms 9.80 #> 2 sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")) 23.2ms 24ms 41.4 #> # … with 2 more variables: mem_alloc <bch:byt>, `gc/sec` <dbl> Created on 2020-04-14 by the reprex package <https://reprex.tidyverse.org> (v0.3.0) Session info devtools::session_info() #> ─ Session info ─────────────────────────────────────────────────────────────── #> setting value #> version R version 3.6.3 (2020-02-29) #> os Ubuntu 18.04.4 LTS #> system x86_64, linux-gnu #> ui X11 #> language en_GB:en #> collate en_GB.UTF-8 #> ctype en_GB.UTF-8 #> tz Europe/London #> date 2020-04-14 #> #> ─ Packages ─────────────────────────────────────────────────────────────────── #> package * version date lib source #> assertthat 0.2.1 2019-03-21 [2] CRAN (R 3.6.0) #> backports 1.1.6 2020-04-05 [1] CRAN (R 3.6.3) #> bench 1.1.1 2020-01-13 [2] CRAN (R 3.6.2) #> callr 3.4.3 2020-03-28 [1] CRAN (R 3.6.3) #> class 7.3-16 2020-03-25 [2] CRAN (R 3.6.3) #> classInt 0.4-3 2020-04-06 [1] Github ***@***.***) #> cli 2.0.2 2020-02-28 [1] CRAN (R 3.6.2) #> crayon 1.3.4 2017-09-16 [2] standard ***@***.***) #> DBI 1.1.0 2019-12-15 [2] CRAN (R 3.6.2) #> desc 1.2.0 2018-05-01 [2] standard ***@***.***) #> devtools 2.3.0 2020-04-10 [1] CRAN (R 3.6.3) #> digest 0.6.25 2020-02-23 [1] CRAN (R 3.6.2) #> e1071 1.7-3 2019-11-26 [2] CRAN (R 3.6.1) #> ellipsis 0.3.0 2019-09-20 [3] CRAN (R 3.6.1) #> evaluate 0.14 2019-05-28 [2] CRAN (R 3.6.0) #> fansi 0.4.1 2020-01-08 [1] CRAN (R 3.6.2) #> fs 1.4.1 2020-04-04 [2] CRAN (R 3.6.3) #> glue 1.4.0 2020-04-03 [2] CRAN (R 3.6.3) #> highr 0.8 2019-03-20 [3] CRAN (R 3.5.3) #> htmltools 0.4.0.9003 2020-04-09 [1] Github ***@***.***) #> KernSmooth 2.23-16 2019-10-15 [4] CRAN (R 3.6.1) #> knitr 1.28 2020-02-06 [1] CRAN (R 3.6.2) #> lattice 0.20-41 2020-04-02 [2] CRAN (R 3.6.3) #> lifecycle 0.2.0.9000 2020-03-16 [1] Github ***@***.***) #> magrittr 1.5 2014-11-22 [2] CRAN (R 3.5.2) #> memoise 1.1.0 2017-04-21 [3] CRAN (R 3.5.0) #> pillar 1.4.3 2019-12-20 [1] CRAN (R 3.6.2) #> pkgbuild 1.0.6 2019-10-09 [2] CRAN (R 3.6.1) #> pkgconfig 2.0.3 2019-09-22 [2] CRAN (R 3.6.1) #> pkgload 1.0.2 2018-10-29 [3] CRAN (R 3.5.1) #> prettyunits 1.1.1 2020-01-24 [1] CRAN (R 3.6.2) #> processx 3.4.2 2020-02-09 [1] CRAN (R 3.6.3) #> profmem 0.5.0 2018-01-30 [2] CRAN (R 3.5.2) #> ps 1.3.2 2020-02-13 [1] CRAN (R 3.6.3) #> R6 2.4.1 2019-11-12 [2] CRAN (R 3.6.1) #> Rcpp 1.0.4.6 2020-04-09 [1] CRAN (R 3.6.3) #> remotes 2.1.1 2020-02-15 [1] CRAN (R 3.6.2) #> rgdal 1.4-8 2019-11-27 [1] CRAN (R 3.6.3) #> rlang 0.4.5.9000 2020-03-25 [1] Github ***@***.***) #> rmarkdown 2.1.2 2020-04-09 [1] Github ***@***.***) #> rprojroot 1.3-2 2018-01-03 [2] CRAN (R 3.5.3) #> sessioninfo 1.1.1 2018-11-05 [3] CRAN (R 3.5.1) #> sf * 0.9-2 2020-04-09 [1] Github ***@***.***) #> sp 1.4-1 2020-02-28 [1] CRAN (R 3.6.2) #> stringi 1.4.6 2020-02-17 [1] CRAN (R 3.6.2) #> stringr 1.4.0 2019-02-10 [2] standard ***@***.***) #> testthat 2.3.2 2020-03-02 [1] CRAN (R 3.6.3) #> tibble 3.0.0 2020-03-30 [1] CRAN (R 3.6.3) #> units 0.6-6 2020-03-16 [1] CRAN (R 3.6.3) #> usethis 1.6.0 2020-04-09 [1] CRAN (R 3.6.3) #> utf8 1.1.4 2018-05-24 [2] CRAN (R 3.5.3) #> vctrs 0.2.99.9011 2020-04-14 [1] Github ***@***.***) #> withr 2.1.2 2018-03-15 [2] CRAN (R 3.5.3) #> xfun 0.13 2020-04-13 [1] CRAN (R 3.6.3) #> yaml 2.2.1 2020-02-01 [1] CRAN (R 3.6.2) #> #> [1] /home/robin/R/x86_64-pc-linux-gnu-library/3.6 #> [2] /usr/local/lib/R/site-library #> [3] /usr/lib/R/site-library #> [4] /usr/lib/R/library — You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub <#1367>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/ACNZ3BE4BUWMY2KEGHEJS73RMSZSVANCNFSM4MH7VIEA> .

Robinlovelace · 2020-04-14T19:28:29Z

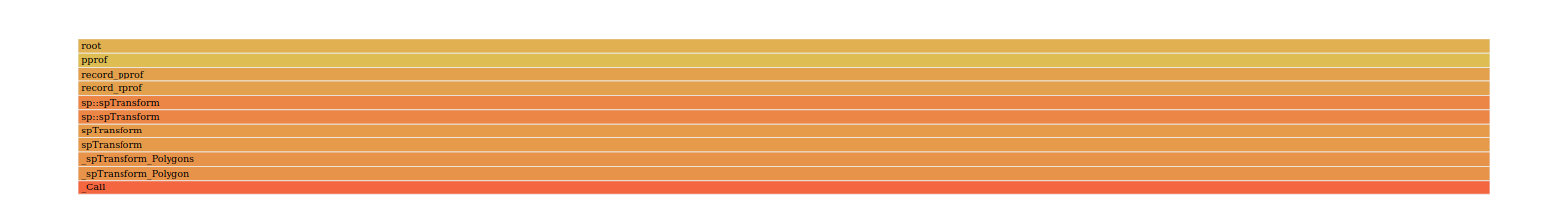

The profiles of both don't reveal much FYI...

library(proffer)
pprof(st_transform(nc, 4326))
pprof(sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")))

Robinlovelace · 2020-04-14T19:30:31Z

Just installing now with

install.packages("rgdal", repos = "http://R-Forge.R-project.org")

Robinlovelace · 2020-04-14T19:31:52Z

Interesting result, sf is now faster:

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
nc = st_read(system.file("shape/nc.shp", package="sf"))
#> Reading layer `nc' from data source `/home/robin/R/x86_64-pc-linux-gnu-library/3.6/sf/shape/nc.shp' using driver `ESRI Shapefile'
#> Simple feature collection with 100 features and 14 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> geographic CRS: NAD27
nc_sp = as(nc, "Spatial")
bench::mark(st_transform(nc, 4326), sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")), check = FALSE)
#> # A tibble: 2 x 6
#>   expression                                           min median `itr/sec`
#>   <bch:expr>                                         <bch> <bch:>     <dbl>
#> 1 st_transform(nc, 4326)                             100ms  102ms      9.84
#> 2 sp::spTransform(nc_sp, sp::CRS("+init=epsg:4326")) 769ms  769ms      1.30
#> # … with 2 more variables: mem_alloc <bch:byt>, `gc/sec` <dbl>

^{Created on 2020-04-14 by the reprex package (v0.3.0)}

Session info

devtools::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 3.6.3 (2020-02-29)
#>  os       Ubuntu 18.04.4 LTS
#>  system   x86_64, linux-gnu
#>  ui       X11
#>  language en_GB:en
#>  collate  en_GB.UTF-8
#>  ctype    en_GB.UTF-8
#>  tz       Europe/London
#>  date     2020-04-14
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version     date       lib source
#>  assertthat    0.2.1       2019-03-21 [2] CRAN (R 3.6.0)
#>  backports     1.1.6       2020-04-05 [1] CRAN (R 3.6.3)
#>  bench         1.1.1       2020-01-13 [2] CRAN (R 3.6.2)
#>  callr         3.4.3       2020-03-28 [1] CRAN (R 3.6.3)
#>  class         7.3-16      2020-03-25 [2] CRAN (R 3.6.3)
#>  classInt      0.4-3       2020-04-06 [1] Github (r-spatial/classInt@d024051)
#>  cli           2.0.2       2020-02-28 [1] CRAN (R 3.6.2)
#>  crayon        1.3.4       2017-09-16 [2] standard (@1.3.4)
#>  DBI           1.1.0       2019-12-15 [2] CRAN (R 3.6.2)
#>  desc          1.2.0       2018-05-01 [2] standard (@1.2.0)
#>  devtools      2.3.0       2020-04-10 [1] CRAN (R 3.6.3)
#>  digest        0.6.25      2020-02-23 [1] CRAN (R 3.6.2)
#>  e1071         1.7-3       2019-11-26 [2] CRAN (R 3.6.1)
#>  ellipsis      0.3.0       2019-09-20 [3] CRAN (R 3.6.1)
#>  evaluate      0.14        2019-05-28 [2] CRAN (R 3.6.0)
#>  fansi         0.4.1       2020-01-08 [1] CRAN (R 3.6.2)
#>  fs            1.4.1       2020-04-04 [2] CRAN (R 3.6.3)
#>  glue          1.4.0       2020-04-03 [2] CRAN (R 3.6.3)
#>  highr         0.8         2019-03-20 [3] CRAN (R 3.5.3)
#>  htmltools     0.4.0.9003  2020-04-09 [1] Github (rstudio/htmltools@1a7d0dc)
#>  KernSmooth    2.23-16     2019-10-15 [4] CRAN (R 3.6.1)
#>  knitr         1.28        2020-02-06 [1] CRAN (R 3.6.2)
#>  lattice       0.20-41     2020-04-02 [2] CRAN (R 3.6.3)
#>  lifecycle     0.2.0.9000  2020-03-16 [1] Github (r-lib/lifecycle@355dcba)
#>  magrittr      1.5         2014-11-22 [2] CRAN (R 3.5.2)
#>  memoise       1.1.0       2017-04-21 [3] CRAN (R 3.5.0)
#>  pillar        1.4.3       2019-12-20 [1] CRAN (R 3.6.2)
#>  pkgbuild      1.0.6       2019-10-09 [2] CRAN (R 3.6.1)
#>  pkgconfig     2.0.3       2019-09-22 [2] CRAN (R 3.6.1)
#>  pkgload       1.0.2       2018-10-29 [3] CRAN (R 3.5.1)
#>  prettyunits   1.1.1       2020-01-24 [1] CRAN (R 3.6.2)
#>  processx      3.4.2       2020-02-09 [1] CRAN (R 3.6.3)
#>  profmem       0.5.0       2018-01-30 [2] CRAN (R 3.5.2)
#>  ps            1.3.2       2020-02-13 [1] CRAN (R 3.6.3)
#>  R6            2.4.1       2019-11-12 [2] CRAN (R 3.6.1)
#>  Rcpp          1.0.4.6     2020-04-09 [1] CRAN (R 3.6.3)
#>  remotes       2.1.1       2020-02-15 [1] CRAN (R 3.6.2)
#>  rgdal         1.5-6       2020-04-07 [1] R-Forge (R 3.6.3)
#>  rlang         0.4.5.9000  2020-03-25 [1] Github (r-lib/rlang@a90b04b)
#>  rmarkdown     2.1.2       2020-04-09 [1] Github (rstudio/rmarkdown@65dd144)
#>  rprojroot     1.3-2       2018-01-03 [2] CRAN (R 3.5.3)
#>  sessioninfo   1.1.1       2018-11-05 [3] CRAN (R 3.5.1)
#>  sf          * 0.9-2       2020-04-09 [1] Github (r-spatial/sf@0b09452)
#>  sp            1.4-1       2020-02-28 [1] CRAN (R 3.6.2)
#>  stringi       1.4.6       2020-02-17 [1] CRAN (R 3.6.2)
#>  stringr       1.4.0       2019-02-10 [2] standard (@1.4.0)
#>  testthat      2.3.2       2020-03-02 [1] CRAN (R 3.6.3)
#>  tibble        3.0.0       2020-03-30 [1] CRAN (R 3.6.3)
#>  units         0.6-6       2020-03-16 [1] CRAN (R 3.6.3)
#>  usethis       1.6.0       2020-04-09 [1] CRAN (R 3.6.3)
#>  utf8          1.1.4       2018-05-24 [2] CRAN (R 3.5.3)
#>  vctrs         0.2.99.9011 2020-04-14 [1] Github (r-lib/vctrs@1fcc3fb)
#>  withr         2.1.2       2018-03-15 [2] CRAN (R 3.5.3)
#>  xfun          0.13        2020-04-13 [1] CRAN (R 3.6.3)
#>  yaml          2.2.1       2020-02-01 [1] CRAN (R 3.6.2)
#>
#> [1] /home/robin/R/x86_64-pc-linux-gnu-library/3.6
#> [2] /usr/local/lib/R/site-library
#> [3] /usr/lib/R/site-library
#> [4] /usr/lib/R/library

rsbivand · 2020-04-15T11:54:14Z

But:

 library(spData)
data(house)
sf_house <- st_as_sf(house)
bench::mark(st_transform(sf_house, 4326), sp::spTransform(house, sp::CRS("+init=epsg:4326")), check = FALSE)

Here SpatialPoints are a single matrix, so no looping over SF objects.

Robinlovelace · 2020-04-15T12:49:13Z

Interesting, I can reproduce your finding:

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
library(spData)
data(house)
sf_house <- st_as_sf(house)
bench::mark(st_transform(sf_house, 4326), sp::spTransform(house, sp::CRS("+init=epsg:4326")), check = FALSE)
#> Warning: Some expressions had a GC in every iteration; so filtering is disabled.
#> # A tibble: 2 x 6
#>   expression                                           min median `itr/sec`
#>   <bch:expr>                                         <bch> <bch:>     <dbl>
#> 1 st_transform(sf_house, 4326)                       342ms  343ms      2.91
#> 2 sp::spTransform(house, sp::CRS("+init=epsg:4326")) 113ms  117ms      8.62
#> # … with 2 more variables: mem_alloc <bch:byt>, `gc/sec` <dbl>

^{Created on 2020-04-15 by the reprex package (v0.3.0)}

I think I should change the issue title in any case: seems that there has been a regression in speed, not sure the extent to which it's dependent on size/type of geometry. Also worth benchmarking on older sf versions for a fair comparison I think. Any idea when this was introduced or has it always been a feature of sf to call PROJ from GDAL? Happy to do a benchmarking exercise if that would be useful covering some more of the parameter space.

edzer · 2020-04-15T12:58:54Z

or has it always been a feature of sf to call PROJ from GDAL?

yes: PROJ does not have an understanding of simple features; use sf_project to transform a matrix of points without going through GDAL.

PROJ itself has also undergone quite a bit of change the last few years.

Robinlovelace · 2020-04-15T13:06:32Z

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
library(spData)
data(house)
sf_house <- st_as_sf(house)
house_coords <- as.matrix(sf::st_coordinates(sf_house))
head(sf::sf_project(st_crs(sf_house), to = st_crs(4326), pts = house_coords))
#>           [,1]     [,2]
#> [1,] -83.87964 41.41690
#> [2,] -83.87716 41.41720
#> [3,] -83.87271 41.41773
#> [4,] -83.86670 41.42522
#> [5,] -83.83824 41.42928
#> [6,] -83.86964 41.42953
sf1 = function() st_transform(sf_house, 4326)
sf2 = function() sf_project(st_crs(sf_house), to = st_crs(4326), pts = house_coords)
sp = function()  sp::spTransform(house, sp::CRS("+init=epsg:4326"))
bench::mark(sf1(), sf2(), sp(), check = FALSE)
#> Warning: Some expressions had a GC in every iteration; so filtering is disabled.
#> # A tibble: 3 x 6
#>   expression      min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr> <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 sf1()       358.5ms  370.4ms      2.70    5.55MB     8.10
#> 2 sf2()        69.1ms   70.2ms     14.2   433.63KB     0
#> 3 sp()        112.7ms  121.1ms      7.20    14.9MB     1.80

^{Created on 2020-04-15 by the reprex package (v0.3.0)}

Robinlovelace · 2020-05-12T05:43:48Z

Just realised this is going stale. @edzer I'm satisfied that sf_project() is faster, just wondering if there's anything that can be done to allow users to benefit from that ⚡ fast performance more frequently. Happy to close this general issue and re-open a specific one e.g. 'Document how sf_project() can be used to reproject point geometries' or just wait for a solution to come from elsewhere.

Question: with s2 work ongoing do you think coordinate transformation will become less commonly needed?

Context: the geo_projected() and geo_buffer() functions in stplanr no longer work and I'm wondering whether to try to update them so they can create working azimuthal equal area CRSs that work with PROJ7+ or to dump the approach altogether and embrace the brave new s2 world...

Mixing issues I know but in my experience context helps.

edzer · 2020-07-08T11:09:40Z

For what do you need projections, for realistic buffers? s2 has a fast spherical buffer, but they follow S2Cell boundaries:

library(sf) # branch s2
library(s2) # dev

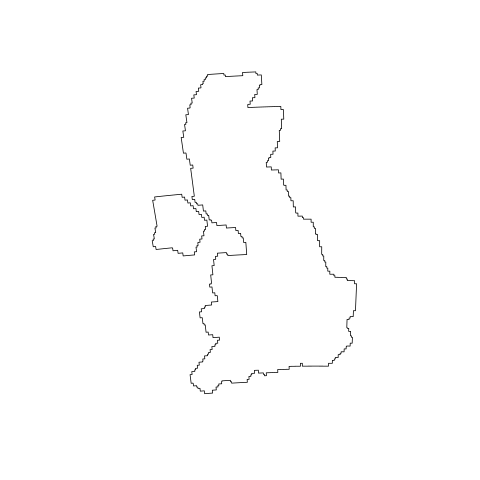

b = s2_buffer_cells(s2_data_countries("United Kingdom"), 20000)
plot(st_as_sfc(b))

Robinlovelace · 2020-07-08T12:45:57Z

For what do you need projections, for realistic buffers?

Common use case in my work is finding a 10, 20 or 30 m buffer around road geometries. I think if the cell size is less than 1m it could work well. That doable with the new s2 branch? Impressive functionality already!

edzer · 2020-07-08T13:27:11Z

Yes, you can specify the degree of approximation.

Robinlovelace · 2020-07-09T08:22:17Z

Hi @edzer here's a reproducible example showing what I tried:

remotes::install_github("r-spatial/sf", ref = "s2")
library(sf)
cycleway_osm = osmdata::osmdata_sf(
  osmdata::add_osm_feature(
    opq = osmdata::opq("leeds"),
    key = "name",
    value = "Cycle Superhighway 1"
  )
)
cycleway = cycleway_osm$osm_lines
plot(cycleway$geometry)
system.time({
  buffer1 = stplanr::geo_buffer(cycleway, dist = 100)
})
plot(buffer1$geometry)
system.time({
  buffer2 = s2_buffer_cells(cycleway, 100)
})

That generates the following error message:

Error in s2_buffer_cells(cycleway, 100) :
  could not find function "s2_buffer_cells"

Am I installing the wrong branch?

edzer · 2020-07-09T13:01:16Z

Yes, you need branch s2 from package sf, and package s2 master branch; maybe wait a few days, stuff is moving quickly now and close to 1.0.1 release of s2.

Robinlovelace · 2020-07-09T13:12:31Z

OK I'll wait...

edzer · 2020-07-15T08:50:19Z

@Robinlovelace , s2 1.0.1 and sf 0.9-5 are now on CRAN, both can be installed from source (binaries lack a week or so behind). Have a look at the (rather incomplete) 7th vignette: https://cran.r-project.org/web/packages/sf/vignettes/sf7.html ; buffer examples still need to be added, but are interfaced through sf::st_buffer.

edzer · 2020-07-15T09:30:36Z

Sorry, that didn't work out of the box, but now we have:

library(sf)
# Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
cycleway_osm = osmdata::osmdata_sf(
  osmdata::add_osm_feature(
    opq = osmdata::opq("leeds"),
    key = "name",
    value = "Cycle Superhighway 1"
  )
)
cycleway = cycleway_osm$osm_lines
system.time({
  buffer1 = stplanr::geo_buffer(cycleway, dist = 100)
})
#    user  system elapsed
#   0.907   0.028   0.936
system.time({
  buffer2 = st_buffer(cycleway, .01) # wrong: assumes longlat=x/y
})
# dist is assumed to be in decimal degrees (arc_degrees).
#    user  system elapsed
#   0.019   0.000   0.018
# Warning message:
# In st_buffer.sfc(st_geometry(x), dist, nQuadSegs, endCapStyle = endCapStyle,  :
#   st_buffer does not correctly buffer longitude/latitude data
sf_use_s2(TRUE)
system.time({
  buffer3 = st_buffer(cycleway, 100, max_cells = 200)
})
#    user  system elapsed
#   0.361   0.000   0.361

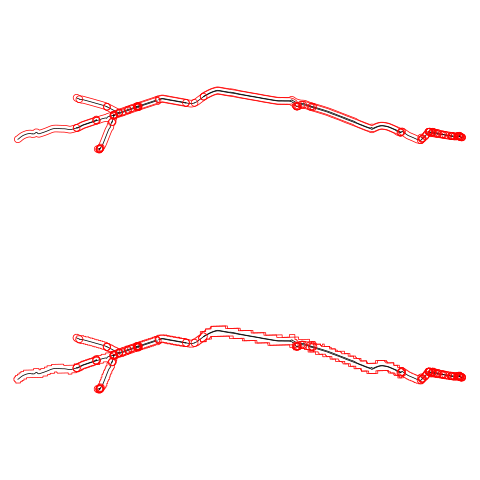

png("/tmp/x.png")
par(mfrow = c(2, 1), mar = rep(0,4))
plot(cycleway$geometry)
plot(buffer1$geometry, add = TRUE, border = 'red')
plot(cycleway$geometry)
plot(buffer3$geometry, add = TRUE, border = 'red')

Setting max_cells to 200 is a wild guess, but this is a tuning parameter to make the thing faster (and slower).

Robinlovelace · 2020-07-15T15:50:33Z

Great news, it works!

remotes::install_github("r-spatial/s2") # lots of c++ compiling...
#> Using github PAT from envvar GITHUB_PAT
#> Skipping install of 's2' from a github remote, the SHA1 (a4d0fa49) has not changed since last install.
#>   Use `force = TRUE` to force installation
remotes::install_github("r-spatial/sf")
#> Using github PAT from envvar GITHUB_PAT
#> Skipping install of 'sf' from a github remote, the SHA1 (602a4688) has not changed since last install.
#>   Use `force = TRUE` to force installation

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
cycleway_osm = osmdata::osmdata_sf(
  osmdata::add_osm_feature(
    opq = osmdata::opq("leeds"),
    key = "name",
    value = "Cycle Superhighway 1"
  )
)
cycleway = cycleway_osm$osm_lines
system.time({
  buffer1 = stplanr::geo_buffer(cycleway, dist = 100)
})
#>    user  system elapsed
#>   0.898   0.052   0.964
system.time({
  buffer2 = st_buffer(cycleway, .01) # wrong: assumes longlat=x/y
})
#> Warning in st_buffer.sfc(st_geometry(x), dist, nQuadSegs, endCapStyle =
#> endCapStyle, : st_buffer does not correctly buffer longitude/latitude data
#> dist is assumed to be in decimal degrees (arc_degrees).
#>    user  system elapsed
#>   0.019   0.000   0.018
sf_use_s2(TRUE)
system.time({
  buffer3 = st_buffer(cycleway, 100, max_cells = 200)
})
#>    user  system elapsed
#>   0.343   0.001   0.347
system.time({
  buffer4 = st_buffer(cycleway, 100, max_cells = 500)
})
#>    user  system elapsed
#>   0.827   0.000   0.836
plot(cycleway$geometry)
plot(buffer1$geometry, add = TRUE, border = 'red', lwd = 3)
plot(buffer3$geometry, add = TRUE, border = 'blue', lwd = 2)
plot(buffer4$geometry, add = TRUE, border = 'grey', lwd = 1)

plot(buffer1$geometry)

plot(buffer3$geometry)

plot(buffer4$geometry)

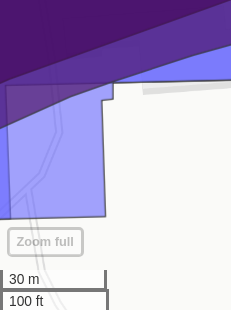

mapview::mapview(buffer4) +
  mapview::mapview(buffer1, zcol = "highway")

^{Created on 2020-07-15 by the reprex package (v0.3.0)}

The result of the final plot suggests that a max cell of 500 results in ~10 m resolution result. I wouldn't say this overcomes the performance issue with st_transform() but is a very impressive new piece of functionality, great to see this in sf!

Robinlovelace · 2020-07-15T15:54:34Z

The timings are heavily dependent on max_cells:

> system.time({
+   buffer5 = st_buffer(cycleway, 100, max_cells = 1000)
+ })
   user  system elapsed
  1.745   0.015   1.772
> system.time({
+   buffer6 = st_buffer(cycleway, 100, max_cells = 2000)
+ })
   user  system elapsed
  3.373   0.019   3.402

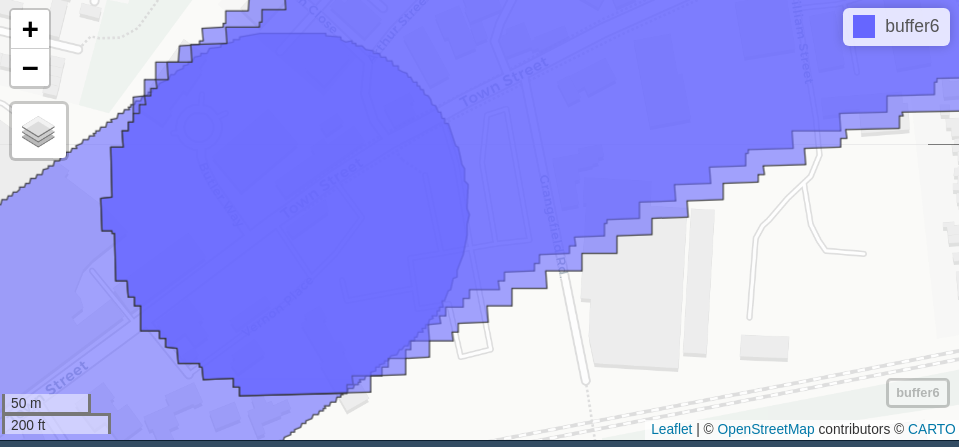

buffer6 looks like this:

Robinlovelace · 2020-07-15T16:09:31Z

Appropriate max_cells values clearly depends on the complexity of the polygon. More results below on the unioned object, the timings are way better like this so will close the issue for now:

remotes::install_github("r-spatial/s2") # lots of c++ compiling...
#> Using github PAT from envvar GITHUB_PAT
#> Skipping install of 's2' from a github remote, the SHA1 (a4d0fa49) has not changed since last install.
#>   Use `force = TRUE` to force installation
remotes::install_github("r-spatial/sf")
#> Using github PAT from envvar GITHUB_PAT
#> Skipping install of 'sf' from a github remote, the SHA1 (602a4688) has not changed since last install.
#>   Use `force = TRUE` to force installation

library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
cycleway_osm = osmdata::osmdata_sf(
  osmdata::add_osm_feature(
    opq = osmdata::opq("leeds"),
    key = "name",
    value = "Cycle Superhighway 1"
  )
)
cycleway = cycleway_osm$osm_lines
geometry = cycleway_osm$osm_lines %>%
  sf::st_union()
cycleway = st_sf(data.frame(name = "cycleway"), geometry)

plot(cycleway)

system.time({
  buffer1 = stplanr::geo_buffer(cycleway, dist = 100)
})
#>    user  system elapsed
#>   0.840   0.048   0.888
system.time({
  buffer2 = st_buffer(cycleway, .01) # wrong: assumes longlat=x/y
})
#> Warning in st_buffer.sfc(st_geometry(x), dist, nQuadSegs, endCapStyle =
#> endCapStyle, : st_buffer does not correctly buffer longitude/latitude data
#> dist is assumed to be in decimal degrees (arc_degrees).
#>    user  system elapsed
#>   0.148   0.000   0.148
sf_use_s2(TRUE)
system.time({
  buffer3 = st_buffer(cycleway, 100, max_cells = 200)
})
#>    user  system elapsed
#>   0.019   0.000   0.019
system.time({
  buffer4 = st_buffer(cycleway, 100, max_cells = 500)
})
#>    user  system elapsed
#>   0.030   0.000   0.031
system.time({
  buffer5 = st_buffer(cycleway, 100, max_cells = 1000)
})
#>    user  system elapsed
#>   0.044   0.000   0.044
system.time({
  buffer6 = st_buffer(cycleway, 100, max_cells = 2000)
})
#>    user  system elapsed
#>   0.094   0.000   0.095

plot(buffer1$geometry)

plot(buffer2$geometry)

plot(buffer3$geometry)

plot(buffer4$geometry)

plot(buffer5$geometry)

plot(buffer6$geometry)

^{Created on 2020-07-15 by the reprex package (v0.3.0)}

edzer · 2020-07-15T19:07:08Z

Yes. Another thought, which you probably also tried: in many cases buffers are computed to intersect them in the next step with something else, like grid cell centers on a fine grid. In that case, you can get away without buffers, but only compute which grid cells are within a certain distance from a set of features. That computation is potentially much cheaper. In other words: I believe most buffers are computed without a need to (explicitly) compute them, but because this way we think we understand the problem better.

Robinlovelace · 2020-07-16T05:37:52Z

Thanks for the follow-up @edzer. A couple of follow-on thoughts/questions:

Can max_cells take a numeric vector? This example shows very different resolutions for different sized polygons. That will affect the usefulness of buffer operations on objects more than one non-uniform features such as the cycleway above.
How do you compute the grid cells of a given resolution that are within a given distance of an object? That sounds like a good solution.

edzer · 2020-07-16T18:28:47Z

Here is a simple example of selecting points within a buffer without ever using the actual buffer (which is just shown for clarity):

library(sf)
# Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 7.0.0
sf_use_s2(TRUE)

set.seed(131)
n = 1000
pts = st_as_sf(data.frame(x = runif(n), y = runif(n)), coords = c("x", "y"), crs = 4326)
# unit square in degrees: 111 x 111 km

size = 15000
w = st_is_within_distance(pts[1,], pts, size)[[1]]

plot(pts)
plot(pts[1,], add = TRUE, pch = 16, cex = 2, col = 'blue')
plot(st_buffer(pts[1,], size), add = TRUE)
plot(pts[w,], add = TRUE, col = 'red')

st_is_within_distance when using s2 is now fast (as indexed, although the lwgeom versions isn't bad either)

Robinlovelace · 2020-07-17T06:58:37Z

Yes, that makes sense,

x[y, , op = st_within_distance, dist = distance_in_meters]

Does indeed solve the same problem most of the time. I look forward to benchmarks (on that note do you want any in the package, either in a vignette or as tests?).

Many thanks, great work!

edzer · 2020-07-29T18:18:15Z

What did you mean by "most of the time"?

Yes, some kind of benchmark would be good in the new sf vignette 7, for unprojected data comparing

GEOS route: st_transform, buffer with radius r, intersect within buffer, aggregate
S2 route: select with st_within_distance with distance r, aggregate

Robinlovelace · 2020-07-29T19:51:40Z

What did you mean by "most of the time"?

It solves the problem that buffers usually solve in use cases that I can think of. There are some use cases when it's useful to visualise and aggregate buffer polygons, to communicate work or group nearly touching linestings for example, when polygonal buffers are needed to solve specific use cases.

Yes, some kind of benchmark would be good in the new sf vignette 7, for unprojected data comparing

I'm up for giving that a go.

Robinlovelace mentioned this issue Apr 14, 2020

sf implementation of geo_toptail ropensci/stplanr#390

Closed

Robinlovelace changed the title ~~Performance of st_transform vs spTransform~~ Performance of st_transform Apr 18, 2020

edzer added a commit that referenced this issue Jul 15, 2020

silence st_buffer hickups; #1367

Loading status checks…

602a468

Robinlovelace closed this Jul 15, 2020

edzer added a commit that referenced this issue Jul 16, 2020

add interface to s2_dwithin_matrix; #1367

Loading status checks…

7c1db12

Robinlovelace added a commit to Robinlovelace/sf that referenced this issue Aug 18, 2020

Add benchmark for r-spatial#1367

Loading status checks…

1566c28

r-spatial / sf

Performance of st_transform #1367

Performance of st_transform #1367

Robinlovelace commented Apr 14, 2020

rsbivand commented Apr 14, 2020

Robinlovelace commented Apr 14, 2020

Robinlovelace commented Apr 14, 2020 •

edited

Robinlovelace commented Apr 14, 2020

rsbivand commented Apr 15, 2020 •

edited by edzer

Robinlovelace commented Apr 15, 2020

edzer commented Apr 15, 2020

Robinlovelace commented Apr 15, 2020

Robinlovelace commented May 12, 2020 •

edited

edzer commented Jul 8, 2020

Robinlovelace commented Jul 8, 2020

edzer commented Jul 8, 2020

Robinlovelace commented Jul 9, 2020

edzer commented Jul 9, 2020

Robinlovelace commented Jul 9, 2020

edzer commented Jul 15, 2020

edzer commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

edzer commented Jul 15, 2020

Robinlovelace commented Jul 16, 2020

edzer commented Jul 16, 2020

Robinlovelace commented Jul 17, 2020

edzer commented Jul 29, 2020

Robinlovelace commented Jul 29, 2020

r-spatial / sf

Join GitHub today

Performance of st_transform #1367

Performance of st_transform #1367

Comments

Robinlovelace commented Apr 14, 2020

rsbivand commented Apr 14, 2020

Robinlovelace commented Apr 14, 2020

Robinlovelace commented Apr 14, 2020 • edited

Robinlovelace commented Apr 14, 2020

rsbivand commented Apr 15, 2020 • edited by edzer

Robinlovelace commented Apr 15, 2020

edzer commented Apr 15, 2020

Robinlovelace commented Apr 15, 2020

Robinlovelace commented May 12, 2020 • edited

edzer commented Jul 8, 2020

Robinlovelace commented Jul 8, 2020

edzer commented Jul 8, 2020

Robinlovelace commented Jul 9, 2020

edzer commented Jul 9, 2020

Robinlovelace commented Jul 9, 2020

edzer commented Jul 15, 2020

edzer commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

Robinlovelace commented Jul 15, 2020

edzer commented Jul 15, 2020

Robinlovelace commented Jul 16, 2020

edzer commented Jul 16, 2020

Robinlovelace commented Jul 17, 2020

edzer commented Jul 29, 2020

Robinlovelace commented Jul 29, 2020

Essential cookies

Always active

Analytics cookies

Robinlovelace commented Apr 14, 2020 •

edited

rsbivand commented Apr 15, 2020 •

edited by edzer

Robinlovelace commented May 12, 2020 •

edited
