Reseek is a protein structure search and alignment algorithm which improves sensitivity in protein homolog detection compared to state-of-the-art methods including DALI, TM-align and Foldseek. Speed is often similar to Foldseek while memory requirements are often much less, though scaling trade-offs are different.
Search a protein structure against AFDB, PDB or BFVD with typical results in 2 to 5 minutes.
Search accuracy is substantially improved over previous releases, and search is faster with large databases.
The underlying statistical model is enhanced, now offering three sets of parameters optimized for SCOP family, superfamily and fold relationships, respectively
Families are somewhat arbitrary groups with similar functions and clear amino acid sequence similarity.
Superfamilies are groups of families which are probably homologous.
Folds are groups of families with similar tertiary structure.
For more information about these categories, see this SCOP documentation page.
The -stats MODEL option is required in version 3, MODEL is family, superfamily or fold. For example, the family model has a larger weight for amino acid sequence similarity, while the fold model has higher weights for tertiary structure features.
The preferred measure of statistical significance is P-value, specified by the pvalue column. E-values are deprecated because they are misleading for structure searches. P-values are adjusted according to a null model tuned to the chosen truth standard, i.e. family, superfamily or fold.
On the SCOP40 benchmark test (see results later below), Reseek has substantially higher ability to discriminate homologs compared to previous algorithms including DALI, TM-align and Foldseek.
Reseek also provides a more accurate estimate of statistical significance, enabling users to set a cutoff based on an acceptable number of false positives for a given search, while Foldseek E-values may over-estimate significance by 5 to 6 orders of magnitude (reference below).
Paper is here: https://drive5.com/reseek/Reseek3-2026-07-16_preprint.pdf.
Reseek is based on sequence alignment where each residue in the protein backbone is represented by a letter in a novel “mega-alphabet” of 85,899,345,920 (∼1011) distinct structure states. This talk explains how it works.
Commands
-search # Alignment (e.g. DB search, pairwise, all-vs-all)
-convert # Convert file formats (e.g. create DB)
-alignpair # Pair-wise alignment and superposition
Search against database
reseek -search STRUCTS -db db.bcb -output hits.tsv
# use -convert to create .bcb files (below)
Align and superpose two structures
reseek -alignpair 1XYZ.pdb -input2 2ABC.pdb
-aln FILE # Sequence alignment (text)
-output FILE # Rotated 1XYZ (PDB format)
Output options for -search
-aln FILE # Alignments in human-readable format
-output FILE # Hits in tabbed text format
-columns name1+name2+name3...
# Output columns, names are:
# query Query label
# target Target label
# qlo Start of aligment in query
# qhi End of aligment in query
# tlo Start of aligment in target
# thi End of aligment in target
# ql Query length
# tl Target length
# pctid Percent identity of alignment
# cigar CIGAR string
# pvalue P-value
# qrow Aligned query sequence with gaps (local)
# trow Aligned target sequence with gaps (local)
# qrowg Aligned query sequence with gaps (global)
# trowg Aligned target sequence with gaps (global)
# qcovpct Query coverage (percent)
# tcovpct Target coverage (percent)
# std query+target+qlo+qhi+ql+tlo+thi+tl+pctid+pvalue (default)
Search and alignment options
-fast or -sensitive # Required
-pvalue P # Max P-value (default 0.001)
Convert between file formats
reseek -convert STRUCTS [one or more output options]
-cal FILENAME # .cal format, text with a.a. and C-alpha x,y,z
-bca FILENAME # .bca format, binary .cal
-bcb FILENAME # .bca format, binary .cal with nu, required for db
-fasta FILENAME # FASTA format
STRUCTS argument is one of:
NAME.cif or NAME.mmcif # PDBx/mmCIF file
NAME.pdb # Legacy format PDB file
NAME.cal # C-alpha tabbed text format with chain(s)
NAME.bcb # Binary C-alpha with nu, required for db
NAME.bca # Binary C-alpha (used by earlier reseek versions)
NAME.files # Text file with one STRUCT per line,
# may be filename, directory or .files
DIRECTORYNAME # Directory (and its sub-directories) is searched
# for known file types including .pdb, .files etc.
Other options:
-log FILENAME # Log file with errors, warnings, time and memory.
-threads N # Number of threads, default number of CPU cores.
More documentation at https://drive5.com/reseek
cd src/; chmod +x build_linux_x86.bash ; ./build_linux_x86.bash
Load reseek.vcxproj into Microsoft Visual Studio and use the Build command.
Don't worry about a warning something like this, it's expected:
warning: Using 'dlopen' in statically linked applications requires at runtime the shared libraries from the glibc version used for linking
Reseek and Foldseek achieve orders of magnitude faster searches of large database such as AFDB compared to previous state-of-the-art methods DALI and TM-align. In terms of accuracy, my benchmark results show that Reseek-fast (i.e., with the -fast) option has higher accuracy than all other algorithms by most metrics, but scaling compared to Foldseek involves quite different trade-offs (preprint in preparation). Foldseek indexes the whole database in memory, which sometimes enables sub-linear scaling with number of query structures but requires a large amount of RAM. Reseek indexes the query, thereby using much less RAM with linear scaling in query size. With more than ~1,000 query structures, for Reseek it is recommended to split the query into subsets of ~1k and search these separately. The results below illustrate the point. Random subsets of the PDB with 100, 1,100 and 10,000 structures were searched against a subset of AFDB which was clustered at 50% aa similarity. Experiments were run on a machine with 780Gb RAM using 64 threads. Results are shown below. With 100 structures, reseek is faster, but with 1,000+ structures Foldseek is faster.
query ____________Elapsed time_______________
structs foldseek reseek-fast reseek-sensitive
100 9m 6m 23m
1000 19m 61m 4h:45m
10000 2h33m 12h 60h
query _____________Max memory________________
structs foldseek reseek-fast reseek-sensitive
100 227Gb 4.4Gb 4.5Gb
1000 284Gb 6.6Gb 6.7Gb
10000 289Gb - -
abdb50.bcb AFBD50 AFDB clustered at 50% aa identity 53.7M structures (107Gb)
esmdb30.bcb ESMDB30 ESM Altas clustered at 30% aa identity 34.6M structures (55Gb)
bfvd.bcb Big Fine Virus DB 347k structures (486Mb)
pdb.bcb PDB 900k structures (1.7Gb)
scop40.bcb SCOP40 11,211 structures (16Mb)
scop40x.bcb Curated SCOP40 8,291 structures (13Mb)
cath40.bcb CATH40 34,647 structures (41Mb)
https://github.com/rcedgar/reseek_bench

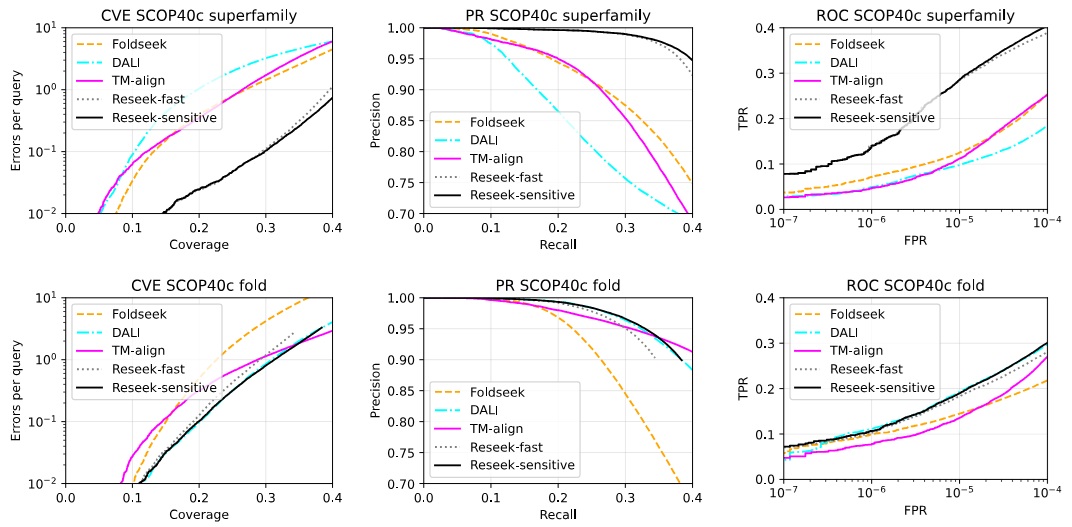

Accuracy plots for SCOP40c superfamily and fold.
The figure gives CVE, PR and ROC plots for the tested algorithm
using SCOP40c (curated SCOP40, https://github.com/rcedgar/scop40c) as reference and superfamily and fold as truth standards. For a CVE plot, a lower curve is better while
for PR and ROC a higher curve is better. These curves show that Reseek-sensitive has higher accuracy than other
tested methods in the high-scoring regime (up to 10 errors per query for CVE, ≥ 70% precision for PR and < 10−4
FPR for ROC).
Edgar RC. "Protein structure alignment by Reseek improves sensitivity to remote homologs" (Bioinformatics 2024) Nov;40(11):btae687. https://academic.oup.com/bioinformatics/article/40/11/btae687/7901215
Edgar RC. and Sahakyan S. "Protein structure alignment significance is often exaggerated" (bioRxiv 2025) https://www.biorxiv.org/content/10.1101/2025.07.17.665375v1
Edgar RC. Rich structure alphabets enable highest accuracy protein search (bioRxiv 2026) https://www.biorxiv.org/cgi/content/short/2026.07.24.740611v1
