README.md

Palo Alto Networks Content Pack

Tested with PAN-OS 6.1.3/Graylog 1.2

NOTICE: The patterns do need some updates for 7.x and I no longer have access to PAN firewalls so someone will have to fork this and take over the project. Sorry :(

This content pack provides GROK extractors for PAN Firewalls and a few example dashboards:

  • PAN Threat Summary (24h)
  • PAN Threat Summary - High & Critical (24h)
  • PAN URL Filtering Summary (24h)
  • PAN GlobalProtect Portal Login Summary (7d)

Includes

  • Input PAN-syslog (Syslog tcp 5514)
  • GROK Patterns (BASE10NUM DATE_US2 GREEDYDATA HOST HOSTNAME HOUR IP IPORHOST MINUTE MONTHDAY MONTHNUM MONTHNUM2 NOTCOMMA QS QSORNC QUOTEDQUOTES QUOTEDSTRING SECOND TIME TZ YEAR)
  • Extractors (PAN_THREAT, PAN_SYSTEM, PAN_CONFIG, PAN_TRAFFIC, PAN_POSTPROCESS_GlobalProtect_Login)
  • Dashboards

Requirements

  • Palo Alto Networks Firewall (or Panorama) with SYSLOG configured for tcp 5514 BSD format, no custom settings

Screenshots

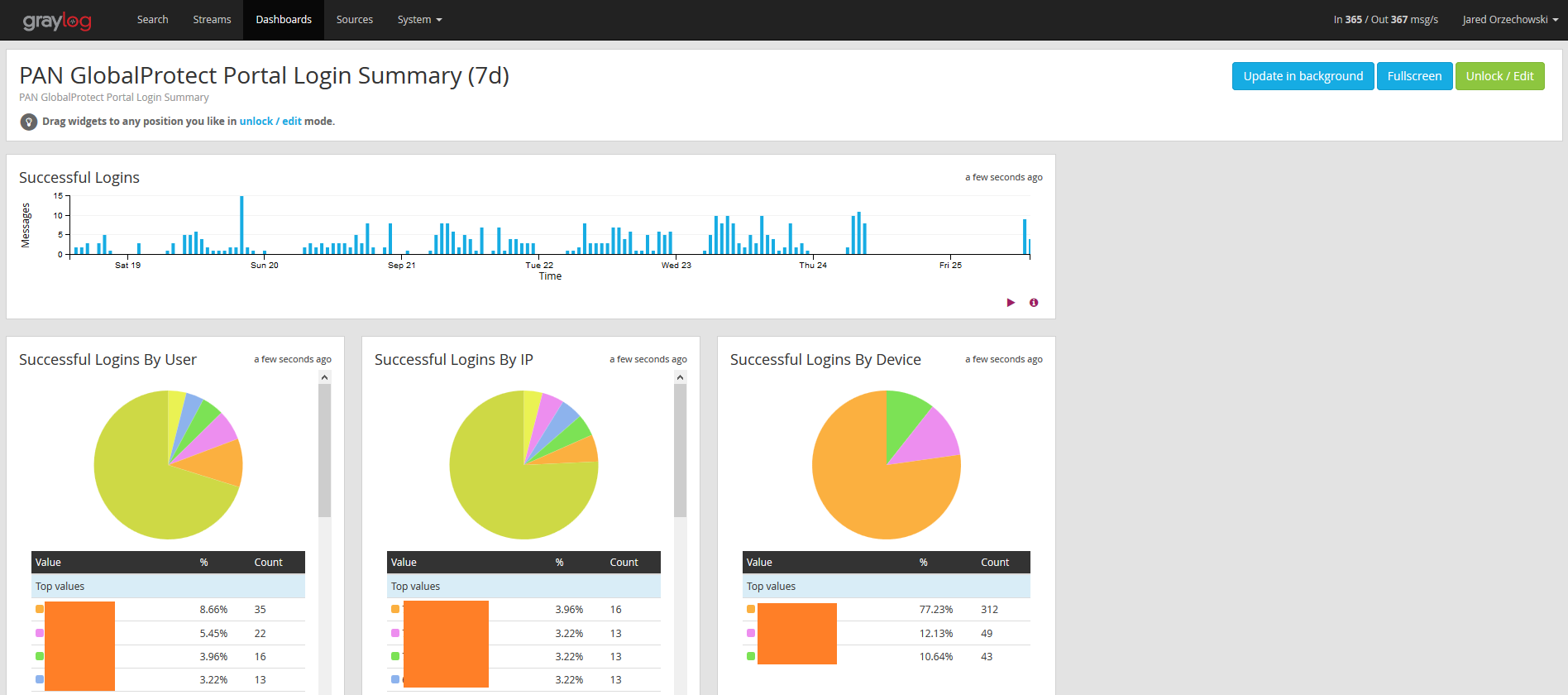

gpportal

threatsum

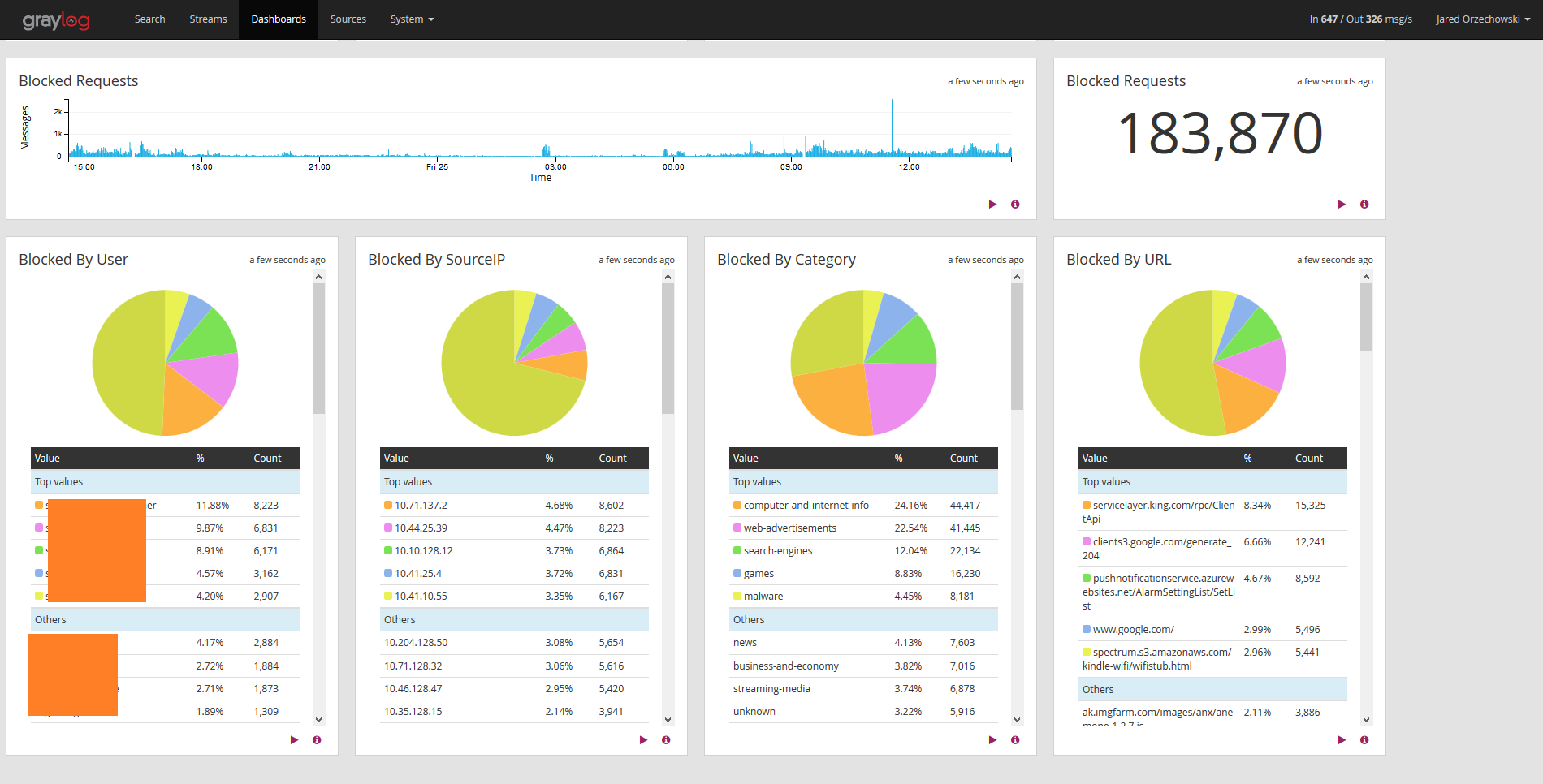

urlfiltering
