Conveyor

Conveyor builds Docker images. Fast.

How it works

  1. Conveyor receives a build request via a GitHub commit webhook.
  2. Conveyor builds and tags the resulting image with 3 tags: latest, the git commit sha and the git branch.

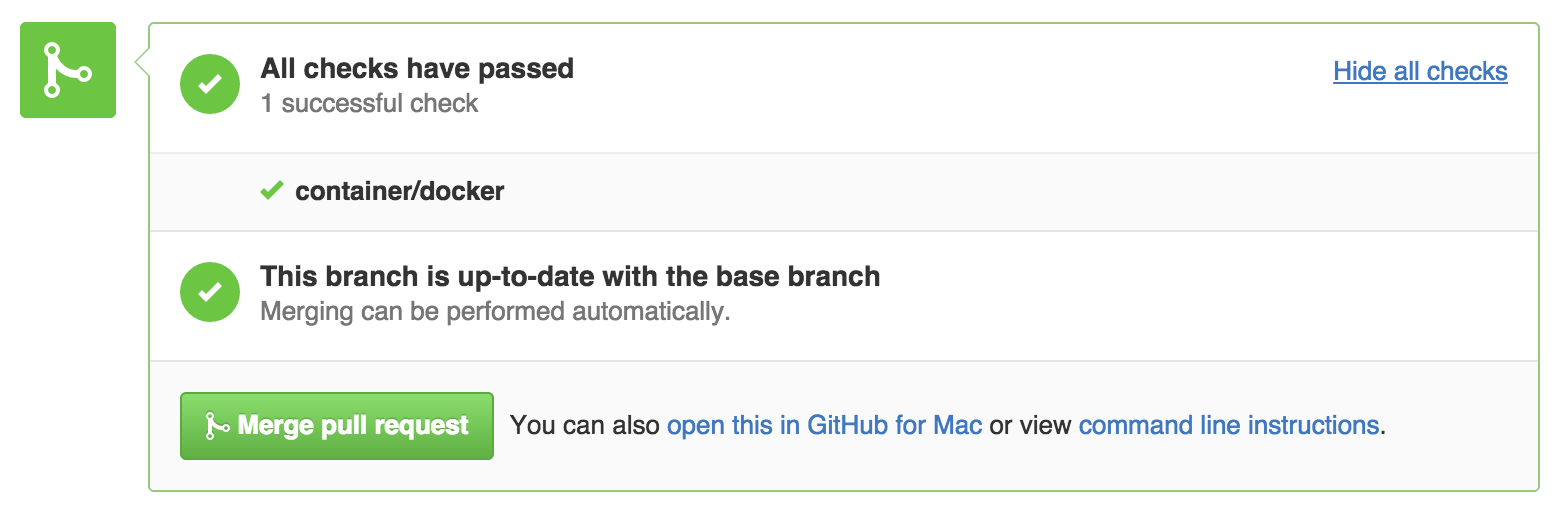

  3. It then pushes the image to the Docker registry and adds a commit status to the GitHub commit.

Installation

  1. Conveyor needs access to pull GitHub repositories. The easiest way to do this is to add a bot user to your organization and generate an ssh key for them. Once you've done that, create a new S3 bucket and upload id_rsa and id_rsa.pub to the root of the bucket.
  2. Create a GitHub access token with repo, admin:repo_hook scopes.
  3. Create a new CloudFormation stack using cloudformation.json in this repo.

Configuration

The server command has the following available options:

NAME:
   server - Run an http server to build Docker images whenever a push event happens on GitHub

USAGE:
   command server [command options] [arguments...]

OPTIONS:
   --port '8080'        Port to run the server on [$PORT]
   --github.token         GitHub API token to use when updating commit statuses on repositories. [$GITHUB_TOKEN]
   --github.secret        Shared secret used by GitHub to sign webhook payloads. This secret will be used to verify that the request came from GitHub. [$GITHUB_SECRET]
   --dry          Enable dry run mode. [$DRY]
   --builder.image 'remind101/conveyor-builder' A docker image to use to perform the build. [$BUILDER_IMAGE]
   --logger 'stdout://'       The logger to use. Available options are `stdout://`, or `s3://bucket`. [$LOGGER]


Performance

Conveyor is designed to be faster than alternative build systems like the Docker Hub or Quay. It does this by making the following tradeoffs.

  1. It uses the latest version of Docker (1.8), which has a number of performance improvements when building and pushing images.
  2. It pulls the last built image for the branch to maximize the number of layers that can be used from the cache.

Cache

By default, conveyor will pull the last built image for the branch. This isn't always desirable, so you can disable the initial docker pull by adding the following to the git commit description:

[docker nocache]

Scale Out

Conveyor supports two methods to scale out to multiple machines.

Docker Swarm

The first method to scale out Conveyor is to scale out using Docker Swarm. Using this method, Conveyor runs its builds across a cluster of Docker daemons. The advantage of using this method is that you don't need to provide a queue flag since Conveyor can use an in memory queue.

Queue

The recommended way to scale out is to scale out using a build queue. Using this method, you run the conveyor worker subcommand on a machine that hosts a local Docker daemon. The worker process will pull build requests off of the queue and perform the build. The conveyor server command can then run completely separate from the worker nodes.

Conveyor currently supports the following build queues:

  1. SQS

Slack Integration

Conveyor can optionally expose some management tasks via Slack slash commands.

Setup

  1. Add a new Slash command. I'd recommend using /conveyor as the command.
  2. Copy the token and provide it as the --slack.token flag.

Now, you can use Conveyor to automatically manage the GitHub webhook:

/conveyor setup org/repo

API

Conveyor also sports a restful API for triggering builds. You can use this with tooling to, say for example, trigger a build before you deploy.

See schema.md for documentation about the API.

Development

First, bootstrap the remind101/conveyor-builder image, SSH keys and docker config:

$ make bootstrap

Then start it up with docker-compose:

$ docker-compose up

You can test a simple dry run build of the remind101/acme-inc repo with:

$ make test-payload

If you want to test external GitHub webhooks, the easiest way to do that is using ngrok:

$ ngrok $(docker-machine ip default):8080

Then add a new push webhook to a repo, pointed at the ngrok URL. No secret is necessary unless you set GITHUB_SECRET in .env.

NOTE: If you're testing on a private repo, you need to make sure that you've added the generated SSH key to your github account. The generated SSH key can be found in ./builder/docker/data/.ssh/id_rsa.pub

Tests

To run the full test suite. Note that you need to run make bootstrap prior to running this:

$ go test ./...

To run only the unit tests (no need to run make bootstrap):

$ go test ./... -short

About

A fast build system for Docker images.
