Emulation of a 1793 FDC controller in an ESP32 - interfaced to a Z80

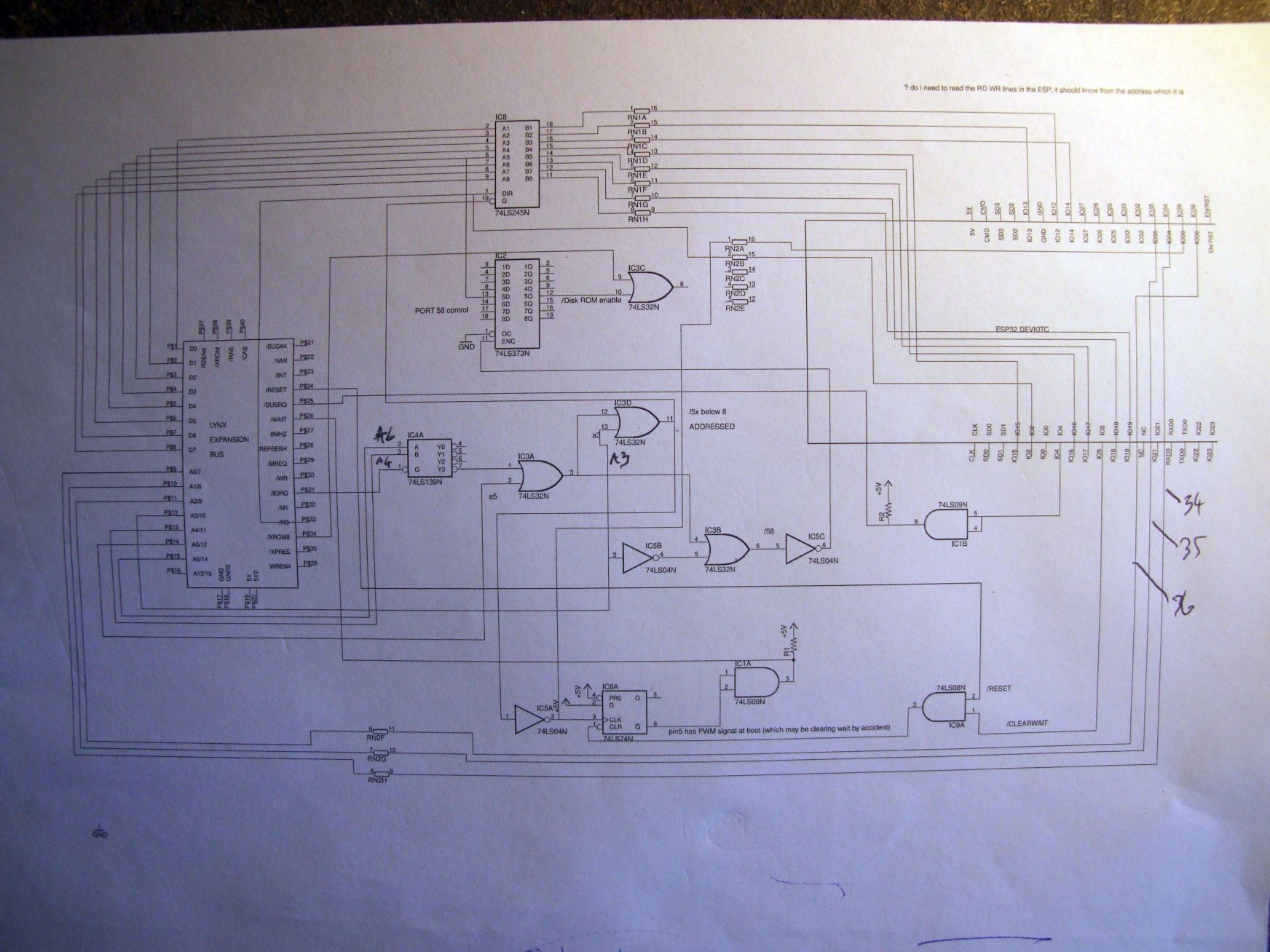

Schematic desribed in http://www.retrogubbins.co.uk/2-uncategorised/5-thegolem and attached below.
A Camputers Lynx 1983 Z80 based computer is interfaced to an ESP32 which then emulates a 1793 FDC disk controller serving disk images from an SD card.
