ESP32-IronMan

Software and PCBs for an IronMan suit.

Basic operation

The button can be pressed mutliple times if needed, and after half a second it acts based on number of presses.

Part Presses Action
Helmet 1 Toggle visor up/down - plays OPEN or CLOSE
Helmet 2 Glitch LEDs to simulate a fault, then off for 10 seconds
Helmet 3 Toggle cylon mode (eyes cycle red, instead of static cyan) - plays CYLON when activated
Glove 1 Light pulse effect

In addition, (except for visor 1/2/3), an audio file is played named with SUIT, HELMET, RGLOVE, or LGLOVE followed by number of presses. This allows custom sound effects for multiple presses on each device.

Power off/on

Hold button for 3 seconds to power off, press again to power back on.

Audio files

Audio files all end .WAV and should be WAV PCM format using a standard sample rate.

File Meaning
POWERON Suit power on
POWEROFF Suit power off
UPGRADE Suit software upgrade (all LEDs pale blue)
RESTART Suit restart (after s/w upgrade)
OPEN Visor open
CLOSE Visor close
CYLON Cylon mode
GLITCH When glitch activated
SUITn Suit press N times
HELMETn Helment press N times (not 1/2/3)
LGLOVEn Left gloves press N times
RGLOVEn Right glove press N times

The sound for the glove light pulse shoudl be LGLOVE1 and RGLOVE1 - you could adjust stereo for which side maybe.

Settings

There are many settings, GPIOs, LED config, colours, etc.

PCBs

Controller board (Suit/Helmet)

Speaker driver, two button inputs, and 4 output (e.g. LED or PWM).

Gloves

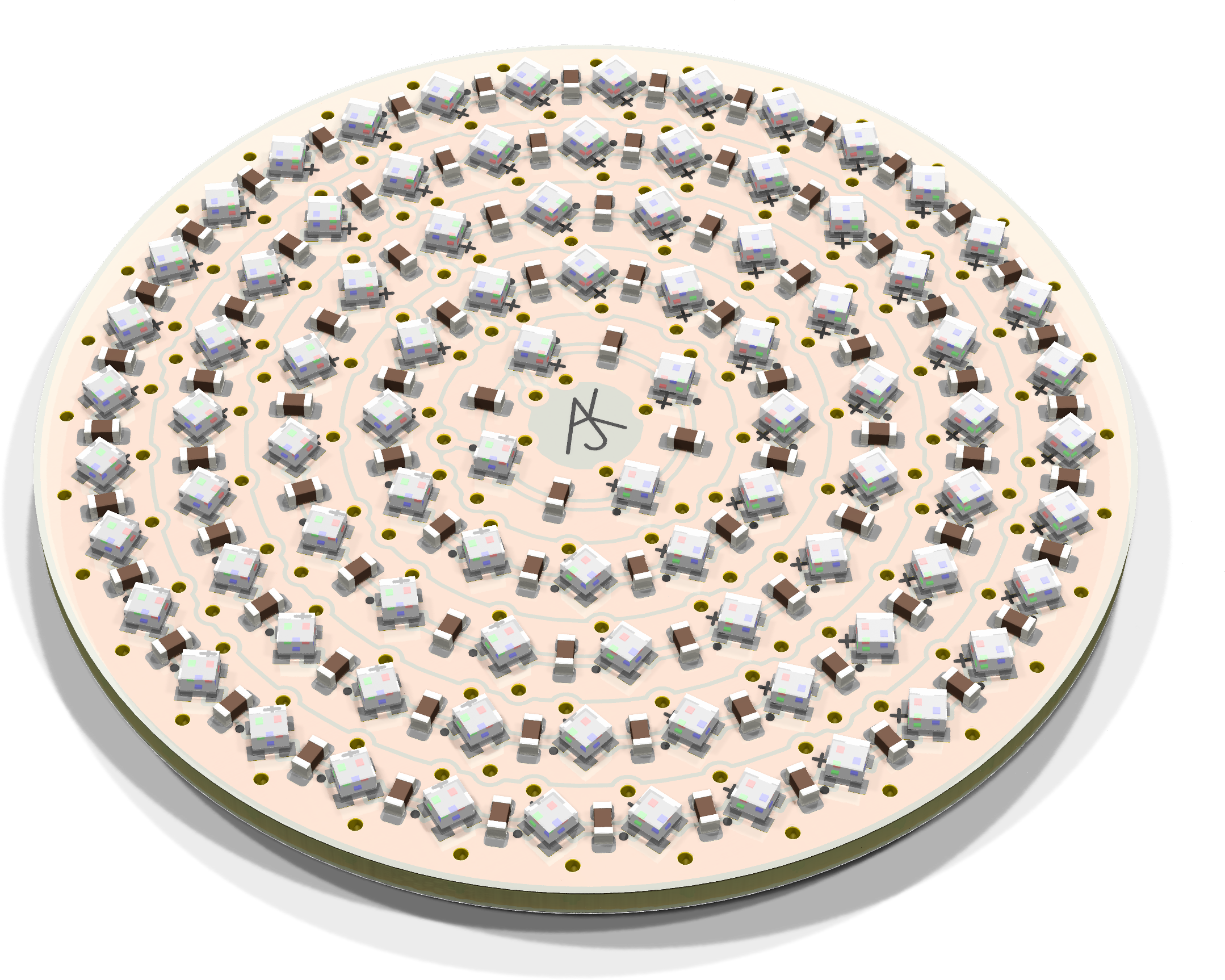

Desigend to work with small LiPo in glove, charger circuit from USB, one button input, 88 32mm LED ring.
