Xorg timeout give up exception handler test #3304

VladimirSlavik · 2021-04-22T13:46:03Z

Another attempt at the X thing. This gives up the exception handler test temporarily, and solves almost everything.

The main problem of other solutions is that once X starts, it steals the screen by going to tty6. If the exception handler test-invoking handler is not returned back immediately, an "after-timeout" handler can be installed instead, which switches back to tty1.

With that in place, it's also safe to terminate Xorg once it's clear it's not coming in time. The termination will happen later, but that does not matter any more.

Finally, with the termination happening, it is also safe to return the crash report text handler.

Resolves: rhbz#1918702

Previous work: #3107, #3132, #3141, #3295. Thanks to @bitcoffeeiux and @poncovka.

The one avenue left unexplored is using the -displayfd option.

pep8speaks · 2021-04-22T19:15:09Z

Hello @VladimirSlavik! Thanks for updating this PR. We checked the lines you've touched for PEP 8 issues, and found:

There are currently no PEP 8 issues detected in this Pull Request. Cheers! 🍻

Comment last updated at 2021-05-06 18:09:15 UTC

VladimirSlavik · 2021-04-22T19:25:17Z

So, as it is right now, it's about 100% of my original vision.

But there's still more. I find it jarring that the options for dealing with timeout are printed with timestamps. That's because they don't come from print() but rather stdout_log.warning(). I can't tell (yet?) what's the difference, but with print I get the exceptions bubbling up (again!?!) and whatnot.

I am not sure what this means. The code contains sleep(2) which smells of some timing stuff. I traced that particular line to a commit from 2001 with no relevant information.

VladimirSlavik · 2021-04-22T19:40:01Z

I was wrong, I can replace stdout_log with print. I just have to do that for all calls in the function.

From the history, it seems that stdout_log replaced print, and later got replaced by the logging we have now. It might be time to check if it's needed at all.

jstodola · 2021-04-22T20:01:46Z

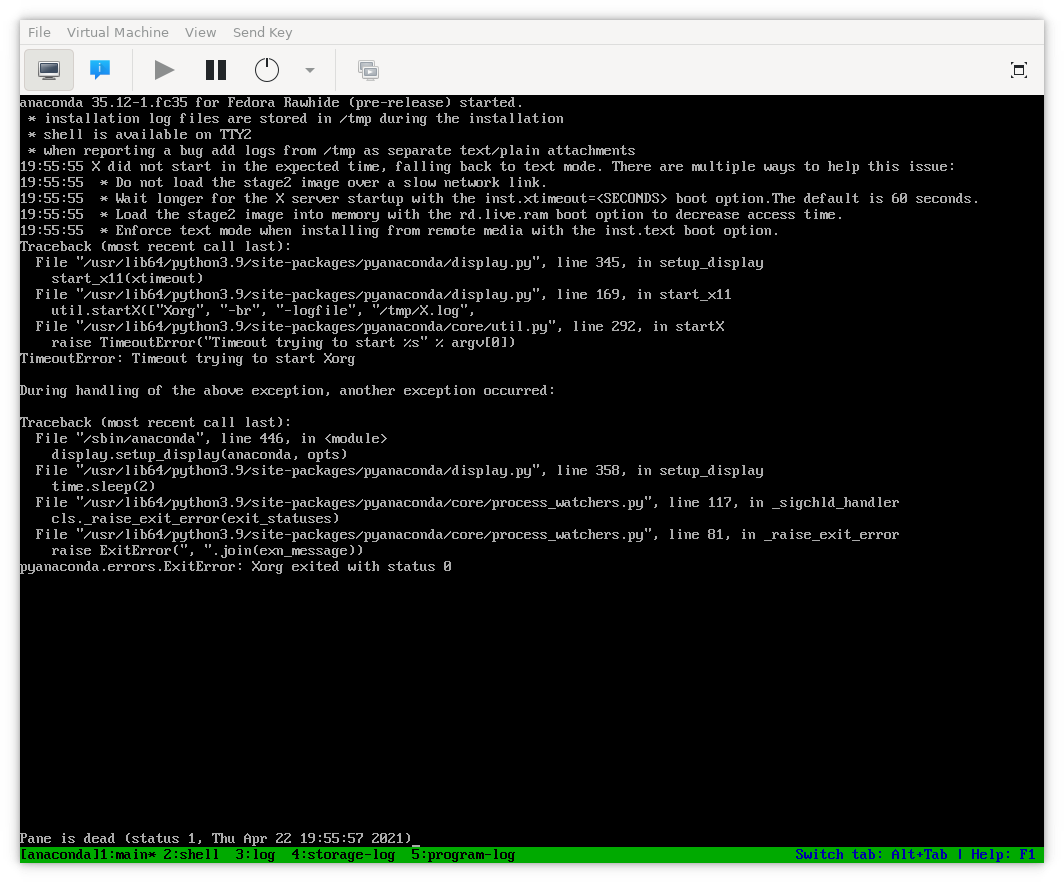

I gave it a try and the first attempt failed this way:

Tested with just "inst.xtimeout=1" and updates.img in a VM.

jstodola · 2021-04-22T20:08:50Z

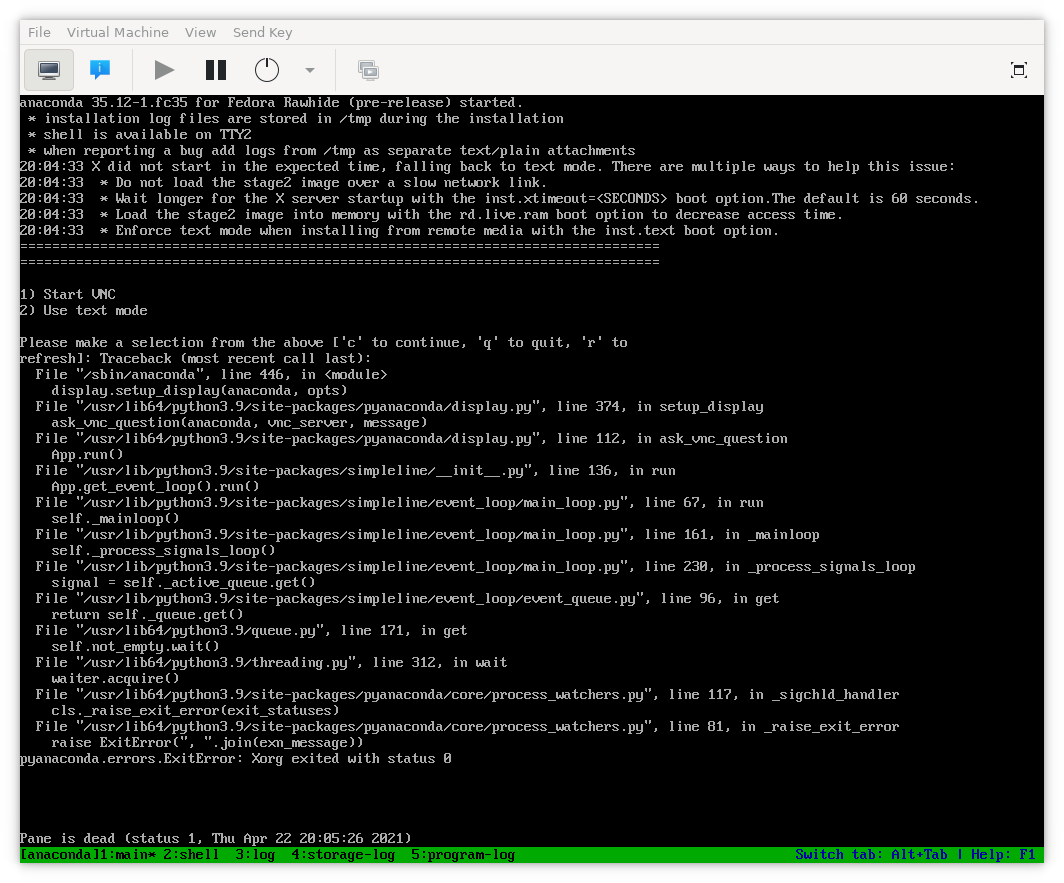

And second attempt:

This time with inst.xtimeout=5 and limited cdrom speed:
# virsh blkdeviotune kill_x sda --read-bytes-sec 500000

VladimirSlavik · 2021-04-23T16:10:28Z

/kickstart-test --testtype smoke

github-actions · 2021-04-23T16:10:42Z

Requested workflow run has to be approved. You can do that here

VladimirSlavik · 2021-04-26T12:02:46Z

I think I finally got why the exception weirdness happened. The one part is that it was tied to killing the process, which was asynchronous, so it popped up elsewhere. The other part is that Python's finally does not handle the exception, it keeps propagating. With these two bits, there are no mysteries left.

VladimirSlavik

Some self-conscious notes.

Apart from the below, commit "Reorganize control flow in startX" also needs amending the message to drop the sentence about exception mysteries.

pyanaconda/display.py

pyanaconda/core/util.py

jstodola · 2021-04-26T19:54:26Z

The change seems to work nice, Xorg is killed and I can select text/vnc mode.

There is one issue and I wonder if you can also reproduce it - starting anaconda in text mode after the X timeout expired results in magnified TUI. When I choose vnc instead of text mode, the TUI to enter the vnc password looks fine. Reproduced 2 out of 2 attempts:

poncovka

Looks good to me. Thank you for solving this issue!

poncovka · 2021-04-27T10:23:40Z

pyanaconda/core/util.py

-    # Use a list so the value can be modified from the handler function
-    x11_started = [False]
+    # Use a class so the values can be modified from the handler functions
+    class X11Status:


Feel free to define the class outside of the function.

VladimirSlavik · 2021-05-04T16:20:16Z

The resolution change happens because after X failure, we reset locale which includes running setfont and that destroys the resolution. Frankly, I am not sure what should be done here. Under "normal" text mode, we do not change fonts, which preserves the screen size and breaks TUI for non-ansi characters - it's all rectangles.

The tradeoff actually seems fair, in a bizarre way: Choose between the comforts of Anaconda in ýóůř ĺáňĝúàğë or above-VGA resolution.

We could presumably restore resolution with fbset, but I can't even find it (quickly) in Fedora.

Here we try to set up Xorg, and reinitialize_locale() if that fails, which eventually calls setup_locale() and set_console_font() (here), and that runs setfont <something> (here).

jstodola

Thank you for your work on this.
I think the current solution is OK, it displays possible workarounds and allows to continue with the installation, despite the changed resolution. The resolution problem can be solved in a separate PR if necessary.

VladimirSlavik · 2021-05-06T12:17:04Z

Thank you, let's have it then. That means an interactive rebase session to address the review comments above.

For the record, fbset would likely enable a pretty painless fix for this. However, it is orphaned in Fedora and apparently nobody missed it enough for the past 3 years: https://src.fedoraproject.org/rpms/fbset

- Raise a more semantically correct exception - Clarify comments - Replace list with a class instance Related: rhbz#1918702

When Anaconda receives the SIGUSR1 signal, it executes its crash handler. When Anaconda launches Xorg and it successfully starts, it sends SIGUSR1 to Anaconda. Thus, we use a special handler for this signal while waiting for Xorg to start, and a "normal" one otherwise. Previously, if a Xorg start timed out, the temporary Xorg start handler was always replaced with the handler that started exception handler test. However, if Xorg kept starting in the background, it would eventually send that signal, which would be interpreted as a test of the exception handler. Then, Anaconda would stop with the error report message. This changes the handling of SIGUSR1 after Xorg start times out, such that it is no longer wrongly interpreted as a QE test, but correctly as a late Xorg start. To prevent the newly started Xorg from stealing the screen, receiving this signal switches back to tty1 with tmux and TUI. Resolves: rhbz#1918702

Previously, control flow in case of timeout was very complicated: - sigalrm_handler() in startX() raised an exception - finally in startX() caught the exception and executed - except in pyanaconda.display.do_startup_x11_actions() caught the exception and executed too That spread the handling over two different places. This changes the control flow to make it obvious the caller of startX will receive an exception. It is also easier to reason about the flow. Related: rhbz#1918702

After Xorg timeout, we can receive SIGUSR1 from two sources: - Xorg if it managed to start - User trying to initiate the crash report test To make the first case predictable, terminate Xorg if it times out. It will still send SIGUSR1, because SIGTERM is handled later. However, this guarantees that there will be no more than one SIGUSR1 from Xorg. With this fact ensured, reinstate the normal signal handler after first such signal is received. Any further SIGUSR1 can be sent only by user trying to test crash reporting. An user sending this signal before a timed-out Xorg starts is not probable, but still technically possible. That particular corner case remains buggy: If that happens, the first signal (from user) will be "eaten" and appear to be ignored, while the second one (from Xorg) will run a crash report test, but without switching back to tty1, it might not be visible because Xorg switches to tty6. This is mainly of interest to QE (RTT). Related: rhbz#1918702

- Add separate timeout message with workarounds - Print the messages instead of logging them - Move tty switching to where messages are printed Related: rhbz#1918702

The message is not a positional argument.

VladimirSlavik · 2021-05-06T18:09:59Z

I addressed all of the feedback and squashed some of the commits. That's ready to merge, I think.

There was another bug left: ask_vnc_question did not ask, in fact. The choices appeared without the preceding message. I am almost certain it didn't work before. So I fixed that too...

VladimirSlavik · 2021-05-06T18:10:12Z

/kickstart-test --testtype smoke

github-actions · 2021-05-06T18:10:46Z

Requested workflow run has to be approved. You can do that here

VladimirSlavik added master Please, use the `f39` label instead. port to RHEL8 port to RHEL9 The pull request needs to be ported to RHEL 9. labels Apr 22, 2021

VladimirSlavik had a problem deploying to staging April 22, 2021 13:46 Error

VladimirSlavik had a problem deploying to staging April 22, 2021 14:31 Failure

VladimirSlavik force-pushed the master-xorg-give-up-exception-handler-test branch from cd56c07 to 3314f57 Compare April 22, 2021 14:32

VladimirSlavik had a problem deploying to staging April 22, 2021 14:32 Failure

VladimirSlavik had a problem deploying to staging April 22, 2021 19:15 Failure

VladimirSlavik force-pushed the master-xorg-give-up-exception-handler-test branch from f5aff2a to e76ffa9 Compare April 22, 2021 19:22

VladimirSlavik had a problem deploying to staging April 22, 2021 19:22 Failure

VladimirSlavik marked this pull request as ready for review April 23, 2021 16:11

VladimirSlavik commented Apr 26, 2021

View reviewed changes

pyanaconda/display.py Outdated Show resolved Hide resolved

pyanaconda/display.py Outdated Show resolved Hide resolved

pyanaconda/core/util.py Outdated Show resolved Hide resolved

poncovka approved these changes Apr 27, 2021

View reviewed changes

jstodola approved these changes May 6, 2021

View reviewed changes

VladimirSlavik added 5 commits May 6, 2021 19:00

Refactor minor details in startX

0b851a3

- Raise a more semantically correct exception - Clarify comments - Replace list with a class instance Related: rhbz#1918702

Improve X startup error messages

9b8d428

- Add separate timeout message with workarounds - Print the messages instead of logging them - Move tty switching to where messages are printed Related: rhbz#1918702

VladimirSlavik force-pushed the master-xorg-give-up-exception-handler-test branch from 195ac51 to 9b8d428 Compare May 6, 2021 17:38

VladimirSlavik temporarily deployed to staging May 6, 2021 17:38 Inactive

Fix AskVNCSpoke call

f8b2deb

The message is not a positional argument.

VladimirSlavik temporarily deployed to staging May 6, 2021 18:09 Inactive

VladimirSlavik merged commit 650608e into rhinstaller:master May 7, 2021

VladimirSlavik mentioned this pull request May 7, 2021

Rhel 9 port Xorg start fix #3348

Merged

VladimirSlavik deleted the master-xorg-give-up-exception-handler-test branch May 7, 2021 13:05

VladimirSlavik removed the port to RHEL9 The pull request needs to be ported to RHEL 9. label May 7, 2021

VladimirSlavik mentioned this pull request May 12, 2021

RHEL 8 Xorg timeout fix #3365

Merged

VladimirSlavik removed the port to RHEL8 label May 12, 2021
