W6RGC/AI: Voice-to-LLM bridge for ham radio

** DEPRECATED. Use digirig-openclaw-channel for all this functionality and much more **

Overview

W6RGC/AI is a voice-to-LLM bridge for ham radio. It lets operators talk to AI over the air, routing voice to and from a configurable text-based intelligence engine (OpenClaw, Gemini, ChatGPT, or Ollama). Like Siri or Google Assistant, activate using its hotword "Seven", then speak as you would to another operator, like speak "Seven: Send an APRS message to W6RGC."

Killer Features

• Radio-first UX: Wake word detection, PTT management, carrier sense, and periodic ID support.
• Multi-engine LLM routing: OpenClaw, Gemini, ChatGPT, or Ollama.
• Local tool execution:
  • OpenClaw: Invoke tools on your machine, subject to policy.
  • Voice APRS: Send and receive APRS messages by voice
  • Voice-based location services: Describe your location to get a grid square and GPS.
  • Wikipedia: Ask for a concise summary of any topic.
  • And more. Just ask Seven.
• Multiple Hardware Interfaces: DigiRig and Baofeng All-in-One Connector (AIOC).
• Off grid: Configurable to run completely on local models for all AI operations (main LLM, wake word detection, speech recognition, and text-to-speech)

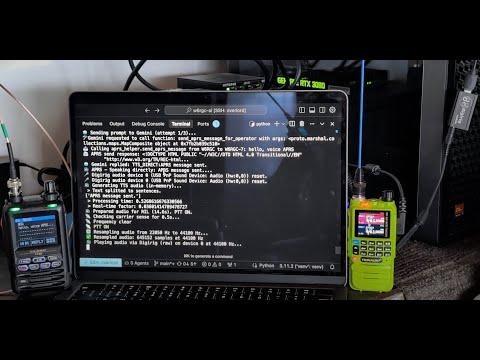

Voice APRS Demo

Voice APRS demonstrates the natural language APRS capabilities of W6RGC/AI, allowing operators to send and receive APRS messages using conversational voice commands.

📺 Watch the Voice APRS Demo Video

Example Voice Commands:

• "Seven, send an APRS message to N0CALL saying hello from the AI assistant"
• "Seven, read my APRS messages"
• "Seven, check if I have any new APRS traffic"

Features:

• Natural language processing for APRS operations
• Automatic message formatting and validation
• Integration with findu.com APRS gateway
• Supports both sending and receiving messages
• Phonetic readback of callsigns and messages

Architecture

Key modules you can extend:

• main.py: Orchestration loop
• constants.py: Centralized configuration
• regex_command_tooling.py: Voice command parsing
• ril_aioc.py / ril_digirig.py: Radio interface layers
• context_manager.py: Prompt + conversation state
• wake_word_detector.py: AST-based wake word detection
• periodically_identify.py: Periodic station ID
• aprs_helper.py, arrl_news_helper.py, wikipedia_helper.py, location_helper.py: External data helpers
• speech_recognition.py: Whisper speech-to-text
• llm_gemini.py, llm_ollama.py, llm_openclaw.py: LLM connectors

Setup and Installation

Prerequisites

• CUDA Hardware: For GPU acceleration, this project requires dedicated GPU hardware to run local AI models. A Nvidia GeForce RTX 3060 or better is recommended.
• Audio Hardware with PTT: Digirig and AIOC (All-In-One-Cable) are supported.
• Operating System: This project has only been tested on Linux.
• Required Linux Packages: Install the following packages using your package manager:

  sudo apt update
  sudo apt install python3-full portaudio19-dev ffmpeg

• User Permissions: Add your user to the dialout group for serial port access:

  sudo usermod -a -G dialout $USER

  Log out and back in for changes to take effect
• Ollama: Install Ollama by running the following command in your terminal:

  curl -fsSL https://ollama.com/install.sh | sh

  After installation, ensure the Ollama service is running and you have pulled a model (e.g., ollama pull gemma2:9b).

Installation Steps

1. Clone the repository:

   git clone https://github.com/richcannings/w6rgc-ai
   cd w6rgc-ai

2. Create a Python virtual environment (recommended):

   python3 -m venv venv
   source venv/bin/activate

3. Install Python dependencies:

   pip install -r requirements.txt

4. Add API key files (as needed):
   • openai_api_key.txt for ChatGPT
   • gemini_api_key.txt for Gemini
   • weather_api_key.txt for weather
   • google_places_api_key.txt for location services
   • openclaw_api_token.txt for OpenClaw gateway access
5. Set up Ollama (if not done in prerequisites):
   • Ensure the Ollama server is running (usually ollama serve or systemctl start ollama)
   • If you haven't already, pull your desired LLM model (e.g., ollama pull gemma2:9b)
6. Hardware Setup:
   • Connect your AIOC or Digirig adapter via USB
   • The system will automatically detect the audio device and serial port
   • Configure the hardware type in constants.py by setting DEFAULT_RIL_TYPE to either "aioc" or "digirig"

Usage

1. Configure the application:

   • Primary Configuration: Edit constants.py to modify a few settings:
   • BOT_CALLSIGN and BOT_PHONETIC_CALLSIGN
   • If you are using a Digirig, update DEFAULT_DIGIRIG_SERIAL_PORT. The system automatically detects the correct audio device for both AIOC and Digirig hardware.
   • Some features may not work until you download the required models (e.g., Piper for TTS) or provide an API key (e.g., for weather reports).
   • Explore the file for more settings to tinker with.
   • Advanced Configuration: Customize the AI persona and prompts in context_manager.py. You can also manually set the serial port in constants.py if auto-detection fails.

2. Run the main script:

   python main.py

Operation

Your radio is the main interface for input and output. The application will start and listen for the configured wake word (default: "Seven"). To interact, say the wake word at the start of your transmission once or twice, followed by your command or query speaking as how you would speak with another operator.

Example: "Seven, what are your commands?", "Seven, start a net. You are Net Control Station.", "Seven, send an APRS message.", or "Seven, what time is it in Eastern?"

To terminate the assistant: "Seven, break" or "Seven, exit" or use Ctrl+C in the terminal.

Bot Identity (Wake Word + Callsign)

The system uses MIT's AST (Audio Spectrogram Transformer) model for efficient wake word detection:

• 35+ Available Wake Words: backward, bed, bird, cat, dog, down, eight, five, follow, forward, four, go, happy, house, learn, left, marvin, nine, no, off, on, one, right, seven, sheila, six, stop, three, tree, two, up, visual, wow, yes, zero
• Current Default: "seven"

To change the wake word, modify BOT_NAME and DEFAULT_WAKE_WORD in constants.py to any of the supported words. It's easier for both the user and the AI when BOT_NAME matches the DEFAULT_WAKE_WORD. To change the bot's callsign, update BOT_CALLSIGN, BOT_SPOKEN_CALLSIGN, and BOT_PHONETIC_CALLSIGN in constants.py.

Configuration

The application uses a centralized configuration system in constants.py. Key sections include:

# LLM Selection
LLM_ENGINE = "openclaw"  # Options: gemini, chatgpt, ollama, openclaw

# Ollama Configuration
OLLAMA_URL = "http://localhost:11434/api/generate"
DEFAULT_OFFLINE_MODEL = "gemma2:9b"  # Example: "llama3:8b"

# Gemini Configuration
GEMINI_API_KEY_FILE = "gemini_api_key.txt"  # Store your Gemini API key in this file
DEFAULT_ONLINE_MODEL = "gemini-3-flash-preview" # Example: "gemini-3-pro-preview"
MAX_RETRIES = 3
RETRY_DELAY = 1.0  # seconds
REQUEST_TIMEOUT = 30  # seconds

# ChatGPT Configuration
OPENAI_API_KEY_FILE = "openai_api_key.txt"
DEFAULT_CHATGPT_MODEL = "gpt-5.2-pro"

# OpenClaw Configuration (local gateway)
OPENCLAW_GATEWAY_URL = "http://localhost:18789"
OPENCLAW_TOKEN_FILE = "openclaw_api_token.txt"
OPENCLAW_AGENT_ID = "main"

# Weather API Configuration (for weather function calling)
WEATHER_API_KEY_FILE = "weather_api_key.txt"  # Store your OpenWeatherMap API key here

# Google Places API Configuration
GOOGLE_PLACES_API_KEY_FILE = "google_places_api_key.txt" # Store your Google Places API key here

Wake Word Detection

# AST Wake Word Detection
DEFAULT_WAKE_WORD = BOT_NAME # syncing bot name with wake word
AST_CONFIDENCE_THRESHOLD = 0.7
AST_CHUNK_LENGTH_S = 1.0
AST_MODEL_NAME = "MIT/ast-finetuned-speech-commands-v2"

# Wake Word Detection Method
# WAKE_WORD_METHOD_AST = "ast" # This is an internal constant, usually not changed by user
DEFAULT_WAKE_WORD_METHOD = "ast" # Currently "ast" is the primary method

# Command Detection Configuration
MAX_COMMAND_WORDS = 10  # maximum words to check for commands (prevents accidental triggers)

Hardware Configuration

# Radio Interface Layer (RIL) Configuration
RIL_TYPE_AIOC = "aioc"
RIL_TYPE_DIGIRIG = "digirig"
DEFAULT_RIL_TYPE = RIL_TYPE_DIGIRIG  # Options: "aioc" or "digirig". Change this to switch.

# Serial Port Configuration
DEFAULT_AIOC_SERIAL_PORT = "/dev/ttyACM0"  # Serial port for AIOC PTT control
DEFAULT_DIGIRIG_SERIAL_PORT = "/dev/ttyUSB1" # Serial port for Digirig PTT control
SERIAL_TIMEOUT = 1  # seconds

# Carrier Sense Configuration
CARRIER_SENSE_DURATION = 0.5  # seconds to monitor for carrier before PTT
CARRIER_SENSE_MAX_RETRIES = 3  # maximum attempts to find clear frequency
CARRIER_SENSE_RETRY_DELAY = 3.0  # seconds to wait between carrier sense attempts

# Periodic Identification Configuration
PERIODIC_ID_INTERVAL_MINUTES = 10  # minutes between automatic identification announcements

Bot Identity

OPERATOR_NAME = "Operator"
BOT_NAME = "seven" # Choose from available wake words, e.g., seven, marvin, sheila, zero, happy, forward.
BOT_CALLSIGN = "W6RGC/AI"      # Amateur radio callsign
BOT_SPOKEN_CALLSIGN = "W 6 R G C stroke A I"
BOT_PHONETIC_CALLSIGN = "Whiskey 6 Romeo Golf Charlie Stroke Alpha India"

TTS Configuration

# Script File Path for logging conversation
WRITE_SCRIPT_TO_FILE = False

# TTS Model Options
TTS_MODEL_FAST_PITCH = "tts_models/en/ljspeech/fast_pitch"
TTS_MODEL_SPEEDY_SPEECH = "tts_models/en/ljspeech/speedy_speech"
TTS_MODEL_TACOTRON2 = "tts_models/en/ljspeech/tacotron2-DDC"

# TTS Audio Settings
TTS_INFERENCE_NOISE_SCALE = 0.667
TTS_INFERENCE_NOISE_SCALE_DP = 1.0
TTS_INFERENCE_SIGMA = 1.0

# TTS File Configuration
TTS_OUTPUT_FILE = 'audio/tts_output.wav'

Troubleshooting

Common Issues

Audio Device Not Found:

• Ensure your AIOC or Digirig adapter is connected
• Check lsusb output for USB audio device
• Verify user is in dialout group: groups $USER

Serial Port Issues:

• Check available serial ports: ls /dev/ttyUSB* /dev/ttyACM*
• If auto-detection fails, update DEFAULT_AIOC_SERIAL_PORT or DEFAULT_DIGIRIG_SERIAL_PORT in constants.py
• Verify permissions: sudo chmod 666 /dev/ttyUSB0 (or relevant port)

Wake Word Not Detected:

• Check microphone levels and background noise.
• Adjust AST_CONFIDENCE_THRESHOLD in constants.py.
• Try a different wake word, such as "marvin," "sheila," "zero," "happy," or "forward."

LLM Connection Issues:

• Ollama: Ensure the service is running: systemctl status ollama
• ChatGPT: Check API key in openai_api_key.txt
• Gemini: Check API key in gemini_api_key.txt
• Models: Verify model availability: ollama list or test with python list_gemini_models.py

Weather Service Issues:

• API Key: Ensure valid OpenWeatherMap API key in weather_api_key.txt
• Internet: Weather service requires internet connection
• Test: Run python weather_helper.py to test functionality.
• API Limits: The free tier has usage limits; check your OpenWeatherMap dashboard.

Enable debug output for wake word detection:

# In wake_word_detector.py, set debug=True when calling listen_for_wake_word
wake_detected = wake_detector.listen_for_wake_word(
    audio_device_index=audio_index,
    debug=True  # Shows prediction scores and confidence levels
)

Hardware Requirements

• Minimum: CPU with 4+ cores, 32GB RAM, and 10GB disk space (not including Ollama models)
• GPU with CUDA support: NVIDIA RTX 3060 with 12GB RAM recommended for optimal performance
• Radio interface: Digirig, AIOC (All-In-One-Cable), or other compatible USB audio interface with PTT control
