⚡ Real-Time Checkbox Grid

A collaborative, real-time checkbox grid where multiple users can connect, interact, and see updates instantly. Built with modern real-time architecture and powered by Redis for shared state.

🌐 Live Demo:
https://real-time-checkbox-grid-production.up.railway.app/

---

🚀 Features

• 🟢 Real-time updates across all connected users
• 👥 Live user count tracking
• 🔄 Instant sync using WebSockets
• ⚡ Redis-backed shared state
• 🔐 Simple username-based login system
• 🎯 Smooth and responsive UI

---

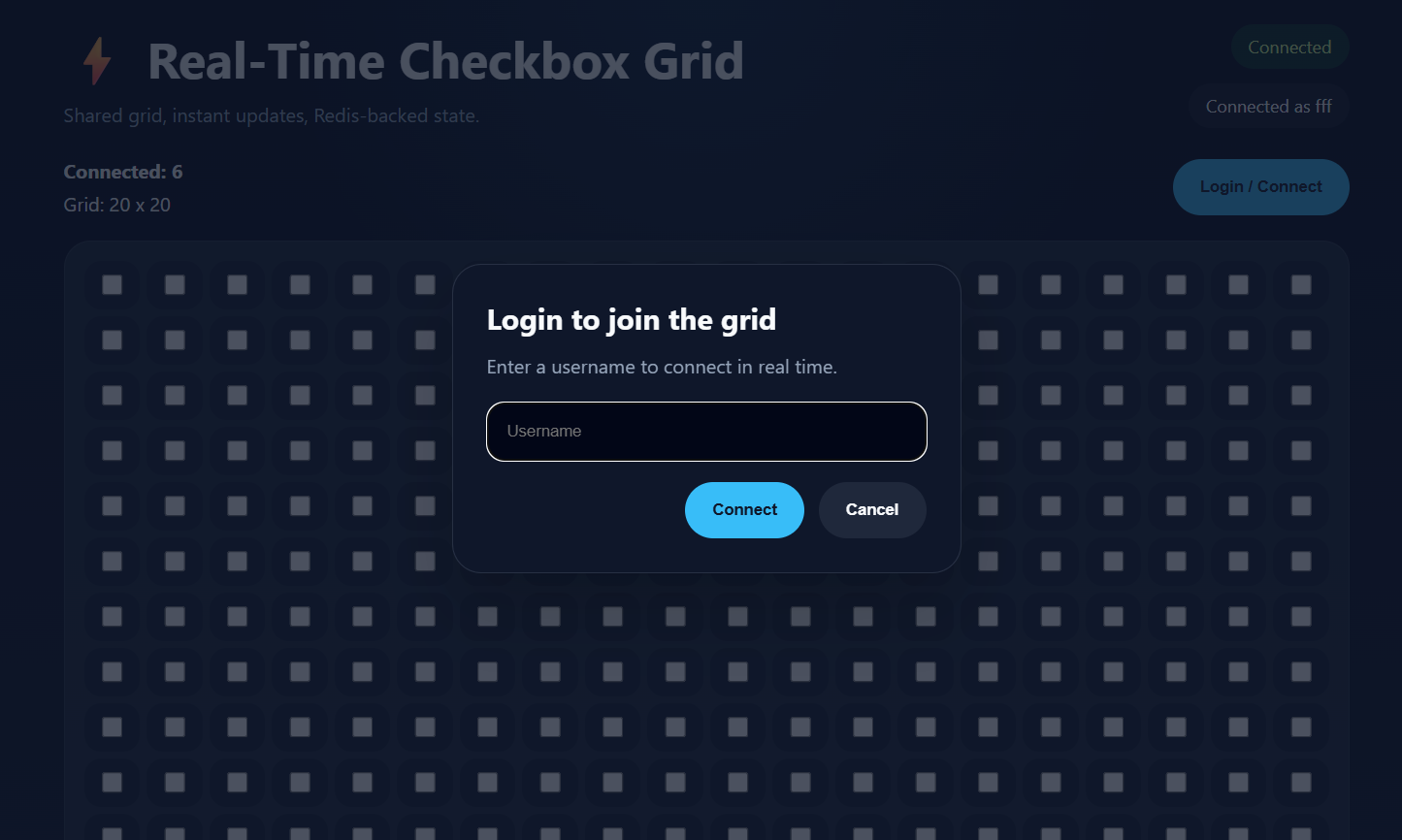

🖼️ Preview

---

🏗️ Tech Stack

• Frontend: HTML, CSS, JavaScript
• Backend: Node.js
• Real-time Communication: WebSockets / Socket.IO
• Database / Cache: Redis (Upstash / Railway)
• Deployment: Railway

---

📦 Installation & Setup

1. Clone the repository

git clone https://github.com/rishiwaghdev/real-time-checkbox-grid.git
cd real-time-checkbox-grid

2. Install dependencies

pnpm install
# or
npm install

3. Setup environment variables

Create a .env file:

REDIS_URL=https://funny-bulldog-77766.upstash.io
PORT=3000

4. Run the app

pnpm dev
# or
npm run dev

---

🌍 How It Works

• User enters a username and connects
• A shared grid is loaded from Redis
• When a checkbox is toggled:
  • Update is sent to the server
  • Server updates Redis
  • Broadcasts change to all connected clients
• All users see changes instantly ⚡

---

📁 Project Structure

├── server/
│   ├── index.js
│   └── redis.js
├── client/
│   ├── index.html
│   ├── styles.css
│   └── script.js
├── .env
├── package.json
└── README.md

---

🔥 Future Improvements

• ✅ Authentication system (JWT / OAuth)
• 🎨 Custom grid sizes
• 📊 Activity logs / history
• 🧑‍🤝‍🧑 User presence indicators
• 🟦 Color-coded users

---

🤝 Contributing

Contributions are welcome!

1. Fork the repo
2. Create your feature branch
3. Commit your changes
4. Push and open a PR

---

📄 License

This project is licensed under the MIT License.

---

💡 Inspiration

Built to explore real-time systems, WebSockets, and distributed state management using Redis.
