Slurs don't seem to be working with tstamp. #92
Labels
Comments
|
Implemented in cfc4059 |
|
|
|

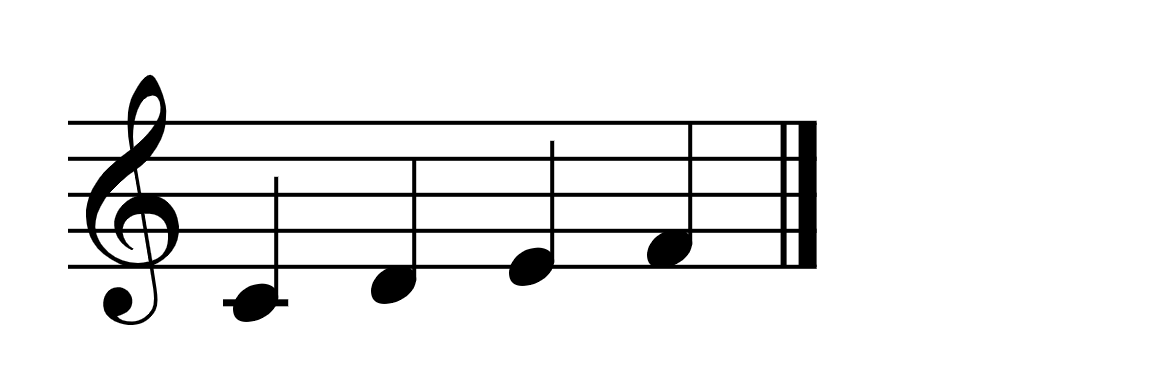

In the current version of verovio, slurs will not be drawn if they use Here is the rendering of the test data below in vervio 1.0.0:

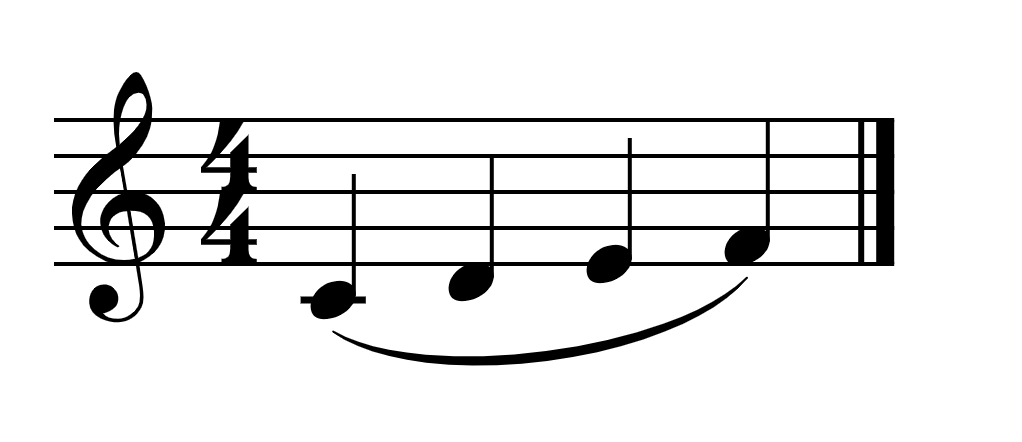

And here is the rendering of the same data in verovio 0.9.13:
Using
MEI test data, using time stamps for slur placement: <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title />
</titleStmt>
<pubStmt />
</fileDesc>
<encodingDesc>
<appInfo>
<application isodate="2019-02-08T04:55:27" version="2.1.0-dev-56b5535-dirty">
<name>Verovio</name>
<p>Transcoded from Humdrum</p>
</application>
</appInfo>
</encodingDesc>
<workList>
<work>
<title />
</work>
</workList>
</meiHead>
<music>
<body>
<mdiv xml:id="mdiv-0000002132858970">
<score xml:id="score-0000001163673066">
<scoreDef xml:id="scoredef-0000000471865442">
<staffGrp xml:id="staffgrp-0000000649980561">
<staffDef xml:id="staffdef-0000000479783727" clef.shape="G" clef.line="2" n="1" lines="5">
<label xml:id="label-0000001694588760" />
</staffDef>
</staffGrp>
</scoreDef>
<section xml:id="section-L1F1">
<measure xml:id="measure-L3" right="end">
<staff xml:id="staff-L3F1N1" n="1">
<layer xml:id="layer-L3F1N1" n="1">
<note xml:id="note-L4F1" dur="4" oct="4" pname="c" accid.ges="n" />
<note xml:id="note-L5F1" dur="4" oct="4" pname="d" accid.ges="n" />
<note xml:id="note-L6F1" dur="4" oct="4" pname="e" accid.ges="n" />
<note xml:id="note-L7F1" dur="4" oct="4" pname="f" accid.ges="n" />
</layer>
</staff>
<slur xml:id="slur-L4F1-L7F1" staff="1" tstamp="1" tstamp2="4" />
</measure>
</section>
</score>
</mdiv>
</body>
</music>
</mei>Here is the related encoding using <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title />
</titleStmt>
<pubStmt />
</fileDesc>
<encodingDesc>
<appInfo>
<application isodate="2019-02-08T05:31:27" version="2.1.0-dev-56b5535-dirty">
<name>Verovio</name>
<p>Transcoded from Humdrum</p>
</application>
</appInfo>
</encodingDesc>
<workList>
<work>
<title />
</work>
</workList>
</meiHead>
<music>
<body>
<mdiv xml:id="mdiv-0000001654470073">
<score xml:id="score-0000001060255555">
<scoreDef xml:id="scoredef-0000001941356192">
<staffGrp xml:id="staffgrp-0000001674613076">
<staffDef xml:id="staffdef-0000001226653705" clef.shape="G" clef.line="2" n="1" lines="5">
<label xml:id="label-0000001447945115" />
</staffDef>
</staffGrp>
</scoreDef>
<section xml:id="section-L1F1">
<measure xml:id="measure-L3" right="end">
<staff xml:id="staff-L3F1N1" n="1">
<layer xml:id="layer-L3F1N1" n="1">
<note xml:id="note-L4F1" dur="4" oct="4" pname="c" accid.ges="n" />
<note xml:id="note-L5F1" dur="4" oct="4" pname="d" accid.ges="n" />
<note xml:id="note-L6F1" dur="4" oct="4" pname="e" accid.ges="n" />
<note xml:id="note-L7F1" dur="4" oct="4" pname="f" accid.ges="n" />
</layer>
</staff>
<slur xml:id="slur-L4F1-L7F1" staff="1" startid="#note-L4F1" endid="#note-L7F1" />
</measure>
</section>
</score>
</mdiv>
</body>
</music>
</mei> |
|
That was actually intentional.
No way to figure out which note heads are meant with multiple layers.
|
|
I aways use https://lists.uni-paderborn.de/pipermail/mei-l/2019/002265.html

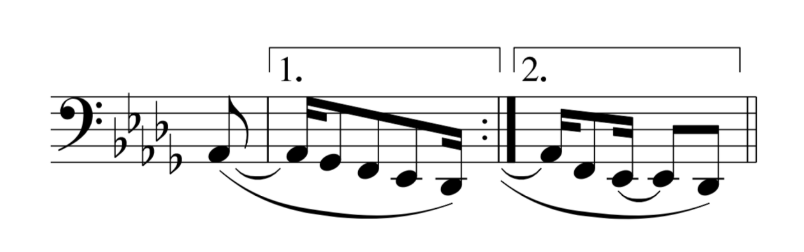

This is for cases like this:
So should There would also be a complication of slur orientation. In this case the slur should be below the staff due to information from the note attached to the end of the slur. |
|
There is also "laissez vibrer" which is similar. They might involve timestamps, although mostly these would probably be better as fonts (fixed-width slurs not dependent on musical spacing). https://musescore.org/en/node/14437 Here is an l.v. that should be attached to the end of a measure using http://www.rpmseattle.com/of_note/l-v-symbols-in-sibelius-laissez-vibrer-several-solutions/
|
|
The latest version (c1ed96f) supports slurs starting or ending with timestamps. Do not reopen the issue for slurs both starting and ending with a timestamp ;-) <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://www.music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://www.music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title>Slurs starting or ending with timestamps</title>
</titleStmt>
<pubStmt>
</pubStmt>
</fileDesc>
</meiHead>
<music>
<body>
<mdiv>
<score>
<scoreDef>
<staffGrp>
<staffDef n="1" clef.shape="G" lines="5" clef.line="2"/>
</staffGrp>
</scoreDef>
<section>
<measure n="1">
<staff n="1">
<layer n="1">
<note xml:id="n1" dur="2" oct="4" pname="c"/>
<note xml:id="n2" dur="2" oct="4" pname="c"/>
</layer>
</staff>
<slur tstamp="0.0" endid="#n2" curvedir="above" staff="1"/>
<slur startid="#n1" tstamp2="1m+5" staff="1"/>
</measure>
<measure n="2">
<staff n="1">
<layer n="1">
<note dur="1" oct="4" pname="c"/>
</layer>
</staff>
</measure>
</section>
</score>
</mdiv>
</body>
</music>
</mei> |
|
At some point it would be useful to have ties also attach to timestamps (at least one side) related to the laissez vibrer given above:

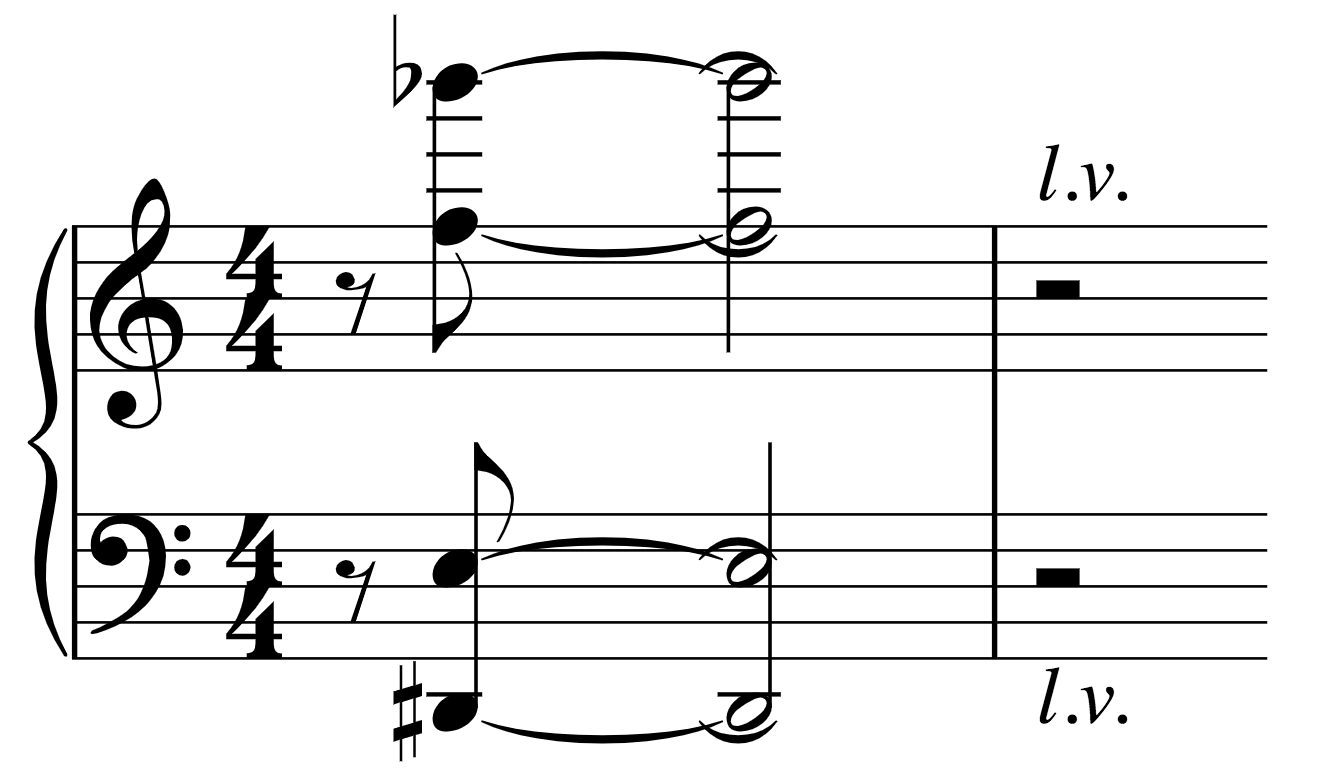

Here is the current rendering in verovio:
[I made a typo in the original MEI data posed here, so the image and MEI data below are updated] Test MEI data: <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title />
</titleStmt>
<pubStmt />
</fileDesc>
<encodingDesc>
<appInfo>
<application isodate="2019-02-08T13:34:18" version="2.1.0-dev-11a75bb">
<name>Verovio</name>
<p>Transcoded from Humdrum</p>
</application>
</appInfo>
</encodingDesc>
<workList>
<work>
<title />
</work>
</workList>
</meiHead>
<music>
<body>
<mdiv xml:id="mdiv-0000001224189658">
<score xml:id="score-0000002062243746">
<scoreDef xml:id="scoredef-0000000981370774" midi.bpm="400">
<staffGrp xml:id="staffgrp-0000001548932986" symbol="brace" bar.thru="true">
<label xml:id="label-0000001600942656" />
<staffDef xml:id="staffdef-0000002063554694" clef.shape="G" clef.line="2" meter.count="4" meter.unit="4" n="1" lines="5" />
<staffDef xml:id="staffdef-0000001324635250" clef.shape="F" clef.line="4" meter.count="4" meter.unit="4" n="2" lines="5" />
</staffGrp>
</scoreDef>
<section xml:id="section-L1F1">
<measure xml:id="measure-L1" n="0">
<staff xml:id="staff-0000000649857348" n="1">
<layer xml:id="layer-L1F2N1" n="1">
<rest xml:id="rest-L4F2" dur="8" />
<chord xml:id="chord-L5F2" dur="8">
<note xml:id="note-L5F2S1" oct="5" pname="f" accid.ges="n" />
<note xml:id="note-L5F2S2" oct="6" pname="g" accid="f" />
</chord>
<chord xml:id="chord-L6F2" dur="2">
<note xml:id="note-L6F2S1" oct="5" pname="f" accid.ges="n" />
<note xml:id="note-L6F2S2" oct="6" pname="g" accid.ges="f" />
</chord>
</layer>
</staff>
<staff xml:id="staff-0000000050619194" n="2">
<layer xml:id="layer-L1F1N1" n="1">
<rest xml:id="rest-L4F1" dur="8" />
<chord xml:id="chord-L5F1" dur="8">
<note xml:id="note-L5F1S1" oct="2" pname="d" accid="s" />
<note xml:id="note-L5F1S2" oct="3" pname="e" accid.ges="n" />
</chord>
<chord xml:id="chord-L6F1" dur="2">
<note xml:id="note-L6F1S1" oct="2" pname="d" accid.ges="s" />
<note xml:id="note-L6F1S2" oct="3" pname="e" accid.ges="n" />
</chord>
</layer>
</staff>
<tie xml:id="tie-L5F2S1-L6F2S1" startid="#note-L5F2S1" endid="#note-L6F2S1" />
<tie xml:id="tie-L5F2S2-L6F2S2" startid="#note-L5F2S2" endid="#note-L6F2S2" />
<tie xml:id="tie-L5F1S1-L6F1S1" startid="#note-L5F1S1" endid="#note-L6F1S1" />
<tie xml:id="tie-L5F1S2-L6F1S2" startid="#note-L5F1S2" endid="#note-L6F1S2" />
<tie xml:id="tie-L6F2S1-L9F2S1" startid="#note-L6F2S1" tstamp2="5" />
<tie xml:id="tie-L6F2S2-L9F2S2" startid="#note-L6F2S2" tstamp2="5" />
<tie xml:id="tie-L6F1S1-L9F1S1" startid="#note-L6F1S1" tstamp2="5" />
<tie xml:id="tie-L6F1S2-L9F1S2" startid="#note-L6F1S2" tstamp2="5" />
</measure>
<measure xml:id="measure-L7" right="invis">
<staff xml:id="staff-L7F2N1" n="1">
<layer xml:id="layer-L7F2N1" n="1">
<rest xml:id="rest-L10F2" dur="2" />
</layer>
</staff>
<staff xml:id="staff-L7F1N1" n="2">
<layer xml:id="layer-L7F1N1" n="1">
<rest xml:id="rest-L10F1" dur="2" />
</layer>
</staff>
<dir xml:id="dir-L9F2" place="above" staff="1" tstamp="1.000000">l.v.</dir>
<dir xml:id="dir-L9F1" place="below" staff="2" tstamp="1.000000">l.v.</dir>
</measure>
</section>
</score>
</mdiv>
</body>
</music>
</mei> |
|
With the current implementation perhaps it would be a good idea to add lv elements?
|
|
I think an Using a tie in such situations is not very grammatical , so it might be mixed up with some sort of data error. Conceptually the L.v. is halfway between a tie and a sustain pedal, for example (sometimes it functions as a tie and sometimes as a sustain pedal). On stringed instruments it would be a form of articulation that means to not dampen the string. There are probably several types of graphical grammars for l.v.. The example above follows closely the visual syntax of a tie, but the first link I gave to the MuseScore website had examples of l.v. which behave less like standard ties:

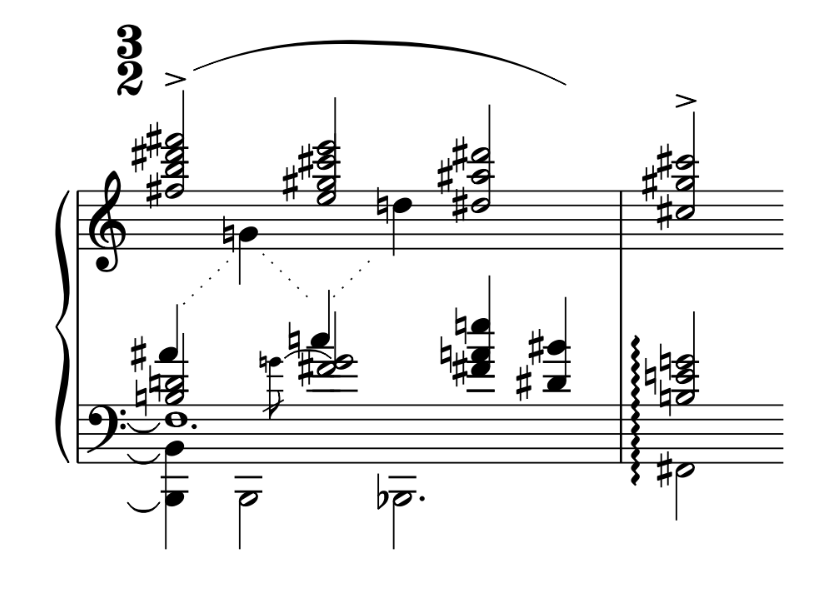

(from Debussy preludes book II: http://conquest.imslp.info/files/imglnks/usimg/d/dd/IMSLP00510-Debussy_-_Preludes,_Book_2.pdf) These l.v. are behaving more like articulations. The first set are similar to ties, but the endpoints would not be to a specific timestamp. In other words, notice that they are the same length as the ones on the barline. And they should keep the same width regardless of the musical spacing. But there is a temporal component to the l.v. in this example, since the ones attached to whole notes are longer:
(Page 55, bottom system) Page 11, top system:
These should be attached to the same timestamp as the low A2, but the l.v. should be centered at that timestamp. Similarly on page 15:
These l.v. should be centered on the second triplet eighth notes (although they could be attached to the last grace note, but an extra space before the start of the l.v. would be needed). There is also a textual l.v. on page 73, 3rd system:
|
|

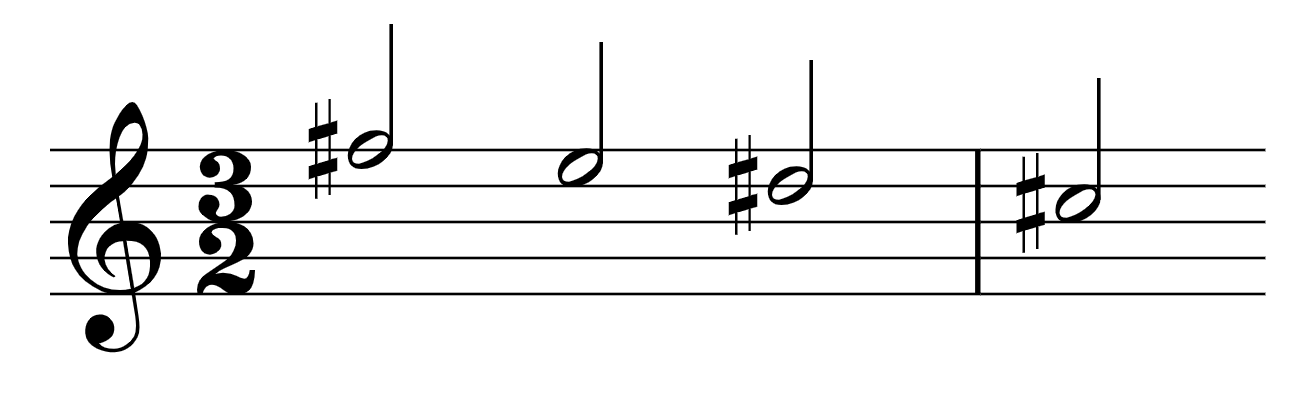

Here is a case where the
This is the transcription of a manuscript, where the intended endpoint of the slur is ambiguous (The slur could be attached to the last half note of the top staff, the first note of the next staff, or even the last quarter note of the bass staff). Here is the new rendering capability in verovio:
Note that the attachement to a tstamp (at least one without any notes at it), is adding extra width to the music:
this will probably be an undesirable feature to remove at some point. MEI test data: <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title />
</titleStmt>
<pubStmt />
</fileDesc>
<encodingDesc>
<appInfo>
<application isodate="2019-02-08T15:23:31" version="2.1.0-dev-56b5535-dirty">
<name>Verovio</name>
<p>Transcoded from Humdrum</p>
</application>
</appInfo>
</encodingDesc>
<workList>
<work>
<title />
</work>
</workList>
<extMeta>
<frames xmlns="http://www.humdrum.org/ns/humxml">
<metaFrame n="10" token="!!!RDF**kern: > = above" xml:id="L11">
<frameInfo>
<startTime float="8" />
<frameType>reference</frameType>
<referenceKey>RDF**kern</referenceKey>
<referenceValue>> = above</referenceValue>
</frameInfo>
</metaFrame>
<metaFrame n="11" token="!!!RDF**kern: < = below" xml:id="L12">
<frameInfo>
<startTime float="8" />
<frameType>reference</frameType>
<referenceKey>RDF**kern</referenceKey>
<referenceValue>< = below</referenceValue>
</frameInfo>
</metaFrame>
</frames>
</extMeta>
</meiHead>
<music>
<body>
<mdiv xml:id="mdiv-0000000523700328">
<score xml:id="score-0000000513515331">
<scoreDef xml:id="scoredef-0000000079629051" midi.bpm="400">
<staffGrp xml:id="staffgrp-0000000966969626">
<staffDef xml:id="staffdef-0000000501298518" clef.shape="G" clef.line="2" meter.count="3" meter.unit="2" n="1" lines="5">
<label xml:id="label-0000000163522081" />
</staffDef>
</staffGrp>
</scoreDef>
<section xml:id="section-L1F1">
<measure xml:id="measure-L3" n="1">
<staff xml:id="staff-L3F1N1" n="1">
<layer xml:id="layer-L3F1N1" n="1">
<note xml:id="note-L4F1" dur="2" oct="5" pname="f" stem.dir="up" accid="s" />
<note xml:id="note-L5F1" dur="2" oct="5" pname="e" stem.dir="up" accid.ges="n" />
<note xml:id="note-L6F1" dur="2" oct="5" pname="d" stem.dir="up" accid="s" />
</layer>
</staff>
<slur xml:id="slur-L4F1-L6F1" staff="1" startid="#note-L4F1" tstamp2="3.5" curvedir="above" />
</measure>
<measure xml:id="measure-L7" right="invis">
<staff xml:id="staff-L7F1N1" n="1">
<layer xml:id="layer-L7F1N1" n="1">
<note xml:id="note-L8F1" dur="2" oct="5" pname="c" stem.dir="up" accid="s" />
</layer>
</staff>
</measure>
</section>
</score>
</mdiv>
</body>
</music>
</mei> |
|

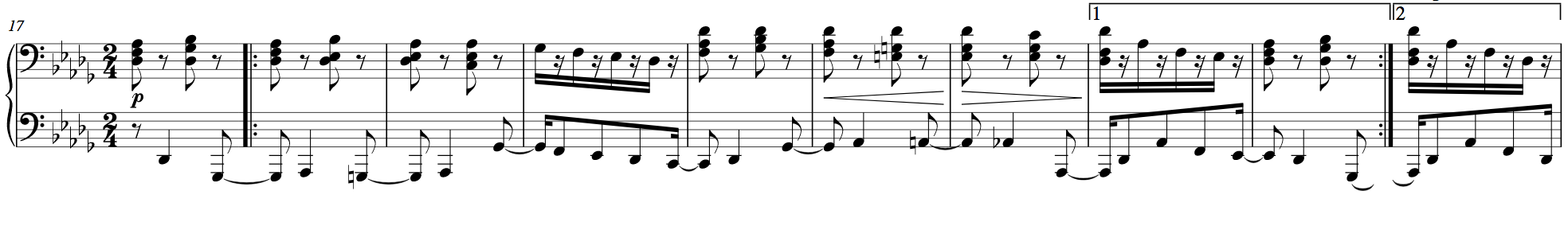

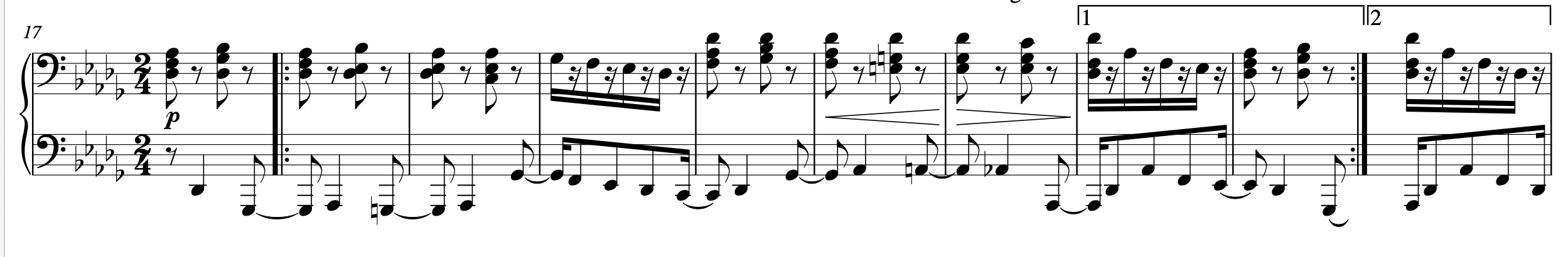

This solves the problem of ties/slurs across endings or repetitions (https://lists.uni-paderborn.de/pipermail/mei-l/2019/002266.html). Thanks! Here is my example from Beethoven Op. 57 2nd mvt (see slurs in both endings): This is the MEI encoding: <?xml version="1.0" encoding="UTF-8"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://relaxng.org/ns/structure/1.0"?>
<?xml-model href="http://music-encoding.org/schema/4.0.0/mei-all.rng" type="application/xml" schematypens="http://purl.oclc.org/dsdl/schematron"?>
<mei xmlns="http://www.music-encoding.org/ns/mei" meiversion="4.0.0">
<meiHead>
<fileDesc>
<titleStmt>
<title>Sonate</title>
<title type="subordinate" n="1">Dem Grafen Franz von Brunsvik gewidmet</title>
<title type="subordinate" n="2">Komponiert 1804/05</title>
<title type="subordinate" n="3" label="Opus number">Op. 57</title>
<respStmt>
<persName role="composer">Ludwig van Beethoven</persName>
<persName role="encoder" enddate="2014-07-13T21:16:10">Craig Stuart Sapp</persName>
<persName role="encoder" enddate="2019-01-31T21:16:10">Werner Goebl</persName>
</respStmt>
</titleStmt>
<pubStmt/>
</fileDesc>
<encodingDesc>
<appInfo>
<application isodate="2018-12-04T12:55:49" version="2.0.0-dev-73f81c8">
<name>Verovio</name>
<p>Transcoded from Humdrum</p>
</application>
</appInfo>
<projectDesc>
<p>Encoded by: Craig Stuart Sapp</p>
<p>Version: 2014/07/13/ (added ottavas)</p>
</projectDesc>
</encodingDesc>
</meiHead>
<music>
<body>
<mdiv xml:id="Movement-2" n="2" type="movement">
<score xml:id="score-0000001376003784">
<scoreDef xml:id="scoredef-0000001811114701" midi.bpm="60" key.sig="5f" meter.count="2" meter.unit="4">
<staffGrp xml:id="staffgrp-0000001636146698" symbol="brace" bar.thru="true">
<label xml:id="label-0000000443830441"/>
<staffDef xml:id="staffdef-0000001833860590" clef.shape="F" clef.line="4" n="1" lines="5">
<instrDef xml:id="instrdef-0000001368844698" midi.channel="0" midi.instrnum="0" midi.volume="79.00%"/>
</staffDef>
<staffDef xml:id="staffdef-0000000404605647" clef.shape="F" clef.line="4" n="2" lines="5">
<instrDef xml:id="instrdef-0000001949713648" midi.channel="1" midi.instrnum="0" midi.volume="74.00%"/>
</staffDef>
</staffGrp>
</scoreDef>
<section xml:id="section-L10F1">
<section xml:id="C">
<measure xml:id="measure-L104" n="17">
<staff xml:id="staff-L104F2N1" n="1">
<layer xml:id="layer-L104F2N1" n="1">
<chord xml:id="chord-L106F2" dur="8">
<note xml:id="note-L106F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L106F2S2" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L106F2S3" oct="3" pname="a" accid.ges="f"/>
</chord>
<rest xml:id="rest-L107F2" dur="8"/>
<chord xml:id="chord-L108F2" dur="8">
<note xml:id="note-L108F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L108F2S2" oct="3" pname="g" accid.ges="f"/>
<note xml:id="note-L108F2S3" oct="3" pname="b" accid.ges="f"/>
</chord>
<rest xml:id="rest-L109F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L104F1N1" n="2">
<layer xml:id="layer-L104F1N1" n="1">
<rest xml:id="rest-L106F1" dur="8"/>
<note xml:id="note-L107F1" dur="4" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L109F1" dur="8" oct="1" pname="g" accid.ges="f" tie="i"/>
</layer>
</staff>
<dynam xml:id="dynam-L106F3" staff="1" tstamp="1.000000" vgrp="170">p</dynam>
<!-- <tie xml:id="tie-L109F1-L112F1" startid="#note-L109F1" endid="#note-L112F1"/>-->
</measure>
</section>
<section xml:id="D">
<measure xml:id="measure-L110" left="rptstart" n="18">
<staff xml:id="staff-L110F2N1" n="1">
<layer xml:id="layer-L110F2N1" n="1">
<chord xml:id="chord-L112F2" dur="8">
<note xml:id="note-L112F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L112F2S2" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L112F2S3" oct="3" pname="a" accid.ges="f"/>
</chord>
<rest xml:id="rest-L113F2" dur="8"/>
<chord xml:id="chord-L114F2" dur="8">
<note xml:id="note-L114F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L114F2S2" oct="3" pname="e" accid.ges="f"/>
<note xml:id="note-L114F2S3" oct="3" pname="b" accid.ges="f"/>
</chord>
<rest xml:id="rest-L115F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L110F1N1" n="2">
<layer xml:id="layer-L110F1N1" n="1">
<note xml:id="note-L112F1" dur="8" oct="1" pname="g" accid.ges="f" tie="t"/>
<note xml:id="note-L113F1" dur="4" oct="1" pname="a" accid.ges="f"/>
<note xml:id="note-L115F1" dur="8" oct="1" pname="g" accid="n"/>
</layer>
</staff>
<tie xml:id="tie-L115F1-L117F1" startid="#note-L115F1" endid="#note-L117F1"/>
</measure>
<measure xml:id="measure-L116" n="19">
<staff xml:id="staff-L116F2N1" n="1">
<layer xml:id="layer-L116F2N1" n="1">
<chord xml:id="chord-L117F2" dur="8">
<note xml:id="note-L117F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L117F2S2" oct="3" pname="e" accid.ges="f"/>
<note xml:id="note-L117F2S3" oct="3" pname="a" accid.ges="f"/>
</chord>
<rest xml:id="rest-L118F2" dur="8"/>
<chord xml:id="chord-L119F2" dur="8">
<note xml:id="note-L119F2S1" oct="3" pname="c" accid.ges="n"/>
<note xml:id="note-L119F2S2" oct="3" pname="e" accid.ges="f"/>
<note xml:id="note-L119F2S3" oct="3" pname="a" accid.ges="f"/>
</chord>
<rest xml:id="rest-L120F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L116F1N1" n="2">
<layer xml:id="layer-L116F1N1" n="1">
<note xml:id="note-L117F1" dur="8" oct="1" pname="g" accid.ges="n"/>
<note xml:id="note-L118F1" dur="4" oct="1" pname="a" accid.ges="f"/>
<note xml:id="note-L120F1" dur="8" oct="2" pname="g" accid.ges="f"/>
</layer>
</staff>
<tie xml:id="tie-L120F1-L122F1" startid="#note-L120F1" endid="#note-L122F1"/>
</measure>
<measure xml:id="measure-L121" n="20">
<staff xml:id="staff-L121F2N1" n="1">
<layer xml:id="layer-L121F2N1" n="1">
<beam xml:id="beam-L122F2-L128F2">
<note xml:id="note-L122F2" dur="16" oct="3" pname="g" accid.ges="f"/>
<rest xml:id="rest-L123F2" dur="16"/>
<note xml:id="note-L124F2" dur="16" oct="3" pname="f" accid.ges="n"/>
<rest xml:id="rest-L125F2" dur="16"/>
<note xml:id="note-L126F2" dur="16" oct="3" pname="e" accid.ges="f"/>
<rest xml:id="rest-L127F2" dur="16"/>
<note xml:id="note-L128F2" dur="16" oct="3" pname="d" accid.ges="f"/>
</beam>
<rest xml:id="rest-L129F2" dur="16"/>
</layer>
</staff>
<staff xml:id="staff-L121F1N1" n="2">
<layer xml:id="layer-L121F1N1" n="1">
<beam xml:id="beam-L122F1-L129F1">
<note xml:id="note-L122F1" dur="16" oct="2" pname="g" accid.ges="f"/>
<note xml:id="note-L123F1" dur="8" oct="2" pname="f" accid.ges="n"/>
<note xml:id="note-L125F1" dur="8" oct="2" pname="e" accid.ges="f"/>
<note xml:id="note-L127F1" dur="8" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L129F1" dur="16" oct="2" pname="c" accid.ges="n"/>
</beam>
</layer>
</staff>
<tie xml:id="tie-L129F1-L131F1" startid="#note-L129F1" endid="#note-L131F1"/>
</measure>
<measure xml:id="measure-L130" n="21">
<staff xml:id="staff-L130F2N1" n="1">
<layer xml:id="layer-L130F2N1" n="1">
<chord xml:id="chord-L131F2" dur="8">
<note xml:id="note-L131F2S1" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L131F2S2" oct="3" pname="a" accid.ges="f"/>
<note xml:id="note-L131F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L132F2" dur="8"/>
<chord xml:id="chord-L133F2" dur="8">
<note xml:id="note-L133F2S1" oct="3" pname="g" accid.ges="f"/>
<note xml:id="note-L133F2S2" oct="3" pname="b" accid.ges="f"/>
<note xml:id="note-L133F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L134F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L130F1N1" n="2">
<layer xml:id="layer-L130F1N1" n="1">
<note xml:id="note-L131F1" dur="8" oct="2" pname="c" accid.ges="n"/>
<note xml:id="note-L132F1" dur="4" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L134F1" dur="8" oct="2" pname="g" accid.ges="f"/>
</layer>
</staff>
<tie xml:id="tie-L134F1-L136F1" startid="#note-L134F1" endid="#note-L136F1"/>
</measure>
<measure xml:id="measure-L135" n="22">
<staff xml:id="staff-L135F2N1" n="1">
<layer xml:id="layer-L135F2N1" n="1">
<chord xml:id="chord-L136F2" dur="8">
<note xml:id="note-L136F2S1" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L136F2S2" oct="3" pname="a" accid.ges="f"/>
<note xml:id="note-L136F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L137F2" dur="8"/>
<chord xml:id="chord-L138F2" dur="8">
<note xml:id="note-L138F2S1" oct="3" pname="e" accid="n"/>
<note xml:id="note-L138F2S2" oct="3" pname="g" accid="n"/>
<note xml:id="note-L138F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L139F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L135F1N1" n="2">
<layer xml:id="layer-L135F1N1" n="1">
<note xml:id="note-L136F1" dur="8" oct="2" pname="g" accid.ges="f"/>
<note xml:id="note-L137F1" dur="4" oct="2" pname="a" accid.ges="f"/>
<note xml:id="note-L139F1" dur="8" oct="2" pname="a" accid="n"/>
</layer>
</staff>
<hairpin xml:id="dir-L136F3" staff="1" tstamp="1.0" tstamp2="2.95" form="cres" vgrp="170"/>
<tie xml:id="tie-L139F1-L141F1" startid="#note-L139F1" endid="#note-L141F1"/>
</measure>
<measure xml:id="measure-L140" n="23">
<staff xml:id="staff-L140F2N1" n="1">
<layer xml:id="layer-L140F2N1" n="1">
<chord xml:id="chord-L141F2" dur="8">
<note xml:id="note-L141F2S1" oct="3" pname="e" accid.ges="f"/>
<note xml:id="note-L141F2S2" oct="3" pname="g" accid.ges="f"/>
<note xml:id="note-L141F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L142F2" dur="8"/>
<chord xml:id="chord-L143F2" dur="8">
<note xml:id="note-L143F2S1" oct="3" pname="e" accid.ges="f"/>
<note xml:id="note-L143F2S2" oct="3" pname="g" accid.ges="f"/>
<note xml:id="note-L143F2S3" oct="4" pname="c" accid.ges="n"/>
</chord>
<rest xml:id="rest-L144F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L140F1N1" n="2">
<layer xml:id="layer-L140F1N1" n="1">
<note xml:id="note-L141F1" dur="8" oct="2" pname="a" accid.ges="n"/>
<note xml:id="note-L142F1" dur="4" oct="2" pname="a">
<accid xml:id="accid-L142F1" accid="f" func="caution"/>
</note>
<note xml:id="note-L144F1" dur="8" oct="1" pname="a" accid.ges="f"/>
</layer>
</staff>
<hairpin xml:id="dir-L141F3" staff="1" tstamp="1.000000" tstamp2="2.95" form="dim" vgrp="170"/>
<tie xml:id="tie-L144F1-L147F1" startid="#note-L144F1" endid="#note-L147F1"/>
</measure>
</section>
<ending xml:id="D1" n="1">
<measure xml:id="measure-L145" n="24">
<staff xml:id="staff-L145F2N1" n="1">
<layer xml:id="layer-L145F2N1" n="1">
<beam xml:id="beam-L147F2-L153F2">
<chord xml:id="chord-L147F2" dur="16">
<note xml:id="note-L147F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L147F2S2" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L147F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L148F2" dur="16"/>
<note xml:id="note-L149F2" dur="16" oct="3" pname="a" accid.ges="f"/>
<rest xml:id="rest-L150F2" dur="16"/>
<note xml:id="note-L151F2" dur="16" oct="3" pname="f" accid.ges="n"/>
<rest xml:id="rest-L152F2" dur="16"/>
<note xml:id="note-L153F2" dur="16" oct="3" pname="e" accid.ges="f"/>
</beam>
<rest xml:id="rest-L154F2" dur="16"/>
</layer>
</staff>
<staff xml:id="staff-L145F1N1" n="2">
<layer xml:id="layer-L145F1N1" n="1">
<beam xml:id="beam-L147F1-L154F1">
<note xml:id="note-L147F1" dur="16" oct="1" pname="a" accid.ges="f"/>
<note xml:id="note-L148F1" dur="8" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L150F1" dur="8" oct="2" pname="a" accid.ges="f"/>
<note xml:id="note-L152F1" dur="8" oct="2" pname="f" accid.ges="n"/>
<note xml:id="note-L154F1" dur="16" oct="2" pname="e" accid.ges="f"/>
</beam>
</layer>
</staff>
<tie xml:id="tie-L154F1-L156F1" startid="#note-L154F1" endid="#note-L156F1"/>
</measure>
<measure xml:id="measure-L155" right="rptend" n="25">
<staff xml:id="staff-L155F2N1" n="1">
<layer xml:id="layer-L155F2N1" n="1">
<chord xml:id="chord-L156F2" dur="8">
<note xml:id="note-L156F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L156F2S2" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L156F2S3" oct="3" pname="a" accid.ges="f"/>
</chord>
<rest xml:id="rest-L157F2" dur="8"/>
<chord xml:id="chord-L158F2" dur="8">
<note xml:id="note-L158F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L158F2S2" oct="3" pname="g" accid.ges="f"/>
<note xml:id="note-L158F2S3" oct="3" pname="b" accid.ges="f"/>
</chord>
<rest xml:id="rest-L159F2" dur="8"/>
</layer>
</staff>
<staff xml:id="staff-L155F1N1" n="2">
<layer xml:id="layer-L155F1N1" n="1">
<note xml:id="note-L156F1" dur="8" oct="2" pname="e" accid.ges="f"/>
<note xml:id="note-L157F1" dur="4" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L159F1" dur="8" oct="1" pname="g" accid.ges="f"/>
</layer>
</staff>
<slur xml:id="slur-L159F1-L162F1" staff="2" curvedir="below" startid="#note-L159F1" tstamp2="3.0"/>
</measure>
</ending>
<ending xml:id="D2" n="2">
<measure xml:id="measure-L160" n="26">
<staff xml:id="staff-L160F2N1" n="1">
<layer xml:id="layer-L160F2N1" n="1">
<beam xml:id="beam-L162F2-L168F2">
<chord xml:id="chord-L162F2" dur="16">
<note xml:id="note-L162F2S1" oct="3" pname="d" accid.ges="f"/>
<note xml:id="note-L162F2S2" oct="3" pname="f" accid.ges="n"/>
<note xml:id="note-L162F2S3" oct="4" pname="d" accid.ges="f"/>
</chord>
<rest xml:id="rest-L163F2" dur="16"/>
<note xml:id="note-L164F2" dur="16" oct="3" pname="a" accid.ges="f"/>
<rest xml:id="rest-L165F2" dur="16"/>
<note xml:id="note-L166F2" dur="16" oct="3" pname="f" accid.ges="n"/>
<rest xml:id="rest-L167F2" dur="16"/>
<note xml:id="note-L168F2" dur="16" oct="3" pname="d" accid.ges="f"/>
</beam>
<rest xml:id="rest-L169F2" dur="16"/>
</layer>
</staff>
<staff xml:id="staff-L160F1N1" n="2">
<layer xml:id="layer-L160F1N1" n="1">
<beam xml:id="beam-L162F1-L169F1">
<note xml:id="note-L162F1" dur="16" oct="1" pname="a" accid.ges="f"/>
<note xml:id="note-L163F1" dur="8" oct="2" pname="d" accid.ges="f"/>
<note xml:id="note-L165F1" dur="8" oct="2" pname="a" accid.ges="f"/>
<note xml:id="note-L167F1" dur="8" oct="2" pname="f" accid.ges="n"/>
<note xml:id="note-L169F1" dur="16" oct="2" pname="d" accid.ges="f"/>
</beam>
</layer>
</staff>
<slur xml:id="slur-L160F1N1" staff="2" curvedir="below" tstamp="0.8" endid="#note-L162F1"/>
</measure>
</ending>
</section>
</score>
</mdiv>
</body>
</music>
</mei> |
|
The ability to have a tie/slur starting with a The example from previous post now (6309d09) looks like this (the tie in the second ending / last measure is not rendered): (The opposite |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Slurs seem to only accept the startid and endid attributes but not the tstamp attribute.
The text was updated successfully, but these errors were encountered:
