RAnal SLEIGH plugin - #120
Conversation
For example, But in P-codes, it's : 0x00000725: SAR RSI,0x3
(unique,0xa420,4) = INT_AND 0x3, 0x3f
(unique,0xa430,8) = COPY RSI
RSI = INT_SRIGHT RSI, (unique,0xa420,4)
(unique,0x2aa0,1) = INT_NOTEQUAL (unique,0xa420,4), 0x0
(unique,0x2ab0,4) = INT_SUB (unique,0xa420,4), 0x1
(unique,0x2ac0,8) = INT_SRIGHT (unique,0xa430,8), (unique,0x2ab0,4)
(unique,0x2ad0,8) = INT_AND (unique,0x2ac0,8), 0x1
(unique,0x2af0,1) = INT_NOTEQUAL (unique,0x2ad0,8), 0x0
(unique,0x2b00,1) = BOOL_NEGATE (unique,0x2aa0,1)
(unique,0x2b10,1) = INT_AND (unique,0x2b00,1), CF
(unique,0x2b20,1) = INT_AND (unique,0x2aa0,1), (unique,0x2af0,1)
CF = INT_OR (unique,0x2b10,1), (unique,0x2b20,1)
(unique,0x2b50,1) = INT_EQUAL (unique,0xa420,4), 0x1
(unique,0x2b60,1) = BOOL_NEGATE (unique,0x2b50,1)
OF = INT_AND (unique,0x2b60,1), OF
(unique,0x2590,1) = INT_NOTEQUAL (unique,0xa420,4), 0x0
(unique,0x25b0,1) = INT_SLESS RSI, 0x0
(unique,0x25c0,1) = BOOL_NEGATE (unique,0x2590,1)
(unique,0x25d0,1) = INT_AND (unique,0x25c0,1), SF
(unique,0x25e0,1) = INT_AND (unique,0x2590,1), (unique,0x25b0,1)
SF = INT_OR (unique,0x25d0,1), (unique,0x25e0,1)
(unique,0x2610,1) = INT_EQUAL RSI, 0x0
(unique,0x2620,1) = BOOL_NEGATE (unique,0x2590,1)
(unique,0x2630,1) = INT_AND (unique,0x2620,1), ZF
(unique,0x2640,1) = INT_AND (unique,0x2590,1), (unique,0x2610,1)
ZF = INT_OR (unique,0x2630,1), (unique,0x2640,1)
(unique,0x2660,1) = POPCOUNT RSI
PF = INT_AND (unique,0x2660,1), 0x1My solution here is:
2 (unique,0xa430,8) = COPY RSI
3 RSI = INT_SRIGHT RSI, (unique,0xa420,4)
4 (unique,0x25b0,1) = INT_SLESS RSI, 0x0
5 (unique,0x2610,1) = INT_EQUAL RSI, 0x0
6 (unique,0x2660,1) = POPCOUNT RSI
|
About pcode info getting from SLEIGH, there're
It's mainly data flow analysis, I think it doesn't fit. |
As far as I can tell, |
|

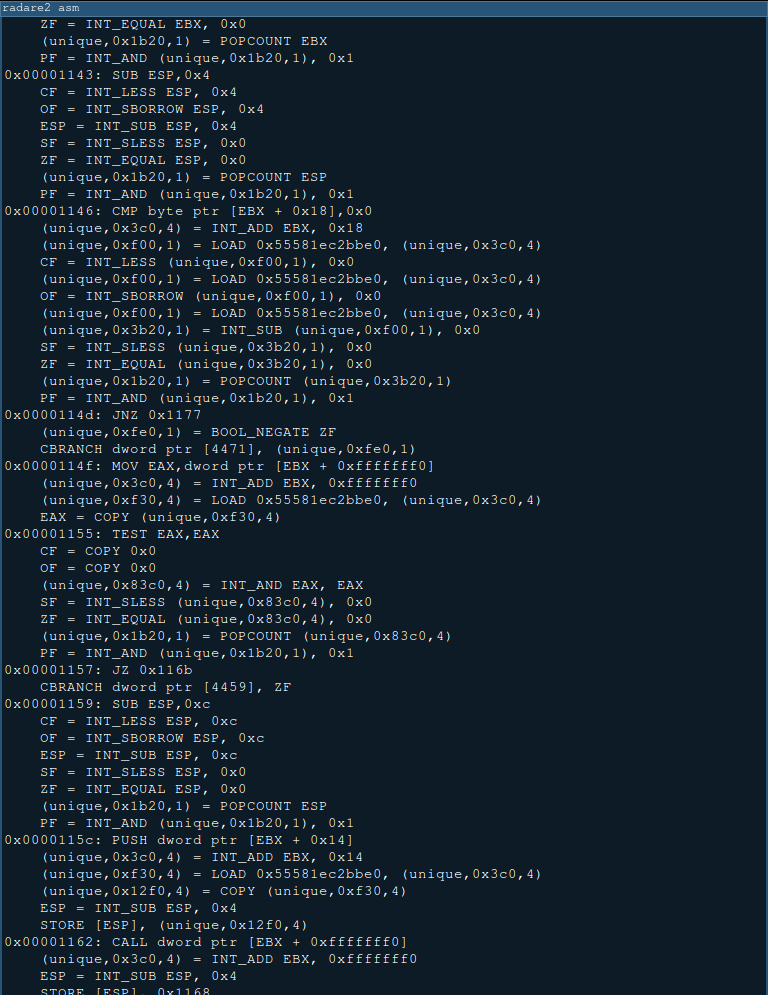

Benefit from reading oneInstruction(), core_ghidra's P-code display is improved again. The rest work is to label instructions' type. And ESIL. |
|
The current issue is: hard to describe behaviour of R_ANAL_OP_TYPE_XXX across multi-arch Still take About middle variables:
For example: It's obvious that middle variables(unique varnodes) is necessary for analysis. Let's continue on original topic: Raw P-code: Filtered P-code: The filtered P-code is enough to know this instruction is doing case R_ANAL_OP_TYPE_SAR:
CREATE_SRC_DST (op);
set_src_dst (a->reg, op->dst, handle, insn, 0);
set_src_dst (a->reg, op->src[0], handle, insn, 1);
set_src_dst (a->reg, op->src[1], handle, insn, 2);
set_src_dst (a->reg, op->src[2], handle, insn, 3);It will require forward and backward lookup on complete P-codes to trace what unique varnodes originally are: a register, an address or a const value? Since I add data flow tracing on unique varnodes, I think of a new way to do identity work: model behaviour of R_ANAL_OP_TYPE_XXX across multi-arch and match complete P-codes with this pattern. Still take
And that can be translate into three constraints:
If all three constraints matches, we can say this instruction is Moreover, I think ESIL is relatively easier to translate from P-code than structure filling. So, can I just provide accurate P-code and ignore related data structure?(Just label instructions) WIll radare2 extract necessary info from ESIL? |
|
A lot of radare2 analysis steps requires this RAnalOp information rather than pure ESIL. Thus the plain P-code to ESIL translation wouldn't be enough. I suggest to make the plugin to fill some kind of hashtable to precompute these references, on the stage of initializing the analysis. |
|
I agree with @XVilka i do not expect to have SLEIGH handling perfectly the analysis data that is given to RAnal. I would also suggest to precompute and stay away from ESIL linked analysis. Maybe you can try with a simplified view of the issue (you know, to start) and then try to patch things out; is not the best solution, but since the problem is quite complex, i would start this way. |
|
P-code list for your reference: https://ghidra.re/courses/languages/html/pcodedescription.html R_ANAL_OP_TYPE_MOV = 9, /* register move */Pattern:
Example: 0x00001191: MOV EBP,ESP
EBP = COPY ESP
0x00001194: MOV dword ptr [EBP + -0x4],0x0
(unique,0x3a0,4) = INT_ADD EBP, 0xfffffffc
(unique,0xf40,4) = COPY 0x0
(unique,0xf40,4) = STORE [(unique,0x3a0,4)]
0x0000119b: MOV dword ptr [EAX + -0x64],EAX
(unique,0x3a0,4) = INT_ADD EAX, 0xffffff9c
(unique,0xf30,4) = COPY EAX
(unique,0xf30,4) = STORE [(unique,0x3a0,4)]R_ANAL_OP_TYPE_CMOV = 9 | R_ANAL_OP_TYPE_COND, /* conditional move */Pattern:
Example: 0x000011a1: CMOVL ECX,dword ptr [0x3]
(unique,0x1090,1) = INT_NOTEQUAL OF, SF
(unique,0x3aa0,1) = BOOL_NEGATE (unique,0x1090,1)
CBRANCH dword_ptr(0x000011a8), (unique,0x3aa0,1)
ECX = COPY dword_ptr(0x00000003)R_ANAL_OP_TYPE_TRAP = 10, /* it's a trap! */No, there's no trap in raw pcode R_ANAL_OP_TYPE_SWI = 11, /* syscall, software interrupt */Pattern:
Attention: Example: 0x000011a8: INT 0x80
(unique,0x5370,4) = CALLOTHER 0x10, 0x80
CALLIND (unique,0x5370,4)
0x00400114: syscall
CALLOTHER 0x3, 0x0R_ANAL_OP_TYPE_CSWI = 11 | R_ANAL_OP_TYPE_COND, /* syscall, software interrupt */Pattern:
Attention: R_ANAL_OP_TYPE_UPUSH = 12, /* unknown push of data into stack */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_RPUSH = R_ANAL_OP_TYPE_UPUSH | R_ANAL_OP_TYPE_REG, /* push register */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_PUSH = 13, /* push value into stack */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_POP = 14, /* pop value from stack to register */Pattern:
Example: 0x000011af: POP EBP
EBP = LOAD [ESP]
ESP = INT_ADD ESP, 0x4R_ANAL_OP_TYPE_CMP = 15, /* compare something */Pattern:
Attention: Example: 0x0000120b: CMP EBX,EAX
CF = INT_LESS EBX, EAX
OF = INT_SBORROW EBX, EAX
(unique,0x3c00,4) = INT_SUB EBX, EAX
SF = INT_SLESS (unique,0x3c00,4), 0x0
ZF = INT_EQUAL (unique,0x3c00,4), 0x0
(unique,0x1b20,1) = POPCOUNT (unique,0x3c00,4)
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_ACMP = 16, /* compare via and */Pattern:
Attention: Example: 0x0000120b: TEST EBX,EAX
CF = COPY 0x0
OF = COPY 0x0
(unique,0x83c0,4) = INT_AND EBX, EAX
SF = INT_SLESS (unique,0x83c0,4), 0x0
ZF = INT_EQUAL (unique,0x83c0,4), 0x0
(unique,0x1b20,1) = POPCOUNT (unique,0x83c0,4)
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_ADD = 17,Pattern:
Example: 0x000011f4: ADD EBX,0x2e0c
CF = INT_CARRY EBX, 0x2e0c
OF = INT_SCARRY EBX, 0x2e0c
EBX = INT_ADD EBX, 0x2e0c
SF = INT_SLESS EBX, 0x0
ZF = INT_EQUAL EBX, 0x0
(unique,0x1b20,1) = POPCOUNT EBX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SUB = 18,Pattern:
Example: 0x000011ec: SUB ESP,0x10
CF = INT_LESS ESP, 0x10
OF = INT_SBORROW ESP, 0x10
ESP = INT_SUB ESP, 0x10
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_IO = 19,Attention: Example: 0x00001198: IN AL, 0x7f
AL = CALLOTHER 0x1, 0x7fR_ANAL_OP_TYPE_MUL = 20,Pattern:
Example: 0x0000120b: IMUL EDX
(unique,0x4e80,8) = INT_SEXT EAX
(unique,0x4e90,8) = INT_SEXT EDX
(unique,0x4eb0,8) = INT_MULT (unique,0x4e80,8), (unique,0x4e90,8)
EDX = SUBPIECE (unique,0x4eb0,8), 0x4
EAX = SUBPIECE (unique,0x4eb0,8), 0x0
(unique,0x1c80,1) = INT_NOTEQUAL EDX, 0x0
(unique,0x1c90,4) = INT_2COMP 0x1
(unique,0x1ca0,1) = INT_NOTEQUAL EDX, (unique,0x1c90,4)
CF = INT_AND (unique,0x1c80,1), (unique,0x1ca0,1)
OF = COPY CFR_ANAL_OP_TYPE_DIV = 21,Pattern:
Example: 0x00001209: DIV EDX
(unique,0x45c0,8) = INT_ZEXT EDX
(unique,0x45d0,8) = INT_ZEXT EDX
(unique,0x45e0,8) = INT_LEFT (unique,0x45d0,8), 0x20
(unique,0x45f0,8) = INT_ZEXT EAX
(unique,0x4610,8) = INT_OR (unique,0x45e0,8), (unique,0x45f0,8)
(unique,0x4630,8) = INT_DIV (unique,0x4610,8), (unique,0x45c0,8)
EAX = SUBPIECE (unique,0x4630,8), 0x0
(unique,0x4660,8) = INT_REM (unique,0x4610,8), (unique,0x45c0,8)
EDX = SUBPIECE (unique,0x4660,8), 0x0R_ANAL_OP_TYPE_SHR = 22,Pattern:
Example: 0x00001208: SHR EAX,1
(unique,0xf50,1) = COPY 0x1
(unique,0x80c0,4) = INT_AND EAX, 0x1
CF = INT_NOTEQUAL (unique,0x80c0,4), 0x0
OF = COPY 0x0
EAX = INT_RIGHT EAX, 0x1
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SHL = 23,Pattern:
Example: 0x0000120a: SHL EAX,1
(unique,0xf50,1) = COPY 0x1
CF = INT_SLESS EAX, 0x0
EAX = INT_LEFT EAX, 0x1
(unique,0x7b50,1) = INT_SLESS EAX, 0x0
OF = INT_XOR CF, (unique,0x7b50,1)
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SAL = 24,Attention: R_ANAL_OP_TYPE_SAR = 25,Pattern:
Example: 0x08048430: SAR EBX,0x2
(unique,0x7900,4) = INT_AND 0x2, 0x1f
(unique,0x7910,4) = COPY EBX
EBX = INT_SRIGHT EBX, (unique,0x7900,4)
(unique,0x2060,1) = INT_NOTEQUAL (unique,0x7900,4), 0x0
(unique,0x2070,4) = INT_SUB (unique,0x7900,4), 0x1
(unique,0x2080,4) = INT_SRIGHT (unique,0x7910,4), (unique,0x2070,4)
(unique,0x2090,4) = INT_AND (unique,0x2080,4), 0x1
(unique,0x20b0,1) = INT_NOTEQUAL (unique,0x2090,4), 0x0
(unique,0x20c0,1) = BOOL_NEGATE (unique,0x2060,1)
(unique,0x20d0,1) = INT_AND (unique,0x20c0,1), CF
(unique,0x20e0,1) = INT_AND (unique,0x2060,1), (unique,0x20b0,1)
CF = INT_OR (unique,0x20d0,1), (unique,0x20e0,1)
(unique,0x2110,1) = INT_EQUAL (unique,0x7900,4), 0x1
(unique,0x2120,1) = BOOL_NEGATE (unique,0x2110,1)
OF = INT_AND (unique,0x2120,1), OF
(unique,0x1b50,1) = INT_NOTEQUAL (unique,0x7900,4), 0x0
(unique,0x1b70,1) = INT_SLESS EBX, 0x0
(unique,0x1b80,1) = BOOL_NEGATE (unique,0x1b50,1)
(unique,0x1b90,1) = INT_AND (unique,0x1b80,1), SF
(unique,0x1ba0,1) = INT_AND (unique,0x1b50,1), (unique,0x1b70,1)
SF = INT_OR (unique,0x1b90,1), (unique,0x1ba0,1)
(unique,0x1bd0,1) = INT_EQUAL EBX, 0x0
(unique,0x1be0,1) = BOOL_NEGATE (unique,0x1b50,1)
(unique,0x1bf0,1) = INT_AND (unique,0x1be0,1), ZF
(unique,0x1c00,1) = INT_AND (unique,0x1b50,1), (unique,0x1bd0,1)
ZF = INT_OR (unique,0x1bf0,1), (unique,0x1c00,1)
(unique,0x1c20,1) = POPCOUNT EBX
PF = INT_AND (unique,0x1c20,1), 0x1R_ANAL_OP_TYPE_OR = 26,Pattern:
Example: 0x00001208: OR ESP,dword ptr [0xfffffff0]
CF = COPY 0x0
OF = COPY 0x0
ESP = INT_OR ESP, dword_ptr(0xfffffff0)
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_AND = 27,Pattern:
Example: 0x080483d5: AND ESP,0xfffffff0
CF = COPY 0x0
OF = COPY 0x0
ESP = INT_AND ESP, 0xfffffff0
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_XOR = 28,Pattern:
Example: 0x00001203: XOR EAX,EAX
CF = COPY 0x0
OF = COPY 0x0
EAX = INT_XOR EAX, EAX
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_NOR = 29,Attention: R_ANAL_OP_TYPE_NOT = 30,Pattern:
Attention: Example: 0x00001208: NOT EAX
EAX = INT_NEGATE EAXR_ANAL_OP_TYPE_STORE = 31, /* store from register to memory */Attention: Example: 0x00001218: STOSD ES:EDI
(unique,0xe90,4) = COPY EDI
(unique,0xea0,4) = INT_ADD EDI, 0x4
(unique,0xeb0,4) = INT_ZEXT DF
(unique,0xec0,4) = INT_MULT 0x8, (unique,0xeb0,4)
EDI = INT_SUB (unique,0xea0,4), (unique,0xec0,4)
(unique,0xee0,4) = COPY EAX
(unique,0xee0,4) = STORE [(unique,0xe90,4)]R_ANAL_OP_TYPE_LOAD = 32, /* load from memory to register */Attention: Example: 0x00001218: LODSD ESI
(unique,0xc20,4) = COPY ESI
(unique,0xc30,4) = INT_ADD ESI, 0x4
(unique,0xc40,4) = INT_ZEXT DF
(unique,0xc50,4) = INT_MULT 0x8, (unique,0xc40,4)
ESI = INT_SUB (unique,0xc30,4), (unique,0xc50,4)
(unique,0xc70,4) = LOAD [(unique,0xc20,4)]
EAX = COPY (unique,0xc70,4)R_ANAL_OP_TYPE_LEA = 33, /* TODO add ulea */Attention: Example: 0x00001129: LEA ESI,[ESI]
ESI = COPY ESIR_ANAL_OP_TYPE_LEAVE = 34,Attention: Example: 0x000011ca: LEAVE
ESP = COPY EBP
EBP = LOAD [ESP]
ESP = INT_ADD ESP, 0x4R_ANAL_OP_TYPE_ROR = 35,Attention: Example: 0x00001210: ROR EAX,1
(unique,0xf50,1) = COPY 0x1
(unique,0x7500,4) = INT_AND EAX, 0x1
CF = INT_NOTEQUAL (unique,0x7500,4), 0x0
(unique,0x7520,4) = INT_RIGHT EAX, 0x1
(unique,0x7530,4) = INT_ZEXT CF
(unique,0x7540,4) = INT_LEFT (unique,0x7530,4), 0x1f
EAX = INT_OR (unique,0x7520,4), (unique,0x7540,4)
(unique,0x7560,4) = INT_AND EAX, 0x40000000
(unique,0x7570,1) = INT_NOTEQUAL (unique,0x7560,4), 0x0
(unique,0x7580,1) = INT_SLESS EAX, 0x0
OF = INT_XOR (unique,0x7570,1), (unique,0x7580,1)
0x00001210: ROR EAX,0x5
(unique,0x7610,4) = INT_AND 0x5, 0x1f
(unique,0x7620,4) = INT_RIGHT EAX, (unique,0x7610,4)
(unique,0x7630,4) = INT_SUB 0x20, (unique,0x7610,4)
(unique,0x7640,4) = INT_LEFT EAX, (unique,0x7630,4)
EAX = INT_OR (unique,0x7620,4), (unique,0x7640,4)
(unique,0x1e00,1) = INT_NOTEQUAL (unique,0x7610,4), 0x0
(unique,0x1e20,1) = INT_SLESS EAX, 0x0
(unique,0x1e30,1) = BOOL_NEGATE (unique,0x1e00,1)
(unique,0x1e40,1) = INT_AND (unique,0x1e30,1), CF
(unique,0x1e50,1) = INT_AND (unique,0x1e00,1), (unique,0x1e20,1)
CF = INT_OR (unique,0x1e40,1), (unique,0x1e50,1)
(unique,0x1e80,1) = INT_EQUAL (unique,0x7610,4), 0x1
(unique,0x1e90,1) = INT_SLESS EAX, 0x0
(unique,0x1ea0,4) = INT_LEFT EAX, 0x1
(unique,0x1eb0,1) = INT_SLESS (unique,0x1ea0,4), 0x0
(unique,0x1ed0,1) = INT_XOR (unique,0x1e90,1), (unique,0x1eb0,1)
(unique,0x1ee0,1) = BOOL_NEGATE (unique,0x1e80,1)
(unique,0x1ef0,1) = INT_AND (unique,0x1ee0,1), OF
(unique,0x1f00,1) = INT_AND (unique,0x1e80,1), (unique,0x1ed0,1)
OF = INT_OR (unique,0x1ef0,1), (unique,0x1f00,1)R_ANAL_OP_TYPE_ROL = 36,Attention: Example: 0x00001213: ROL EAX,0x5
(unique,0x7210,4) = INT_AND 0x5, 0x1f
(unique,0x7220,4) = INT_LEFT EAX, (unique,0x7210,4)
(unique,0x7230,4) = INT_SUB 0x20, (unique,0x7210,4)
(unique,0x7240,4) = INT_RIGHT EAX, (unique,0x7230,4)
EAX = INT_OR (unique,0x7220,4), (unique,0x7240,4)
(unique,0x1ce0,1) = INT_NOTEQUAL (unique,0x7210,4), 0x0
(unique,0x1cf0,4) = INT_AND EAX, 0x1
(unique,0x1d10,1) = INT_NOTEQUAL (unique,0x1cf0,4), 0x0
(unique,0x1d20,1) = BOOL_NEGATE (unique,0x1ce0,1)
(unique,0x1d30,1) = INT_AND (unique,0x1d20,1), CF
(unique,0x1d40,1) = INT_AND (unique,0x1ce0,1), (unique,0x1d10,1)
CF = INT_OR (unique,0x1d30,1), (unique,0x1d40,1)
(unique,0x1d70,1) = INT_EQUAL (unique,0x7210,4), 0x1
(unique,0x1d80,1) = INT_SLESS EAX, 0x0
(unique,0x1da0,1) = INT_XOR CF, (unique,0x1d80,1)
(unique,0x1db0,1) = BOOL_NEGATE (unique,0x1d70,1)
(unique,0x1dc0,1) = INT_AND (unique,0x1db0,1), OF
(unique,0x1dd0,1) = INT_AND (unique,0x1d70,1), (unique,0x1da0,1)
OF = INT_OR (unique,0x1dc0,1), (unique,0x1dd0,1)R_ANAL_OP_TYPE_XCHG = 37,
Example: 0x00001216: XCHG EAX,EBX
(unique,0x84b0,4) = COPY EAX
EAX = COPY EBX
EBX = COPY (unique,0x84b0,4)R_ANAL_OP_TYPE_MOD = 38,Pattern:
Attention:
Example: 0x0000021e: rem_int_2addr 0x1004,0x1000
v1 = INT_SREM v1, v0R_ANAL_OP_TYPE_SWITCH = 39,Example: 0x0000021e: packed_switch 0x1004,0x55
(unique,0x330,4) = INT_MULT 0x55, 0x2
(unique,0x340,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x350,4) = INT_ADD (unique,0x340,4), 0x2
(unique,0x370,2) = LOAD [(unique,0x350,4)]
(unique,0x390,4) = INT_ZEXT (unique,0x370,2)
(unique,0x3a0,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x3b0,4) = INT_ADD (unique,0x3a0,4), 0x2
(unique,0x3c0,4) = INT_ADD (unique,0x3b0,4), 0x2
(unique,0x3e0,4) = LOAD [(unique,0x3c0,4)]
(unique,0x3f0,1) = INT_LESS v1, (unique,0x3e0,4)
CBRANCH dword_ptr(0x00000224), (unique,0x3f0,1)
(unique,0x400,4) = INT_ADD (unique,0x3e0,4), (unique,0x390,4)
(unique,0x410,1) = INT_LESSEQUAL (unique,0x400,4), v1
CBRANCH dword_ptr(0x00000224), (unique,0x410,1)
(unique,0x420,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x430,4) = INT_ADD (unique,0x420,4), 0x2
(unique,0x440,4) = INT_ADD (unique,0x430,4), 0x2
(unique,0x460,4) = INT_ADD (unique,0x440,4), 0x4
(unique,0x480,4) = INT_SUB v1, (unique,0x3e0,4)
(unique,0x490,4) = INT_MULT (unique,0x480,4), 0x4
(unique,0x4a0,4) = INT_ADD (unique,0x460,4), (unique,0x490,4)
(unique,0x4c0,4) = LOAD [(unique,0x4a0,4)]
(unique,0x4d0,4) = INT_MULT (unique,0x4c0,4), 0x2
(unique,0x4f0,4) = INT_ADD 0x21e, (unique,0x4d0,4)
BRANCHIND (unique,0x4f0,4)R_ANAL_OP_TYPE_CASE = 40,No related pcode R_ANAL_OP_TYPE_LENGTH = 41,Example: 0x00000234: array_length 0x1008,0x1008
v2 = CPOOLREF v2, 0x0, 0x6R_ANAL_OP_TYPE_CAST = 42,Pattern:
R_ANAL_OP_TYPE_NEW = 43,Pattern:
R_ANAL_OP_TYPE_ABS = 44,Pattern:
Example: 0x00001208: FABS
ST0 = FLOAT_ABS ST0R_ANAL_OP_TYPE_CPL = 45, /* complement */Attention: R_ANAL_OP_TYPE_CRYPTO = 46,Attention: R_ANAL_OP_TYPE_SYNC = 47,Attention: |
No, i do not think is needed.
A CMP is always a sub.
Hmm yes.
Yes, ignore it.
Yes,
Have you checked in r2r-bins repo? |
|
Fantastic overview!
I think it is needes because syscalls are very different instructions from calls. Since you already identified that they always have this
Store always has the destination in memory. I think if you encounter that it makes more sense to mark it as store than as mov. So having mov to memory marked as store is better than having store marked as mov in my opinion. Essentially movs to memory are semantically just stores with a different name.
Same here, better mark movs as loads than the other way around.
(or
or However most plugins mark CPL instructions as NOT. Complement is just bitwise negation so having both seems redundant unless NOT is only meant for something like
I didn't find a binary with this one, but got this by bruteforcing with random bytes:
|
|
P-code list for your reference: https://ghidra.re/courses/languages/html/pcodedescription.html R_ANAL_OP_TYPE_MOV = 9, /* register move */Pattern:
Example: 0x00001191: MOV EBP,ESP
EBP = COPY ESP
0x00001194: MOV dword ptr [EBP + -0x4],0x0
(unique,0x3a0,4) = INT_ADD EBP, 0xfffffffc
(unique,0xf40,4) = COPY 0x0
(unique,0xf40,4) = STORE [(unique,0x3a0,4)]
0x0000119b: MOV dword ptr [EAX + -0x64],EAX
(unique,0x3a0,4) = INT_ADD EAX, 0xffffff9c
(unique,0xf30,4) = COPY EAX
(unique,0xf30,4) = STORE [(unique,0x3a0,4)]R_ANAL_OP_TYPE_CMOV = 9 | R_ANAL_OP_TYPE_COND, /* conditional move */Pattern:
Example: 0x000011a1: CMOVL ECX,dword ptr [0x3]
(unique,0x1090,1) = INT_NOTEQUAL OF, SF
(unique,0x3aa0,1) = BOOL_NEGATE (unique,0x1090,1)
CBRANCH dword_ptr(0x000011a8), (unique,0x3aa0,1)
ECX = COPY dword_ptr(0x00000003)R_ANAL_OP_TYPE_STORE = 31, /* store from register to memory */Pattern:
Example: 0x00001218: STOSD ES:EDI
(unique,0xe90,4) = COPY EDI
(unique,0xea0,4) = INT_ADD EDI, 0x4
(unique,0xeb0,4) = INT_ZEXT DF
(unique,0xec0,4) = INT_MULT 0x8, (unique,0xeb0,4)
EDI = INT_SUB (unique,0xea0,4), (unique,0xec0,4)
(unique,0xee0,4) = COPY EAX
(unique,0xee0,4) = STORE [(unique,0xe90,4)]R_ANAL_OP_TYPE_LOAD = 32, /* load from memory to register */Pattern:
Example: 0x00001218: LODSD ESI
(unique,0xc20,4) = COPY ESI
(unique,0xc30,4) = INT_ADD ESI, 0x4
(unique,0xc40,4) = INT_ZEXT DF
(unique,0xc50,4) = INT_MULT 0x8, (unique,0xc40,4)
ESI = INT_SUB (unique,0xc30,4), (unique,0xc50,4)
(unique,0xc70,4) = LOAD [(unique,0xc20,4)]
EAX = COPY (unique,0xc70,4)R_ANAL_OP_TYPE_TRAP = 10, /* it's a trap! */No, there's no trap in raw pcode R_ANAL_OP_TYPE_SWI = 11, /* syscall, software interrupt */Pattern:
Attention: Example: 0x000011a8: INT 0x80
(unique,0x5370,4) = CALLOTHER 0x10, 0x80
CALLIND (unique,0x5370,4)
0x00400114: syscall
CALLOTHER 0x3, 0x0R_ANAL_OP_TYPE_CSWI = 11 | R_ANAL_OP_TYPE_COND, /* syscall, software interrupt */Pattern:
Attention: R_ANAL_OP_TYPE_UPUSH = 12, /* unknown push of data into stack */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_RPUSH = R_ANAL_OP_TYPE_UPUSH | R_ANAL_OP_TYPE_REG, /* push register */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_PUSH = 13, /* push value into stack */Pattern:
Example: 0x00001190: PUSH EBP
(unique,0x12f0,4) = COPY EBP
ESP = INT_SUB ESP, 0x4
(unique,0x12f0,4) = STORE [ESP]R_ANAL_OP_TYPE_POP = 14, /* pop value from stack to register */Pattern:
Example: 0x000011af: POP EBP
EBP = LOAD [ESP]
ESP = INT_ADD ESP, 0x4R_ANAL_OP_TYPE_CMP = 15, /* compare something */Pattern:
Example: 0x0000120b: CMP EBX,EAX
CF = INT_LESS EBX, EAX
OF = INT_SBORROW EBX, EAX
(unique,0x3c00,4) = INT_SUB EBX, EAX
SF = INT_SLESS (unique,0x3c00,4), 0x0
ZF = INT_EQUAL (unique,0x3c00,4), 0x0
(unique,0x1b20,1) = POPCOUNT (unique,0x3c00,4)
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_ACMP = 16, /* compare via and */Pattern:
Example: 0x0000120b: TEST EBX,EAX
CF = COPY 0x0
OF = COPY 0x0
(unique,0x83c0,4) = INT_AND EBX, EAX
SF = INT_SLESS (unique,0x83c0,4), 0x0
ZF = INT_EQUAL (unique,0x83c0,4), 0x0
(unique,0x1b20,1) = POPCOUNT (unique,0x83c0,4)
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_ADD = 17,Pattern:
Example: 0x000011f4: ADD EBX,0x2e0c
CF = INT_CARRY EBX, 0x2e0c
OF = INT_SCARRY EBX, 0x2e0c
EBX = INT_ADD EBX, 0x2e0c
SF = INT_SLESS EBX, 0x0
ZF = INT_EQUAL EBX, 0x0
(unique,0x1b20,1) = POPCOUNT EBX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SUB = 18,Pattern:
Example: 0x000011ec: SUB ESP,0x10
CF = INT_LESS ESP, 0x10
OF = INT_SBORROW ESP, 0x10
ESP = INT_SUB ESP, 0x10
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_IO = 19,Attention: Example: 0x00001198: IN AL, 0x7f
AL = CALLOTHER 0x1, 0x7fR_ANAL_OP_TYPE_MUL = 20,Pattern:
Example: 0x0000120b: IMUL EDX
(unique,0x4e80,8) = INT_SEXT EAX
(unique,0x4e90,8) = INT_SEXT EDX
(unique,0x4eb0,8) = INT_MULT (unique,0x4e80,8), (unique,0x4e90,8)
EDX = SUBPIECE (unique,0x4eb0,8), 0x4
EAX = SUBPIECE (unique,0x4eb0,8), 0x0
(unique,0x1c80,1) = INT_NOTEQUAL EDX, 0x0
(unique,0x1c90,4) = INT_2COMP 0x1
(unique,0x1ca0,1) = INT_NOTEQUAL EDX, (unique,0x1c90,4)
CF = INT_AND (unique,0x1c80,1), (unique,0x1ca0,1)
OF = COPY CFR_ANAL_OP_TYPE_DIV = 21,Pattern:
Example: 0x00001209: DIV EDX
(unique,0x45c0,8) = INT_ZEXT EDX
(unique,0x45d0,8) = INT_ZEXT EDX
(unique,0x45e0,8) = INT_LEFT (unique,0x45d0,8), 0x20
(unique,0x45f0,8) = INT_ZEXT EAX
(unique,0x4610,8) = INT_OR (unique,0x45e0,8), (unique,0x45f0,8)
(unique,0x4630,8) = INT_DIV (unique,0x4610,8), (unique,0x45c0,8)
EAX = SUBPIECE (unique,0x4630,8), 0x0
(unique,0x4660,8) = INT_REM (unique,0x4610,8), (unique,0x45c0,8)
EDX = SUBPIECE (unique,0x4660,8), 0x0R_ANAL_OP_TYPE_SHR = 22,Pattern:
Example: 0x00001208: SHR EAX,1
(unique,0xf50,1) = COPY 0x1
(unique,0x80c0,4) = INT_AND EAX, 0x1
CF = INT_NOTEQUAL (unique,0x80c0,4), 0x0
OF = COPY 0x0
EAX = INT_RIGHT EAX, 0x1
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SHL = 23,Pattern:
Example: 0x0000120a: SHL EAX,1
(unique,0xf50,1) = COPY 0x1
CF = INT_SLESS EAX, 0x0
EAX = INT_LEFT EAX, 0x1
(unique,0x7b50,1) = INT_SLESS EAX, 0x0
OF = INT_XOR CF, (unique,0x7b50,1)
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_SAL = 24,Attention: R_ANAL_OP_TYPE_SAR = 25,Pattern:
Example: 0x08048430: SAR EBX,0x2
(unique,0x7900,4) = INT_AND 0x2, 0x1f
(unique,0x7910,4) = COPY EBX
EBX = INT_SRIGHT EBX, (unique,0x7900,4)
(unique,0x2060,1) = INT_NOTEQUAL (unique,0x7900,4), 0x0
(unique,0x2070,4) = INT_SUB (unique,0x7900,4), 0x1
(unique,0x2080,4) = INT_SRIGHT (unique,0x7910,4), (unique,0x2070,4)
(unique,0x2090,4) = INT_AND (unique,0x2080,4), 0x1
(unique,0x20b0,1) = INT_NOTEQUAL (unique,0x2090,4), 0x0
(unique,0x20c0,1) = BOOL_NEGATE (unique,0x2060,1)
(unique,0x20d0,1) = INT_AND (unique,0x20c0,1), CF
(unique,0x20e0,1) = INT_AND (unique,0x2060,1), (unique,0x20b0,1)
CF = INT_OR (unique,0x20d0,1), (unique,0x20e0,1)
(unique,0x2110,1) = INT_EQUAL (unique,0x7900,4), 0x1
(unique,0x2120,1) = BOOL_NEGATE (unique,0x2110,1)
OF = INT_AND (unique,0x2120,1), OF
(unique,0x1b50,1) = INT_NOTEQUAL (unique,0x7900,4), 0x0
(unique,0x1b70,1) = INT_SLESS EBX, 0x0
(unique,0x1b80,1) = BOOL_NEGATE (unique,0x1b50,1)
(unique,0x1b90,1) = INT_AND (unique,0x1b80,1), SF
(unique,0x1ba0,1) = INT_AND (unique,0x1b50,1), (unique,0x1b70,1)
SF = INT_OR (unique,0x1b90,1), (unique,0x1ba0,1)
(unique,0x1bd0,1) = INT_EQUAL EBX, 0x0
(unique,0x1be0,1) = BOOL_NEGATE (unique,0x1b50,1)
(unique,0x1bf0,1) = INT_AND (unique,0x1be0,1), ZF
(unique,0x1c00,1) = INT_AND (unique,0x1b50,1), (unique,0x1bd0,1)
ZF = INT_OR (unique,0x1bf0,1), (unique,0x1c00,1)
(unique,0x1c20,1) = POPCOUNT EBX
PF = INT_AND (unique,0x1c20,1), 0x1R_ANAL_OP_TYPE_OR = 26,Pattern:
Example: 0x00001208: OR ESP,dword ptr [0xfffffff0]
CF = COPY 0x0
OF = COPY 0x0
ESP = INT_OR ESP, dword_ptr(0xfffffff0)
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_AND = 27,Pattern:
Example: 0x080483d5: AND ESP,0xfffffff0
CF = COPY 0x0
OF = COPY 0x0
ESP = INT_AND ESP, 0xfffffff0
SF = INT_SLESS ESP, 0x0
ZF = INT_EQUAL ESP, 0x0
(unique,0x1b20,1) = POPCOUNT ESP
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_XOR = 28,Pattern:
Example: 0x00001203: XOR EAX,EAX
CF = COPY 0x0
OF = COPY 0x0
EAX = INT_XOR EAX, EAX
SF = INT_SLESS EAX, 0x0
ZF = INT_EQUAL EAX, 0x0
(unique,0x1b20,1) = POPCOUNT EAX
PF = INT_AND (unique,0x1b20,1), 0x1R_ANAL_OP_TYPE_NOR = 29,Pattern:
Example: 0x00005758: nor r27,r27,r27
(unique,0x69e0,4) = INT_OR r27, r27
r27 = INT_NEGATE (unique,0x69e0,4)R_ANAL_OP_TYPE_NOT = 30,Pattern:
Attention: Example: 0x00001208: NOT EAX
EAX = INT_NEGATE EAXR_ANAL_OP_TYPE_LEA = 33, /* TODO add ulea */Attention: Example: 0x00001129: LEA ESI,[ESI]
ESI = COPY ESIR_ANAL_OP_TYPE_LEAVE = 34,Attention: Example: 0x000011ca: LEAVE
ESP = COPY EBP
EBP = LOAD [ESP]
ESP = INT_ADD ESP, 0x4R_ANAL_OP_TYPE_ROR = 35,Attention: Example: 0x00001210: ROR EAX,1
(unique,0xf50,1) = COPY 0x1
(unique,0x7500,4) = INT_AND EAX, 0x1
CF = INT_NOTEQUAL (unique,0x7500,4), 0x0
(unique,0x7520,4) = INT_RIGHT EAX, 0x1
(unique,0x7530,4) = INT_ZEXT CF
(unique,0x7540,4) = INT_LEFT (unique,0x7530,4), 0x1f
EAX = INT_OR (unique,0x7520,4), (unique,0x7540,4)
(unique,0x7560,4) = INT_AND EAX, 0x40000000
(unique,0x7570,1) = INT_NOTEQUAL (unique,0x7560,4), 0x0
(unique,0x7580,1) = INT_SLESS EAX, 0x0
OF = INT_XOR (unique,0x7570,1), (unique,0x7580,1)
0x00001210: ROR EAX,0x5
(unique,0x7610,4) = INT_AND 0x5, 0x1f
(unique,0x7620,4) = INT_RIGHT EAX, (unique,0x7610,4)
(unique,0x7630,4) = INT_SUB 0x20, (unique,0x7610,4)
(unique,0x7640,4) = INT_LEFT EAX, (unique,0x7630,4)
EAX = INT_OR (unique,0x7620,4), (unique,0x7640,4)
(unique,0x1e00,1) = INT_NOTEQUAL (unique,0x7610,4), 0x0
(unique,0x1e20,1) = INT_SLESS EAX, 0x0
(unique,0x1e30,1) = BOOL_NEGATE (unique,0x1e00,1)
(unique,0x1e40,1) = INT_AND (unique,0x1e30,1), CF
(unique,0x1e50,1) = INT_AND (unique,0x1e00,1), (unique,0x1e20,1)
CF = INT_OR (unique,0x1e40,1), (unique,0x1e50,1)
(unique,0x1e80,1) = INT_EQUAL (unique,0x7610,4), 0x1
(unique,0x1e90,1) = INT_SLESS EAX, 0x0
(unique,0x1ea0,4) = INT_LEFT EAX, 0x1
(unique,0x1eb0,1) = INT_SLESS (unique,0x1ea0,4), 0x0
(unique,0x1ed0,1) = INT_XOR (unique,0x1e90,1), (unique,0x1eb0,1)
(unique,0x1ee0,1) = BOOL_NEGATE (unique,0x1e80,1)
(unique,0x1ef0,1) = INT_AND (unique,0x1ee0,1), OF
(unique,0x1f00,1) = INT_AND (unique,0x1e80,1), (unique,0x1ed0,1)
OF = INT_OR (unique,0x1ef0,1), (unique,0x1f00,1)R_ANAL_OP_TYPE_ROL = 36,Attention: Example: 0x00001213: ROL EAX,0x5
(unique,0x7210,4) = INT_AND 0x5, 0x1f
(unique,0x7220,4) = INT_LEFT EAX, (unique,0x7210,4)
(unique,0x7230,4) = INT_SUB 0x20, (unique,0x7210,4)
(unique,0x7240,4) = INT_RIGHT EAX, (unique,0x7230,4)
EAX = INT_OR (unique,0x7220,4), (unique,0x7240,4)
(unique,0x1ce0,1) = INT_NOTEQUAL (unique,0x7210,4), 0x0
(unique,0x1cf0,4) = INT_AND EAX, 0x1
(unique,0x1d10,1) = INT_NOTEQUAL (unique,0x1cf0,4), 0x0
(unique,0x1d20,1) = BOOL_NEGATE (unique,0x1ce0,1)
(unique,0x1d30,1) = INT_AND (unique,0x1d20,1), CF
(unique,0x1d40,1) = INT_AND (unique,0x1ce0,1), (unique,0x1d10,1)
CF = INT_OR (unique,0x1d30,1), (unique,0x1d40,1)
(unique,0x1d70,1) = INT_EQUAL (unique,0x7210,4), 0x1
(unique,0x1d80,1) = INT_SLESS EAX, 0x0
(unique,0x1da0,1) = INT_XOR CF, (unique,0x1d80,1)
(unique,0x1db0,1) = BOOL_NEGATE (unique,0x1d70,1)
(unique,0x1dc0,1) = INT_AND (unique,0x1db0,1), OF
(unique,0x1dd0,1) = INT_AND (unique,0x1d70,1), (unique,0x1da0,1)
OF = INT_OR (unique,0x1dc0,1), (unique,0x1dd0,1)R_ANAL_OP_TYPE_XCHG = 37,
Example: 0x00001216: XCHG EAX,EBX
(unique,0x84b0,4) = COPY EAX
EAX = COPY EBX
EBX = COPY (unique,0x84b0,4)R_ANAL_OP_TYPE_MOD = 38,Pattern:
Attention:
Example: 0x0000021e: rem_int_2addr 0x1004,0x1000
v1 = INT_SREM v1, v0R_ANAL_OP_TYPE_SWITCH = 39,Example: 0x0000021e: packed_switch 0x1004,0x55
(unique,0x330,4) = INT_MULT 0x55, 0x2
(unique,0x340,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x350,4) = INT_ADD (unique,0x340,4), 0x2
(unique,0x370,2) = LOAD [(unique,0x350,4)]
(unique,0x390,4) = INT_ZEXT (unique,0x370,2)
(unique,0x3a0,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x3b0,4) = INT_ADD (unique,0x3a0,4), 0x2
(unique,0x3c0,4) = INT_ADD (unique,0x3b0,4), 0x2
(unique,0x3e0,4) = LOAD [(unique,0x3c0,4)]
(unique,0x3f0,1) = INT_LESS v1, (unique,0x3e0,4)
CBRANCH dword_ptr(0x00000224), (unique,0x3f0,1)
(unique,0x400,4) = INT_ADD (unique,0x3e0,4), (unique,0x390,4)
(unique,0x410,1) = INT_LESSEQUAL (unique,0x400,4), v1
CBRANCH dword_ptr(0x00000224), (unique,0x410,1)
(unique,0x420,4) = INT_ADD 0x21e, (unique,0x330,4)
(unique,0x430,4) = INT_ADD (unique,0x420,4), 0x2
(unique,0x440,4) = INT_ADD (unique,0x430,4), 0x2
(unique,0x460,4) = INT_ADD (unique,0x440,4), 0x4
(unique,0x480,4) = INT_SUB v1, (unique,0x3e0,4)
(unique,0x490,4) = INT_MULT (unique,0x480,4), 0x4
(unique,0x4a0,4) = INT_ADD (unique,0x460,4), (unique,0x490,4)
(unique,0x4c0,4) = LOAD [(unique,0x4a0,4)]
(unique,0x4d0,4) = INT_MULT (unique,0x4c0,4), 0x2
(unique,0x4f0,4) = INT_ADD 0x21e, (unique,0x4d0,4)
BRANCHIND (unique,0x4f0,4)R_ANAL_OP_TYPE_CASE = 40,No related pcode R_ANAL_OP_TYPE_LENGTH = 41,Example: 0x00000234: array_length 0x1008,0x1008
v2 = CPOOLREF v2, 0x0, 0x6R_ANAL_OP_TYPE_CAST = 42,Pattern:
R_ANAL_OP_TYPE_NEW = 43,Pattern:
R_ANAL_OP_TYPE_ABS = 44,Pattern:
Example: 0x00001208: FABS
ST0 = FLOAT_ABS ST0R_ANAL_OP_TYPE_CPL = 45, /* complement */Attention: Example: 0x00300002 comf 0x18, 1, 0
unique(11e0, 1) = INT_NEGATE 18
18 = COPY unique(11e0, 1)
N = INT_SLESS unique(11e0, 1) 0
Z = INT_EQUAL unique(11e0, 1) 0R_ANAL_OP_TYPE_CRYPTO = 46,Attention: R_ANAL_OP_TYPE_SYNC = 47,Attention: |
XVilka
left a comment
XVilka
left a comment
There was a problem hiding this comment.
There are failing existing tests for r2ghidra:
https://travis-ci.com/github/radareorg/r2ghidra-dec/builds/179469587#L2399
[XX] /home/travis/build/radareorg/r2ghidra-dec/test/db/extras/asm_ghidra MIPS_LE_32
radare2 -escr.utf8=0 -escr.color=0 -escr.interactive=0 -N -Qc 'e asm.arch=r2ghidra
e asm.cpu=MIPS:LE:32:default:gcc
pd 50
' r2-testbins/elf/jni/jniO0-mips
-- stdout
@@ -1,59 +0,0 @@
- ;-- entry0:
- ;-- entry.fini0:
- ;-- section..text:
- ;-- .text:
- ;-- _ftext:
- ;-- __on_dlclose:
- 0x00000450 02001c3c lui gp, 0x2 ; [09] -r-x section size 480 named .text
- 0x00000454 b08b9c27 addiu gp, gp, -0x7450
- 0x00000458 21e09903 addu gp, gp, t9
- 0x0000045c 3480998f lw t9, -0x7fcc(gp)
...
-- stderr
terminate called after throwing an instance of 'LowlevelError'
-- exit status: -1
I do agree but my issue is more what for sleigh converts that interrupt to. |
|
@wargio About |
|
Now, all new features are complete. You can begin review, and I will fix bugs. I guess there will be tons of bugs... Btw, this need even more tests than asm_ghidra. So if you have any idea to generate tests case fast, plz leave comments! |
| static char *get_reg_profile(RAnal *anal) | ||
| { | ||
| if(!strcmp(anal->cpu, "x86")) | ||
| return nullptr; |
There was a problem hiding this comment.
What's the reason for this?
There was a problem hiding this comment.
To avoid unnecessary initialization when radare just try to guess what arch current binary is.
There was a problem hiding this comment.
So "x86" in this case is because it's the default arch that r2 sets before knowing it from the binary? This could be problematic because the default arch in r2 is dependent on the host architecture, i.e. if you work on a raspberry pi or something, it would be "arm".
In any case, I think this needs at least a comment so it is clear why this check is there.
|
Seems to crash currently, depending on the used sleigh id: |
|
@thestr4ng3r This is quite interesting: if you specify |
|
* Add MEM to & Mem from path to CPUI_LOAD in ESIL * Add BP and SN hard coded generation process
thestr4ng3r
left a comment
thestr4ng3r
left a comment
There was a problem hiding this comment.
I think we should have some specific testing for the whole pattern-matching. What I would imagine are tests that write specific instructions (without a binary) and then do ao to print the instruction info.
Something like this:
e asm.arch=r2ghidra
e asm.cpu=x86:...
wx 31ed
ao
?e --
wx ...
ao
...
Normally you would write one r2r test for each of these ops, but since sleigh always takes so long to initialize I think one test with ?e -- between the instructions should be ok.
If you add one such check for each of the instruction types in your overview here: #120 (comment) (excluding the more exotic stuff we ignored), then I think we might be good to merge.
| if(arch.size() < 3) | ||
| throw LowlevelError("append_hardcoded_regs: Unexpected arch name."); | ||
|
|
||
| switch(arch[0] | arch[1] << 8 | arch[2] << 16) |
There was a problem hiding this comment.
I don't think you have to optimize the switch on the string this hard. As the nicest solution I would recommend to do something like here:
https://github.com/radareorg/r2ghidra-dec/blob/8e576eeadc211de4ac8d8c759cc368fa48cdfa99/src/ArchMap.cpp#L67-L79
Maybe you can even re-use the Mapper classes there if you move them to the header and replace RCore * here by a template parameter:
https://github.com/radareorg/r2ghidra-dec/blob/8e576eeadc211de4ac8d8c759cc368fa48cdfa99/src/ArchMap.cpp#L10-L14
But alternatively, a simple if/else would work too if you don't want to over-engineer it too much.
There was a problem hiding this comment.
Also, it should not fail completely if the arch is not known. You should still be able to use the plugin at least with unrecognized BP and SN.
There was a problem hiding this comment.
I will save this for next pr. Since current map is got from existing RAnal plugin source code, I think their result is not good enough. There must be something missing. I prepare to redo this in the future.
There was a problem hiding this comment.
I agree with both. Yes no need to optimize that and no need to make a new commit to address this now.
| static char *get_reg_profile(RAnal *anal) | ||
| { | ||
| if(!strcmp(anal->cpu, "x86")) | ||
| return nullptr; |
There was a problem hiding this comment.
So "x86" in this case is because it's the default arch that r2 sets before knowing it from the binary? This could be problematic because the default arch in r2 is dependent on the host architecture, i.e. if you work on a raspberry pi or something, it would be "arm".
In any case, I think this needs at least a comment so it is clear why this check is there.
XVilka
left a comment
XVilka
left a comment
There was a problem hiding this comment.
Lets merge this, further improvements can be done as a separate pull requests.
| if(arch.size() < 3) | ||
| throw LowlevelError("append_hardcoded_regs: Unexpected arch name."); | ||
|
|
||
| switch(arch[0] | arch[1] << 8 | arch[2] << 16) |
There was a problem hiding this comment.
I agree with both. Yes no need to optimize that and no need to make a new commit to address this now.
| static char *get_reg_profile(RAnal *anal) | ||
| { | ||
| if(!strcmp(anal->cpu, "x86")) | ||
| return nullptr; |
| case 128: | ||
| if(regset->arena->size - off - 1 >= 0) | ||
| { | ||
| memcpy(&ret, regset->arena->bytes + off, sizeof(long double)); |
There was a problem hiding this comment.
I do not think using long double is a good idea.
There was a problem hiding this comment.
Not all compilers supports 64+ bits regs. I suggest to limit this to x64 via ifdef endif
| return ret; | ||
| } | ||
|
|
||
| static bool esil_set_double(RReg *reg, RRegItem *item, long double value) |
4 participants
Detailed description
pdgsdresult in RCore plugin.SleighInstructionPrototypefrom Ghidra's JAVA codebase to identify instruction's control flow type from underlyingConstructor.pdgacommand to RCore plugin to enable this plugin.Test plan
Has been tested on 8 cases in r2-testbins. Test cases will be added in next pr.
