arduino-smh_song

An arduino library based on the tone library for playing monophonic songs.

Features

• Based on the Tone library.
• Monophonic sound.
• It's possible to split the song and play this parts sequenced (saves space).
• Constants for tones and durations both in the American and Spanish system.
• Packaged as an Arduino library. With examples and syntax highlighting.
• 3 Example songs included:
  • Super Mario Bros.
  • Lambada.
  • Nyan Cat.

Examples

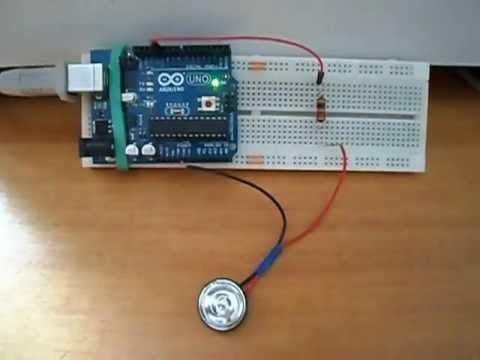

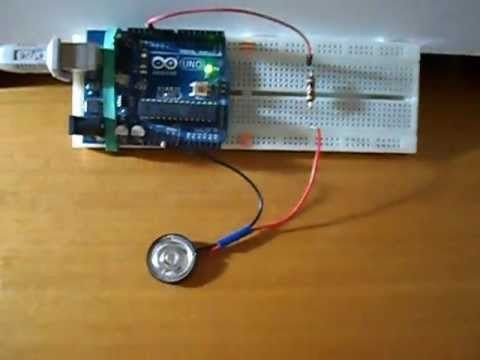

Super Mario Bros

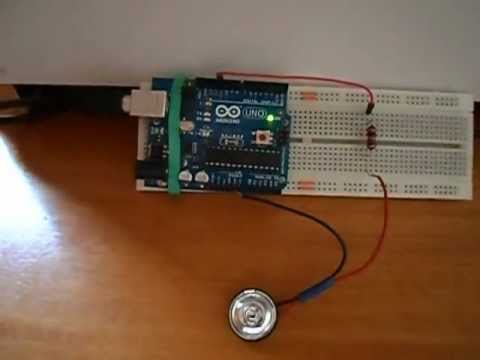

Nyan Cat

Lambada

Components used in the examples

• 1x arduino board.
• 1x prototype board.
• 1x 12KΩ - 0.08W speaker, it has its own cables. Any small speaker will do the job.
• 1x 330Ω resistor.
• 1x cable from a PWM output to the resistor.
