Docker Local Environment Advanced Configuration

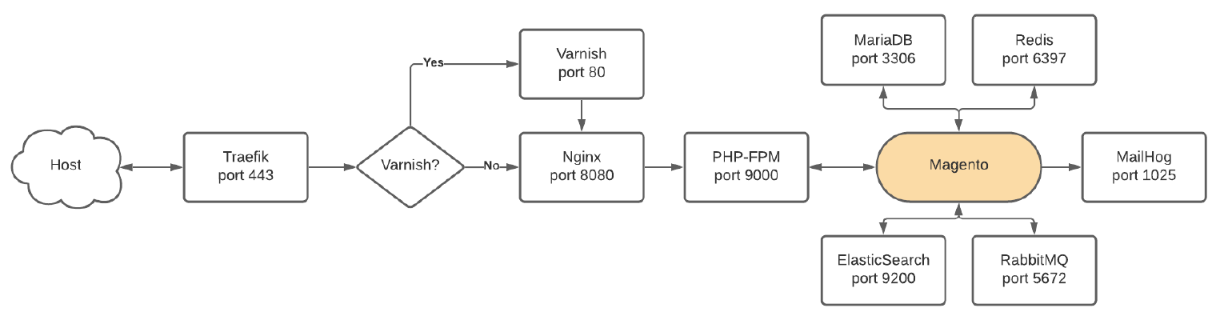

Request Route Diagram

The Container's Environment Variables

Variable	Containers	Default Value	Description
TZ	php-cli php-fpm nginx	America/New_York	PHP timezone
UPLOAD_MAX_FILESIZE	php-cli php-fpm nginx	64M	The maximum size of an uploaded file for PHP. Sets value for client_max_body_size setting for Nginx
MAGENTO_RUN_MODE	php-cli php-fpm nginx	developer	Magento Run Mode
PHP_MEMORY_LIMIT	php-fpm	4G	Sets the maximum amount of memory in bytes that a script is allowed to allocate Magento recommendations are: Compiling code or deploying static assets: 1G Debugging: 2G Testing: ~3-4G
PHP_ENABLE_XDEBUG	php-cli php-fpm	false	Enable XDebug for the Magento 2.
DEBUG	php-cli php-fpm nginx	false	Debug docker container
COMPOSER_GITHUB_TOKEN	php-cli	null	GitHub Composer Token. Create A Token
COMPOSER_MAGENTO_USERNAME	php-cli	null	Magento 2 Composer MAGEID
COMPOSER_MAGENTO_PASSWORD	php-cli	null	Magento 2 Composer TOKEN
PHP_IDE_CONFIG	php-cli php-fpm	serverName=magento	XDebug server name for PHPStorm configuration
MAGENTO_ROOT	php-cli php-fpm nginx	/var/www/magento	Magento directory inside a container.
FPM_HOST	nginx	fpm	Name of the php-fpm for fastcgi_backend. Its rewritten per project in the docker-compose.yml
FPM_PORT	nginx	9000	The php-fpm port for fastcgi_backend
NGINX_WORKER_PROCESSES	nginx	1	Defines the number of worker processes.
NGINX_WORKER_CONNECTIONS	nginx	1024	Sets the maximum number of simultaneous connections that can be opened by a worker process.
UPSTREAM_HOST	nginx	web	The php-fpm host for Nginx proxy_pass
UPSTREAM_PORT	nginx	8080	The php-fpm port for Nginx proxy_pass
COMPOSER_ALLOW_SUPERUSER	php-cli	1	COMPOSER_ALLOW_SUPERUSER
COMPOSER_HOME	php-cli	/var/www/composer	COMPOSER_HOME
NODE_VERSION	php-cli	--lts	Node version for NVM

Change a Docker Image

When you want to use a different version of PHP, Elasticsearch, Redis or other service you may change it at the image node:

image: 'sashas777/magento-php:7.4-fpm'

There is a List of Available Images

Add a request for a new image at the Github Issue Tracker.

PHP Sendmail

All PHP containers have Sendmail connected to the MailHog served by Local Services.

You may rewrite it at a container level. Create a file at ./dev/phpmail.ini with custom configuration then modify the docker-compose.yml file by adding the following line to the volumes section of the fpm service. The modified volumes section would look like this:

volumes:
- ./src:/var/www/magento:rw
- ./dev/php-mail.ini:/usr/local/etc/php/conf.d/zz-mail.ini

Multi-Store Configuration

There are 2 options to configure a multi-store website:

1. You can leverage the magento-vars.php Documentation (Modify Variables Chapter). The system has a default version of the file but you can replace it by yours. In the case when your file is in src/magento-vars.php you will need to modify docker-compose.yml following way:

  fpm:
    image: 'sashas777/magento-php:8.1-fpm'
....
    volumes:
      - ./src:/var/www/magento:rw
      - ./src/magento-vars.php:/var/www//magento-vars.php:ro -- New Line
....

2. By default, Nginx is configured for one website. (Configuration) If you wish to modify it you can rewrite it at the dock-compose.yml file by adding the following line to the volumes section of the web service.

/mapping.conf file with the configuration you need and then modify the docker-compose.yml file by adding the following line for web service:

• ./dev/mapping.conf:/etc/nginx/conf.d/a-mapping.conf

  web:
    image: 'sashas777/magento-nginx:latest'
....
volumes:
- ./src:/var/www/magento:rw
- ./dev/mapping.conf:/etc/nginx/conf.d/a-mapping.conf
...

FPM/CLI Container Variables

Variable	Description
MAGENTO_ROOT	Magento working directory inside the docker container. Default: /var/www/magento

Web Container Variables

Variable	Description
FPM_HOST	Docker host for PHP-FPM Service. Default: fpm
FPM_PORT	Port. Default: 9000
NGINX_WORKER_PROCESSES	Defines the number of worker processes. Default: 1
NGINX_WORKER_CONNECTIONS	Sets the maximum number of simultaneous connections that can be opened by a worker process. Default: 1024
UPSTREAM_HOST	A host were Nginx will listen for incoming connections. Default: web
UPSTREAM_PORT	A port were Nginx will listen for incoming connections. Default: 8080
MAGENTO_ROOT	Magento working directory inside a docker container. Default: /var/www/magento

Varnish Custom VCL File

1. Copy a new VCL File to your project directory's dev folder. (Example: default.vcl)
2. Edit docker-compose.yml file: Add volume with a path to default.vcl to the varnish container:

  varnish:
    image: 'sashas777/magento-varnish:7.0'
    container_name: ${PROJECT_NAME}-varnish
    hostname: varnish.${WEBSITE_DOMAIN}
    restart: unless-stopped
    volumes:
      - ./dev/default.vcl:/etc/varnish/default.vcl  --- New Line
    labels:
      - traefik.enable=true
      - traefik.http.routers.${PROJECT_NAME}-varnish.tls=true
      - traefik.http.routers.${PROJECT_NAME}-varnish.priority=1
      - traefik.http.routers.${PROJECT_NAME}-varnish.rule=Host(`varnish.${WEBSITE_DOMAIN}`)
      - traefik.http.services.${PROJECT_NAME}-varnish.loadbalancer.server.port=80

3. Restart containers:

docker-compose stop
docker-compose up -d

Xdebug

When you decide to use Xdebug for your project follow these steps:

1. Copy php-xdebug.ini file to your project directory's dev folder.
2. Edit docker-compose.yml file: Add volume with php-xdebug.ini to the fpm container:

  fpm:
    image: 'sashas777/magento-php:7.4-fpm'
    container_name: ${PROJECT_NAME}-fpm
    hostname: fpm.magento2.docker
    ports:
      - 9000
    env_file:
      - ./global.env
    restart: unless-stopped
    volumes:
      - ./src:/var/www/magento:rw
      - ./dev/php-xdebug.ini:/usr/local/etc/php/conf.d/zz-xdebugsettings.ini -- New Line

3. Restart containers:

docker-compose stop
docker-compose up -d

Modify Magento Nginx Configuration

You may want to use a custom Magento 2 Nginx configuration. (Built-in Config) For this you will need to mount a new volume to the web container. For example, you want to use a new nginx.conf.sample:

1. Copy it to the project's dev directory
2. Edit docker-compose.yml file: Add volume with nginx.conf.sample to the web container:

  web:
    image: 'sashas777/magento-nginx:latest'
    container_name: ${PROJECT_NAME}-web
    depends_on:
      - fpm
    env_file:
      - ./global.env
    restart: unless-stopped
    volumes:
      - ./src:/var/www/magento:rw
      - ./dev/nginx.conf.sample:/etc/nginx/magento.conf.sample -- New Line
    labels:
      - traefik.enable=true
      - traefik.http.routers.${PROJECT_NAME}-web.tls=true
      - traefik.http.routers.${PROJECT_NAME}-web.rule=Host(`${WEBSITE_DOMAIN}`)
      - traefik.http.services.${PROJECT_NAME}-web.loadbalancer.server.port=8080

3. Restart containers:

docker-compose stop
docker-compose up -d
