satshacopter 250X is a quadcopter built around the satshakit flight controller. It is designed to be simple and cheap as much as possible, and to be easily made inside any Fab Lab.
250X specifications:
- 250mm wood frame and supports
- open source flight controller
- MPU6050 IMU located exactly at the center
- 4 x 1900kv brushless motors
- 4 x 15A ESCs
- MultiWii compatible
- Hobby King 4 channel remote and receiver
- 1000mah 3S LiPo battery
- costs under 100€
Here you can look about the MultiWii pin mapping of the satshakit flight controller board:
And here you can che the required components in the Bill of Material table:
| name | description | vendor | link | price | notes |
|---|---|---|---|---|---|
| 2.4Ghz4Ch TxRx V2 | 4ch mode 2 remote control and receiver | Hobby King | link | 23.14€ | - |
| Zippy Compact | battery 1000mah 3s | Hobby King | link | 5.55€ | - |
| LDPOWER D250-2 Multicopter Power System | 4 x 2206-1900kv motors and 4 x 15A ESC | Hobby King EU | link | 43.81€ | propellers Included |
| IMU 6DOF | MPU6050 Gyro + Acc IMU | Ebay | link | 5.39€ | - |
| LiPo Charger and Balancer | 800mah 3s LiPo charger | Hobby King | link | 6.99€ | - |
| Fligh Controller | satshakit flight controller | various | link | 4.00-8.00€ | depending on the quantity |
| Voltage regulator | Pololu step up step down 5V S7V7F5 | E-shop | link | 4.31€ | - |
| Total price | 89.19€+4/8€ | - |
NOTE: prices may change over time on the respective vendors, and also it is highly dependand on the quantity of drones you want to make.
If you want to build by yourself a satshacopter 250X, please download the detailed build manual here:
Following you can find all the design files you need to make it:
- satshakit flight controller eagle board
- satshakit flight controller eagle sch
- satshakit flight controller internal traces png

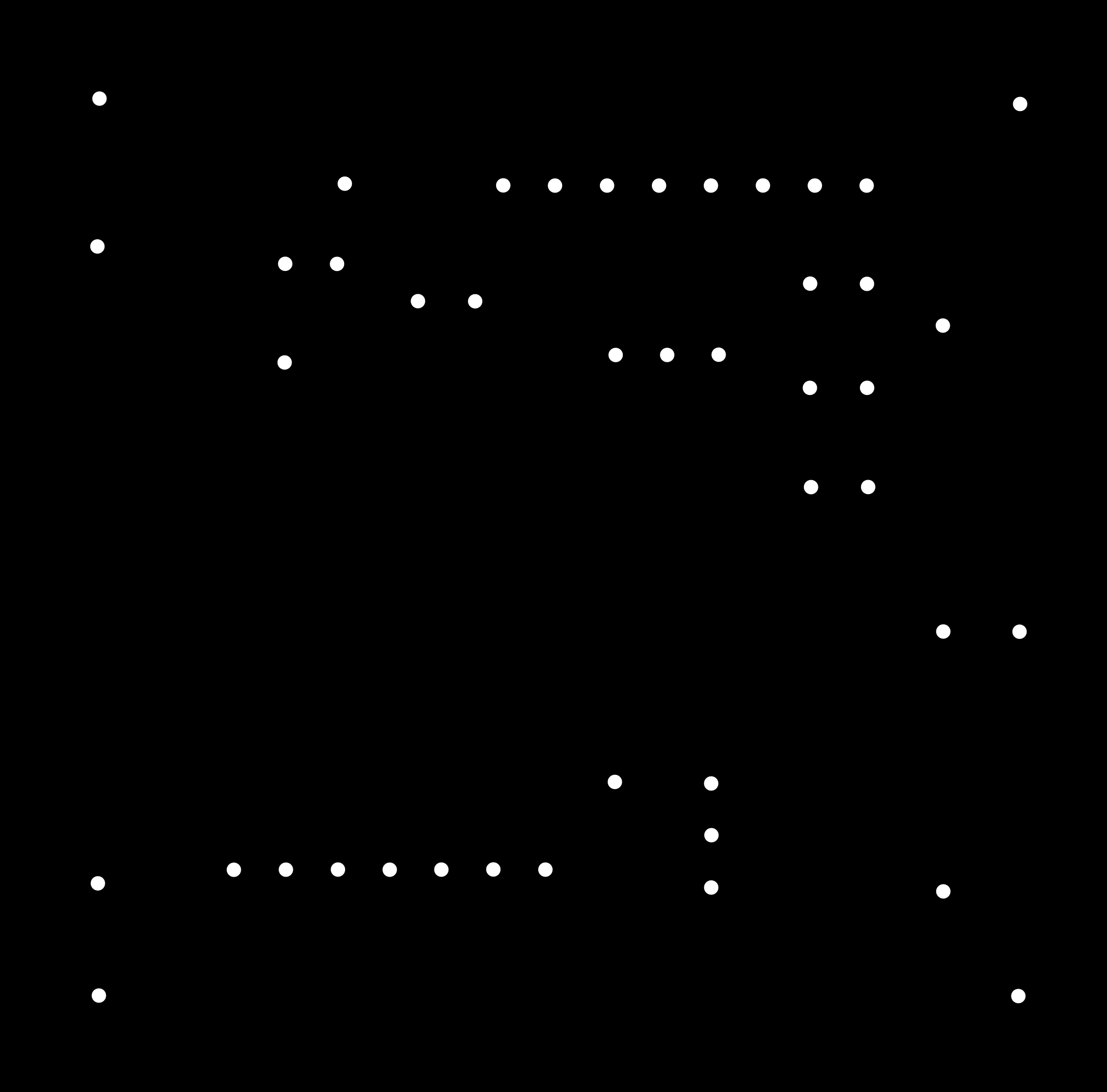

- satshakit flight controller holes png

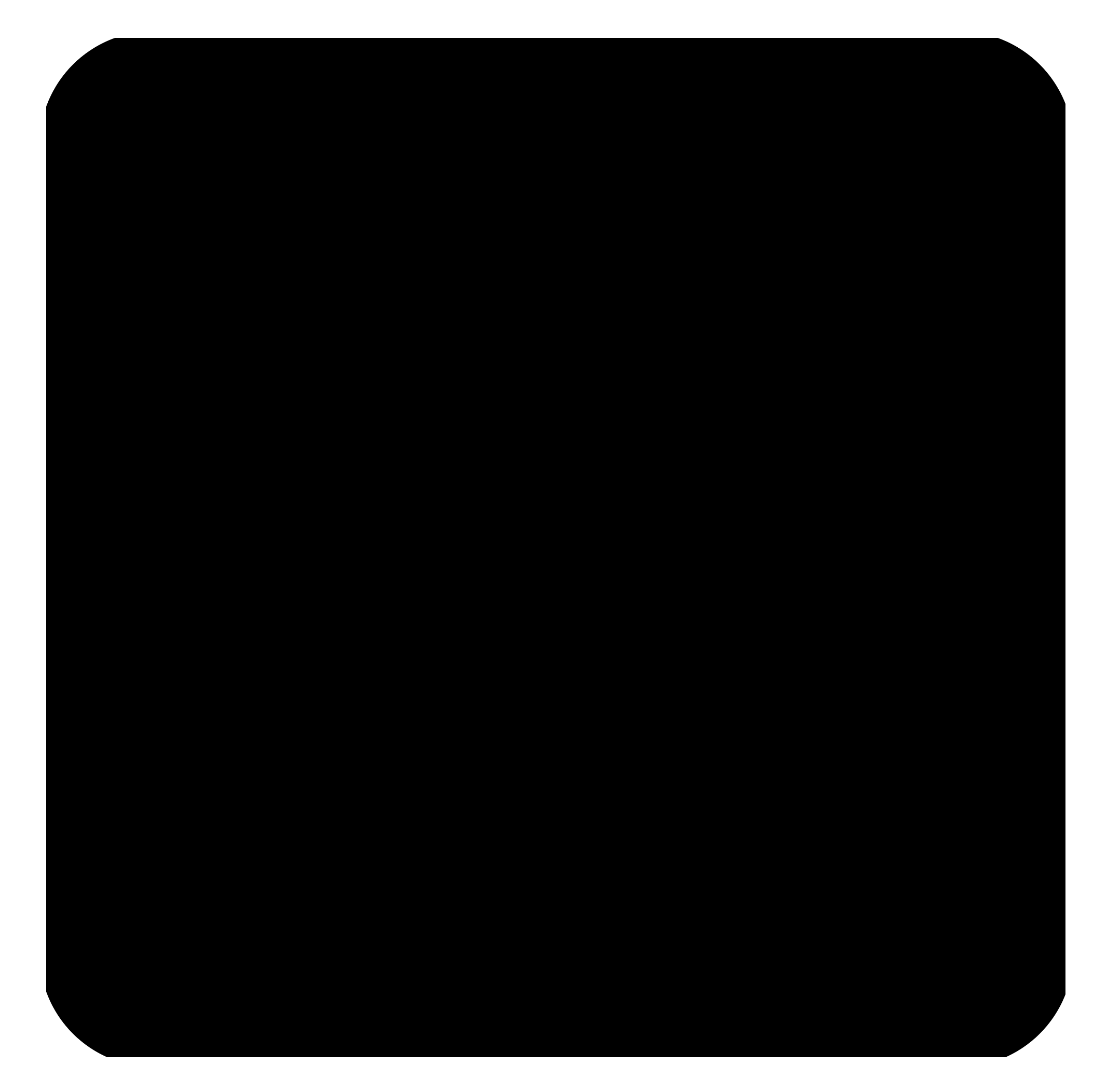

- satshakit flight controller cut png
- main frame and supports Rhino
- main frame and supports dxf
- upper frame and supports Rhino
- upper frame and supports dxf
- foot Rhino
- foot stl
- satshacopter 250X detailed BOM Excel
- satshacopter 250X detailed BOM Open document
Some images of a built satshacopter 250X
satshacopter 250X perfomance test:
Please try always to fly safe.
Here are my personal safety recommendations, especially for experimental drones of which you are not sure on how they can behave:
- make sure to always keep an HUGE distance between you and the drone
- always place yourself on the back of the drone before starting flying
- always have the direct sight to the drone and make sure that its orientation is clear for you (use different colors or LEDs)
- fly in private areas where no public can access
- make sure that nobody can come near the drone while you are flying
- make sure that you cannot destroy anything that you have around you with the drone
- check the wind and the weather before flying, if outdoor
- never go too high (no more than 1/2 meters in these cases)
- do not fly on top of someone (neither yourself)
- first try to fly few cm above the ground to see if everything is correct
- try to avoid using carbon fiber props (they are really like rotating knifes) but use plastic props
- try to use smaller drones with smaller props for really experimental tests
- triple check all the screws and that the frame is not cracked somewhere
- triple check all the DIY electronics, if it fails in-flight can be extremely dangerous
- make sure that the batteries are full charged (both transmitter and the LiPos)
