Mockup Loader for ABAP unit testing
Version: 2.1.5 (history of changes)
Mockup loader is a tool to simplify data preparation for SAP ABAP unit tests. Create unit test data in Excel, easily convert it into MIME object that travels with ABAP package, easily consume the data from your unit test code. The tool was created with the following high level goals in mind:
- simplify communication process between a developer and a business analyst (from client side in particular)
- simplify test data preparation and maintenance - do and store it in Excel (and commit the Excel file to git)
- simplify test data consumption - in particular, reduce volume of code required for a complex data tests
- Interface stubbing - dynamically create double implementations of data accessor interfaces and connect their methods to files in mocks. Does not depend on ABAP test double framework. See 'Data delivery' section
- Singleton memory storage to be able to substitute data selections in the legacy code without data accessor interfaces. See 'Store/Retrieve' section below
- Strict and non-strict parsing - skip irrelevant table fields in your test data
- "Deep" data loading - load master-detail structures in one step. See 'Deep data loading' section
- Load source redirection - convenient utility to temporarily redirect loading from in-system-MIME object to local file, while you are working on or enhancing your test dataset. See Load source redirection section
- Tools to simplify conversion from Excel to MIME object inside the system as well as CI flows - mockup compiler, mockup compiler JS, mockup editor (alpha, view only at the moment)
- Utilities for table data filtering
- Data delivery features
- Load source redirection
- Conversion from Excel
- Examples and Reference
The tool is created to simplify data preparation/loading for SAP ABAP unit tests. In one of our projects we had to prepare a lot of table data for unit tests. For example, a set of content from
BSET tables (FI document). The output of the methods under test is also often a table or a complex structure.
Hard-coding all of that data was not an option - too much to code, difficult to maintain and terrible code readability. So we decided to write a tool which would get the data from TAB delimited
.txt files, which, in turn, would be prepared in Excel in a convenient way. Certain objectives were set:
- all the test data should be combined together in one file (zip)
- ... and uploaded to SAP - test data should be a part of the dev package (W3MI binary object would fit)
- loading routine should identify the file structure (fields) automatically and verify its compatibility with a target container (structure or table)
- it should also be able to safely skip fields, missing in
.txtfile, if required (non strict mode) e.g. when processing structures (like FI document) with too many fields, most of which are irrelevant to a specific test.
" Test class (o_ml is mockup_loader instance) ... o_ml->load_data( " Load test data (structure) from mockup exporting i_obj = 'TEST1/bkpf' importing e_container = ls_bkpf ). o_ml->load_data( " Load test data (table) from mockup exporting i_obj = 'TEST1/bseg' i_strict = abap_false importing e_container = lt_bseg ). ... " Call to the code-under-test o_test_object->some_processing( exporting i_bkpf = ls_bkpf it_bseg = lt_bseg ). assert_equals(...).
The first part of the code takes TAB delimited text file
bkpf.txt in TEST1 directory of ZIP file uploaded as binary object via SMW0 transaction...
BUKRS BELNR GJAHR BUZEI BSCHL KOART ... 1000 10 2015 1 40 S ... 1000 10 2015 2 50 S ...
... and puts it (with proper ALPHA exits and etc) to an internal table with
BSEG line type.
On-the-fly data filtering is supported. For more information see REFERENCE.md.

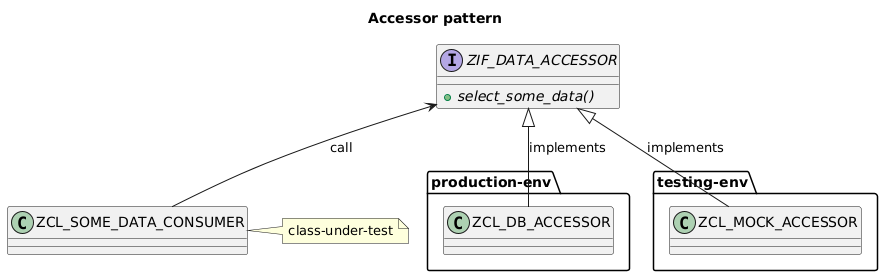

Since 2.0.0 mockup loader supports generating of interface stubs.
It creates an instance object which implements the given interface where one or more methods retrieve the data from the mockup. Optional filtering is supported, thus one of the method parameters is treated as the value to filter the mockup data by the given key field.
data lo_factory type ref to zcl_mockup_loader_stub_factory. data lo_ml type ref to zcl_mockup_loader. lo_ml = zcl_mockup_loader=>create( i_type = 'MIME' i_path = 'ZMOCKUP_LOADER_EXAMPLE' ). " <INIT YOUR MOCKUP> create object lo_factory exporting io_ml_instance = lo_ml i_interface_name = 'ZIF_MOCKUP_LOADER_STUB_DUMMY'. " <YOUR INTERFACE TO STUB> " Connect one or MANY methods to respective mockups lo_factory->connect_method( i_method_name = 'TAB_RETURN' " <METHOD TO STUB> i_mock_name = 'EXAMPLE/sflight' ). " <MOCK PATH> data li_ifstub type ref to ZIF_MOCKUP_LOADER_STUB_DUMMY. li_ifstub ?= lo_factory->generate_stub( ). " Pass the stub to code-under-test, the effect is: ... data lt_res type flighttab. lt_res = li_ifstub->tab_return( i_connid = '1000' ). " lt_res contains the mock data ...
... and with filtering
... lo_factory->connect_method( i_method_name = 'TAB_RETURN' " <METHOD TO STUB> i_sift_param = 'I_CONNID' " <FILTERING PARAM> i_mock_tab_key = 'CONNID' " <MOCK HEADER FIELD> i_mock_name = 'EXAMPLE/sflight' ). " <MOCK PATH> ...
This will result in the data set where key field
CONNID will be equal to
I_CONNID parameter actually passed to interface call.
- Structured addressing also supported, e.g.
- ranges also supported -
I_CONNIDabove can be a range parameter
changing parameters are supported. For more information see REFERENCE.md.
In addition, forwarding calls to another object (implementing same interface) is supported. For example if some of accessor methods must be connected to mocks and some others were implemented manually in a supporting test (or real production) class. See REFERENCE.md.
Finally, it is possible to return just one field of the first matching record e.g. Document type of a document selected by number. For this specify the field to return in
I_FIELD_ONLY param. See REFERENCE.md.
Generated stub instance implements
ZIF_MOCKUP_LOADER_STUB_CONTROL interface, which allows:
- temporarily enable/disable separate or all stubbed methods, which might be useful for some specific testing situations
- accessing to call counters (method was called X times)
- in plans: potentially, caching call parameters
Deep data loading
Available since v2.1.0.
If you have a target data with deep fields - tables or structures - it is possible to fill them in one run. Let's consider a simple example: assume you have 2 linked tables - header and lines - the tables are represented by separate files in zip.
DOCUMENT ======== ID DATE ... 1 ... 2 ... LINES ======== DOCID LINEID AMOUNT ... 1 1 100.00 ... 1 2 123.00 ... 2 1 990.00 ...
The target structure is:
types: begin of ty_line, docid type numc10, lineid type numc3, " ... end of ty_line, tt_line type table of ty_line, begin of ty_document, id type numc10, " ... lines type tt_line, " <<< DEEP FIELD, supposed to be filled with lines of the document end of ty_document. tt_documents type table of ty_document.
The following code will load this kind of structure
o_ml->load_data( exporting i_obj = 'path_to_head_file' i_deep = abap_true " <<< ENABLE DEEP LOADING importing e_container = lt_docs ). " <<< type tt_documents
To instruct mockup loader how to find the data for deep components you have to fill these components in the text in special format:
<source_path>[<source_id_field>=<value|@reference_field>] which means "go find
source_path file, parse it, extract the lines, filter those where
reference_field value of the current header record". For example:
DOCUMENT ======== ID DATE ... LINES 1 ... path_to_lines_file[docid=@id] 2 ... path_to_lines_file[docid=12345]
For the first record the mockup loader will find file
path_to_lines_file.txt and load the lines with
1 (value of
id field of the first record). For the second record the explicit value
12345 will be used as the filter.
Disclaimer: There is an opinion that adding test-related code to the production code is a 'code smell'. I sincerely agree in general. If the code was designed to use e.g. accessor interfaces from the beginning this is good. Still 'store' functionality can be useful for older pieces of code to be tested without much refactoring.
Some code is quite difficult to test when it has a db select in the middle. Of course, good code design would assume isolation of DB operations from business logic code, but it is not always possible (or was not done in proper time). So we needed to create a way to substitute selects in code to a simple call, which would take the prepared test data instead if test environment was identified. We came up with the solution we called
" Test class (o_mls is mockup_loader_STORE instance) ... o_mls->store( " Store some data with 'BKPF' label exporting i_name = 'BKPF' i_data = ls_bkpf ). " One line structure ... " Working class method ... if is_test_env = abap_false. " Production environment detected select ... from db ... else. " Test environment detected zcl_mockup_loader_store=>retrieve( exporting i_name = 'BKPF' importing e_data = ls_fi_doc_header exceptions others = 4 ). endif. if sy-subrc is not initial. " Data not selected -> do error handling endif.
In case of multiple test cases it can also be convenient to load a number of table records and then filter it based on some key field, available in the working code. This option is also possible:
" Test class ... o_mls->store( " Store some data with 'BKPF' label exporting i_name = 'BKPF' i_tabkey = 'BELNR' " Key field for the stored table i_data = lt_bkpf ). " Table with MANY different documents ... " Working class method ... if is_test_env = abap_false. " Production environment detected " Do DB selects here else. " Test environment detected zcl_mockup_loader_store=>retrieve( exporting i_name = 'BKPF' i_sift = l_document_number " <<< Filter key from real local variable importing e_data = ls_fi_doc_header " Still a flat structure here exceptions others = 4 ). endif. if sy-subrc is not initial. " Data not selected -> error handling endif.
As the final result we can perform completely dynamic unit tests, covering most of code, including DB select related code without actually accessing the database. Of course, it is not only the mockup loader which ensures that. This requires accurate design of the project code, separating DB selection and processing code. The mockup loader and "store" functionality makes it more convenient.
zcl_mockup_loader has a shortcut method
load_and_store to load data to the store directly without technical variables. For more information see REFERENCE.md.
Some design facts about the
- The store class
ZCL_MOCKUP_LOADER_STOREis designed as a singleton class. So it is initiated once in a test class and the exists in one instance only.
RETRIEVEmethod, which takes data from the "Store" is static. It is assumed to be called from "production" code instead of DB selects. It acquires the instance inside and throws non-class based exception on error. This is made to avoid the necessity to handle test-related exceptions, irrelevant to the main code, and also to be able to catch the exception as
SY-SUBRCcan be checked later similarly to regular DB select. So the interference with the main code is minimal.
The most convenient way to install the package is to use abapGit - it is easily installed itself and then a couple of click to clone the repo into the system. There is also an option for offline installation - download the repo as zip file and import it with abapGit. Unit test execution is always recommended after installation.
Dependencies (to install before mockup loader):
- text2tab - tab-delimited text parser (was a part of mockup loader but now a separate reusable tool). Mandatory prerequisite.
- abap_w3mi_poller - optional - enables 'Upload to MIME' button in
ZMOCKUP_LOADER_SWSRC. The mockup loader can be compiled without this package (the call is dynamic).
P.S. APACK manifest implementation is under consideration.
Load source redirection
Zipped mockups slug is supposed to be uploaded as a MIME object via SMW0. However, during data or test creation, it is more convenient (and faster) to read local file. In particular, not to upload 'draft' test data to the system.
i_path are the parameters to the
create method to define the 'normal' mockup source. To temporarily switch to another source you can use the transaction
ZMOCKUP_LOADER_SWSRC. It will initialize SET/GET parameters
ZMOCKUP_LOADER_SPATH(MIME) which will override defaults for the current session only.
- Type change in the selection screen immediately changes the parameters in session memory, no run is required ('enter' should be pressed though after manual text fields change to trigger
Get SU3reads param values from user master (useful when you work on the same project for some time)
Upload to MIMEuploads the file to MIME storage instead of going through
SMW0(the MIME object must exist)
- Saving variants is also convenient ;)
Conversion from Excel
You may have a lot of data prepared in Excel files. Many files, many sheets in each. Although Ctrl+C in Excel actually copies TAB-delimited text, which greatly simplifies the matter for minor cases, it is boring and time consuming to copy all the test cases to text. Here are special tools to simplify this workflow. Briefly: they take directory of excel files with mockup data and convert them into format compatible with mockup loader.
mockup compiler JS - java script implementation, requires nodejs environment at the developer's machine. This tool also make it possible to compile the target zip via continuous integration flows - so the test data in excel can be a part of source repository. (I'm planning a dedicated publication on this subject).
See EXCEL2TXT.md for more info.
Examples and Reference
- Complete reference of classes and methods can be found in REFERENCE.md.
- A simple example can be found in /src/zmockup_loader_example.prog.abap.
- Also see unit tests - these are the most up-to-date examples
- Have a look at the how-to section in the project Wiki.
You are welcomed to suggest ideas and code improvements ! :) Let's make ABAP development more convenient. Please kindly respect the code conventions
